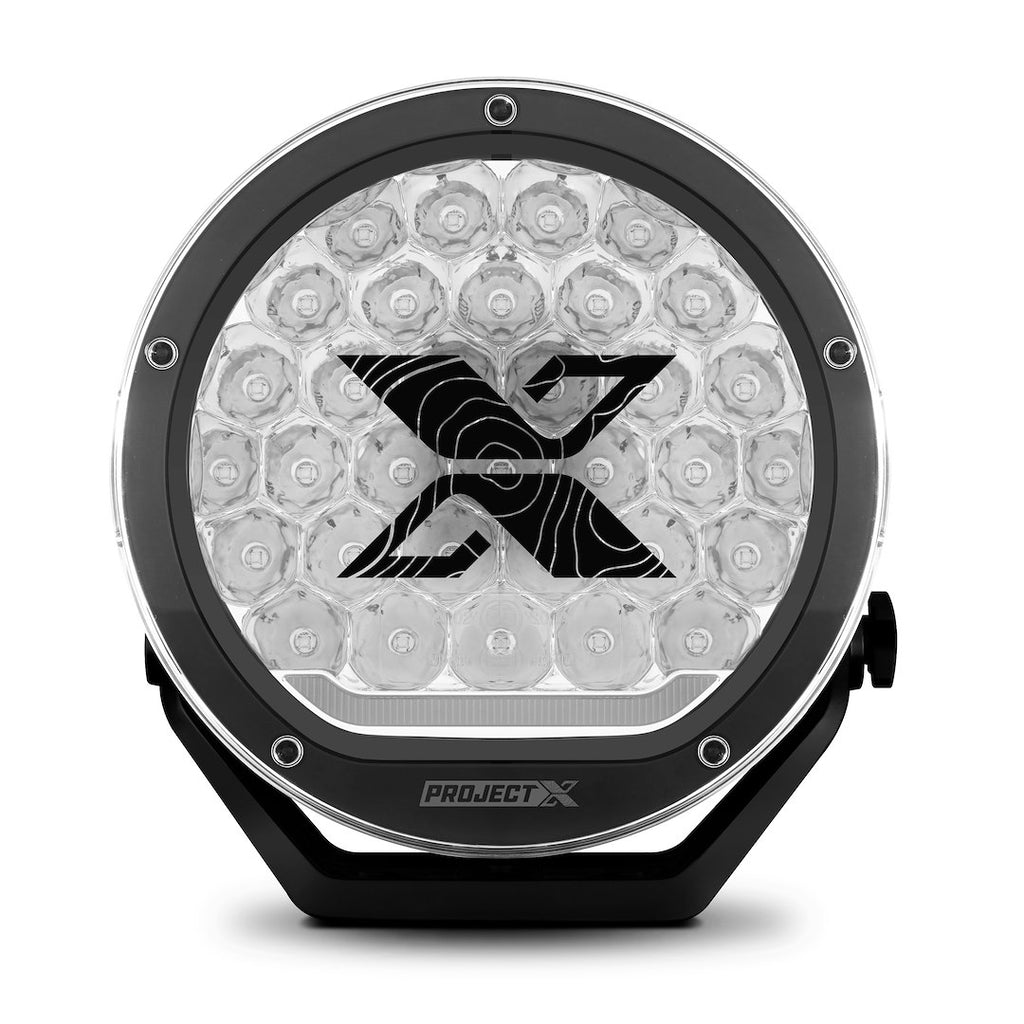

Project X Series X LED Driving Fog Light (MPN: AL538805-1)

High power LED lights engineered for superior visibility and performance.

The Project X Series X LED Driving Fog Light is designed to enhance visibility in challenging conditions. Utilizing advanced Osram LED technology, this light produces a powerful combo beam that effectively illuminates the path ahead. The integrated Active Thermal Management System ensures optimal performance and longevity, making it a reliable choice for off-road adventures and nighttime driving.

Constructed with a hard coated polycarbonate lens and a black pressure die-cast aluminum housing, this light is built to withstand harsh environments. The highly polished aluminum reflector is engineered with precisely scalloped parabolas, providing ultimate control over light distribution. Additionally, the signature built-in LED light pipe enhances daytime visibility, meeting ECE requirements for front position lighting.

With an impressive output of 21780 raw lumens and 15410 effective lumens, the Series X light is fully universal and features a customizable appearance with blue, red, and green inner trims. It is rated IP66 and IP67 for water and dust resistance, ensuring durability in various weather conditions. The surface mount design and included stainless steel mounting hardware facilitate straightforward installation.

Features

• Pressure Die-Cast Aluminum Housing
• High Power Osram-LEDs Produces Pure White Light
• Highly Polished Super-Efficient Aluminum Metalized Reflector Utilizing Precisely Scalloped Parabolas For Ultimate Control And Performance
• Signature Built-In LED Light Pipe Meets ECE Requirements For Front Position Light Improving Daytime Driving Visibility And Safety
• Hard Coated Polycarbonate Lens
• Customizable Appearance
• IP66 And IP67 Rated

Specifications

• Manufacturer: Project X
• Manufacturer Part Number: AL538805-1
• Shape: Round
• Beam Type: Combo Beam Flood And Spot
• Diameter: 8-1/2 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: White
• Quantity: Single
• Universality: Fully Universal
• Depth: 4-7/16 Inch
• Wattage: 165 Watt
• Voltage Rating: 12 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 14.4 Amp
• Lumens: 21780 Raw/ 15410 Effective Lumens
• Bulb Specifications: 33 OSRAM LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Die-Cast Aluminum
• Includes: With Blue/ Red And Green Inner Trims/ Stainless Steel Mounting Hardware Kit/ Wiring Pigtail
• Estimated Install Time (Hours): 1.5

Technical Documents

• AL538805-1_Install_Guide.pdf
