High-performance LED light with enhanced optics for superior visibility.

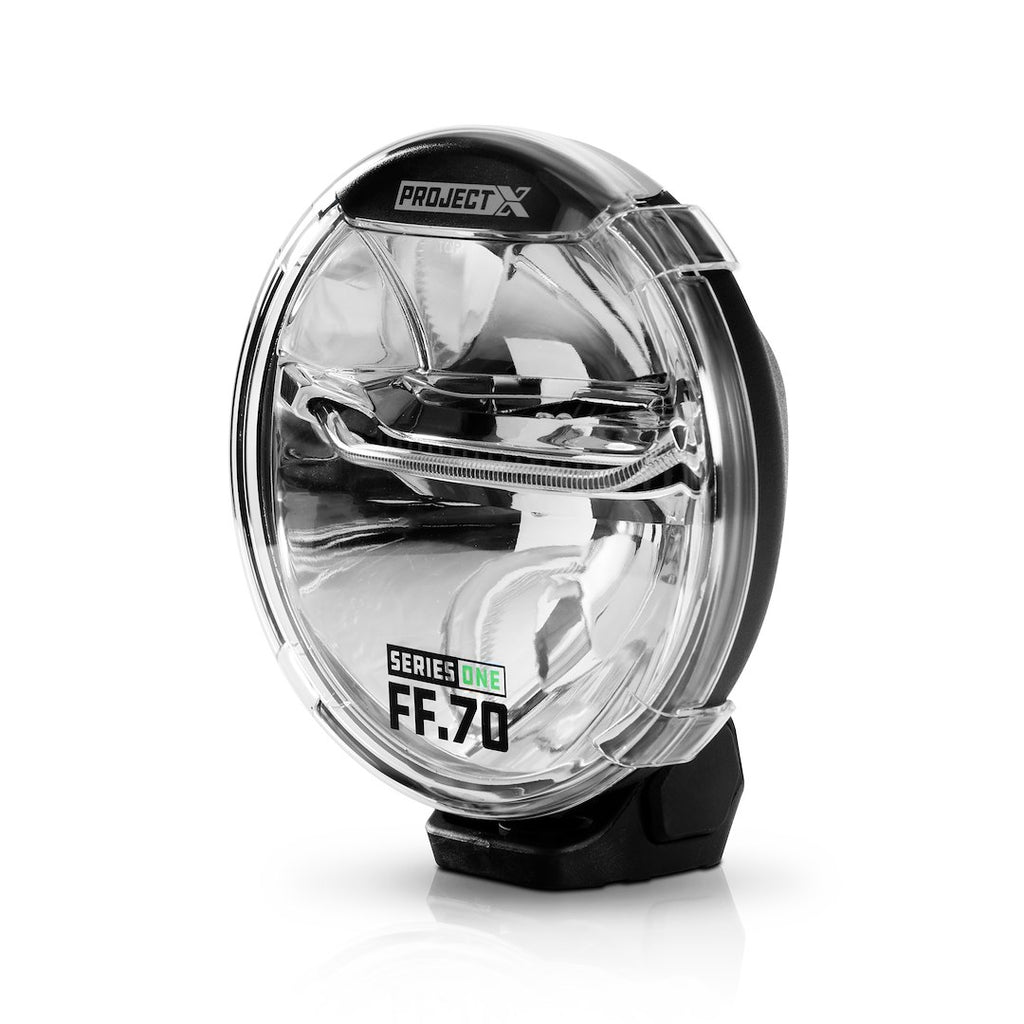

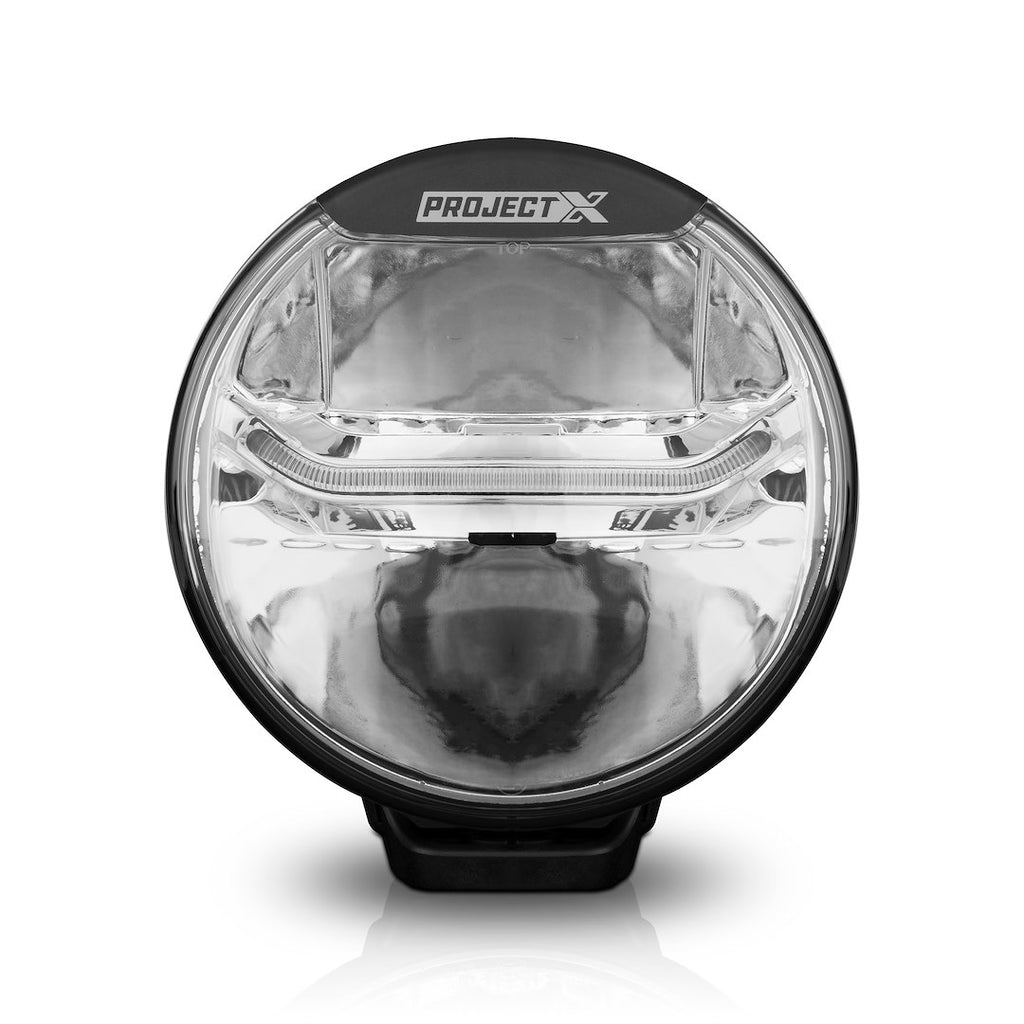

The Project X Series One LED Driving Fog Light is engineered to deliver exceptional illumination with its advanced free form optics. This 7-inch round light features two Cree LED bulbs that produce a powerful white light output, achieving 3800 raw lumens and 1663 effective lumens. The flood beam design ensures that light is focused where it is needed most, enhancing visibility during nighttime driving or adverse weather conditions.
Constructed with a hard coated polycarbonate clear lens and a black fiber reinforced polymer housing, this light is built to withstand harsh environments. The IP67 rating guarantees protection against dust and water, making it suitable for various applications. Additionally, the built-in LED light pipe meets ECE requirements, improving daytime visibility and safety.

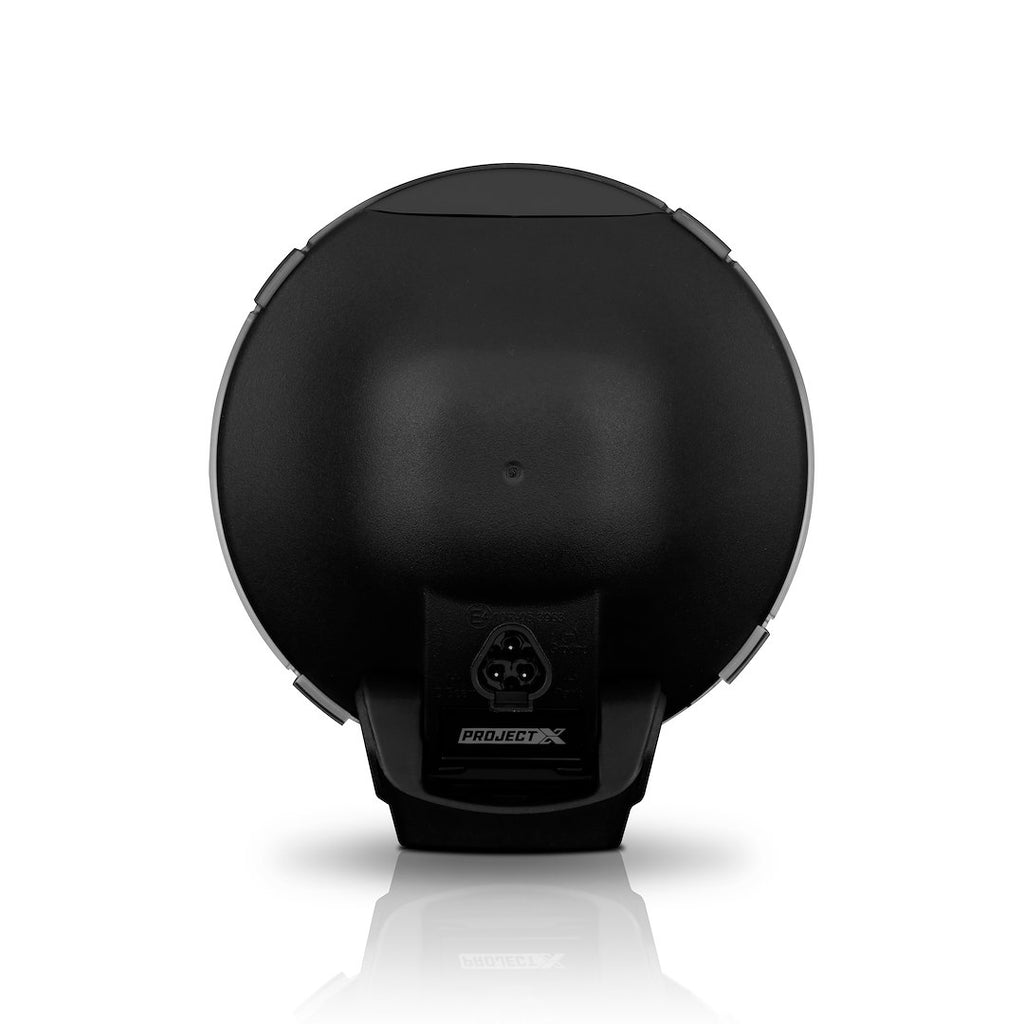

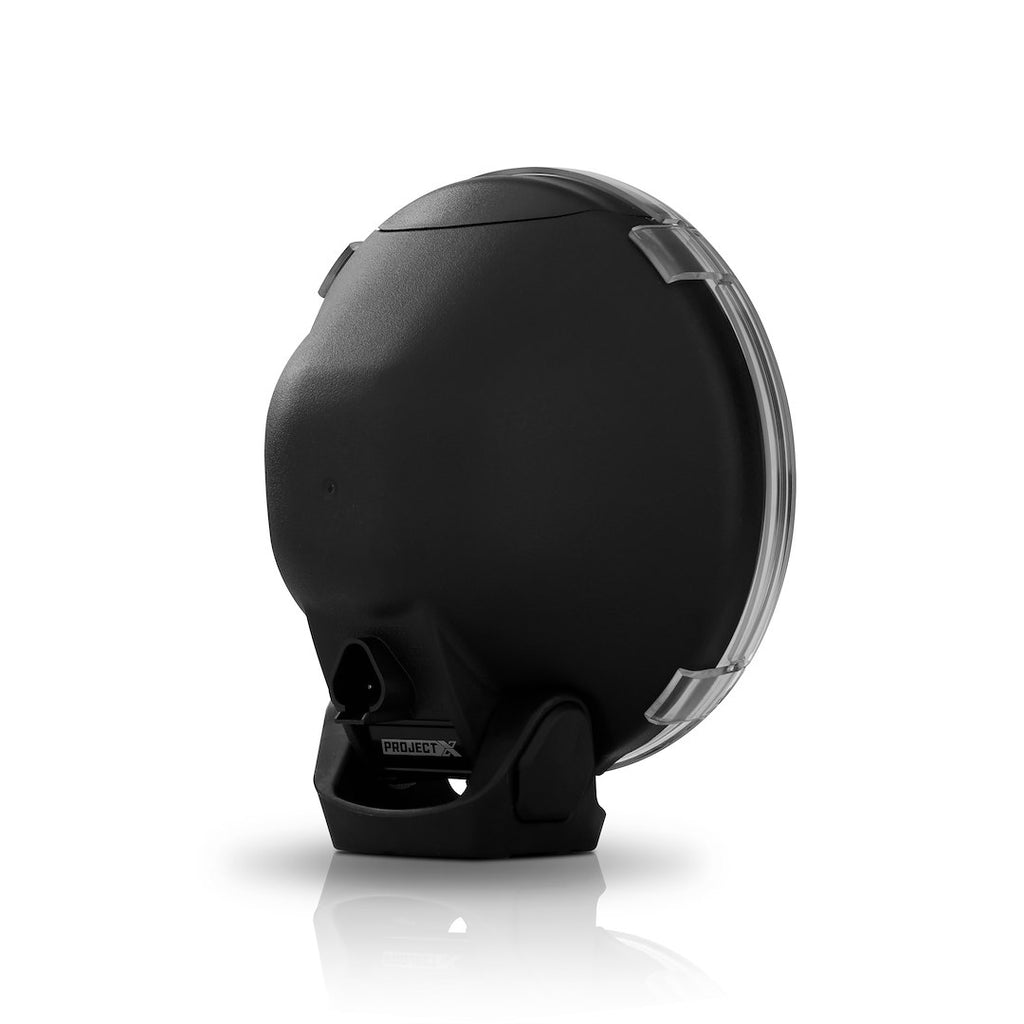

The Series One light is designed for surface mounting and includes a glare shield cap and wiring pigtail with a DT connector for easy installation. With a low amp draw of 3 amps at 12 volts, it is energy efficient while providing robust performance. This versatile light is fully universal, making it an excellent choice for a wide range of vehicles.
Features
- Fiber Reinforced Polymer Housing
- Enhanced Free Form "Optic Drive" Technology
- LED Chip Sets Produce An Extremely Efficient Yet Powerful White Light Output
- Series One's Unique Design Creates A Superior Optic In A Lightweight Package That Will Perform In Any Condition
- Signature Built-In LED Light Pipe Meets ECE Requirements For Front Position Light Improving Daytime Driving Visibility And Safety
- Hard Coated Polycarbonate Lens
- Customizable Appearance
- IP67 Rated
Specifications
- Manufacturer: Project X
- Manufacturer Part Number: AL538800-1
- Shape: Round
- Beam Type: Flood Beam
- Diameter: 7 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: White
- Quantity: Single
- Universality: Fully Universal
- Depth: 4-1/8 Inch
- Wattage: 30 Watt
- Voltage Rating: 12 Volt
- Mounting Style: Surface Mount
- Ampere Rating At 12 Volts: 3 Amp
- Lumens: 3800 Raw/ 1663 Effective Lumens
- Bulb Specifications: 2 CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Fiber Reinforced Polymer
- Includes: With Glare Shield Cap And Wiring Pigtail With DT Connector
- Estimated Install Time (Hours): 1.5
