Efficient AC/DC power distribution with advanced features and design.

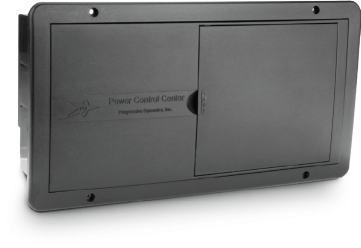

The Progressive Dynamics Power Distribution Box is designed for efficient management of AC and DC power in various electrical installations. This 5000 Series panel supports a 30 Ampere rating at 120 Volts AC, making it suitable for a range of applications. Constructed from impact-resistant high-temperature polymers, the lightweight design ensures durability while maintaining an attractive appearance.
This power distribution center features a high current 12 Volt DC input power terminal strip, providing a convenient connection point for batteries and converters. The generous wiring space allows for easy installation, significantly reducing the risk of costly wiring errors. Additionally, the panel accepts rated fuses up to 30 Amperes, eliminating the need for auxiliary fuse panels, which can lead to further cost savings.
Each branch circuit is equipped with built-in wire strain relief, enhancing the overall reliability of the installation. This feature not only simplifies the setup process but also contributes to a reduction in installation costs by over 50 percent. The Progressive Dynamics Power Distribution Box is a practical solution for those seeking a reliable and efficient power distribution system.
Features
- Attractive Light Weight Panel Design Made From Black Or Brown Impact-Resistant High Temperature Polymers
- High Current 12 Volt DC Input Power Terminal Strip Provides Easy Connection Point For Battery And Converter
- Generous Wiring Space For Easy Installation– Also Reduces Costly Wiring Errors
- Accepts Rated Fuses Up To 30 Ampere – Eliminates Auxiliary Fuse Panels For Slide-Outs And Leveling Jacks Saving You Even More Money
- Built-In Wire Strain Relief For Each Branch Circuit. Saves Over 50 Percent On Installation Costs
Specifications
- Manufacturer: Progressive Dynamics
- Manufacturer Part Number: PD50K3Q2GP
- Recommended Use: AC/ DC Power Distribution Center
- Voltage Rating: 120 Volts AC
- Power Rating: 30 Ampere
- Length (IN): 4 Inch
- Width (IN): 13.4 Inch
- Height (IN): 7.1 Inch
- Color: Black
- Material: Plastic
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
