Efficiently converts AC to DC with advanced protection features.

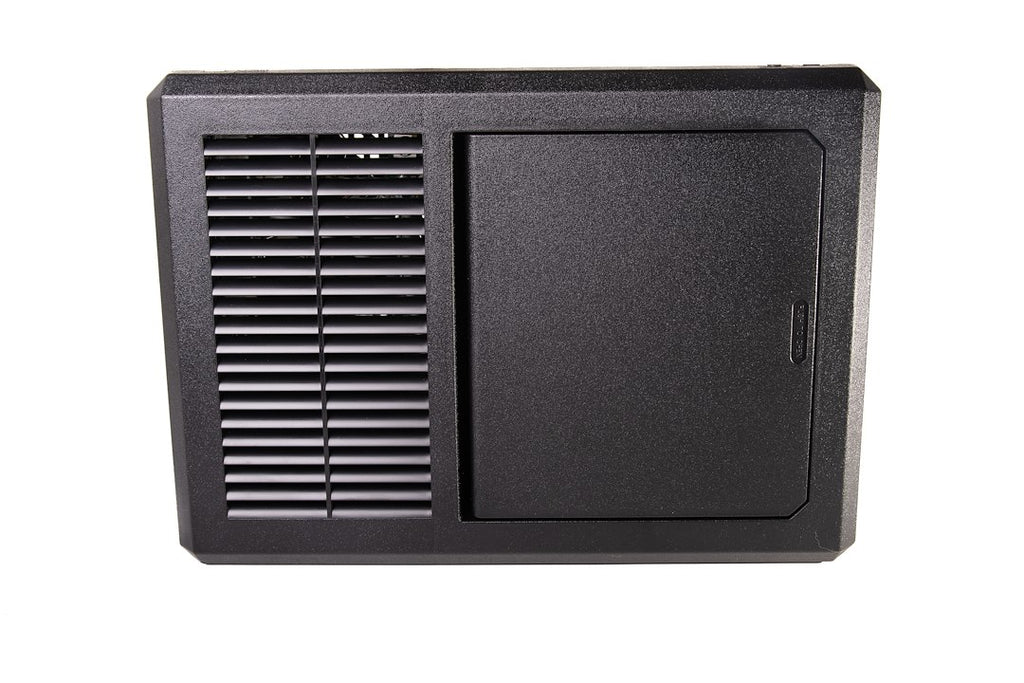

The Progressive Dynamics Power Converter is designed to convert 105 to 130 Volt AC into a stable 13.6 Volt DC output, providing a continuous power output of 1000 watts and a maximum current of 60 amps. This unit operates with an efficiency rating of 80 percent, ensuring minimal energy loss during the conversion process. It features a built-in microprocessor-controlled four-stage charger, which optimizes battery charging for both lithium and lead-acid batteries, enhancing battery life and performance.
The converter includes an AC distribution panel capable of supporting up to seven branch circuits, rated for 120 Volt AC at 30 Amperes. Additionally, the DC section is equipped with 12 branch fuse holders, accommodating two 30 Ampere fuses and ten additional fuses rated at 20 Amperes each. Safety features such as reverse battery protection, thermal protection, and a reverse battery blown fuse indicator are integrated to prevent damage and ensure reliable operation.
With dimensions of 7-1/4 inches in length, 12-1/4 inches in width, and 8-7/8 inches in height, the converter is designed for easy access to its components. The front-accessible design allows for straightforward maintenance and monitoring of circuit breakers. The intelligent variable speed cooling fan and automatic thermal protection further enhance the unit's reliability, making it suitable for various applications in RV, marine, and specialty industries.
Features
- The Converter Section Is Easily Accessible From The Front
- AC Distribution Panel Is Rated For 120 Volt AC @ 30 Ampere With Up To 7 Branch Circuits
- DC Section Has 12 Branch Fuse Holders, Two Wired To Accommodate 30 Ampere Fuses, Ten More With A Maximum Rating Of 20 Ampere Each
- Reverse Battery Blown Fuse Indicator
- Exclusive DC Disconnect Tie In
- Reverse Battery Protection And Electronic Current Limiting
- High And Low AC Input Protection
- Intelligent, Variable Speed, Cooling Fan And Automatic Thermal Protection
- Press Open Door For Easy Access To Circuit Breakers And Front Access To Large Wiring Compartment
Specifications
- Manufacturer: Progressive Dynamics
- Manufacturer Part Number: PD4060KV
- Converts: 105-130 Volt AC To 13.6 Volt DC
- Continuous Output Power: 1000 Watt
- Peak Output Power: 1000 Watt
- Ampere Rating: 60 Amp
- Number Of Outlets: 1
- Efficiency: 80 Percent
- Length: 7-1/4 Inch
- Width: 12-1/4 Inch
- Height: 8-7/8 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: No
- With Short Circuit: No
- With Reverse Battery Protection: Yes
- With Thermal Protection: Yes
- With Battery Cables: No
- With Built-In Charger: Yes
- With Fuse: Yes
