Efficiently converts AC to DC with advanced protection features.

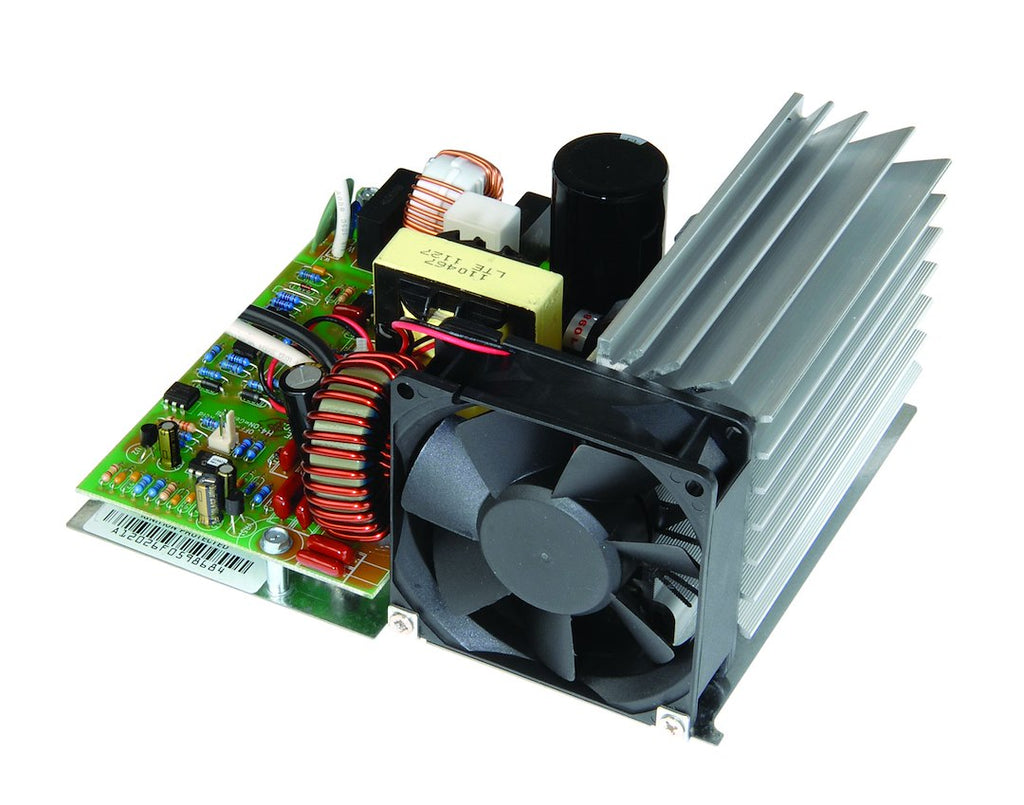

The Progressive Dynamics Power Converter is designed to convert 105 to 130 Volt AC into a stable 13.6 Volt DC output, providing a continuous power output of 725 watts and a maximum output of 60 amps. This unit features an 80 percent efficiency rating, ensuring minimal energy loss during operation. The converter section is easily accessible from the front, allowing for straightforward maintenance and adjustments.
This power converter includes a robust AC distribution panel rated for 120 Volt AC at 30 amperes, accommodating up to seven branch circuits. The DC section is equipped with twelve branch fuse holders, with two designed for 30 ampere fuses and ten rated for 20 amperes each. Enhanced safety features include reverse battery protection, thermal protection, and an intelligent variable speed cooling fan to prevent overheating.
The design also incorporates a reverse battery blown fuse indicator and an exclusive DC disconnect tie-in, ensuring reliable operation in various conditions. With dimensions of 7-1/4 inches in length, 12-1/4 inches in width, and 8-7/8 inches in height, this power converter is compact yet powerful, making it suitable for RV, marine, and specialty applications.
Features
- The Converter Section Is Easily Accessible From The Front
- AC Distribution Panel Is Rated For 120 Volt AC @ 30 Ampere With Up To 7 Branch Circuits
- DC Section Has 12 Branch Fuse Holders, Two Wired To Accommodate 30 Ampere Fuses, Ten More With A Maximum Rating Of 20 Ampere Each
- Reverse Battery Blown Fuse Indicator
- Exclusive DC Disconnect Tie In
- Reverse Battery Protection And Electronic Current Limiting
- High And Low AC Input Protection
- Intelligent, Variable Speed, Cooling Fan And Automatic Thermal Protection
- Press Open Door For Easy Access To Circuit Breakers And Front Access To Large Wiring Compartment
Specifications
- Manufacturer: Progressive Dynamics
- Manufacturer Part Number: PD4060CSV
- Converts: 105-130 Volt AC To 13.6 Volt DC
- Continuous Output Power: 1000 Watt
- Peak Output Power: 1000 Watt
- Ampere Rating: 60 Amp
- Number Of Outlets: 1
- Efficiency: 80 Percent
- Length: 7-1/4 Inch
- Width: 12-1/4 Inch
- Height: 8-7/8 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: No
- With Short Circuit: No
- With Reverse Battery Protection: Yes
- With Thermal Protection: Yes
- With Battery Cables: No
- With Built-In Charger: Yes
- With Fuse: Yes
