Efficiently converts AC to DC with advanced charging features.

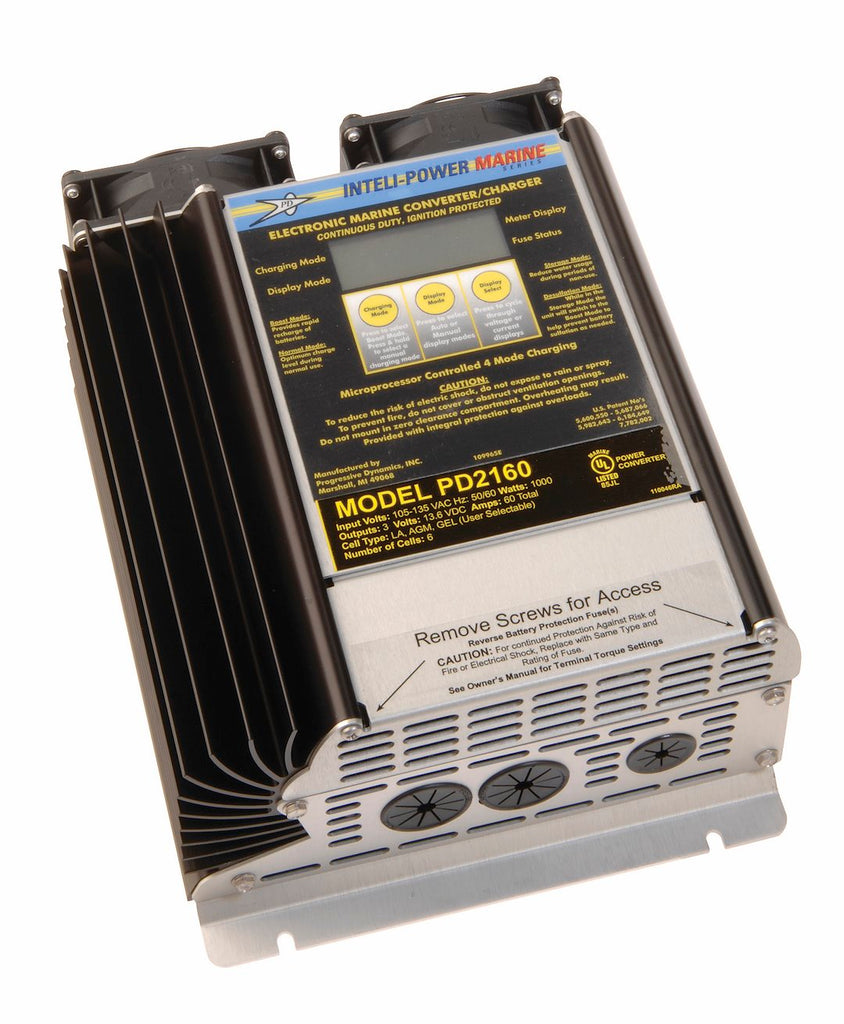

The Progressive Dynamics Power Converter is designed to convert 105 to 130 Volt AC to 13.9 Volt DC, providing a continuous output of 1000 Watts and 60 Amps. This unit features an 80 percent efficiency rating, ensuring minimal energy loss during operation. The built-in microprocessor-controlled four-stage charging system optimizes battery charging by automatically selecting from Boost, Normal, Storage, or Equalize modes based on the battery's voltage level. This ensures rapid recharge times and extends battery life by preventing issues such as stratification and sulfation.
Equipped with three diode isolated outputs, the converter can charge three separate banks of batteries simultaneously. Safety features include reverse battery protection, over and under voltage protection, and electronic current limiting to prevent overheating and damage from shorts or excessive loads. The variable speed intelligent cooling fan operates only as needed, maintaining a stable operating temperature within the unit.
The Progressive Dynamics Power Converter is also programmable in the field, allowing users to customize charging profiles for various battery types, including lead-acid, gel-cell, or AGM batteries. With automatic thermal protection, the converter reduces output to safe levels when temperatures exceed preset limits, ensuring reliable performance and longevity.
Features
- Four-Stage Charging System: Microprocessor Constantly Monitors Battery Voltage And Automatically Selects One Of The Four Charging Modes: Boost, Normal, Storage Or Equalize
- 3 Diode Isolated Outputs: Allows The Converter Or Charger To Charge Three Separate Banks Of Batteries
- Reverse Battery Protection: Prevents Converter Or Charger From Being Damaged If The Batteries Are Accidentally Connected To The Charger In Reverse
- Over And Under Voltage Protection: Prevents High Voltage Spikes And Brownouts From Damaging The Converter Or Charger
- Electronic Current Limiting: Limits The Output Current To The Maximum Rating Of The Charger To Prevent Over Heating And Damage Caused By Shorts Or Excessive Loads
- Variable Speed Intelligent Cooling Fan: Only Runs As Fast As Required To Maintain A More Constant Operating Temperature Inside The Converter Or Charger
- Programmable In The Field: PD2100 Series InteliPower Converter Or Chargers Are Programmable In The Field To Provide Optimum Charging Profiles For Lead-Acid, Gel-Cell Or AGM Batteries
- Automatic Thermal Protection: Reduces Converter Output To Safe Levels When Unit Temperature Exceeds Pre-Set Limits And Protects Converter From Damage Due To Excessive Heat
- Series Or Parallel Connection: Inteli-Power Converter Or Chargers Can Be Connected In Series To Provide A Combination 12/24 Volt System Or In Parallel To Provide More Current
Specifications
- Manufacturer: Progressive Dynamics
- Manufacturer Part Number: PD2160V
- Converts: 105-130 Volt AC To 13.9 Volt DC
- Continuous Output Power: 1000 Watt
- Ampere Rating: 60 Amp
- Number Of Outlets: 3
- Efficiency: 80 Percent
- Length: 11 Inch
- Width: 7-3/4 Inch
- Height: 4-1/4 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: Yes
- With Short Circuit: No
- With Reverse Battery Protection: Yes
- With Thermal Protection: Yes
- With Battery Cables: No
- With Built-In Charger: Yes
- With Fuse: Yes
