Advanced microprocessor-controlled charging for reliable power management.

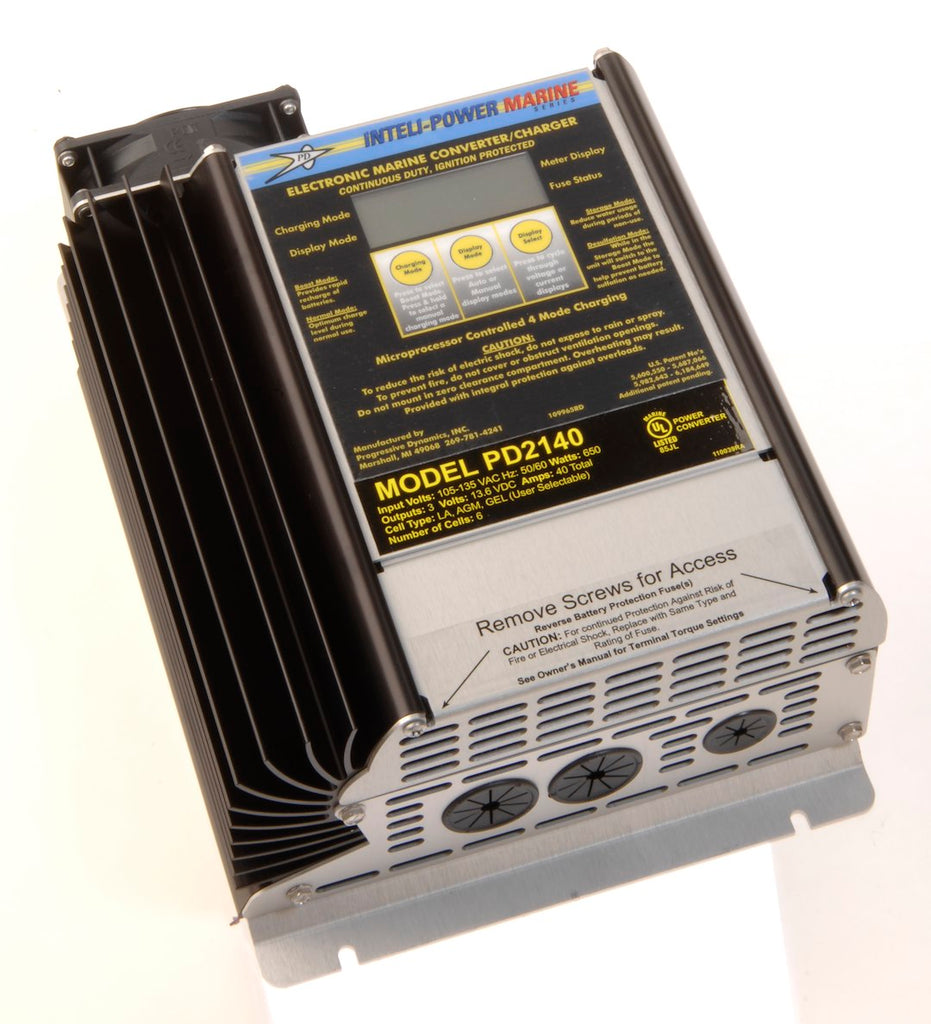

The Progressive Dynamics Power Converter is designed to convert 105 to 130 Volt AC to 13.9 Volt DC, providing a continuous output of 650 Watts and 40 Amps. This unit features an efficient 80 percent performance rating, ensuring optimal energy use. The built-in microprocessor-controlled four-stage charging system enhances battery life by automatically selecting the appropriate charging mode based on battery voltage. Modes include Boost, Normal, Storage, and Equalize, each tailored to maintain battery health and performance.
Equipped with three diode isolated outputs, this converter allows for simultaneous charging of three separate battery banks. Safety features include reverse battery protection, over and under voltage protection, and electronic current limiting to prevent overheating and damage. The variable speed intelligent cooling fan operates only as needed, maintaining a stable operating temperature.
The Progressive Dynamics Power Converter is also programmable in the field, accommodating various battery types such as lead-acid, gel-cell, or AGM. With automatic thermal protection, the unit reduces output to safe levels when temperatures exceed preset limits, ensuring longevity and reliability. Its compact dimensions of 11 inches in length, 7.75 inches in width, and 4.25 inches in height make it suitable for various applications.
Features
- Four-Stage Charging System: Microprocessor Constantly Monitors Battery Voltage And Automatically Selects One Of The Four Charging Modes: Boost, Normal, Storage Or Equalize
- 3 Diode Isolated Outputs: Allows The Converter Or Charger To Charge Three Separate Banks Of Batteries
- Reverse Battery Protection: Prevents Converter Or Charger From Being Damaged If The Batteries Are Accidentally Connected To The Charger In Reverse
- Over And Under Voltage Protection: Prevents High Voltage Spikes And Brownouts From Damaging The Converter Or Charger
- Electronic Current Limiting: Limits The Output Current To The Maximum Rating Of The Charger To Prevent Over Heating And Damage Caused By Shorts Or Excessive Loads
- Variable Speed Intelligent Cooling Fan: Only Runs As Fast As Required To Maintain A More Constant Operating Temperature Inside The Converter Or Charger
- Programmable In The Field: PD2100 Series InteliPower Converter Or Chargers Are Programmable In The Field To Provide Optimum Charging Profiles For Lead-Acid, Gel-Cell Or AGM Batteries
- Automatic Thermal Protection: Reduces Converter Output To Safe Levels When Unit Temperature Exceeds Pre-Set Limits And Protects Converter From Damage Due To Excessive Heat
- Series Or Parallel Connection: Inteli-Power Converter Or Chargers Can Be Connected In Series To Provide A Combination 12/24 Volt System Or In Parallel To Provide More Current
Specifications
- Manufacturer: Progressive Dynamics
- Manufacturer Part Number: PD2140V
- Converts: 105-130 Volt AC To 13.9 Volt DC
- Continuous Output Power: 650 Watt
- Ampere Rating: 40 Amp
- Number Of Outlets: 3
- Efficiency: 80 Percent
- Length: 11 Inch
- Width: 7-3/4 Inch
- Height: 4-1/4 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: Yes
- With Short Circuit: No
- With Reverse Battery Protection: Yes
- With Thermal Protection: Yes
- With Battery Cables: No
- With Built-In Charger: Yes
- With Fuse: Yes
