Revolutionary design for efficient engine cooling and space-saving installation.

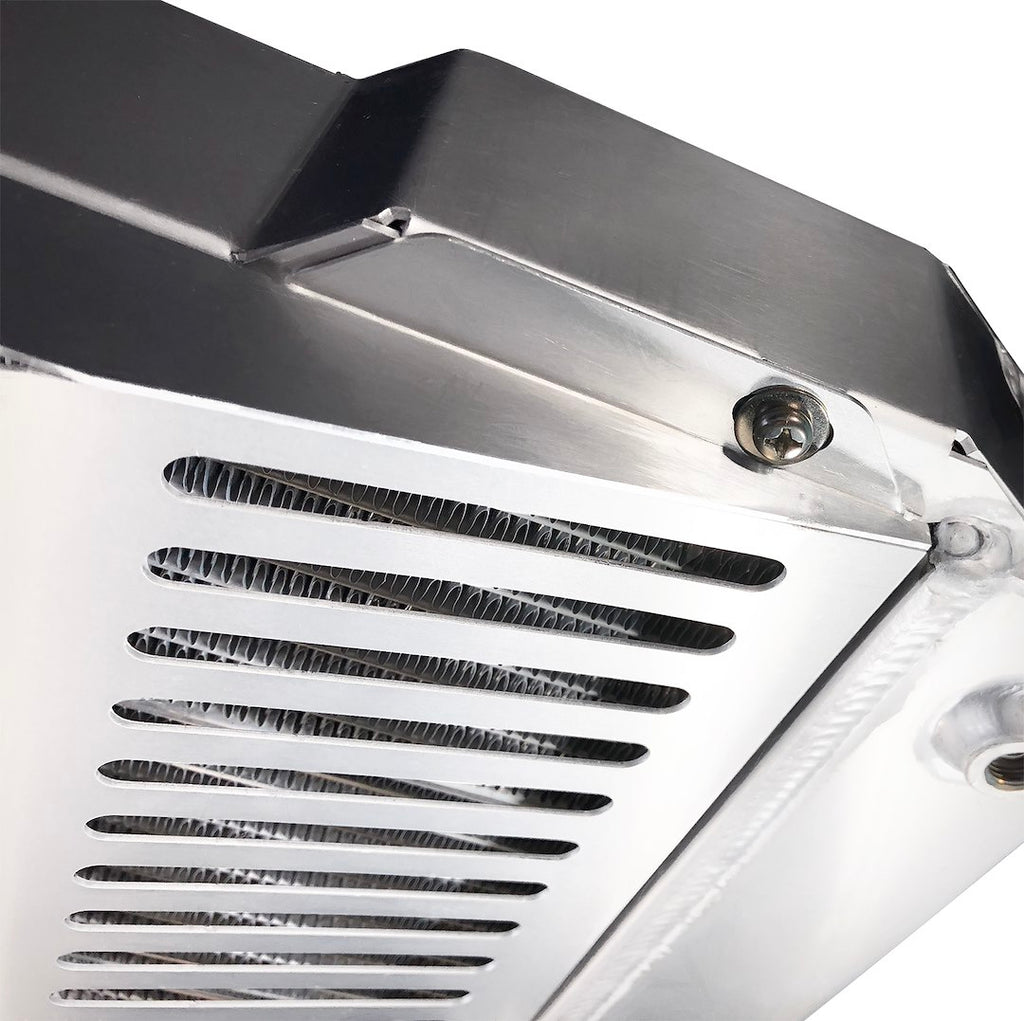

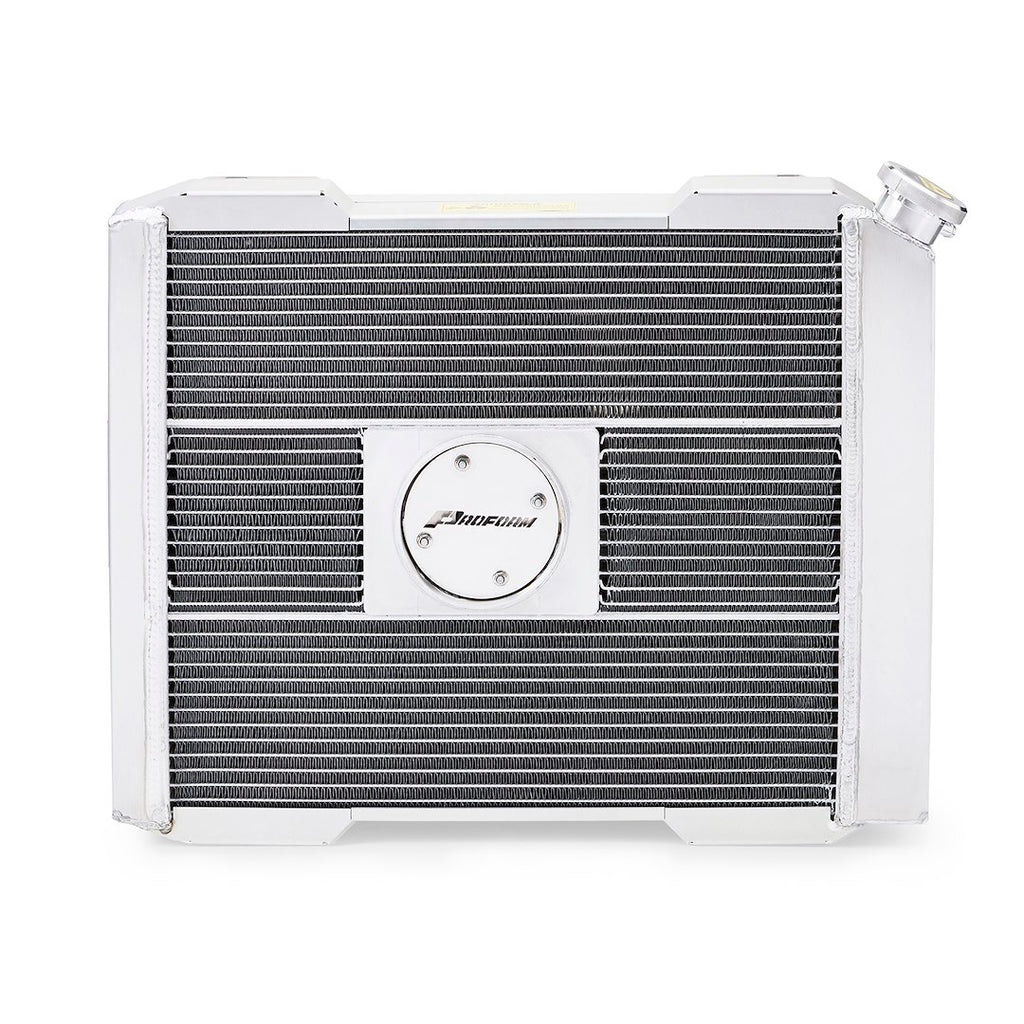

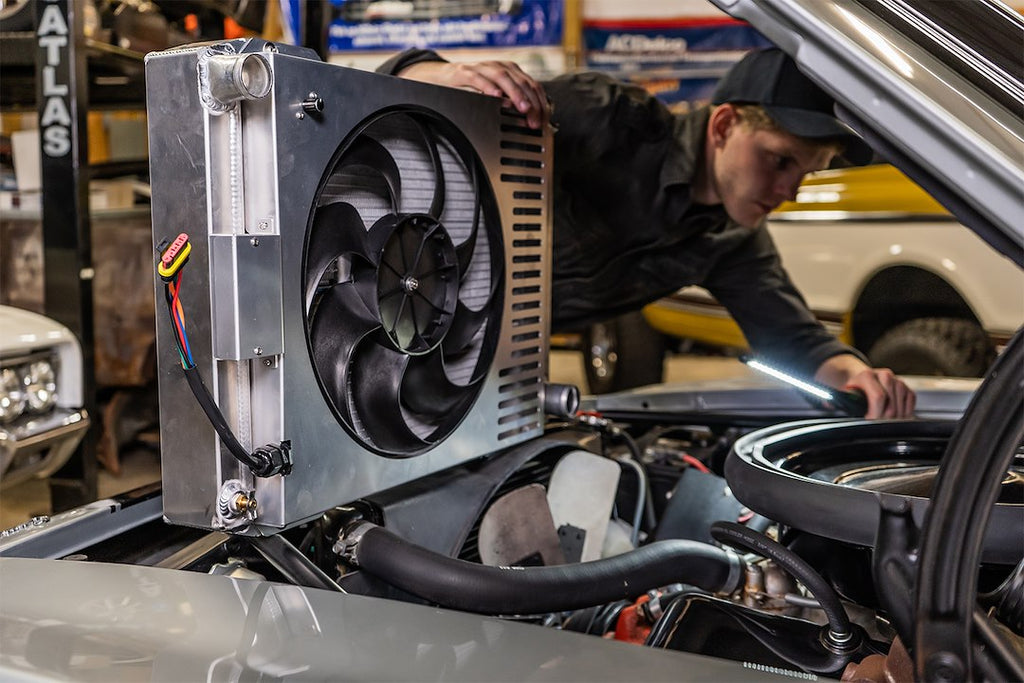

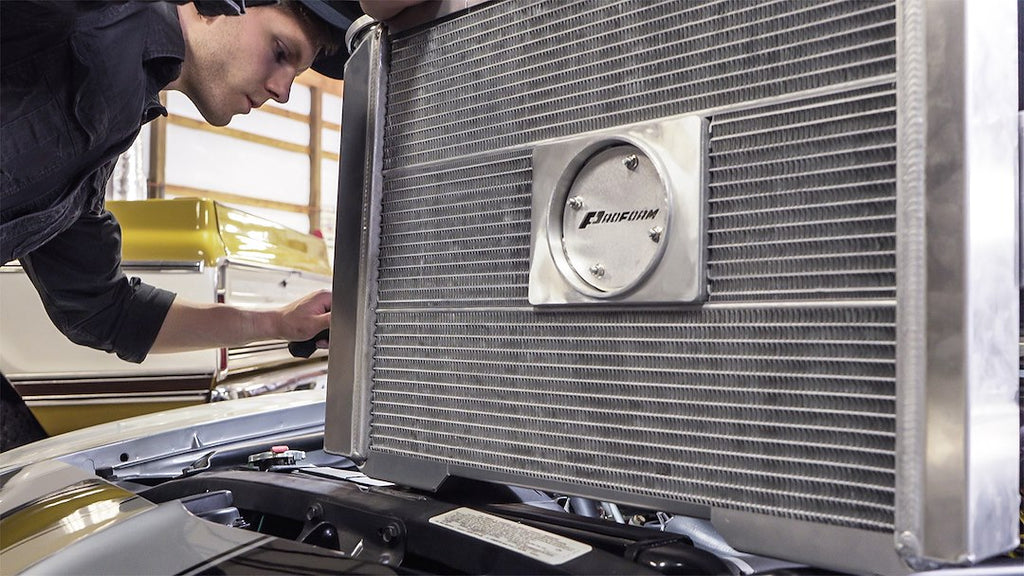

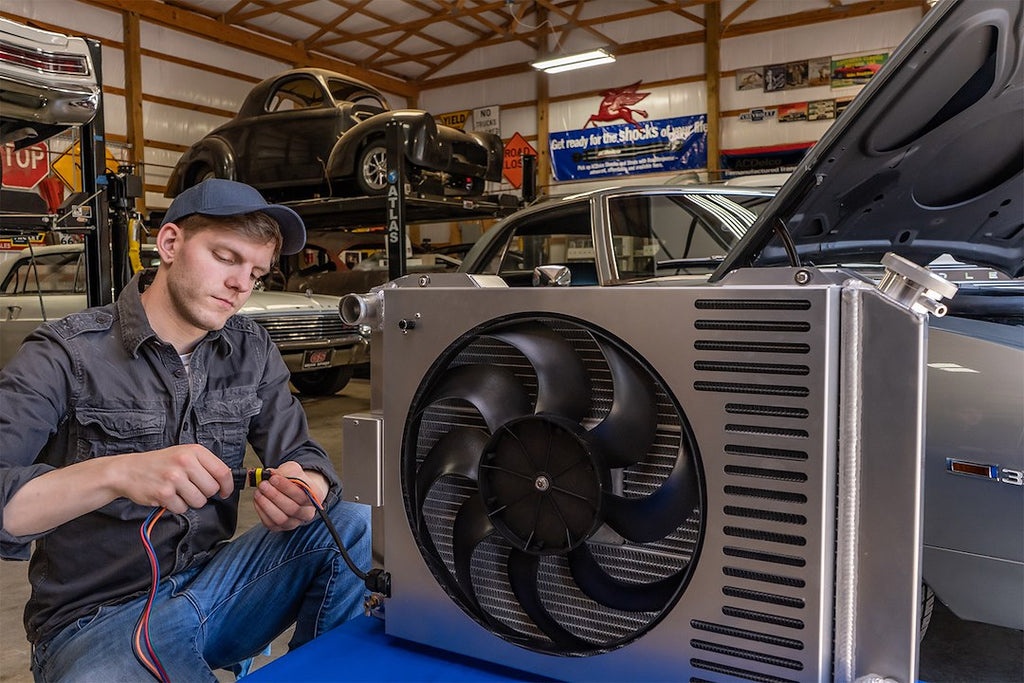

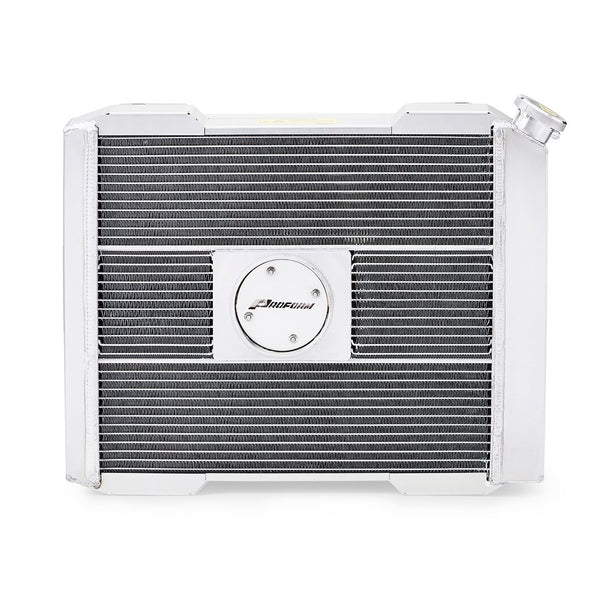

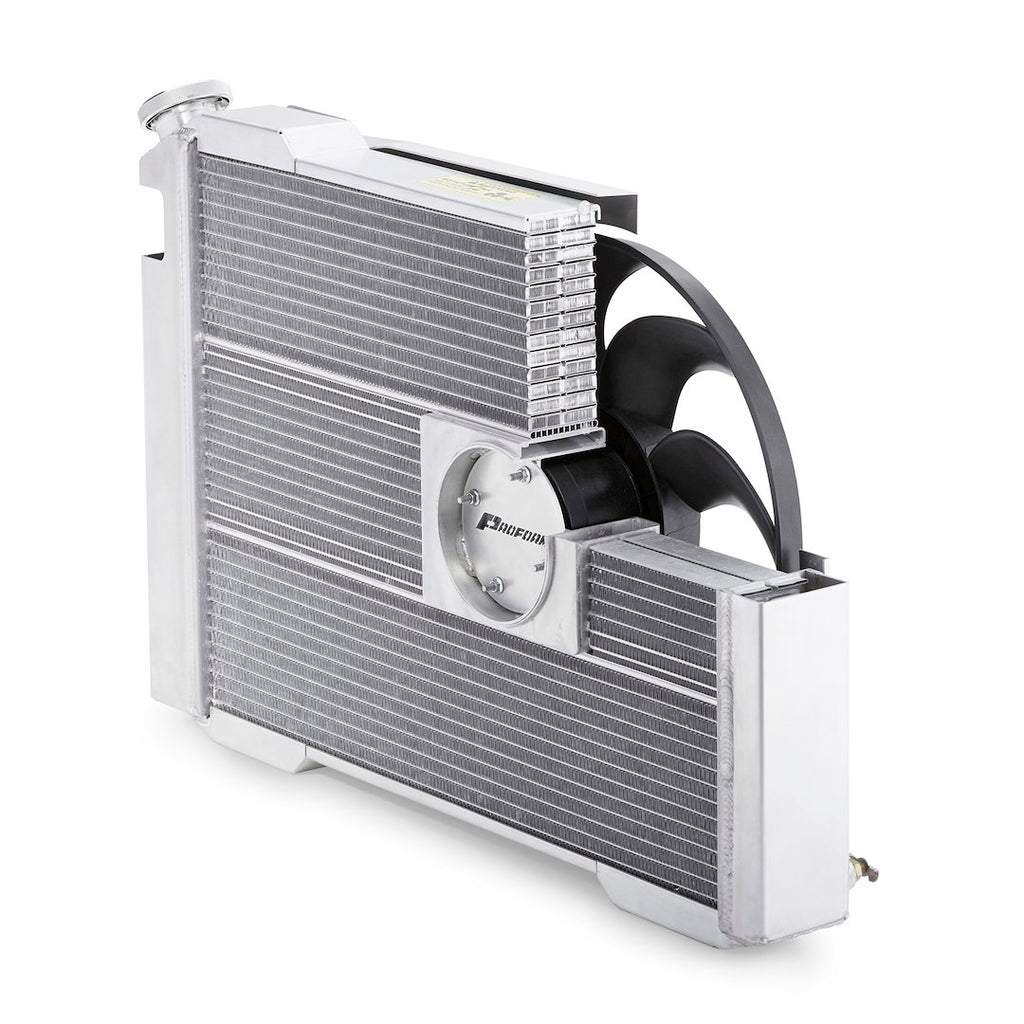

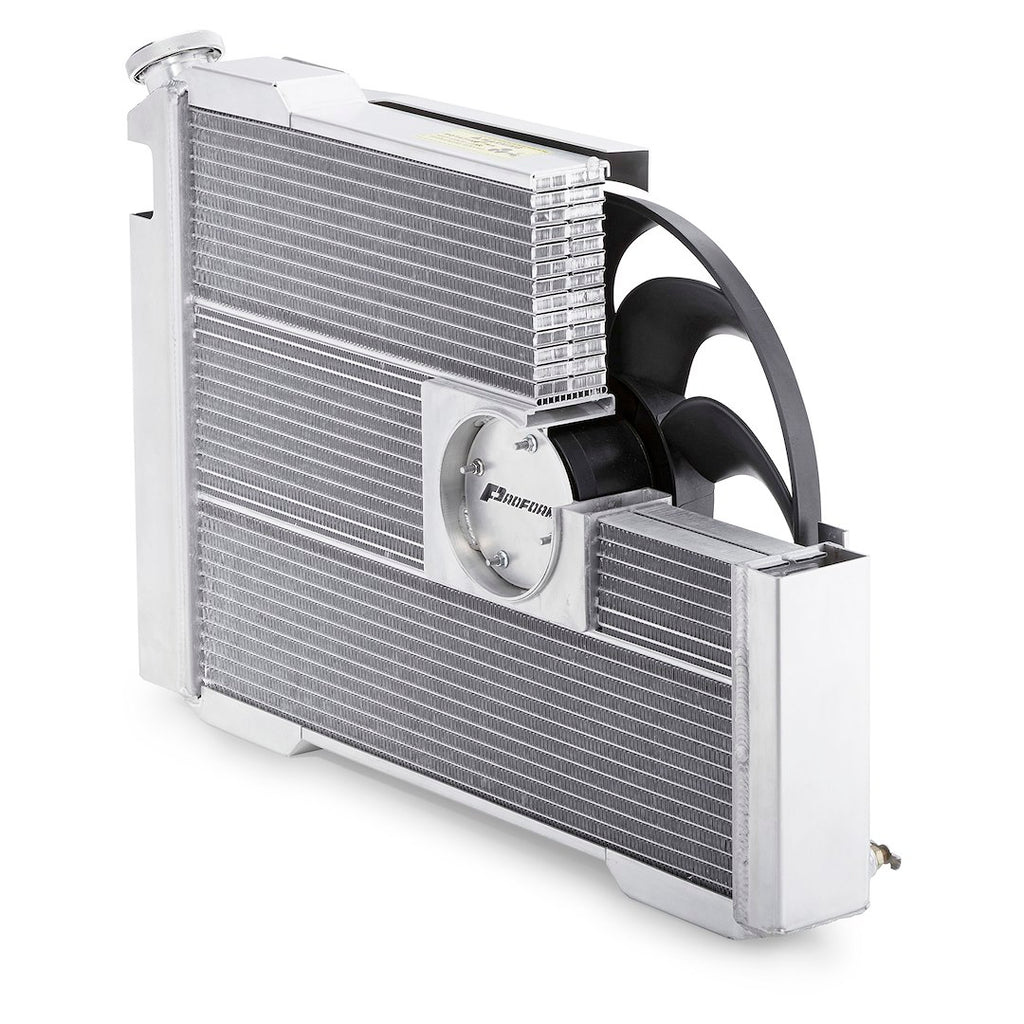

The Proform Slim Fit Radiator System represents a significant advancement in automotive cooling technology. Designed to optimize engine performance, this radiator features 100 percent fabricated aluminum tanks and hybrid extruded tube core technology, ensuring durability and efficiency. The integrated radiator, shroud, and fan system streamline installation, eliminating the need for multiple components that can consume valuable under-hood space.

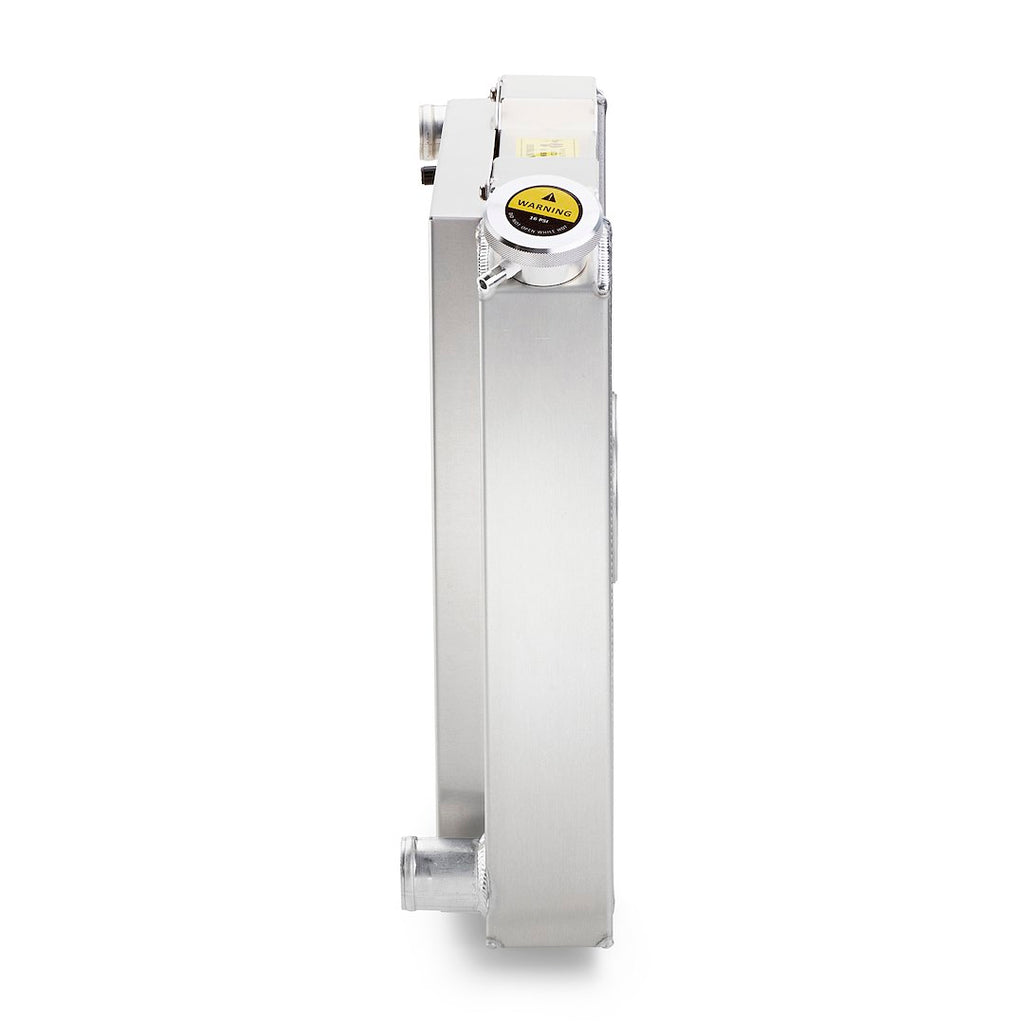

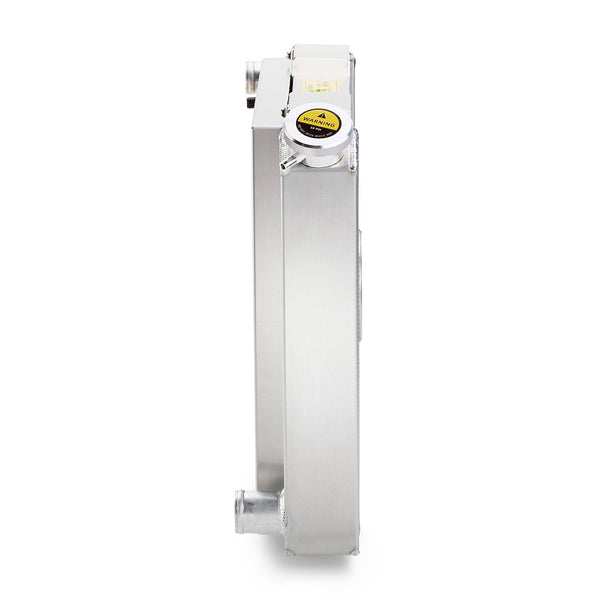

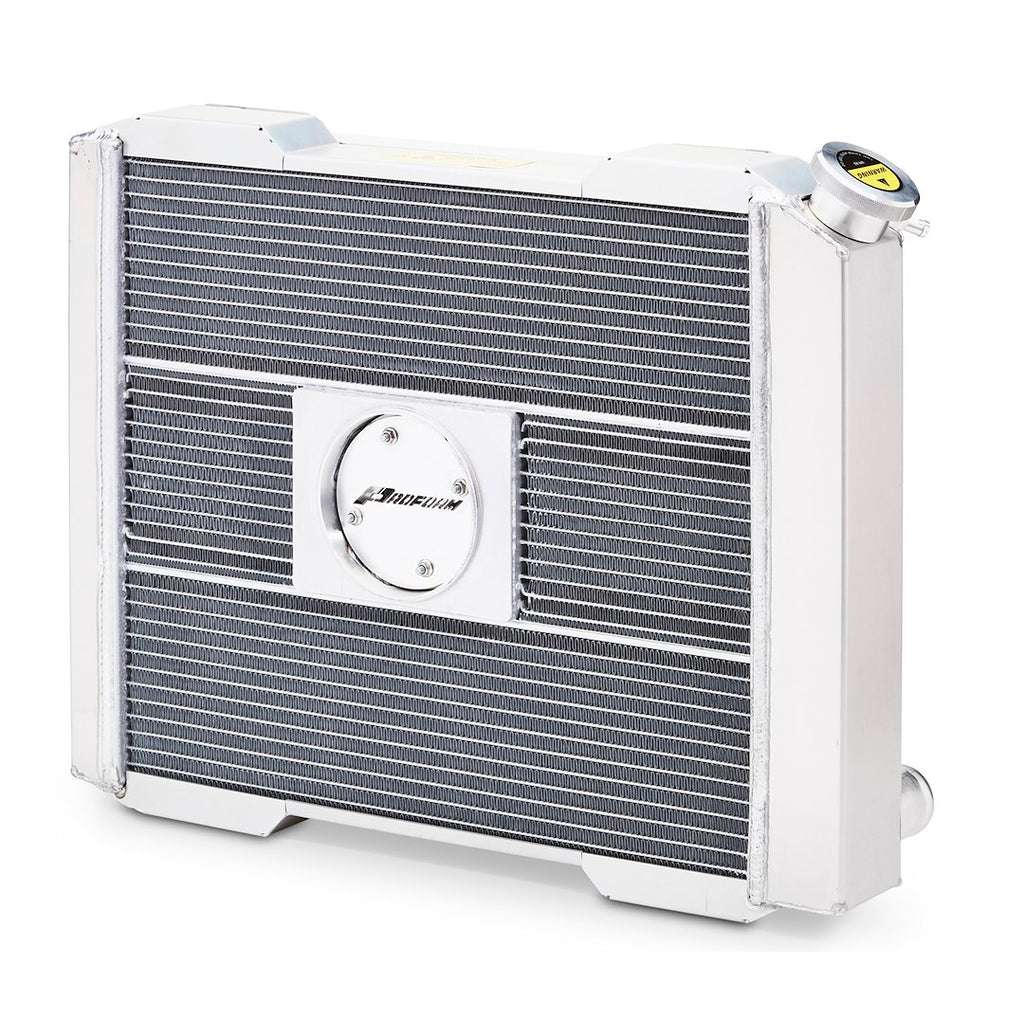

With a crossflow design, the Proform radiator measures 23.4 inches in length and 18.5 inches in height, making it suitable for a variety of applications. The aluminum construction not only enhances heat dissipation but also contributes to a lightweight design. The high capacity overflow tube and billet aluminum filler neck further improve the system's functionality, providing reliable cooling under demanding conditions.
This radiator is engineered with precision, featuring a core with two rows and a depth of 2.4 inches, which maximizes cooling efficiency. The inlet and outlet hose locations are strategically positioned for optimal flow, ensuring that your engine maintains the ideal operating temperature. The natural aluminum finish adds a sleek look while maintaining the structural integrity of the radiator.
Features
- 100 Percent Fabricated Aluminum Tanks
- Hybrid Extruded Tube Core Technology

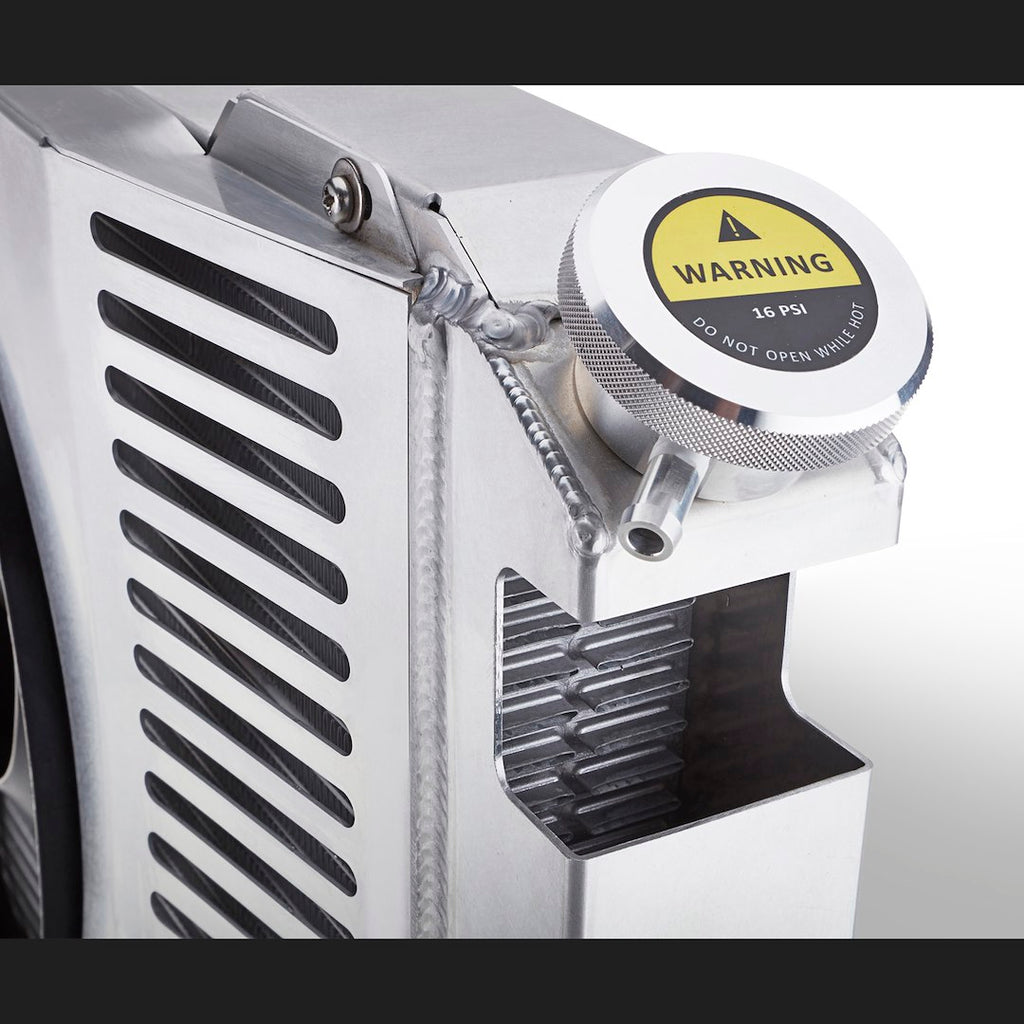

- Billet Aluminum Filler Neck
- High Capacity Overflow Tube

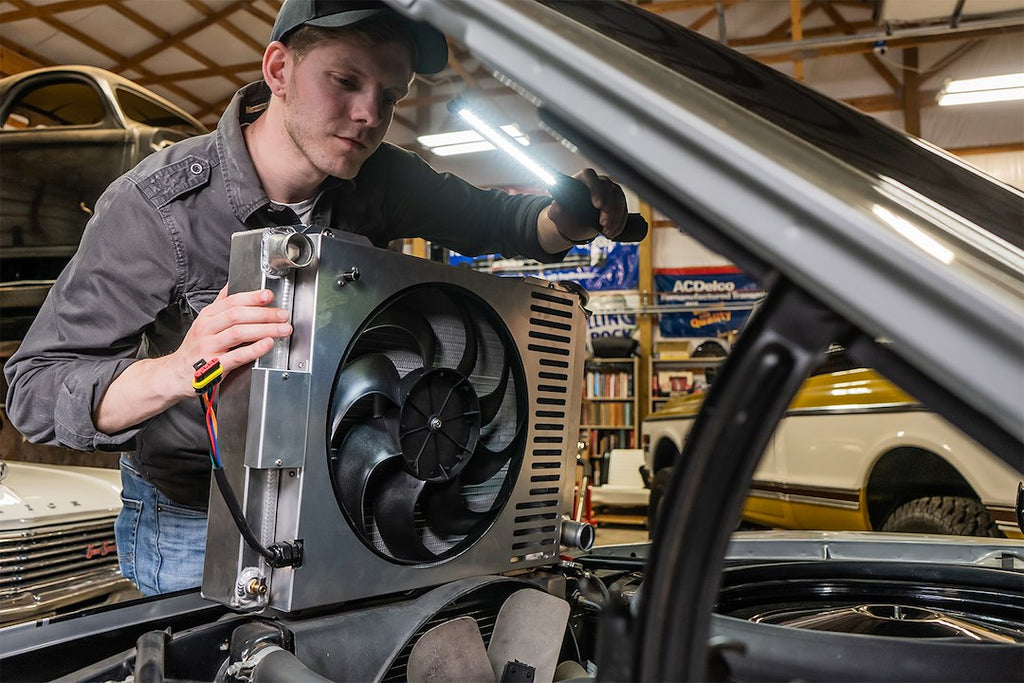

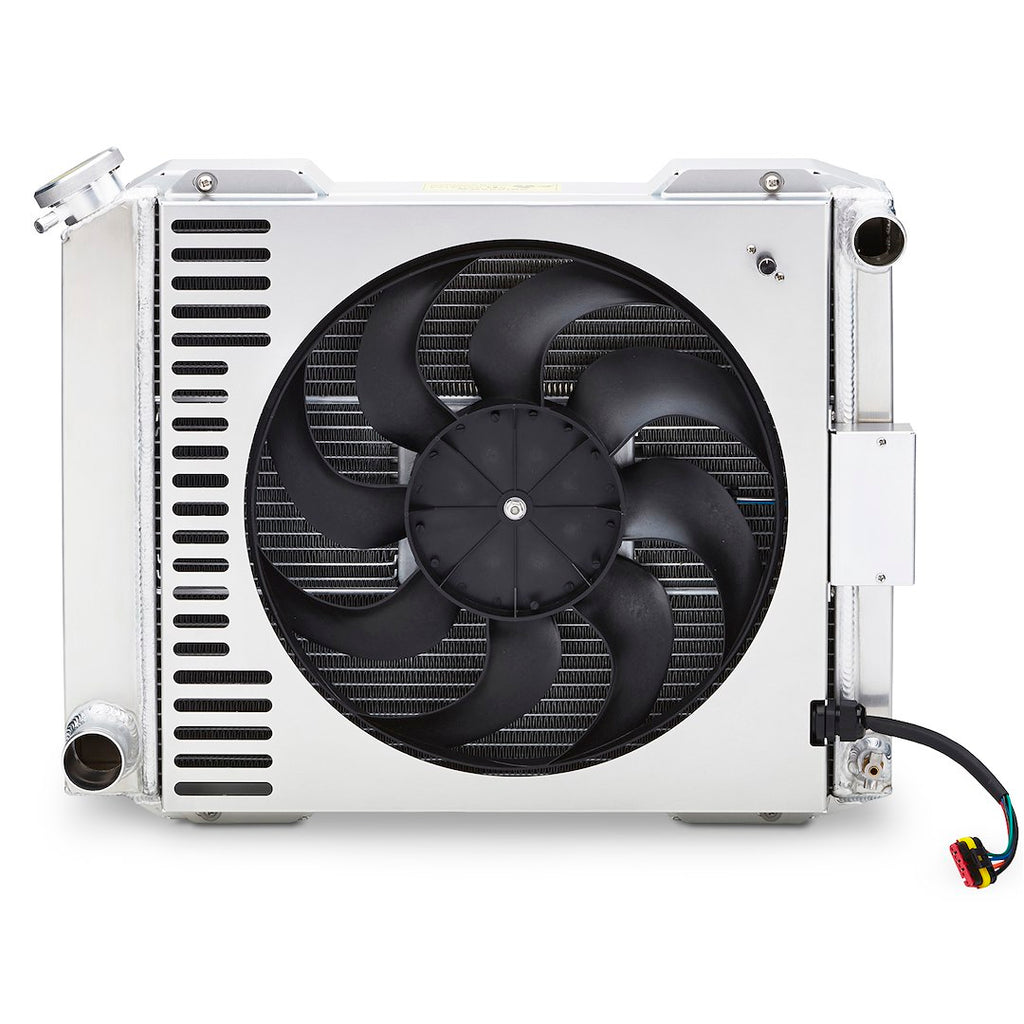

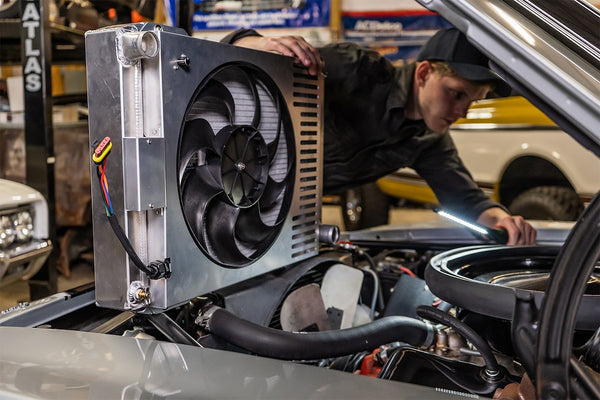

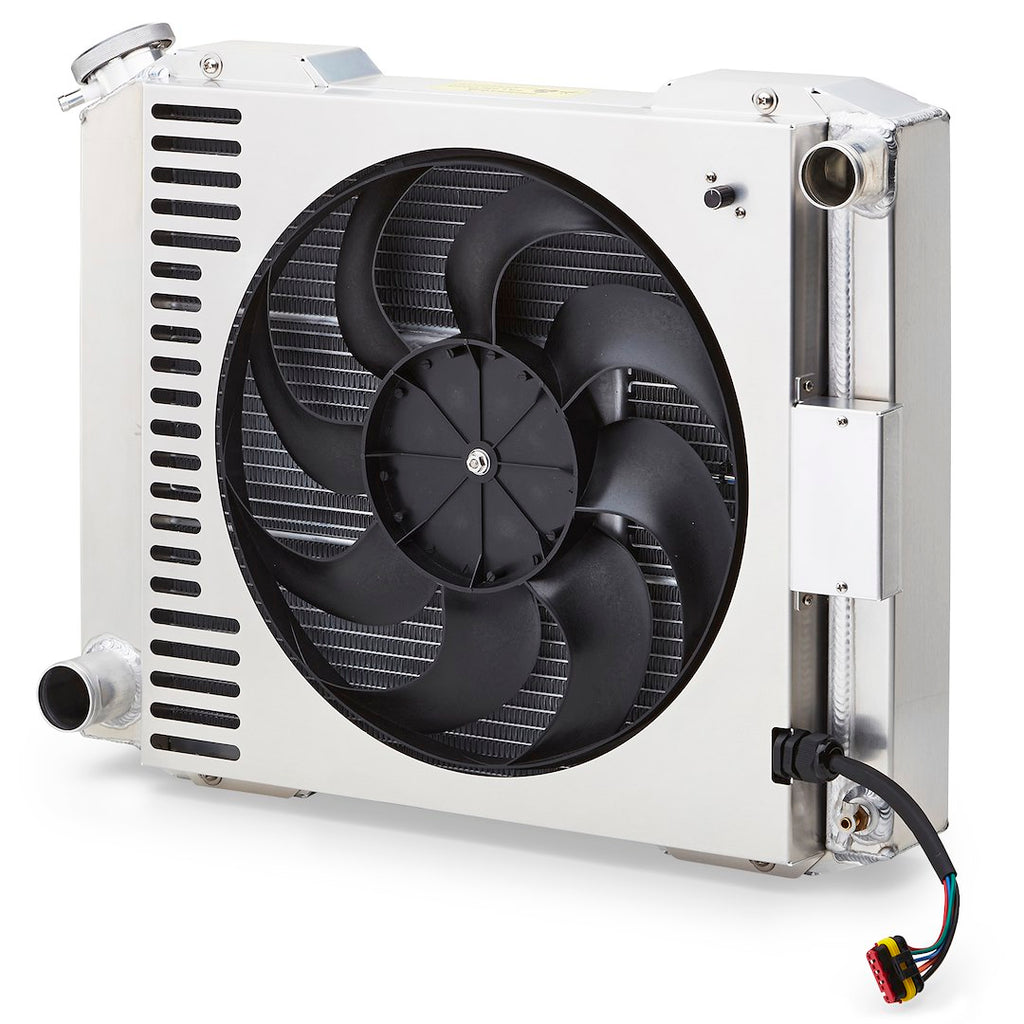

- Integrated Radiator/Shroud/Fan System
Specifications
- Manufacturer: Proform Parts
- Manufacturer Part Number: 69590-19
- Flow Direction: Crossflow
- Overall Length (IN): 23.4 Inch
- Overall Height (IN): 18-1/2 Inch
- Core Rows: 2
- Core Material: Aluminum
- Inlet Hose Location: Passenger Side
- Inlet Size (IN): 1-1/2 Inch
- Outlet Hose Location: Driver Side
- Outlet Size (IN): 1-3/4 Inch
- Finish: Natural
- Color: Natural
- Core Length (IN): 19 Inch
- Core Height (IN): 17 Inch

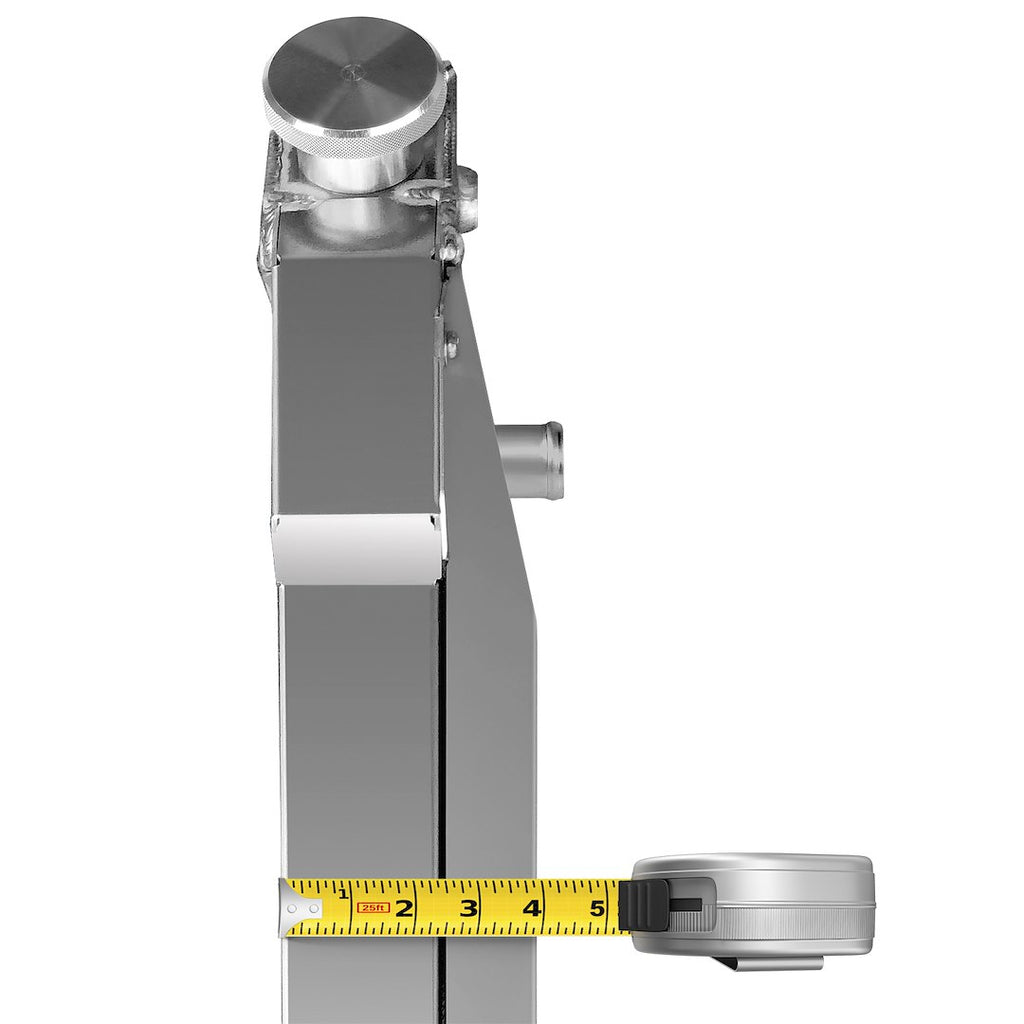

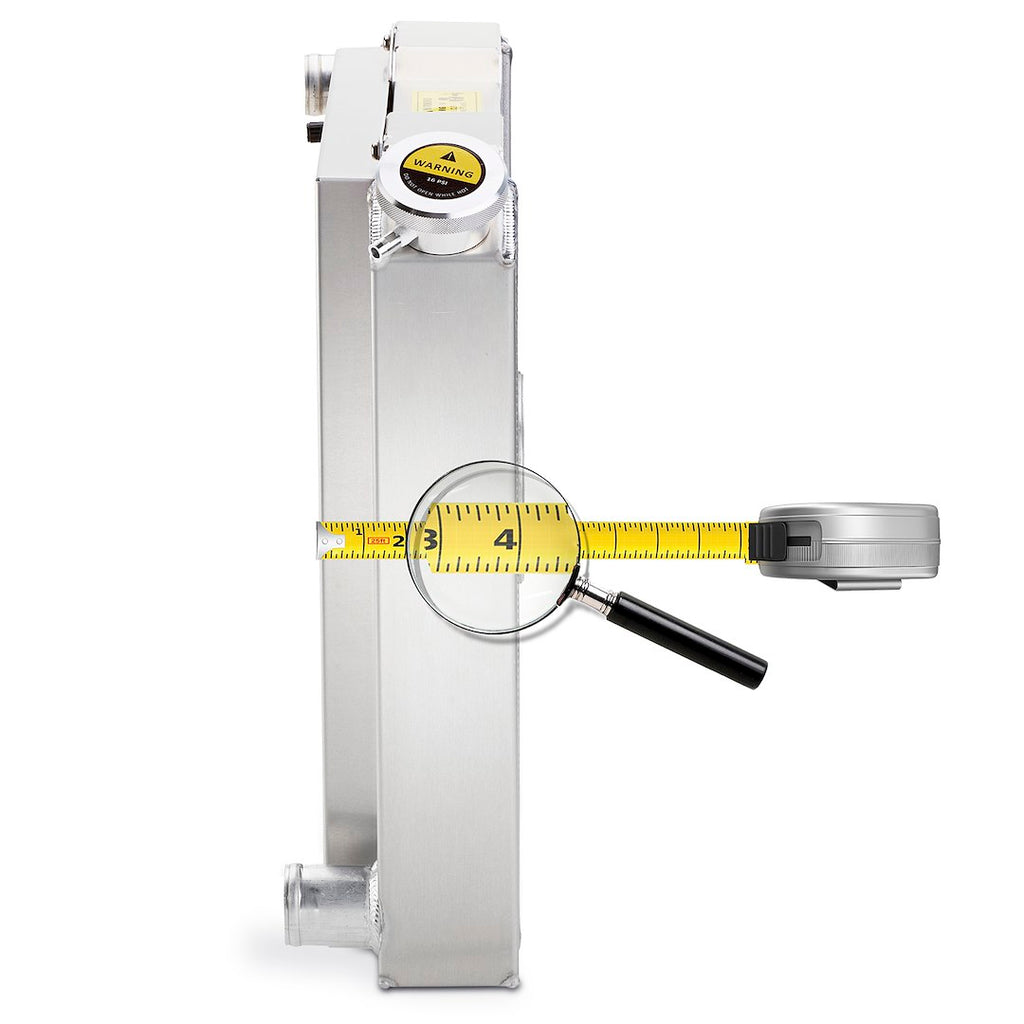

- Core Depth (IN): 2.4 Inch
- Tank Material: Aluminum
- With Radiator Cap: Yes
- With Transmission Cooler: No
- Includes Fittings: No
