Proform Slim Fit Integrated Radiator System (MPN: 69695.1)

Revolutionary design for classic Mopar muscle cars with efficient cooling.

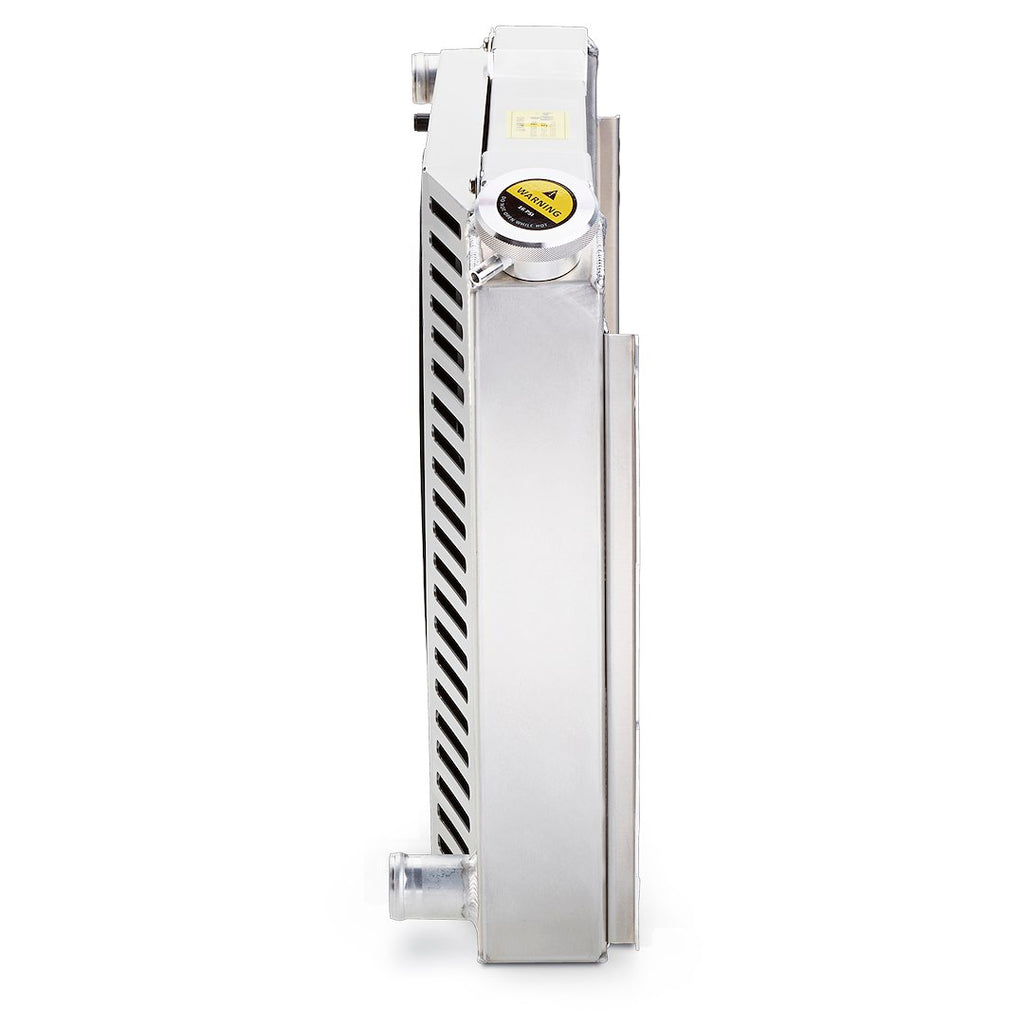

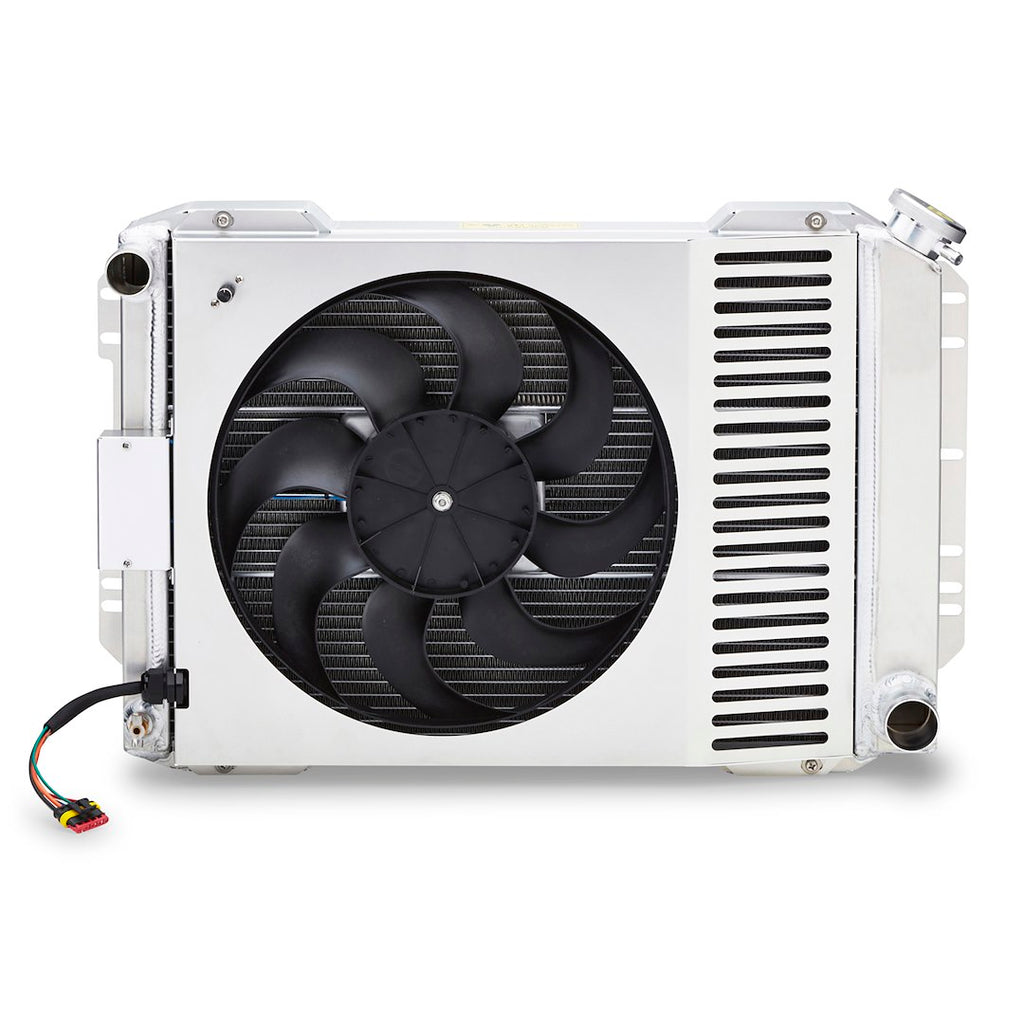

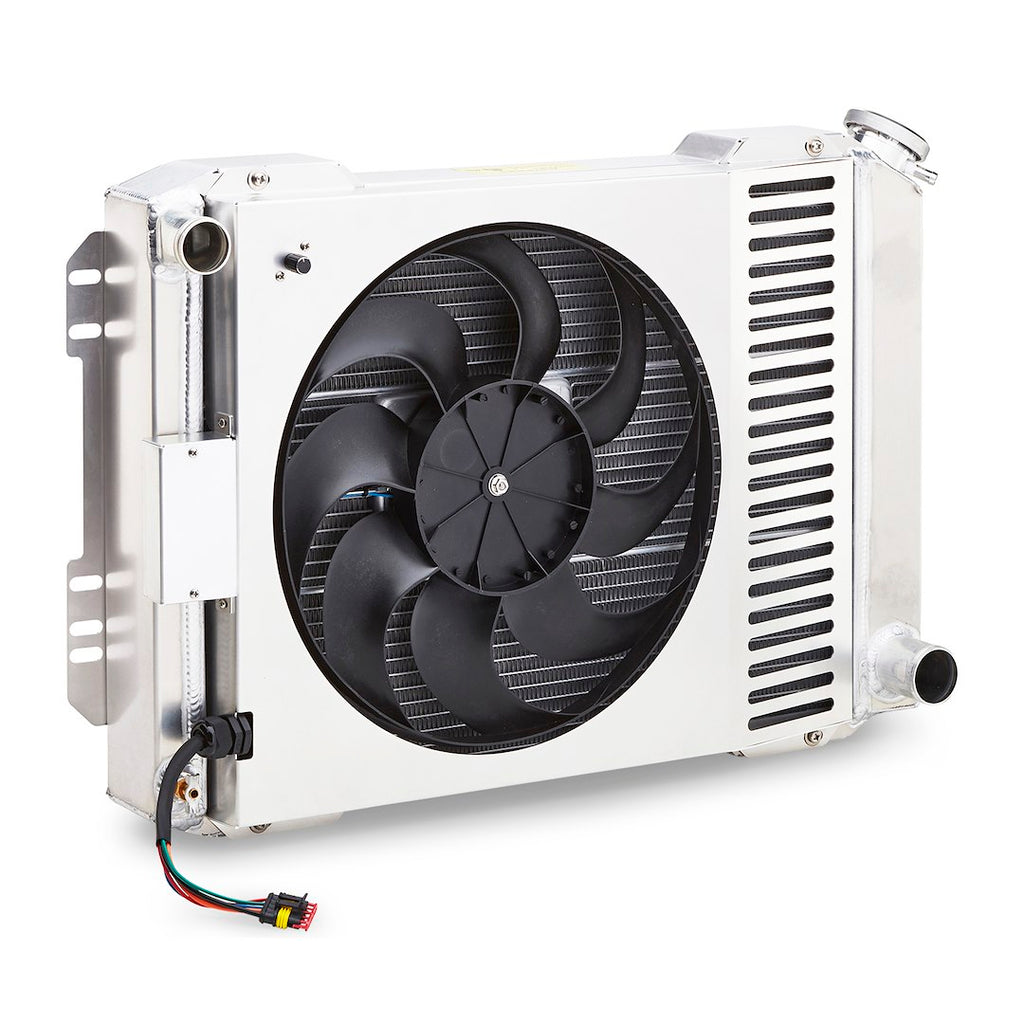

Proform introduces the Slim Fit Integrated Radiator System, designed specifically for 1970 to 1974 Mopar E Body and 1960 to 1988 A and B Body vehicles equipped with manual transmissions. This innovative radiator system combines the radiator, fan, thermostat, and shroud into a single, compact unit that measures under 4-1/2 inches thick, optimizing under-hood space and reducing clearance issues. The system is pre-assembled and ready for direct fit installation, ensuring a hassle-free setup for muscle car enthusiasts.

Constructed with 100 percent fabricated aluminum tanks and a billet aluminum filler neck, this radiator system is built for durability and high performance. It features a high capacity overflow tube and a 5-plate transmission cooler, making it the thinnest system in its class. The patented design not only enhances functionality but also contributes to the overall aesthetic of the vehicle, providing a sleek and efficient cooling solution.

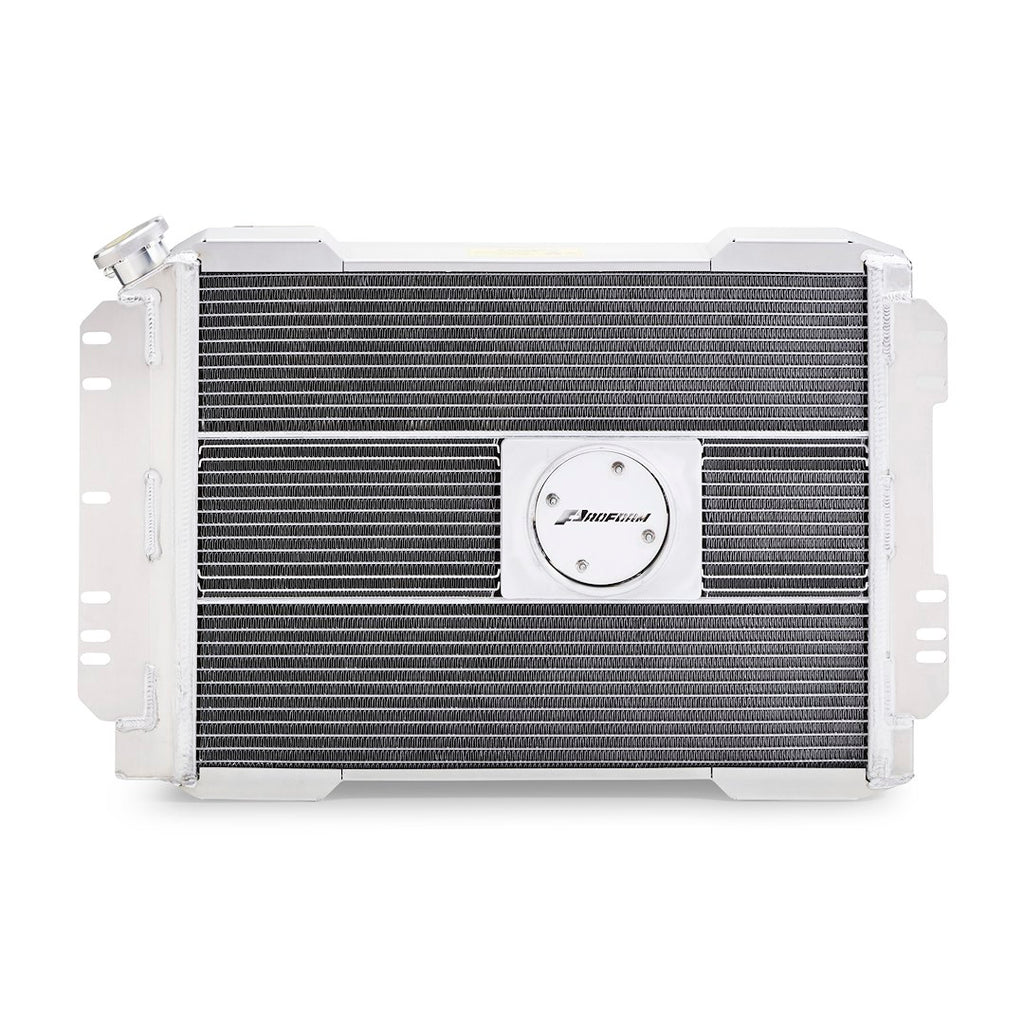

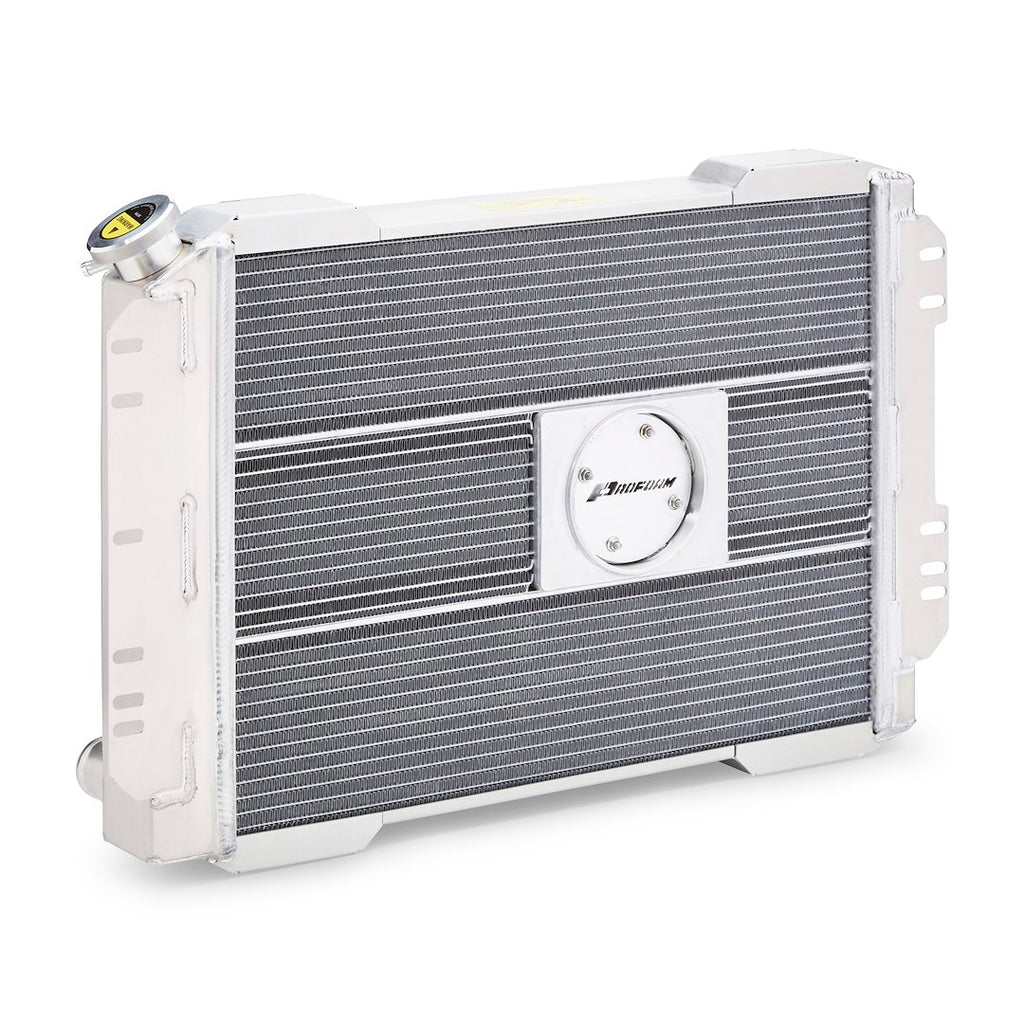

With a crossflow design and aluminum core, the Proform Slim Fit Integrated Radiator System is engineered to deliver optimal cooling efficiency. The inlet and outlet hose locations are strategically positioned for easy installation, while the natural aluminum finish adds a touch of style. This all-in-one integrated system is a significant advancement in radiator technology, catering to the needs of classic car restorers and performance enthusiasts alike.

Features

• 100 Percent Fabricated Aluminum Tanks
• Billet Aluminum Filler Neck
• High Capacity Overflow Tube
• Thinnest System In Its Class
• 5-Plate Transmission Coolers
• Patented Innovation And Design
• All-In-One Integrated System

Specifications

• Manufacturer: Proform Parts
• Manufacturer Part Number: 69695.1
• Flow Direction: Crossflow
• Overall Length (IN): 26-1/2 Inch
• Overall Height (IN): 18-1/2 Inch
• Core Rows: 2
• Core Material: Aluminum
• Inlet Hose Location: Driver Side
• Inlet Size (IN): 1-1/2 Inch
• Outlet Hose Location: Passenger Side
• Outlet Size (IN): 1-3/4 Inch
• Finish: Natural
• Color: Silver
• Core Length (IN): 22 Inch
• Core Height (IN): 17 Inch
• Core Depth (IN): 2.4 Inch
• Tank Material: Aluminum
• With Radiator Cap: Yes
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Technical Documents

• Slim-Fit-Radiator-Installation-Instruction-Sheet_V3_web.pdf
• Slim-Fit-Radiator-Circuit-Wiring-Diagram_web.pdf
