Proform Slim Fit Integrated Radiator System (MPN: 69625.4)

Revolutionary design for classic muscle cars with LS conversion.

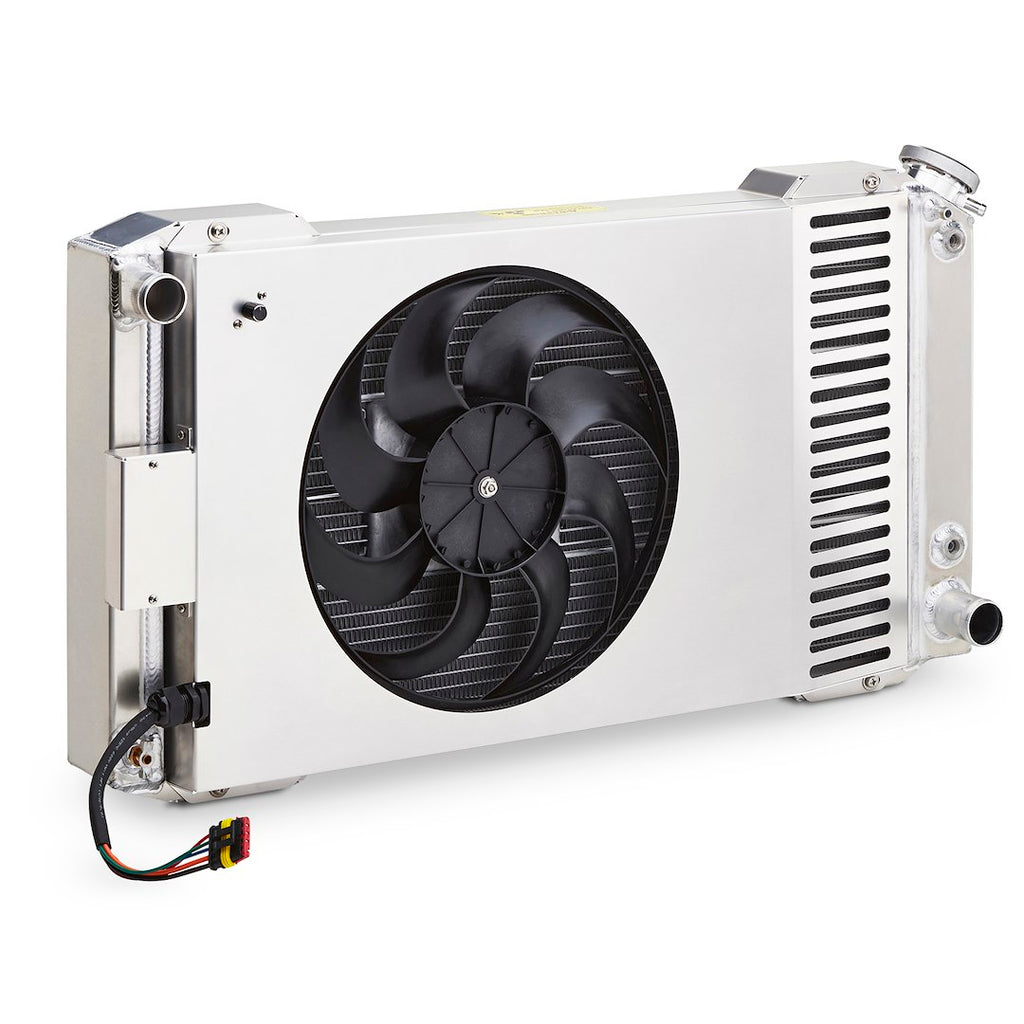

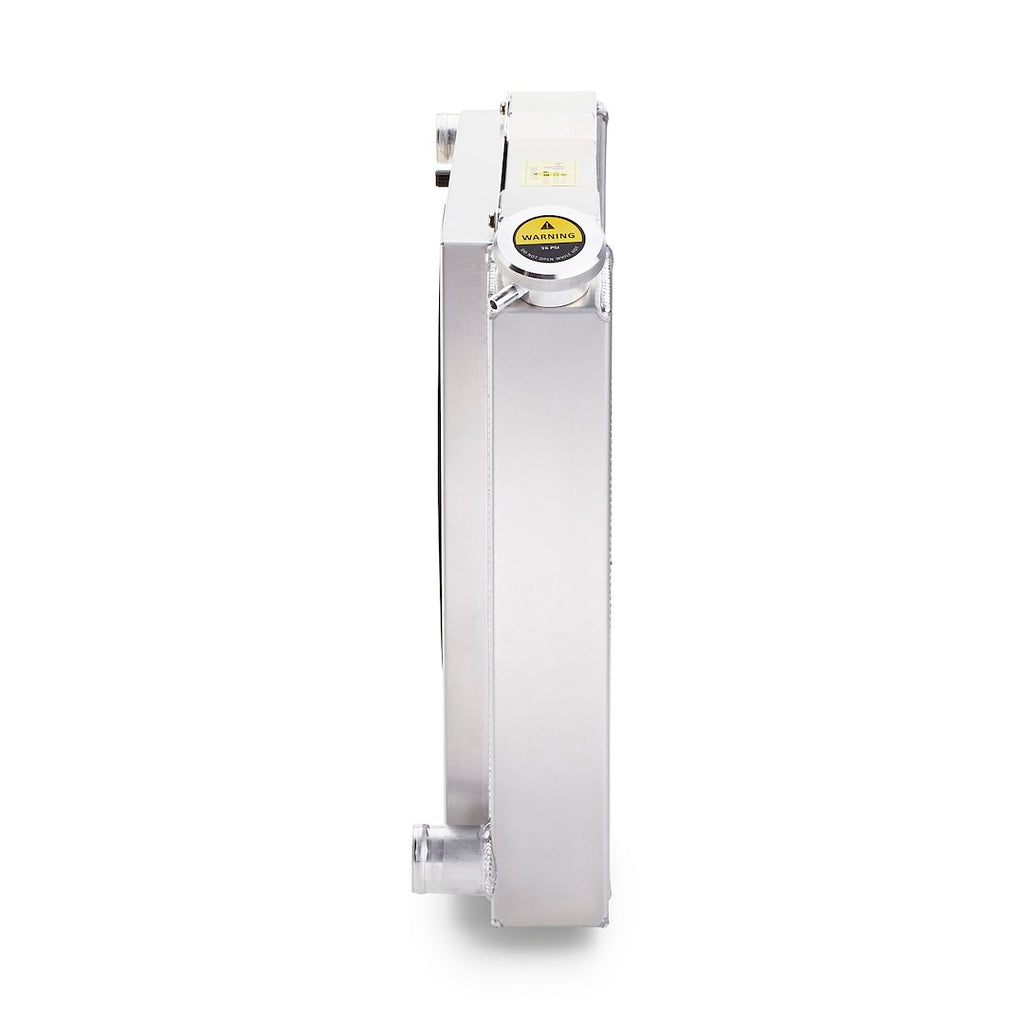

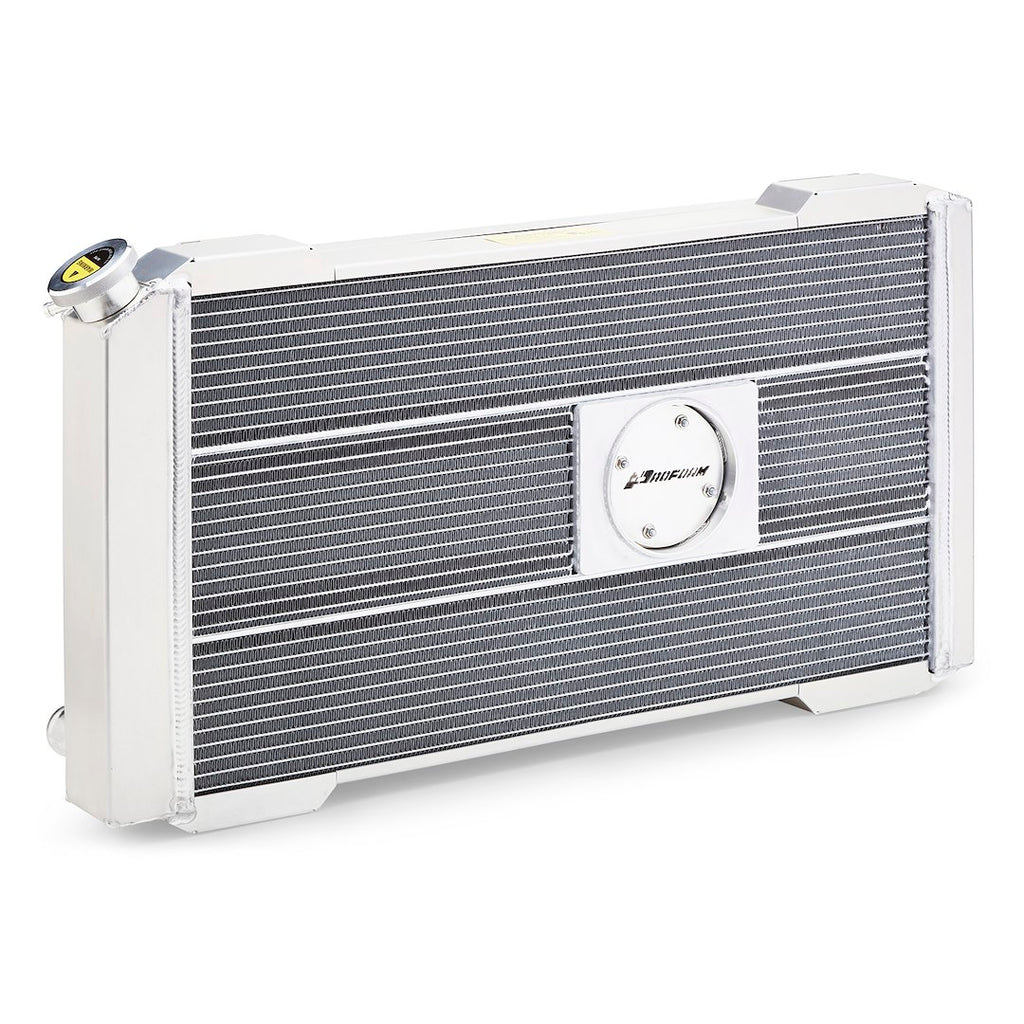

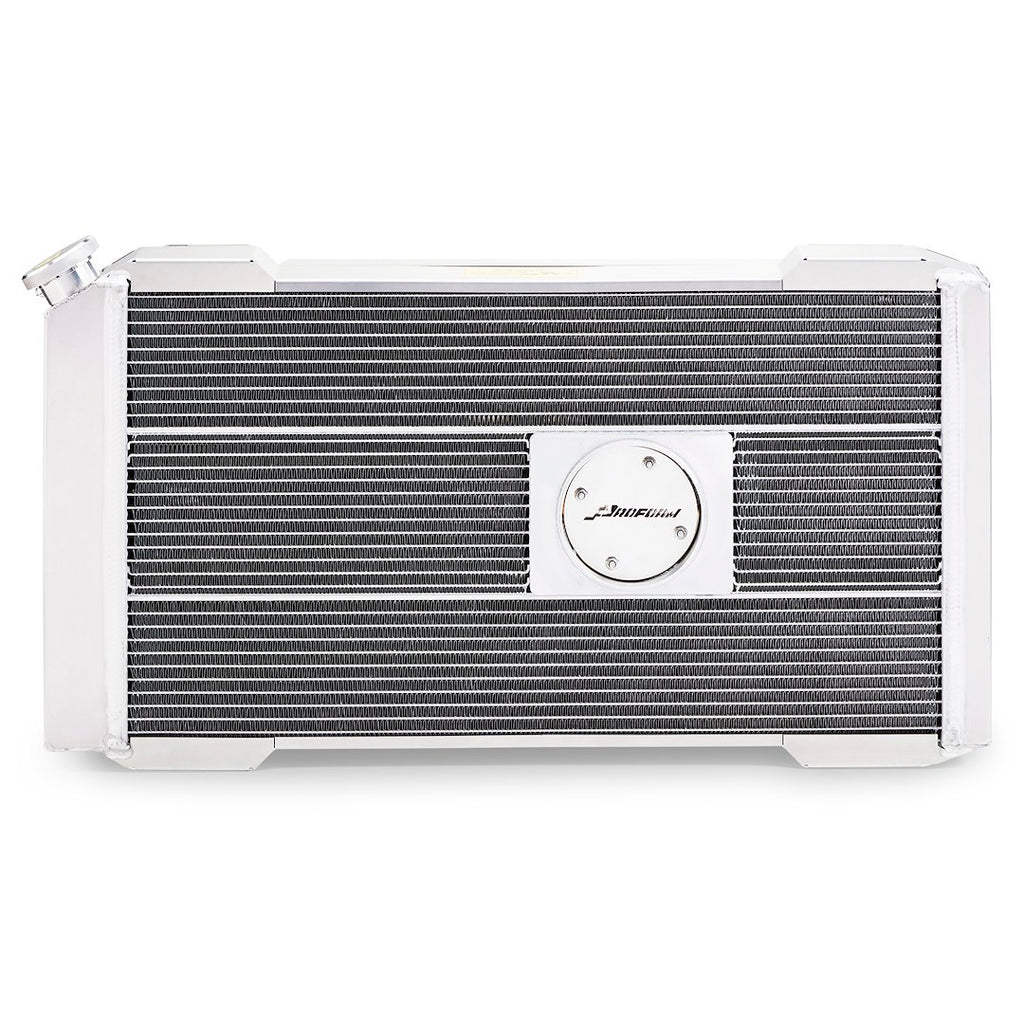

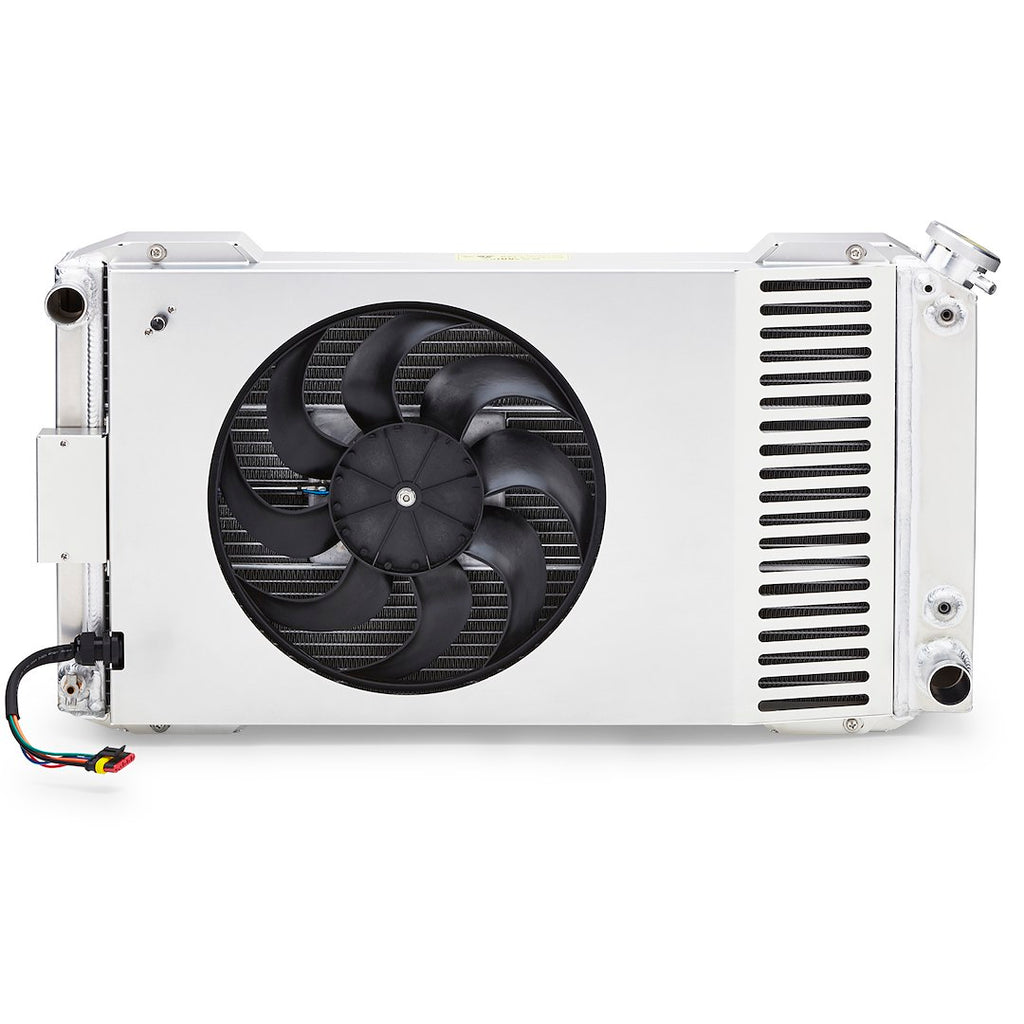

Proform introduces the Slim Fit Integrated Radiator System, designed specifically for 1968 to 1977 Chevelle, Buick, and 1968 to 1972 Pontiac GTO models with LS conversions. This innovative radiator system combines the radiator, fan, thermostat, and shroud into a single, compact unit that measures under 4-1/2 inches thick, optimizing under-hood space and reducing clearance issues. The system is pre-assembled and ready for direct fit installation, eliminating the need for additional components and simplifying the installation process.

Constructed with 100 percent fabricated aluminum tanks and featuring a billet aluminum filler neck, this radiator system ensures durability and high performance. The high capacity overflow tube and 5-plate transmission coolers enhance cooling efficiency, making it the thinnest system in its class. Proform's patented design not only improves functionality but also maintains a sleek appearance, making it a practical choice for muscle car enthusiasts looking to enhance their vehicle's cooling system.

Features

• 100 Percent Fabricated Aluminum Tanks
• Billet Aluminum Filler Neck
• High Capacity Overflow Tube
• Thinnest System In Its Class
• 5-Plate Transmission Coolers
• Patented Innovation And Design
• All-In-One Integrated System

Specifications

• Manufacturer: Proform Parts
• Manufacturer Part Number: 69625.4
• Overall Length (IN): 31.2 Inch
• Overall Height (IN): 16.8 Inch
• Core Material: Aluminum
• Inlet Hose Location: Driver Side
• Inlet Size (IN): 1-3/8 Inch
• Outlet Hose Location: Passenger Side
• Outlet Size (IN): 1-1/2 Inch
• Finish: Natural
• Color: Silver
• Core Length (IN): 26 Inch
• Core Height (IN): 15.3 Inch
• Core Depth (IN): 2.4 Inch
• Tank Material: Aluminum
• With Radiator Cap: Yes
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Technical Documents

• Slim-Fit-Radiator-Installation-Instruction-Sheet_V3_web.pdf
• Slim-Fit-Radiator-Circuit-Wiring-Diagram_web.pdf
