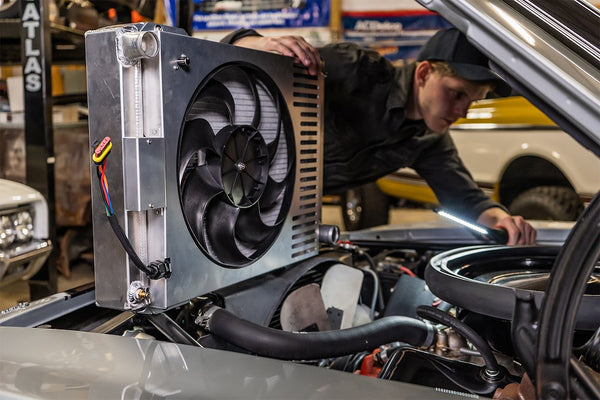

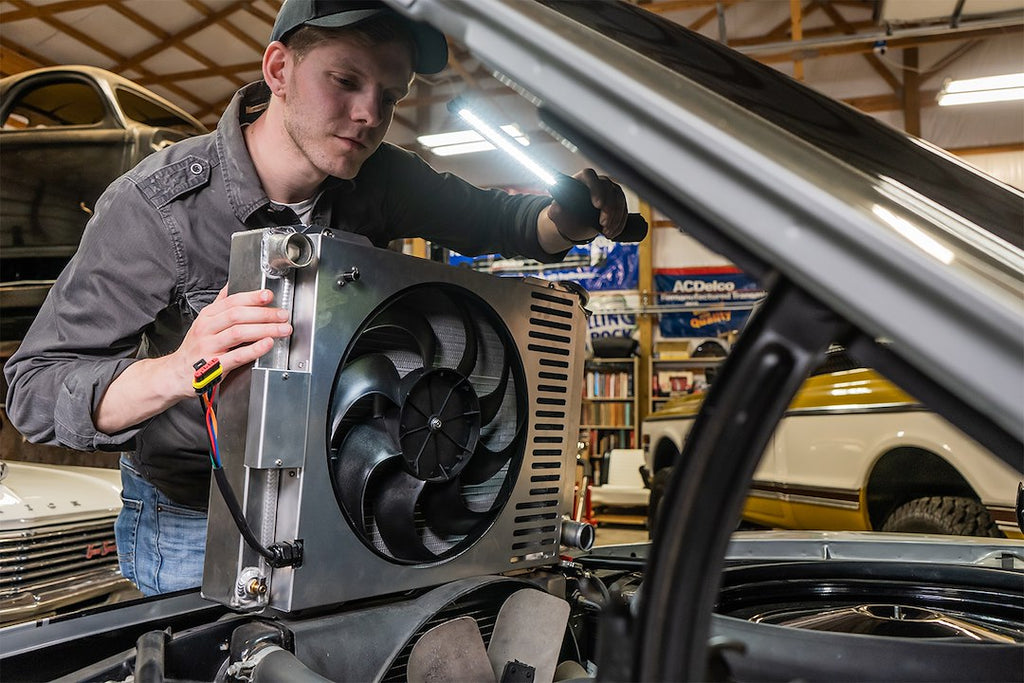

Advanced integrated radiator and fan system for American V8 muscle cars.

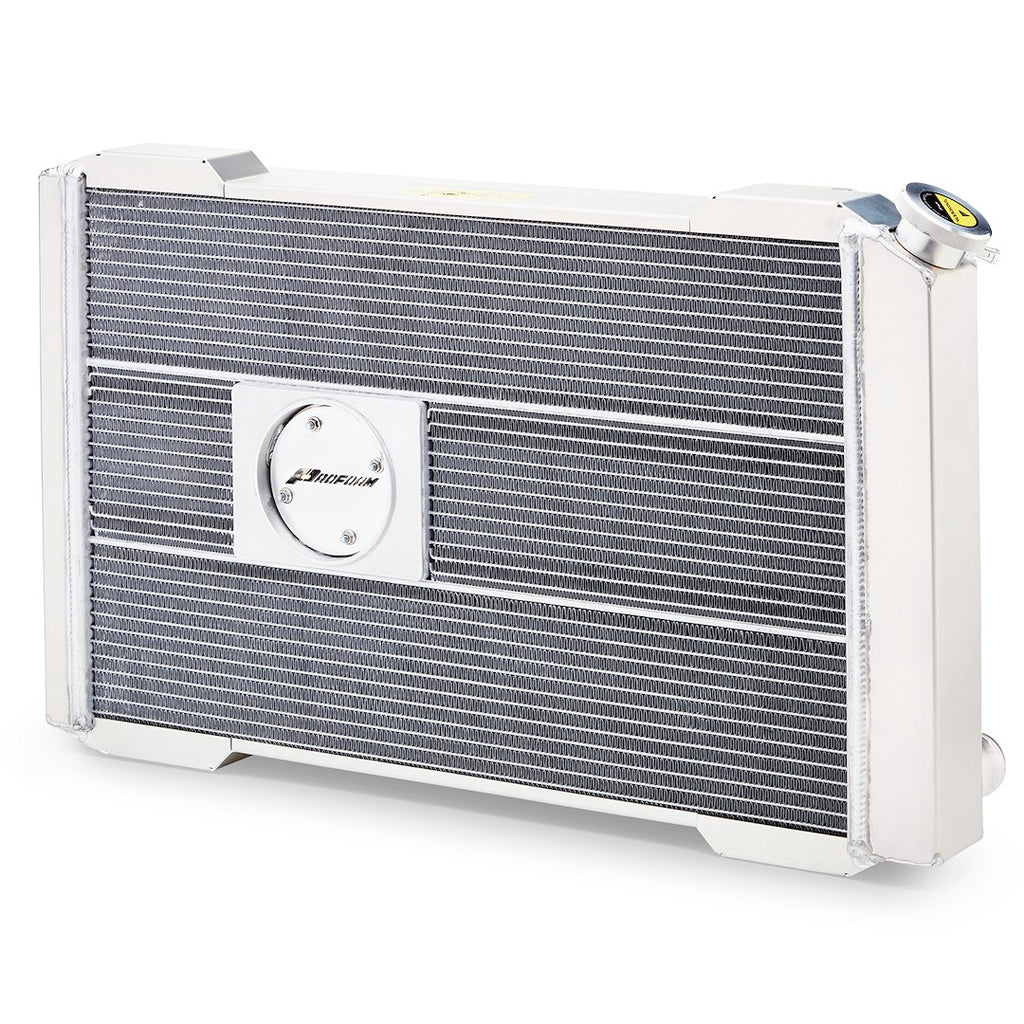

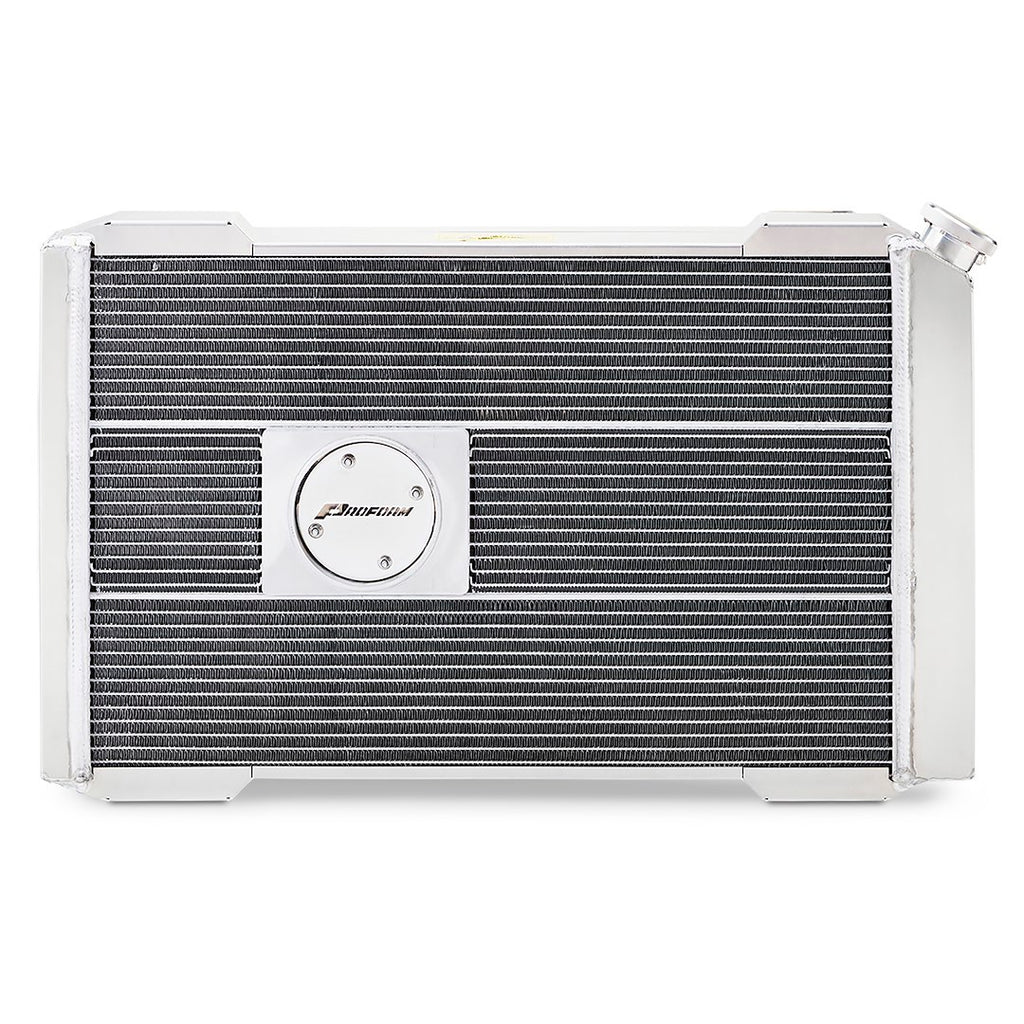

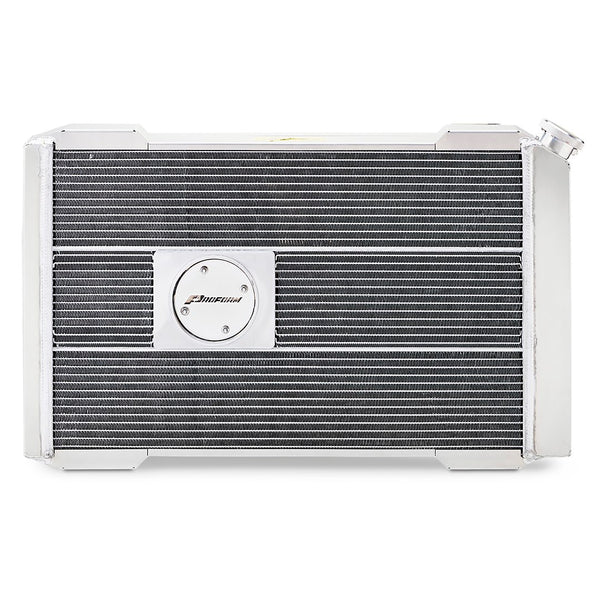

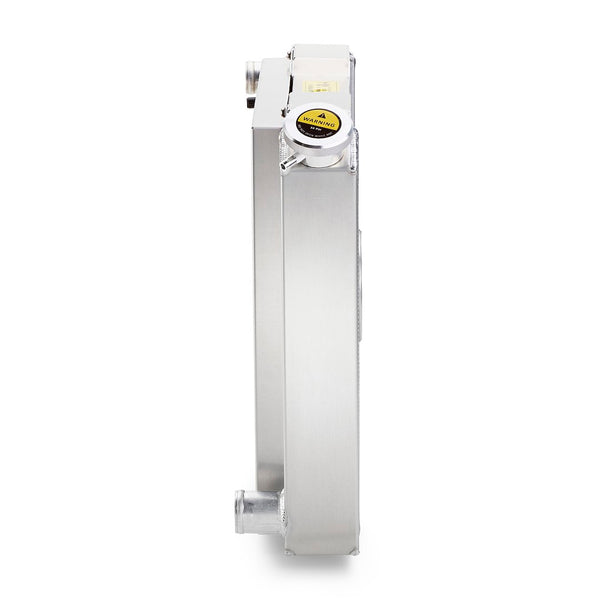

The Proform Radiator Slim Fit System is designed to enhance the cooling efficiency of American V8 muscle cars. With an overall dimension of 30.3 inches in length and 18.5 inches in height, this radiator features a core dimension of 26 inches in length, 17 inches in height, and a depth of 2.4 inches, making it a compact solution for high-performance applications. The system integrates a radiator, shroud, and electric fan into a single unit that is less than 4 inches thick, streamlining installation and improving aesthetics.
Constructed from 100 percent fabricated aluminum tanks, the Proform radiator utilizes hybrid extruded tube core technology to maximize cooling capacity. The adjustable thermostat allows for precise temperature control, while the billet aluminum filler neck and high-capacity overflow tube ensure reliable operation. This innovative design eliminates the need for multiple components, reducing complexity and potential points of failure in the cooling system.

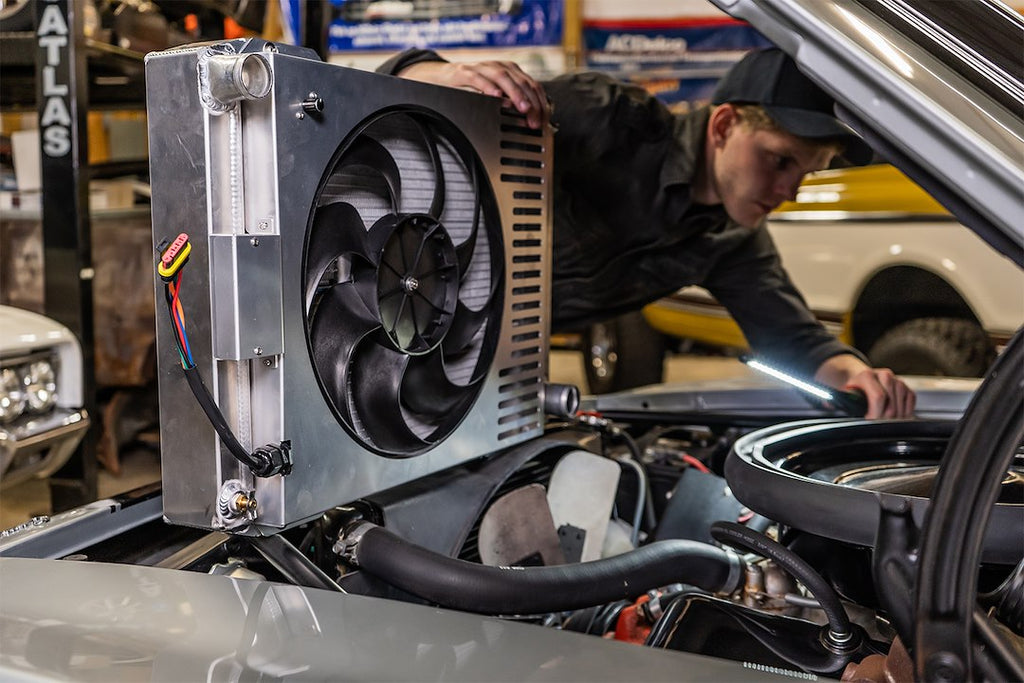

The Proform Radiator Slim Fit System is engineered for crossflow applications, featuring a passenger side inlet of 1-1/2 inches and a driver side outlet of 1-3/4 inches. This product is pre-assembled and ready for installation, making it an efficient choice for those looking to enhance their vehicle's cooling performance without the hassle of extensive modifications.
Features

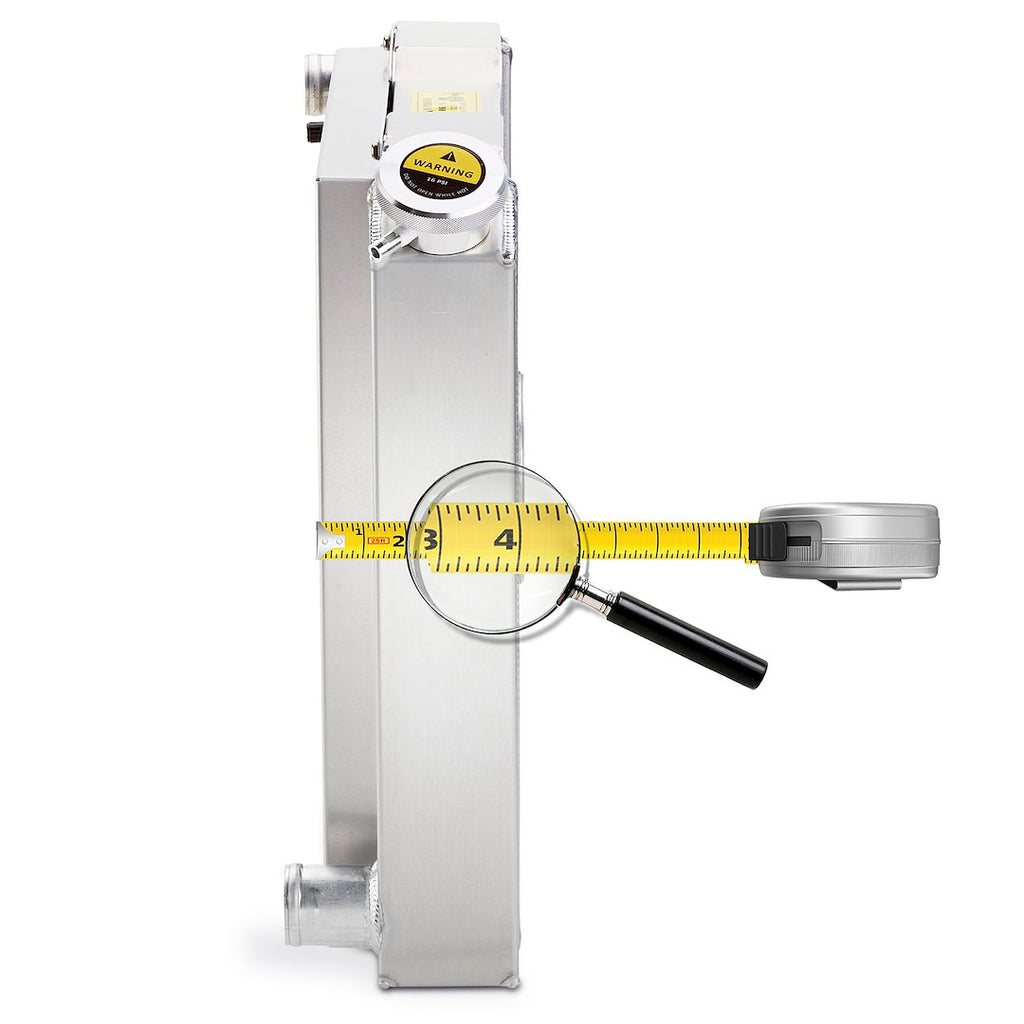

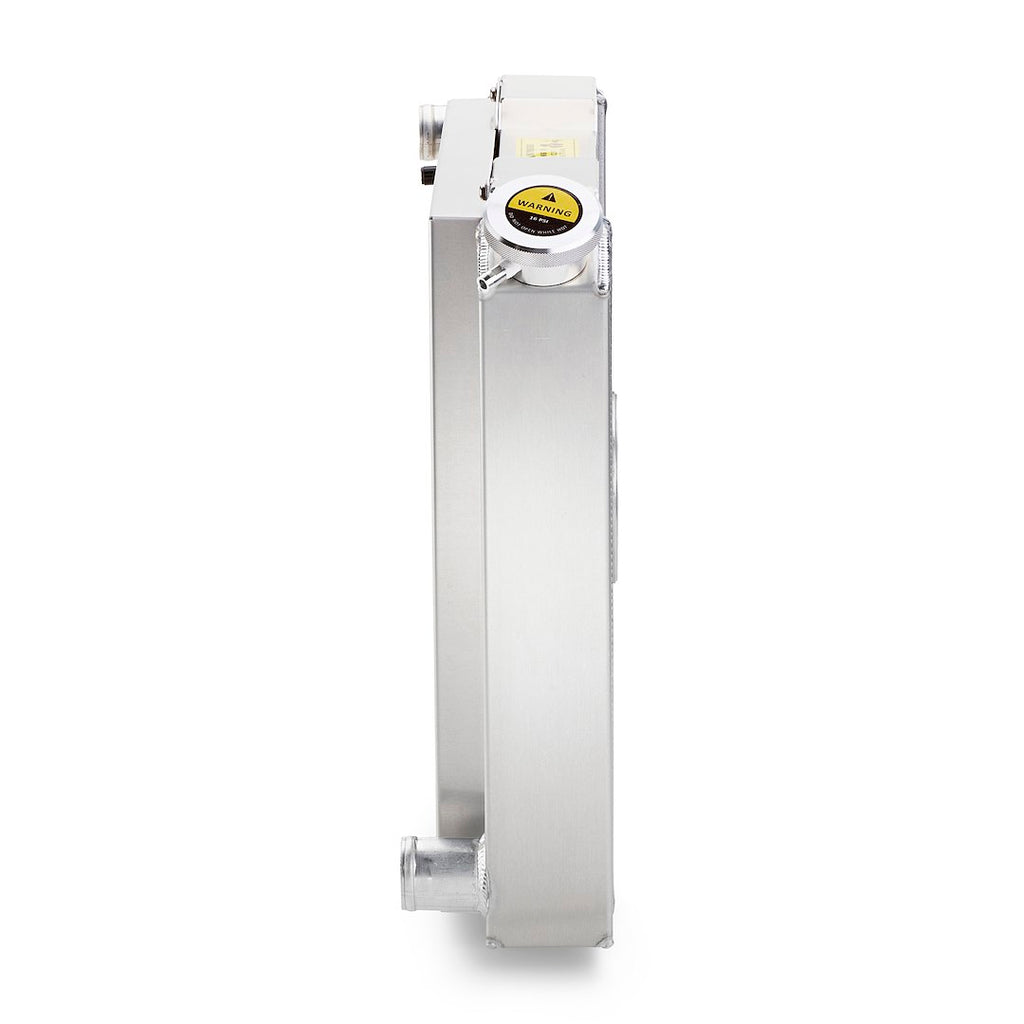

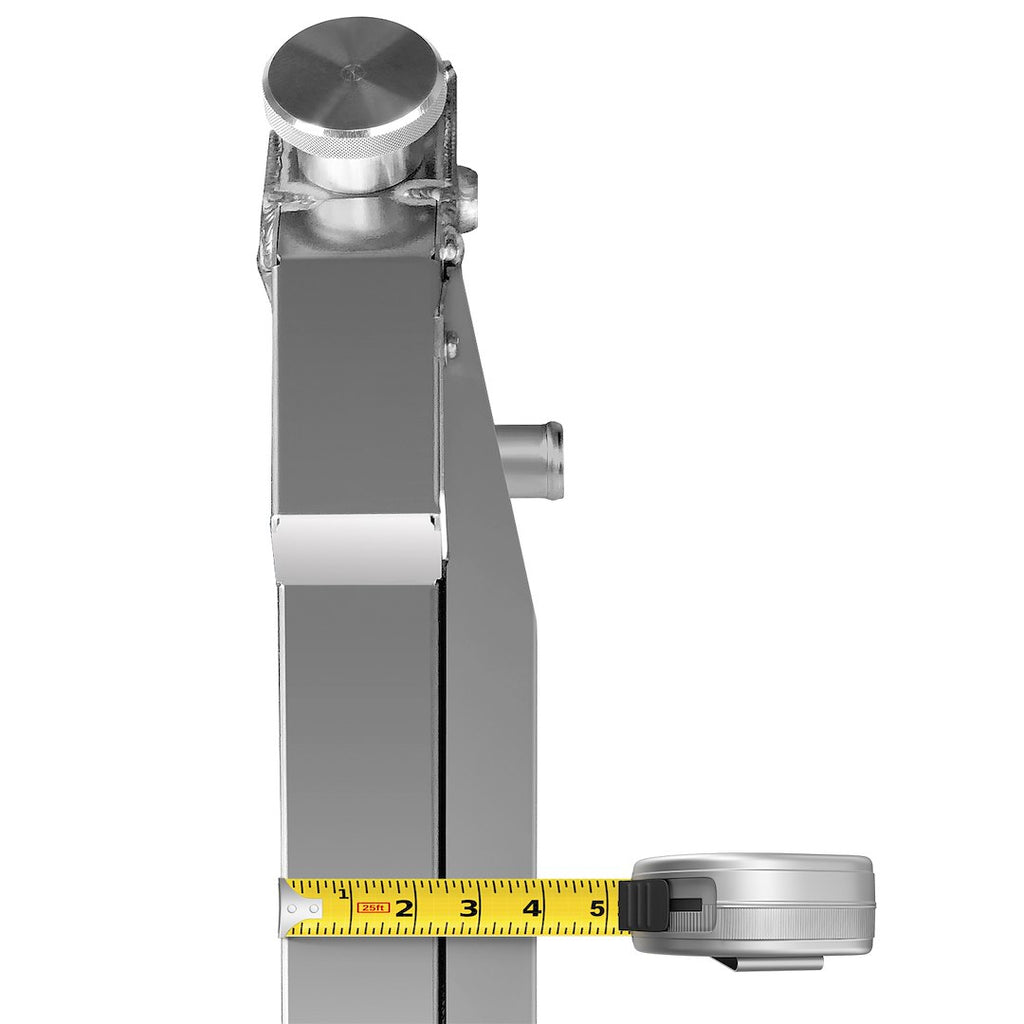

- Radiator And Shroud Less Than 4 Inch Thick

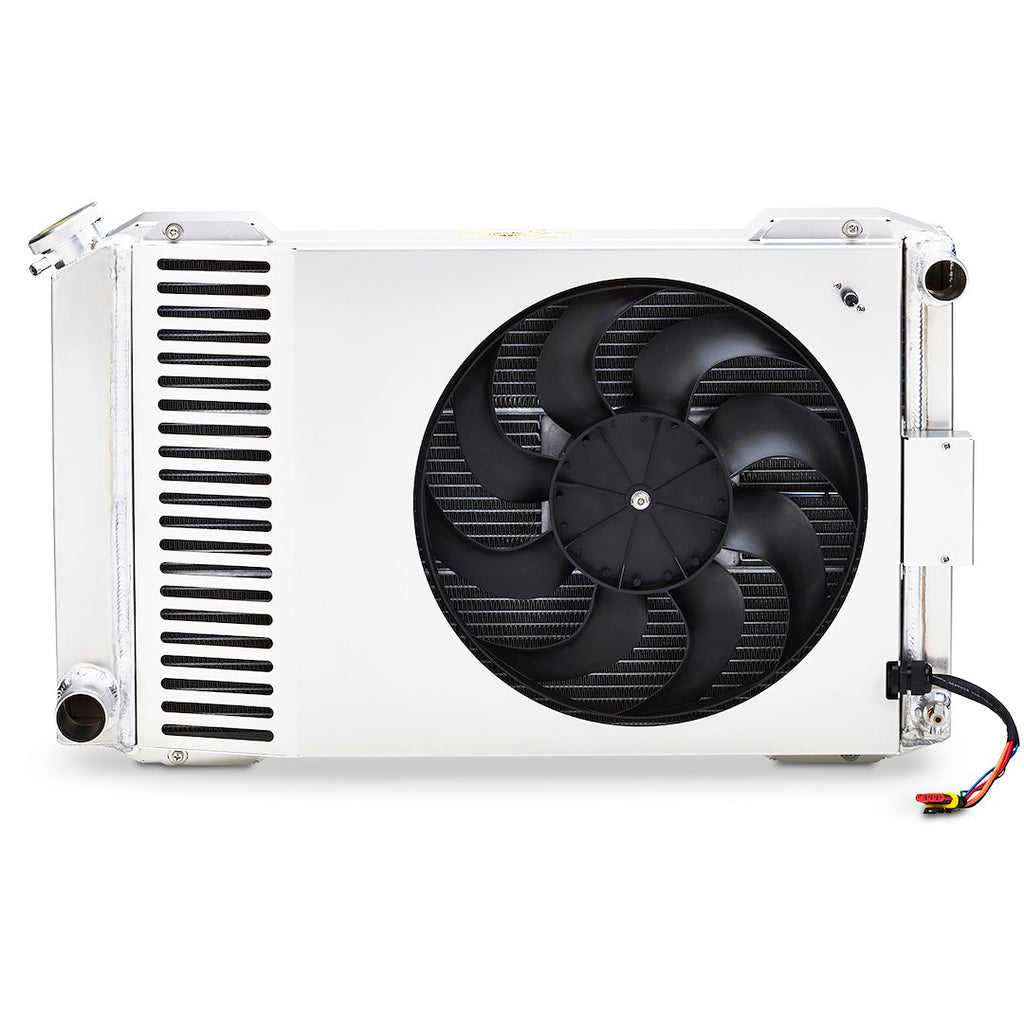

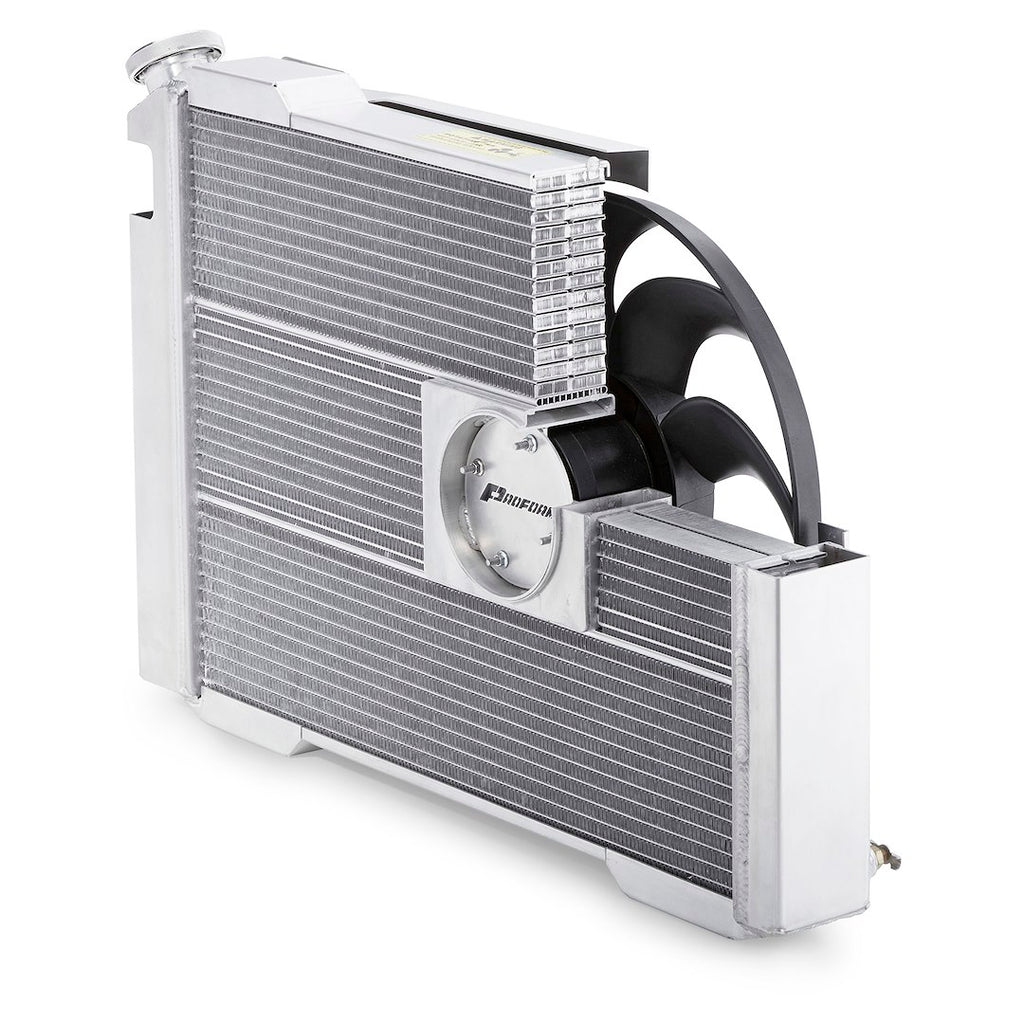

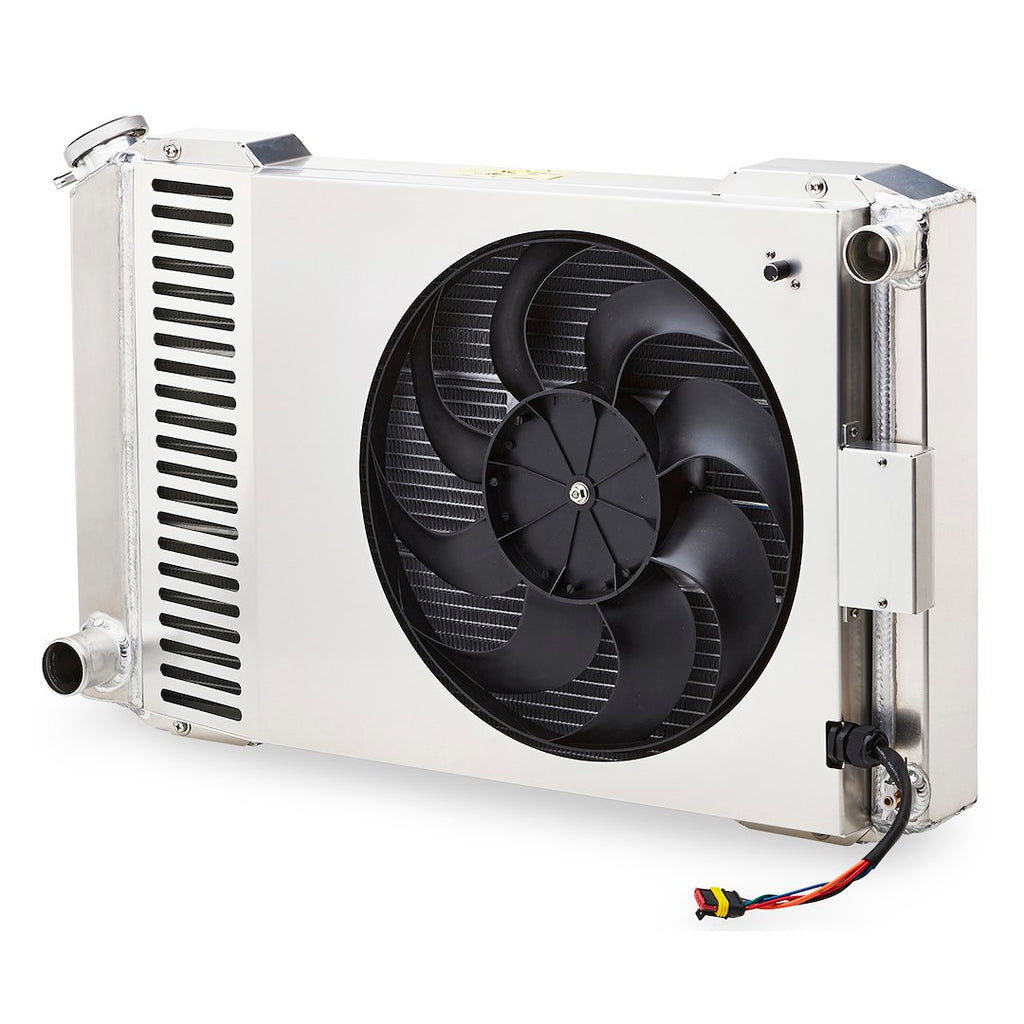

- Integrated Radiator/Shroud/Fan System
- Adjustable Thermostat
- 100 Percent Fabricated Aluminum Tanks

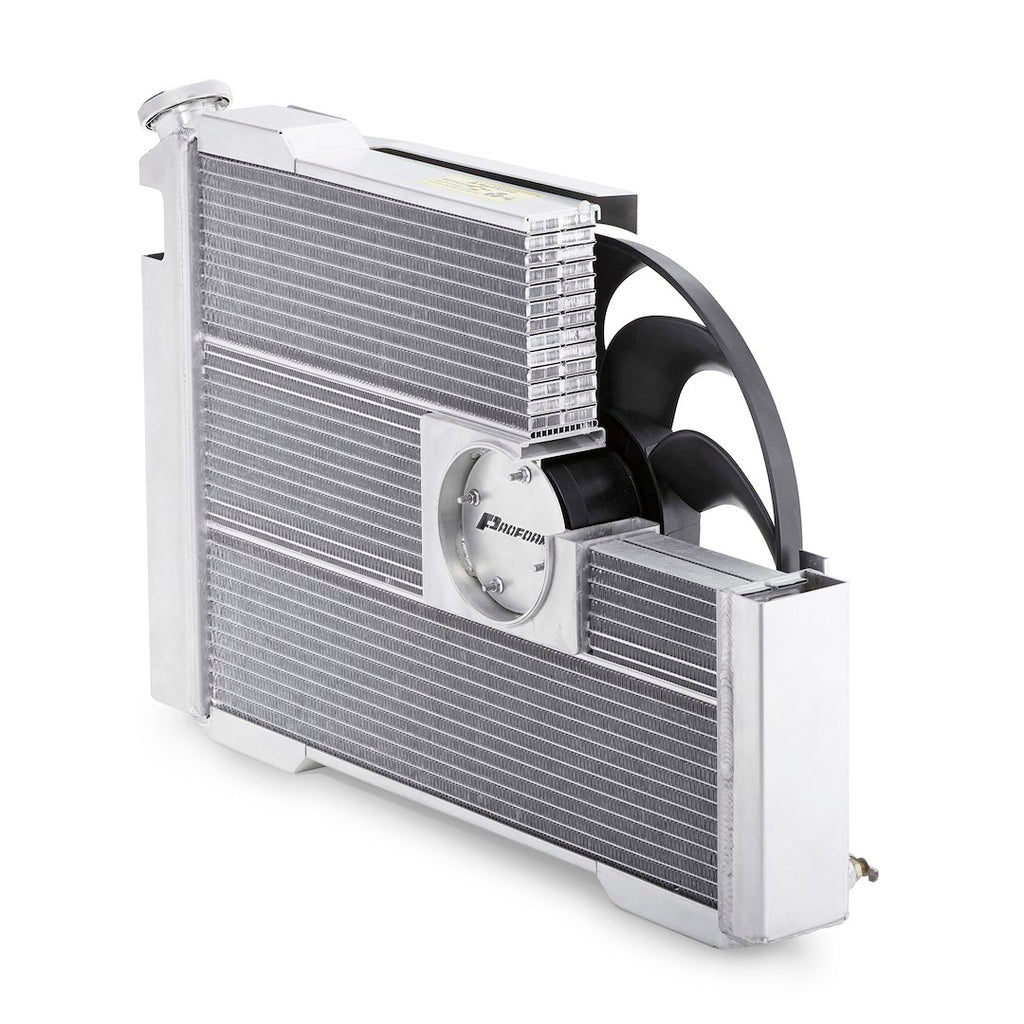

- Hybrid Extruded Tube Core Technology

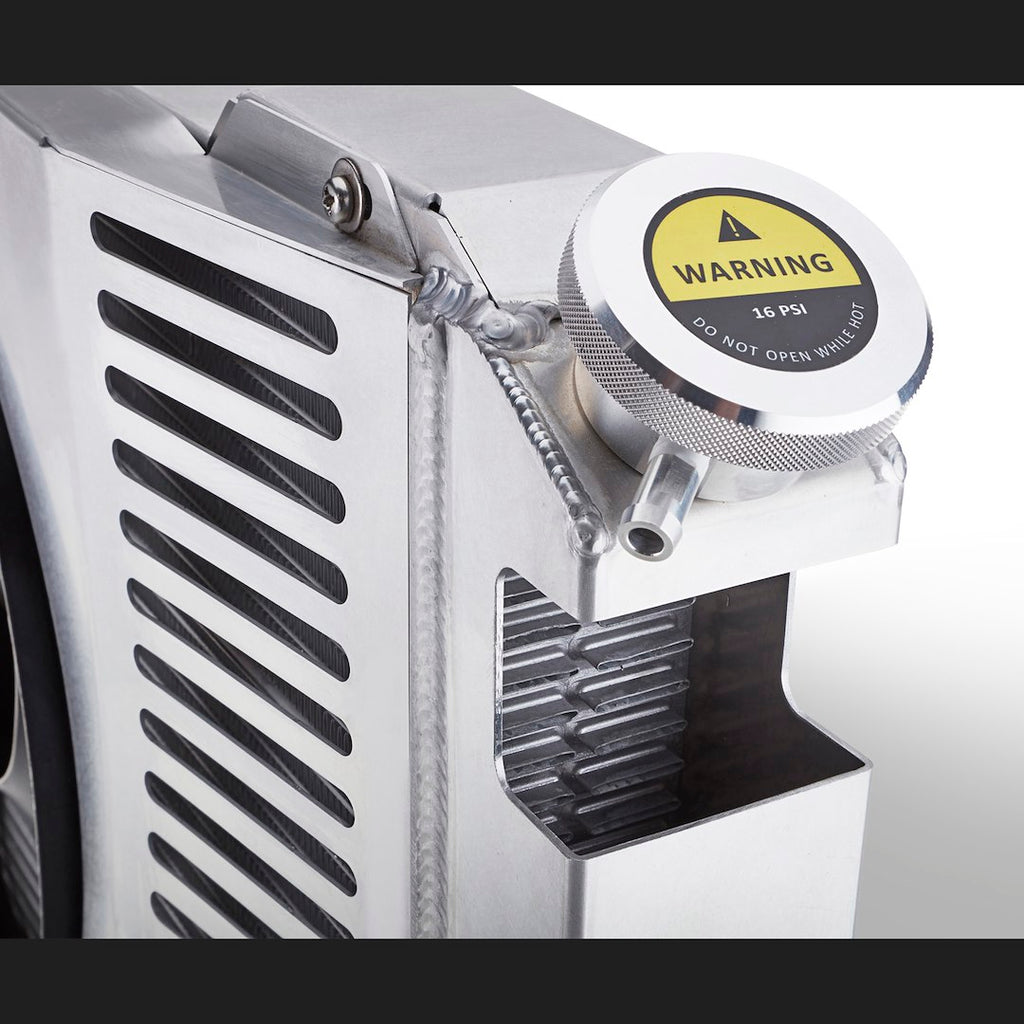

- Billet Aluminum Filler Neck
- High Capacity Overflow Tube
- Patented Innovation And Design
Specifications
- Manufacturer: Proform Parts
- Manufacturer Part Number: 69590-26
- Flow Direction: Crossflow
- Overall Length (IN): 30.3 Inch
- Overall Height (IN): 18-1/2 Inch
- Core Rows: 2
- Core Material: Aluminum
- Inlet Hose Location: Passenger Side
- Inlet Size (IN): 1-1/2 Inch
- Outlet Hose Location: Driver Side
- Outlet Size (IN): 1-3/4 Inch
- Finish: Natural
- Color: Silver
- Core Length (IN): 26 Inch
- Core Height (IN): 17 Inch
- Core Depth (IN): 2.4 Inch
- Tank Material: Aluminum
- With Radiator Cap: Yes
- With Transmission Cooler: No
- Includes Fittings: No
