Innovative radiator system for American V8 muscle cars with integrated components.

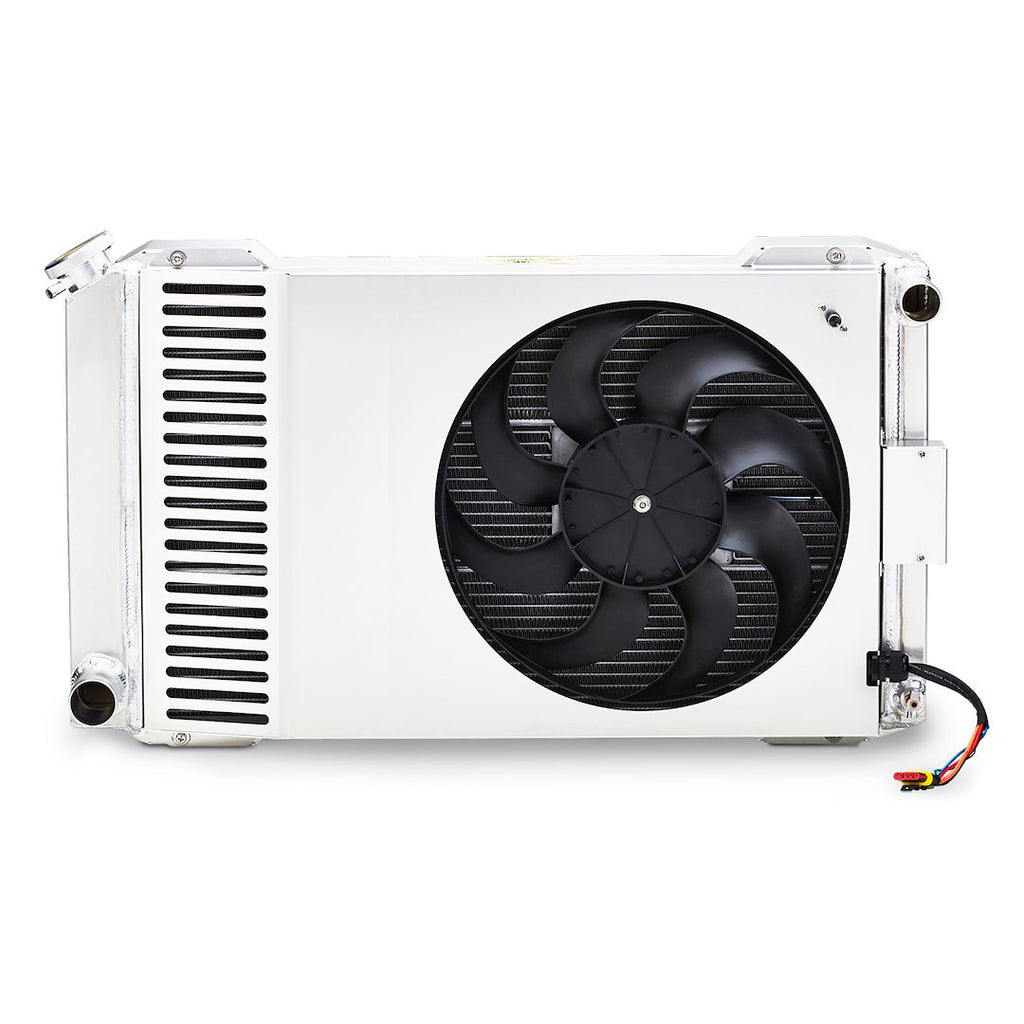

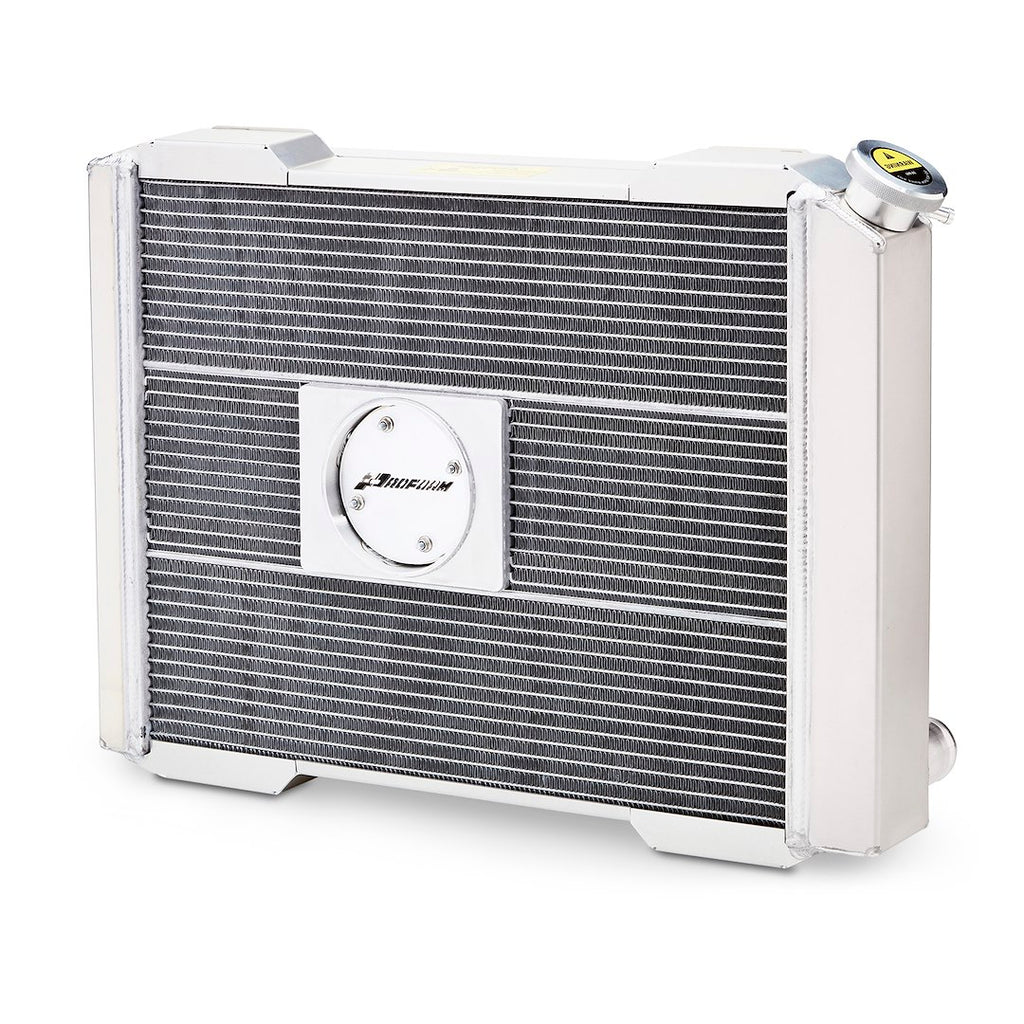

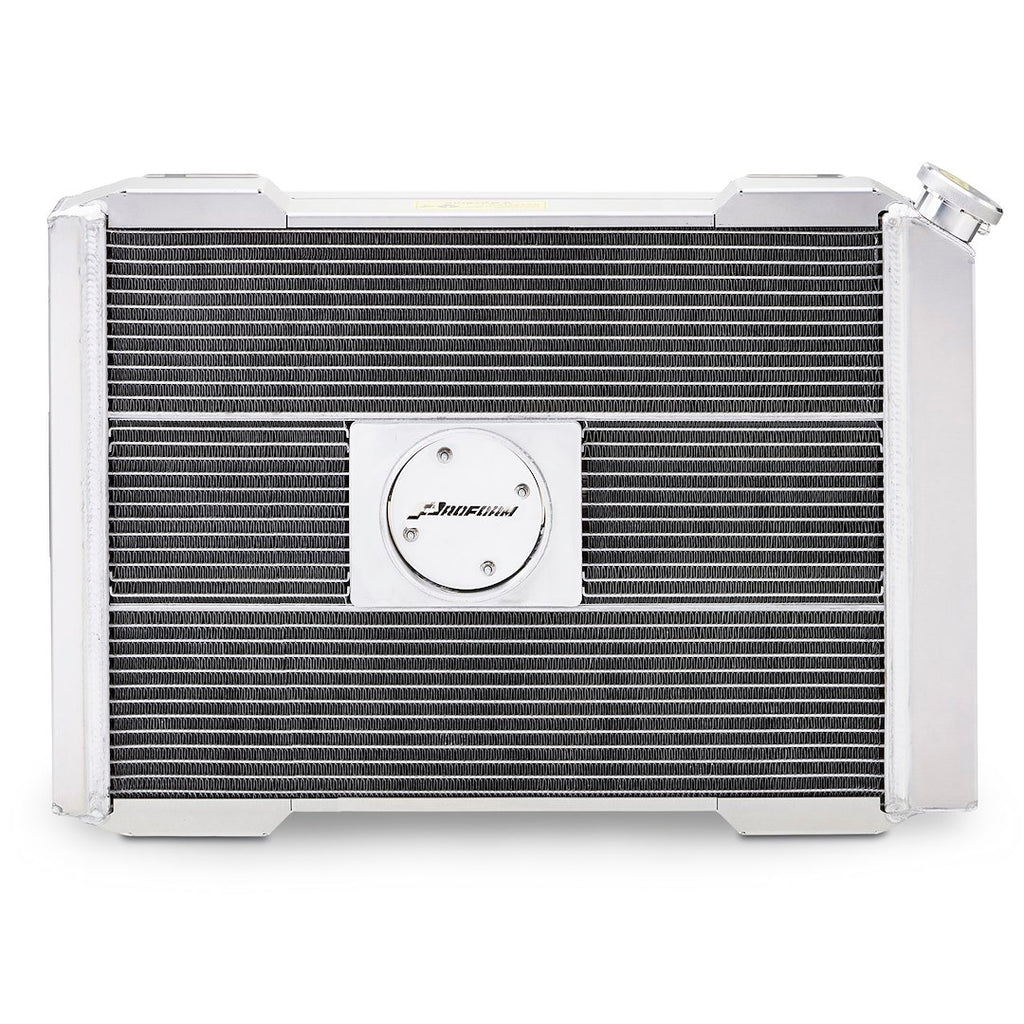

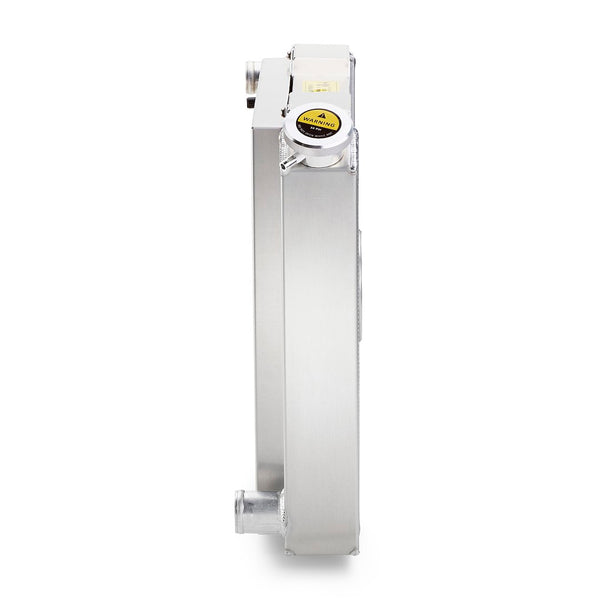

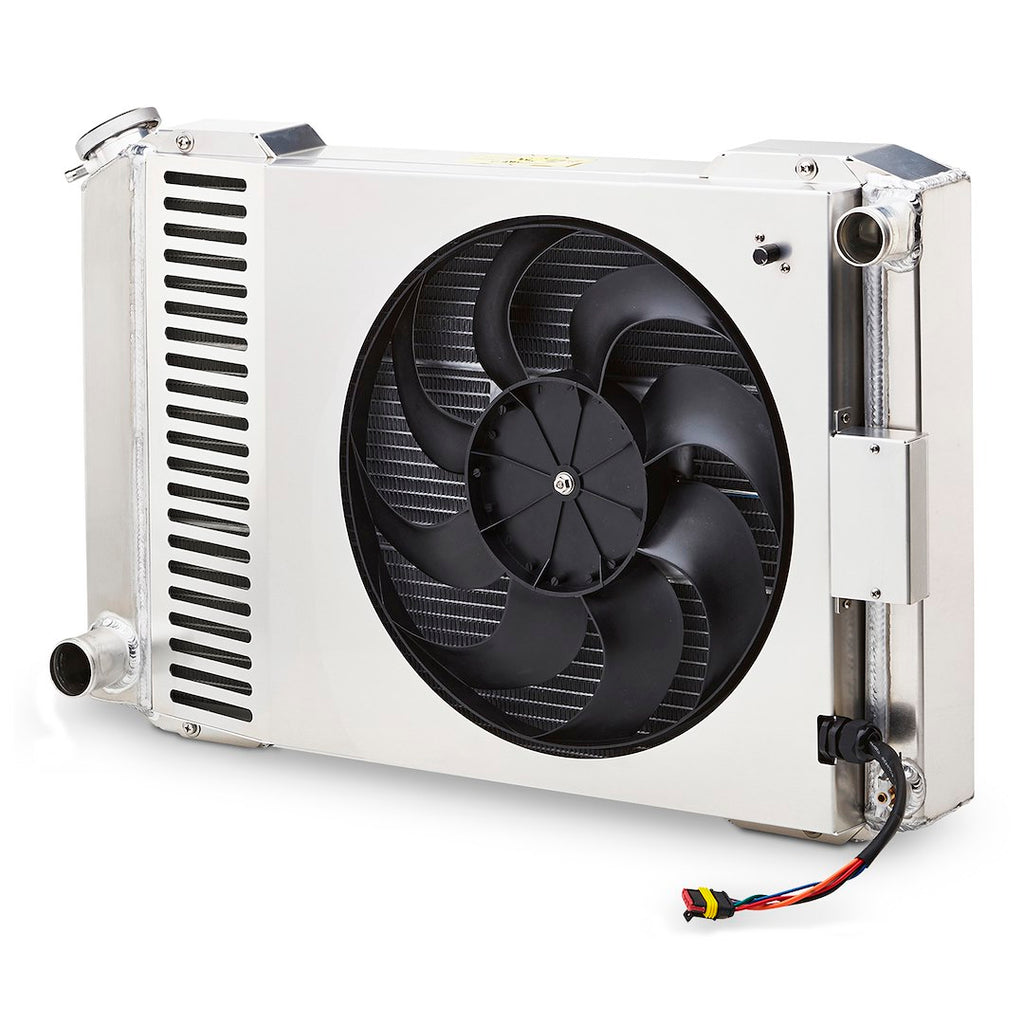

The Proform Radiator features a slim fit design with overall dimensions of 27.4 inches in length and 18.5 inches in height, making it suitable for various American V8 muscle cars. This radiator system is less than 4 inches thick and combines the radiator, shroud, and fan into a single integrated unit, streamlining installation and enhancing performance. The core dimensions measure 23 inches in length, 17 inches in height, and 2.4 inches in depth, constructed from 100 percent fabricated aluminum for durability and efficiency.

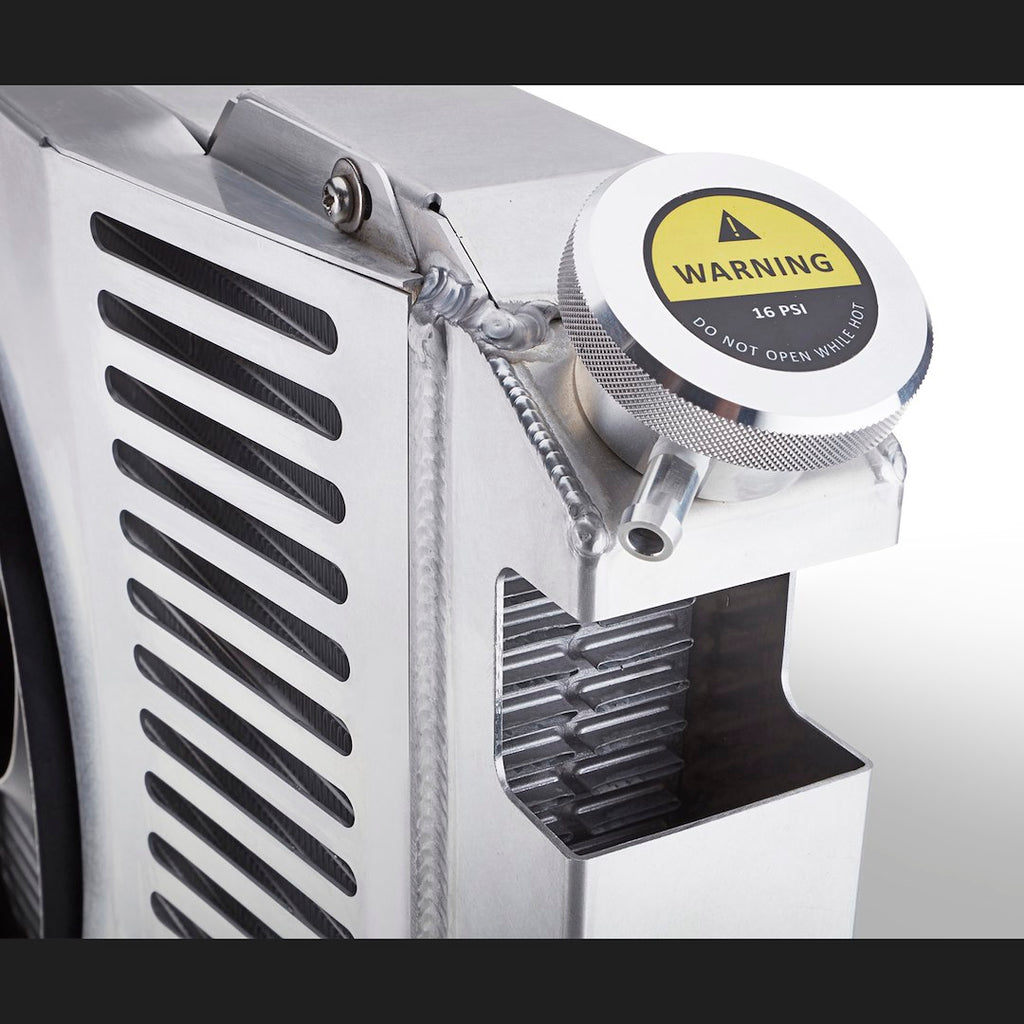

This radiator is equipped with an adjustable thermostat and a high capacity overflow tube, ensuring optimal cooling performance. The patented hybrid extruded tube core technology enhances heat dissipation, while the billet aluminum filler neck adds to the overall quality of the system. With a natural aluminum finish, this radiator not only performs well but also complements the aesthetics of your vehicle.

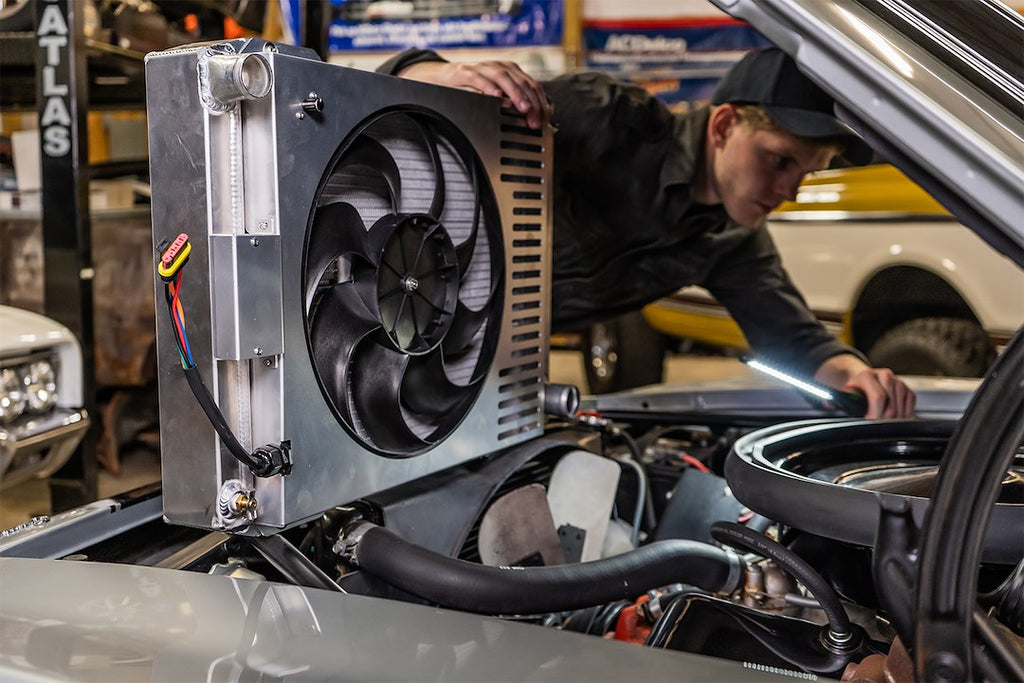

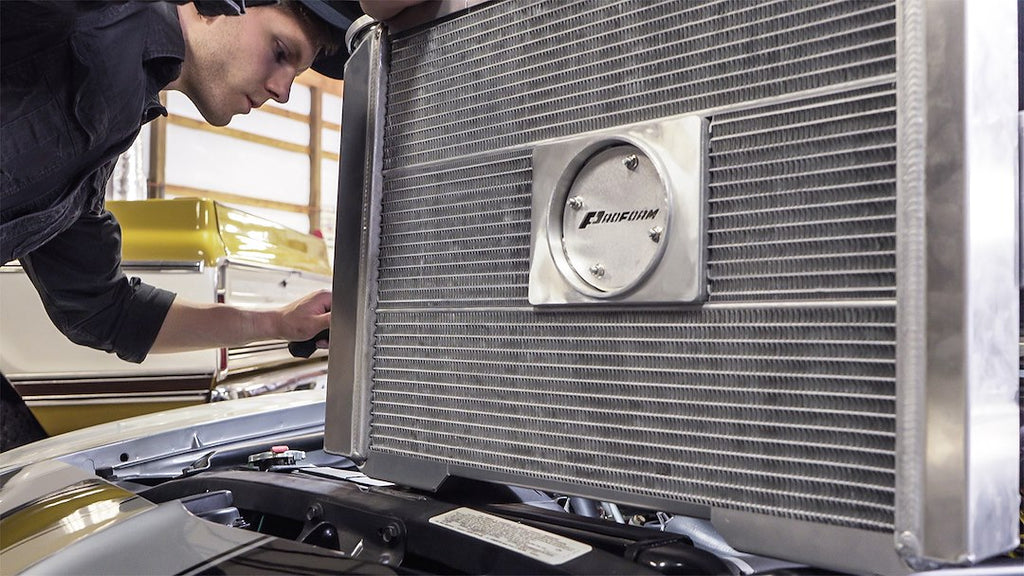

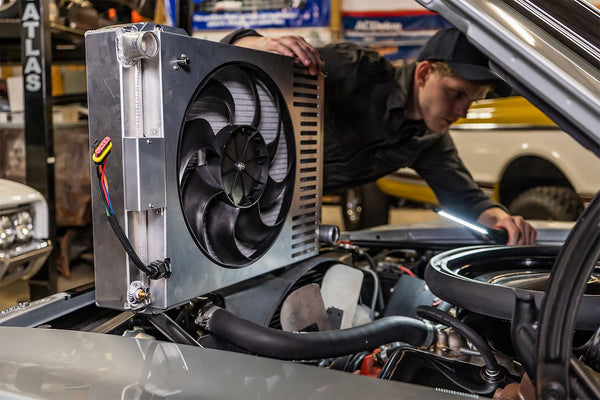

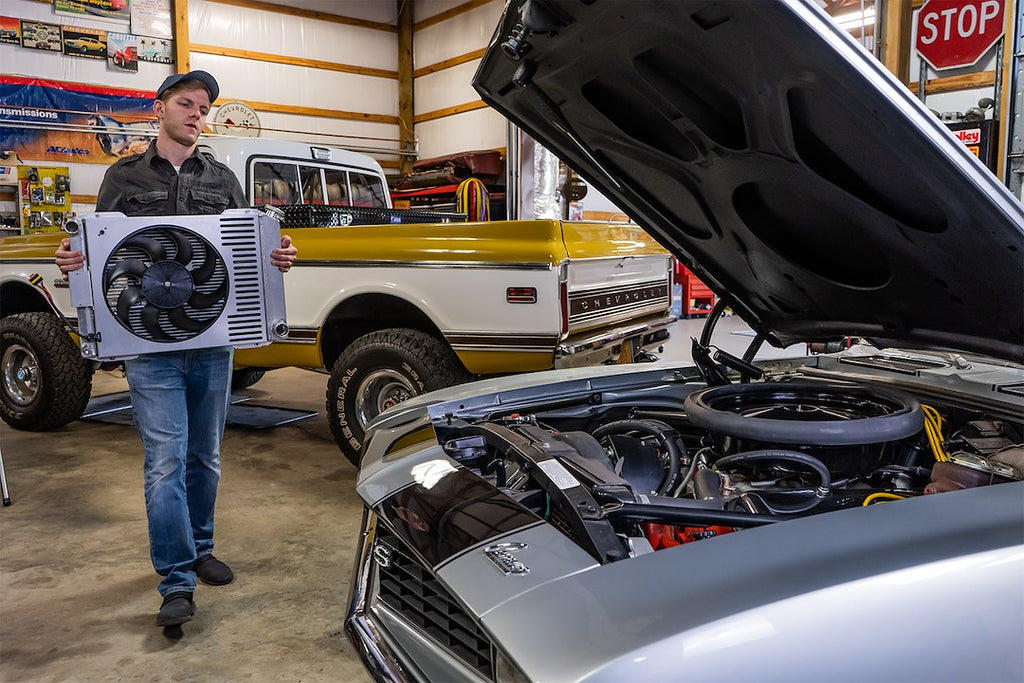

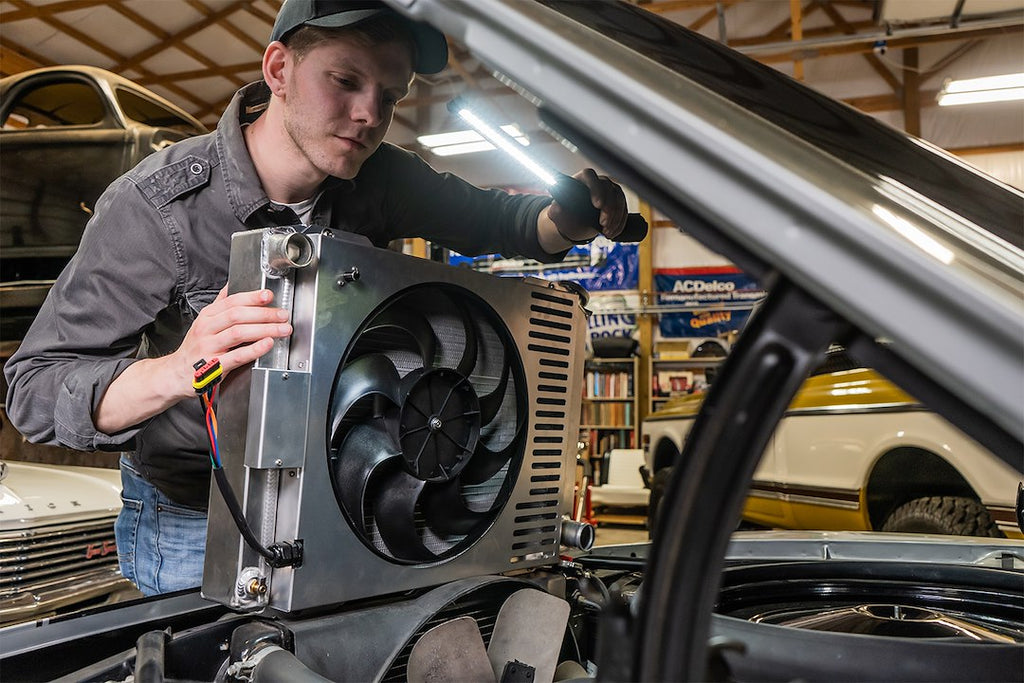

Designed for easy installation, the Proform Radiator comes pre-assembled and ready to fit into your muscle car. The inlet and outlet sizes are 1-1/2 inches and 1-3/4 inches respectively, with the inlet located on the passenger side and the outlet on the driver side. This innovative design marks a significant advancement in radiator technology, eliminating the need for outdated cooling solutions.
Features

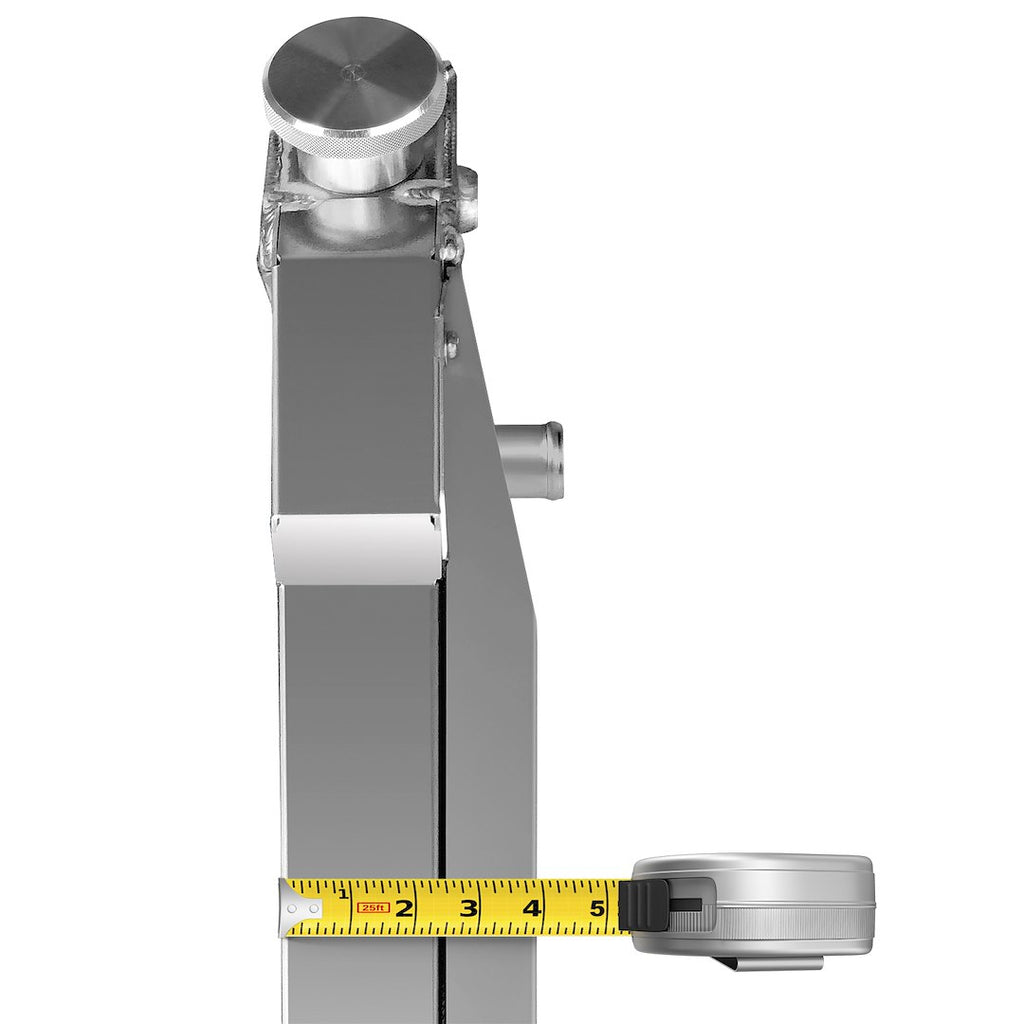

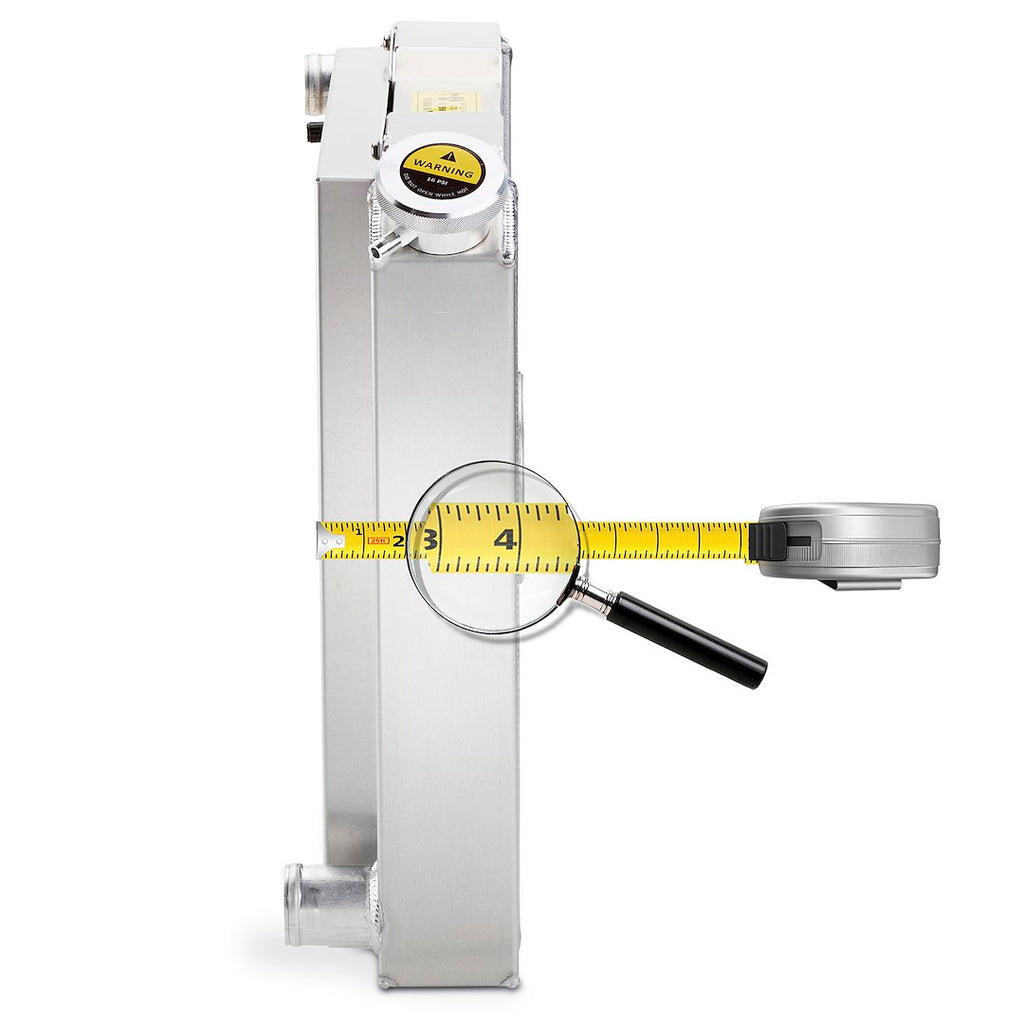

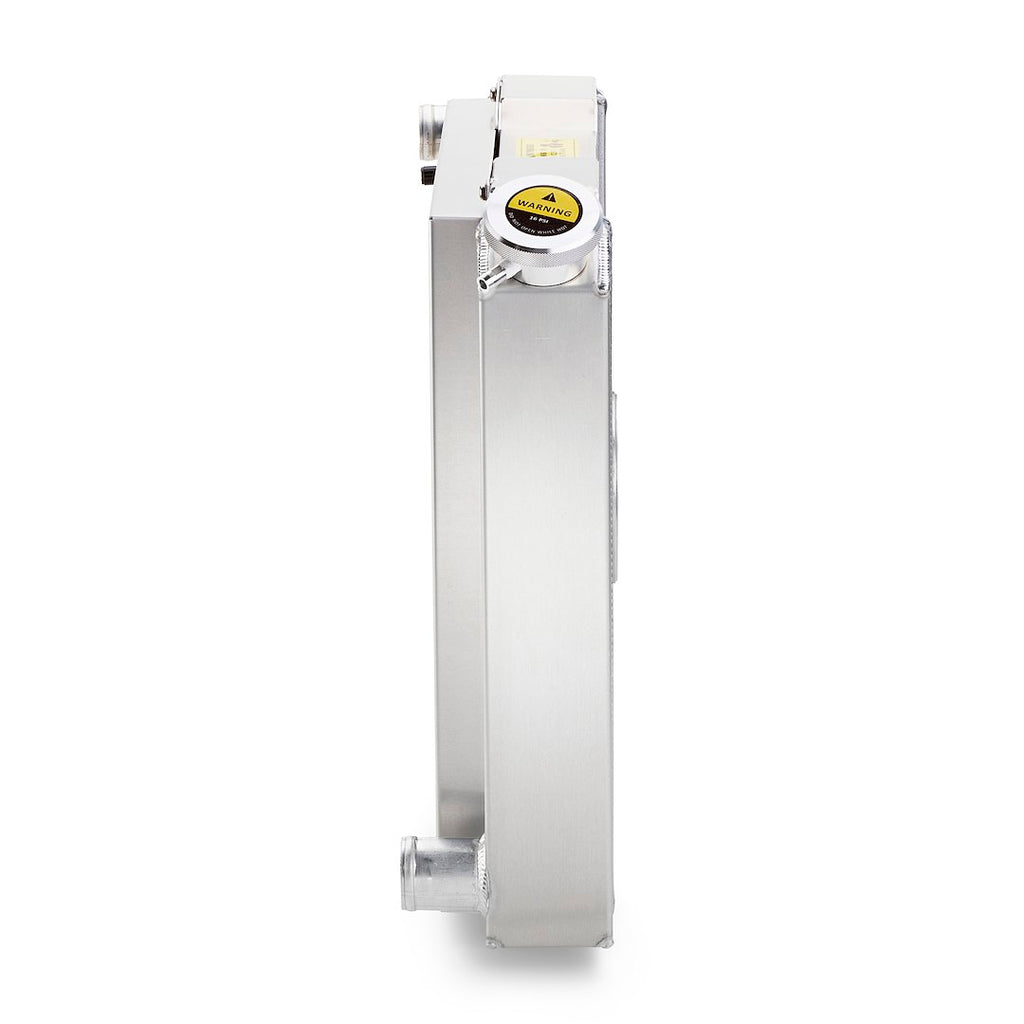

- Radiator And Shroud Less Than 4 Inch Thick

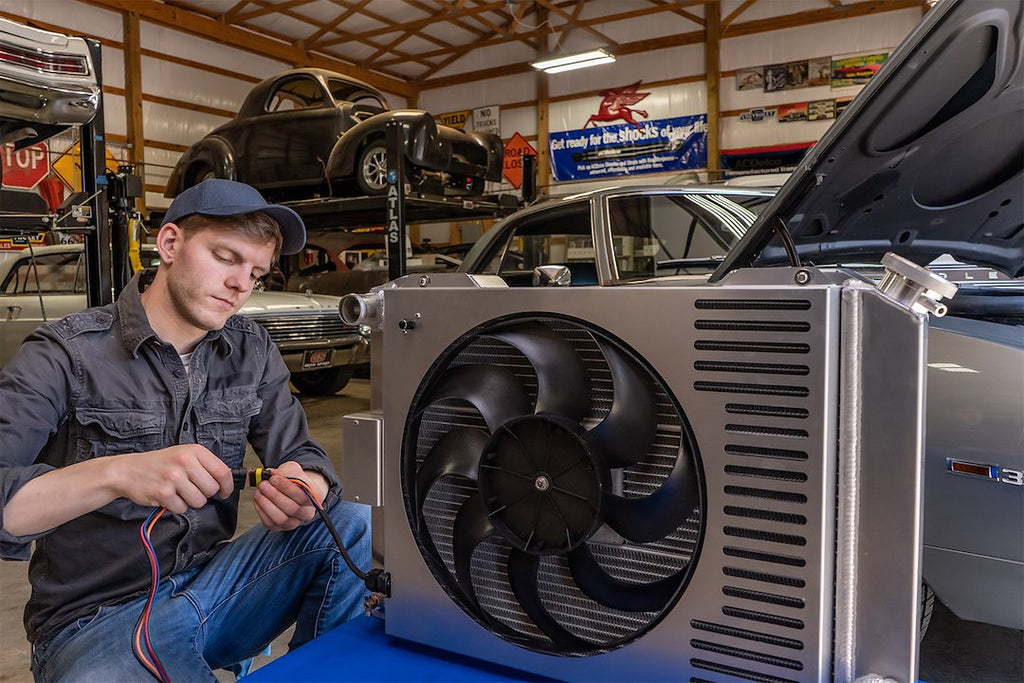

- Integrated Radiator/Shroud/Fan System
- Adjustable Thermostat
- 100 Percent Fabricated Aluminum Tanks

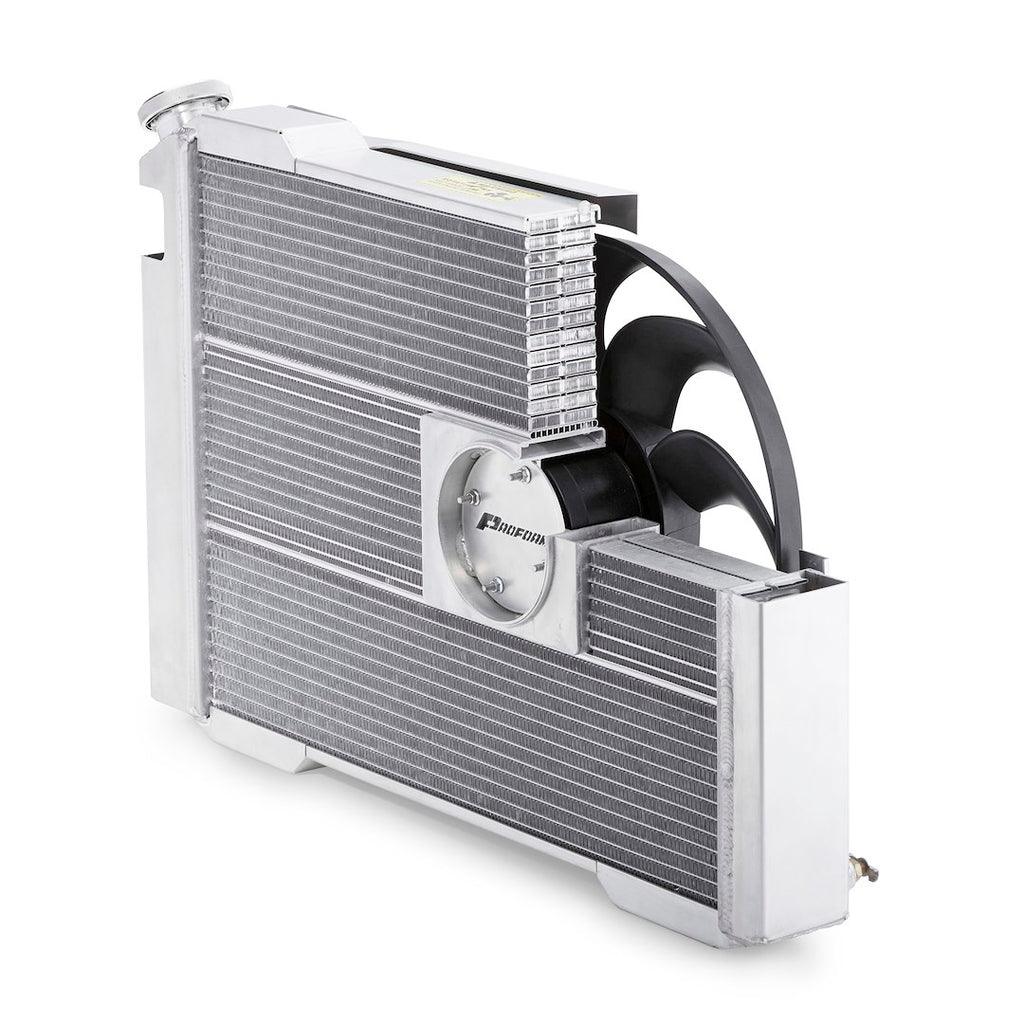

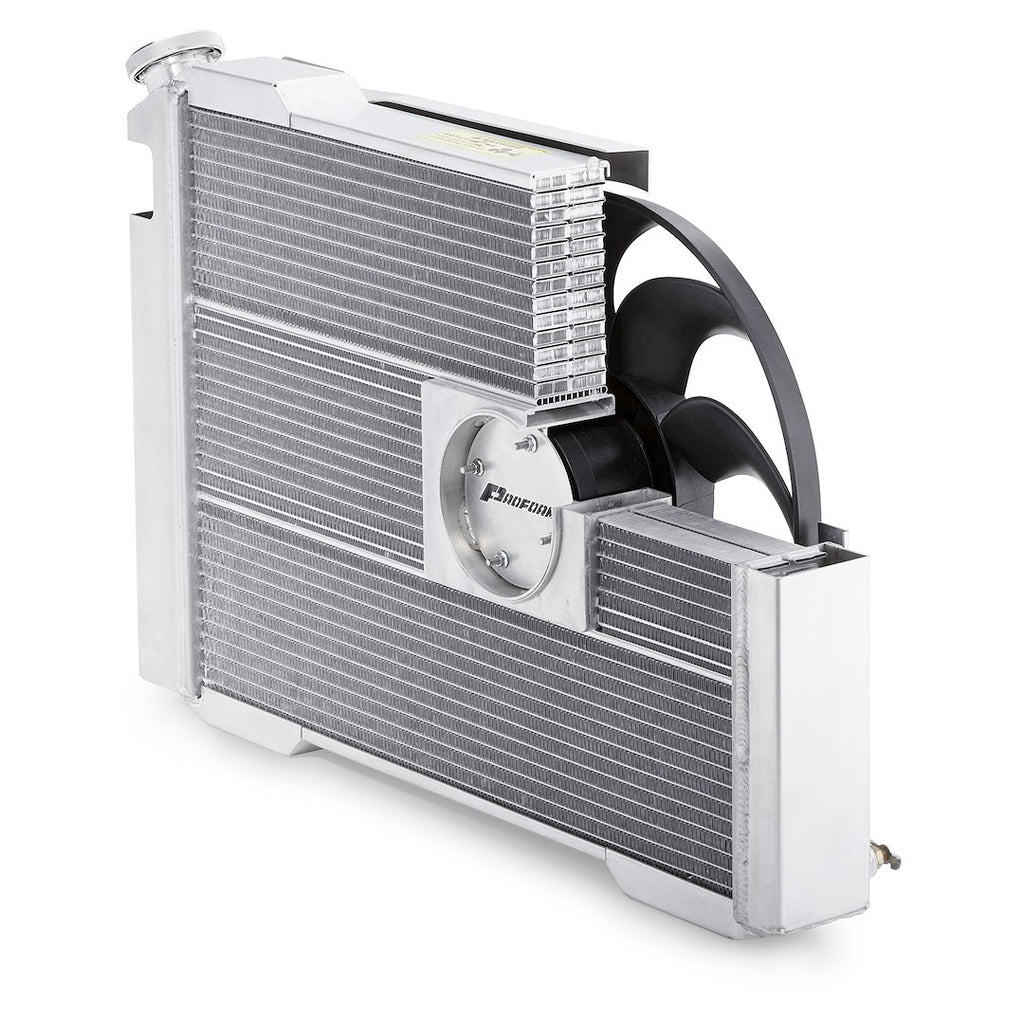

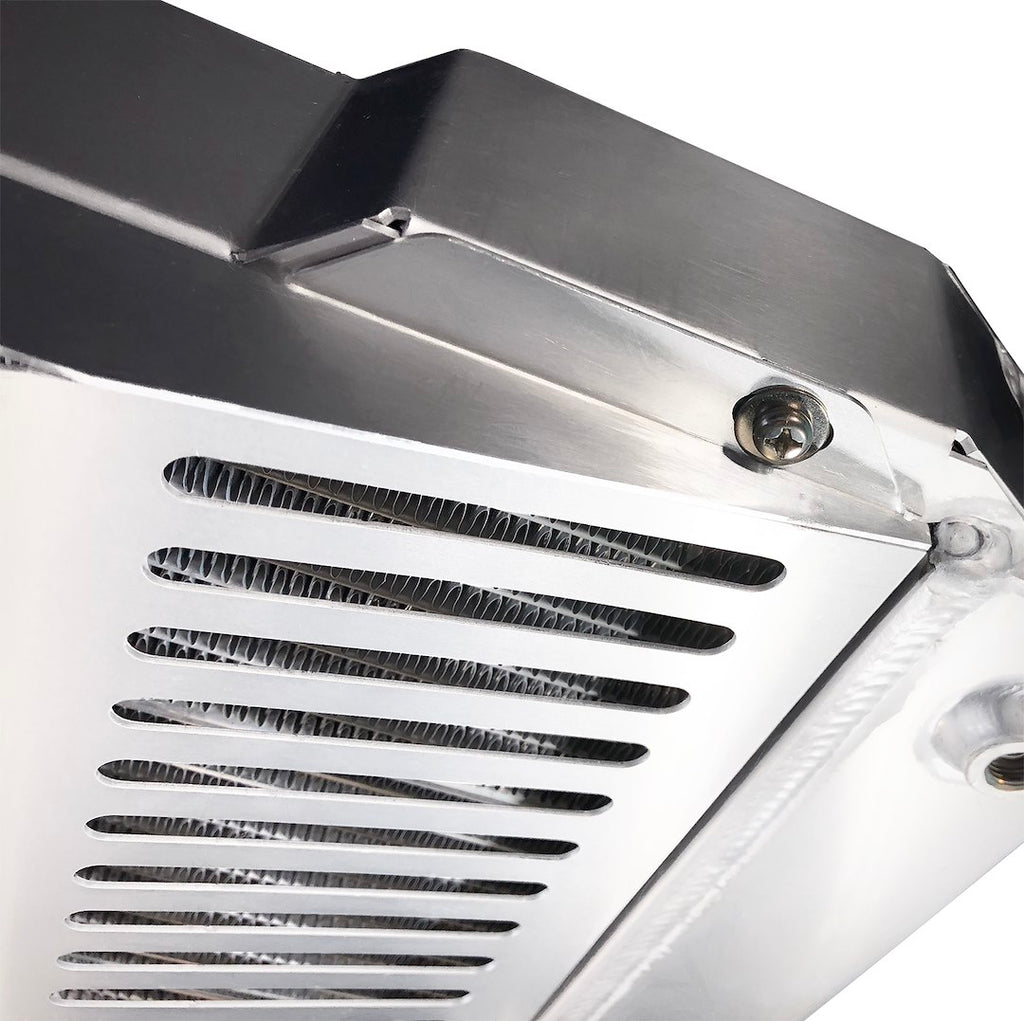

- Hybrid Extruded Tube Core Technology
- Billet Aluminum Filler Neck
- High Capacity Overflow Tube
- Patented Innovation And Design
Specifications
- Manufacturer: Proform Parts
- Manufacturer Part Number: 69590-23
- Flow Direction: Crossflow
- Overall Length (IN): 27.4 Inch
- Overall Height (IN): 18-1/2 Inch
- Core Rows: 2
- Core Material: Aluminum
- Inlet Hose Location: Passenger Side
- Inlet Size (IN): 1-1/2 Inch
- Outlet Hose Location: Driver Side
- Outlet Size (IN): 1-3/4 Inch
- Finish: Natural
- Color: Silver
- Core Length (IN): 23 Inch
- Core Height (IN): 17 Inch
- Core Depth (IN): 2.4 Inch
- Tank Material: Aluminum
- With Radiator Cap: Yes
- With Transmission Cooler: No
- Includes Fittings: No
