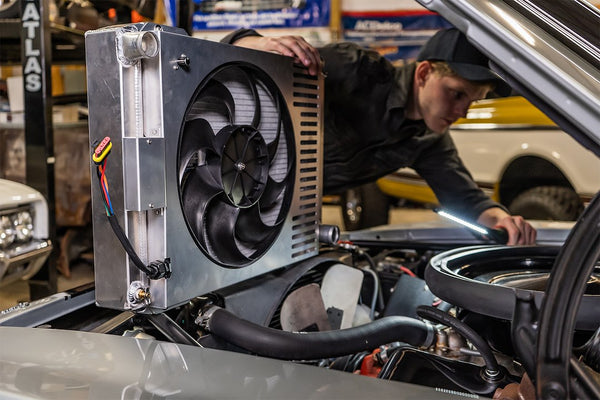

Advanced cooling system for American V8 muscle cars with integrated components.

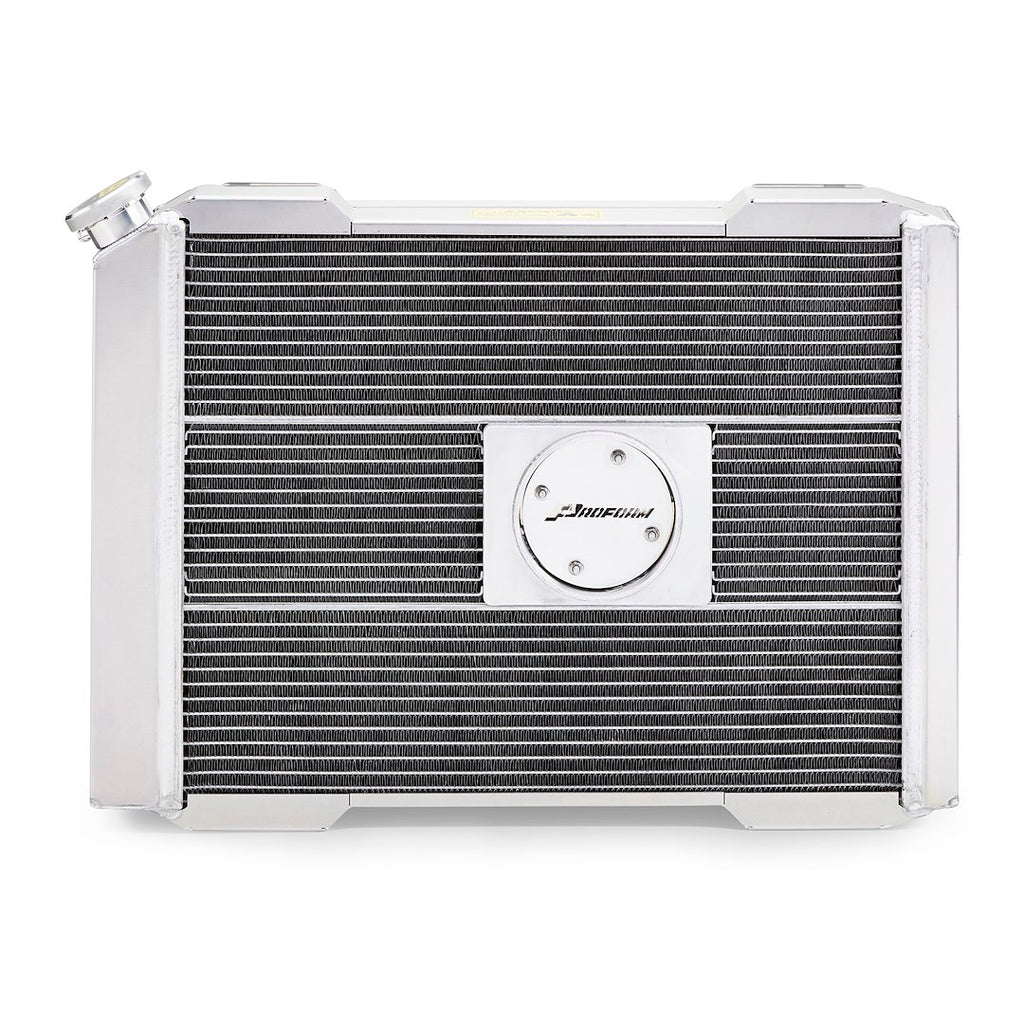

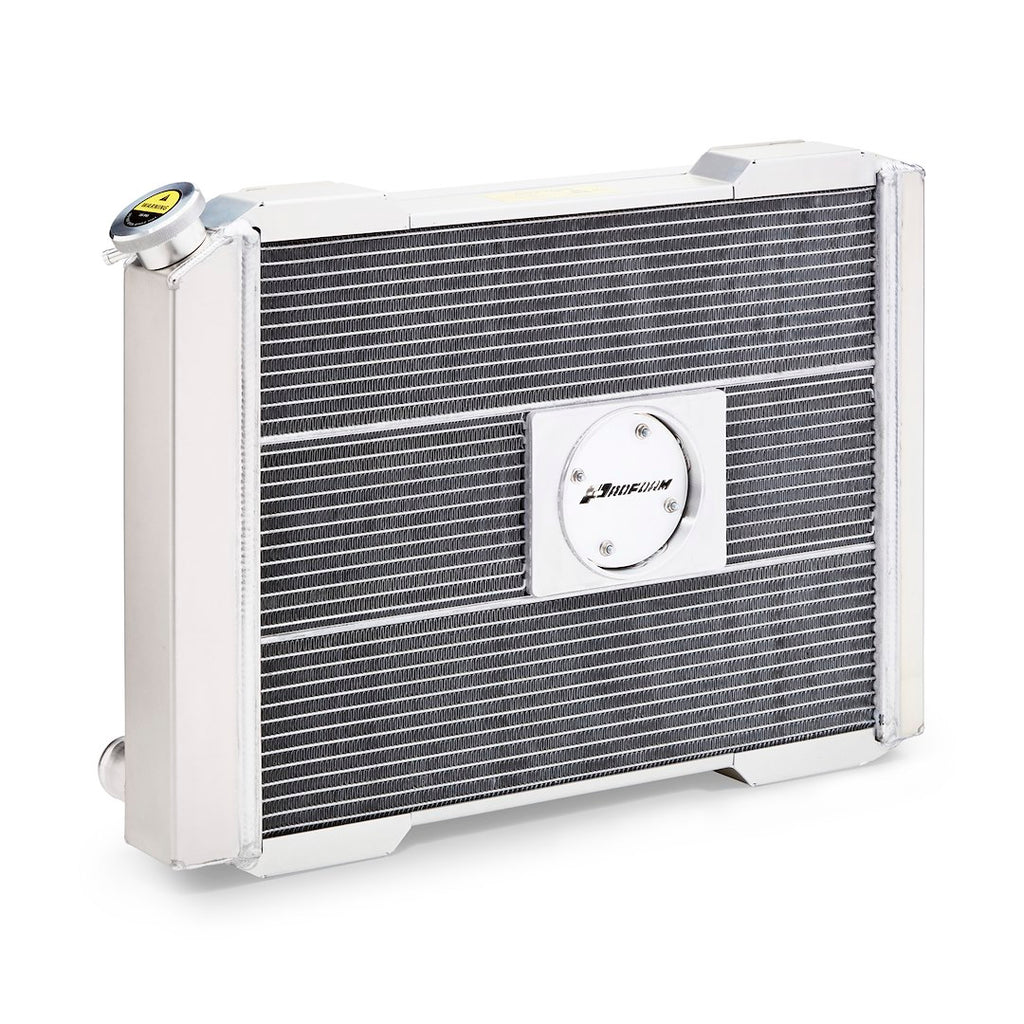

The Proform Radiator features a slim fit design with overall dimensions of 25.4 inches in length and 18.5 inches in height, making it suitable for various American V8 muscle cars. This radiator is engineered with a core dimension of 21 inches in length, 17 inches in height, and a depth of 2.4 inches, ensuring efficient cooling performance while maintaining a compact profile. The natural aluminum finish not only enhances durability but also contributes to the aesthetic appeal of the vehicle.

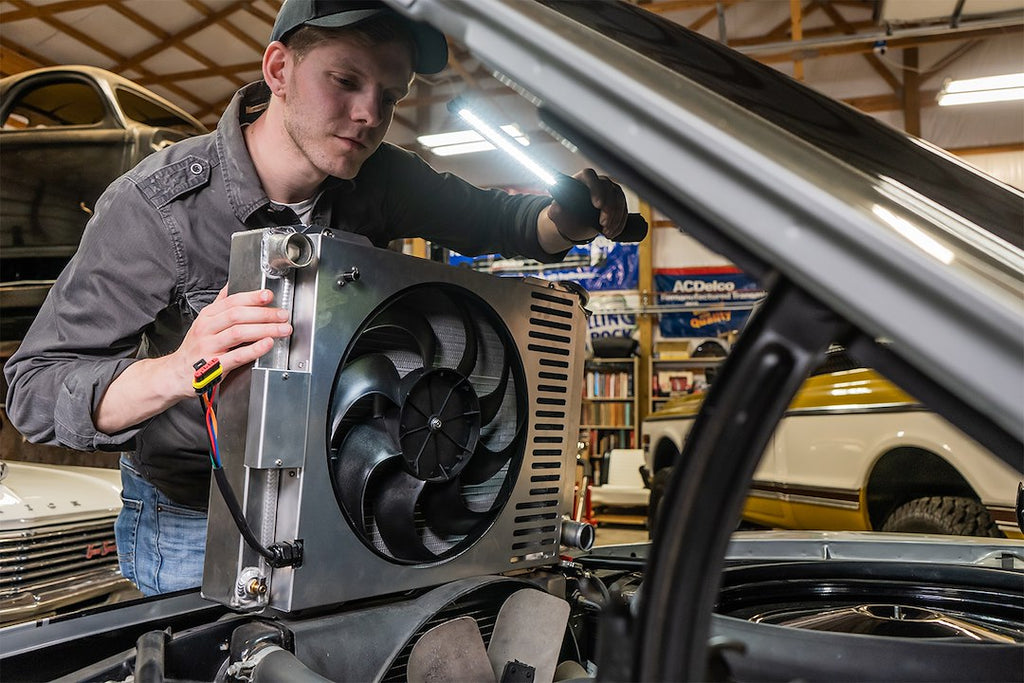

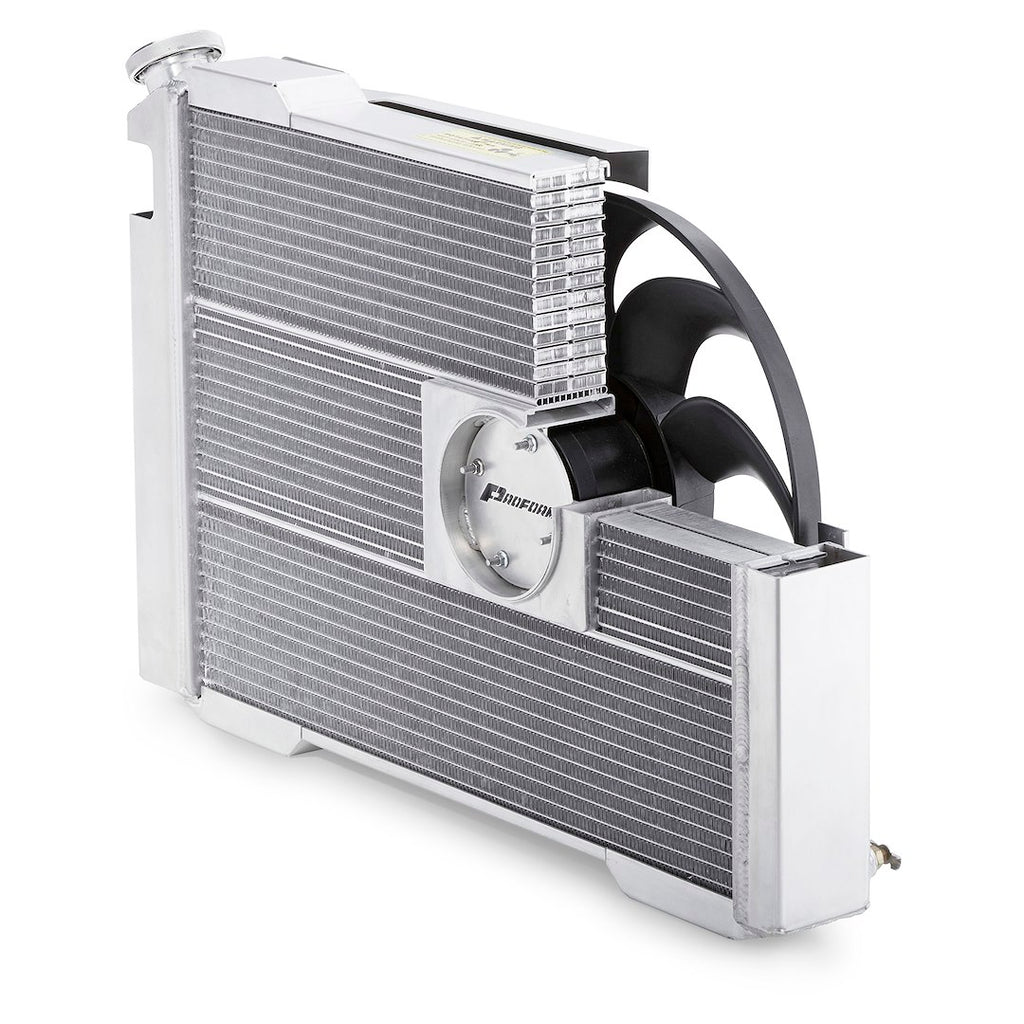

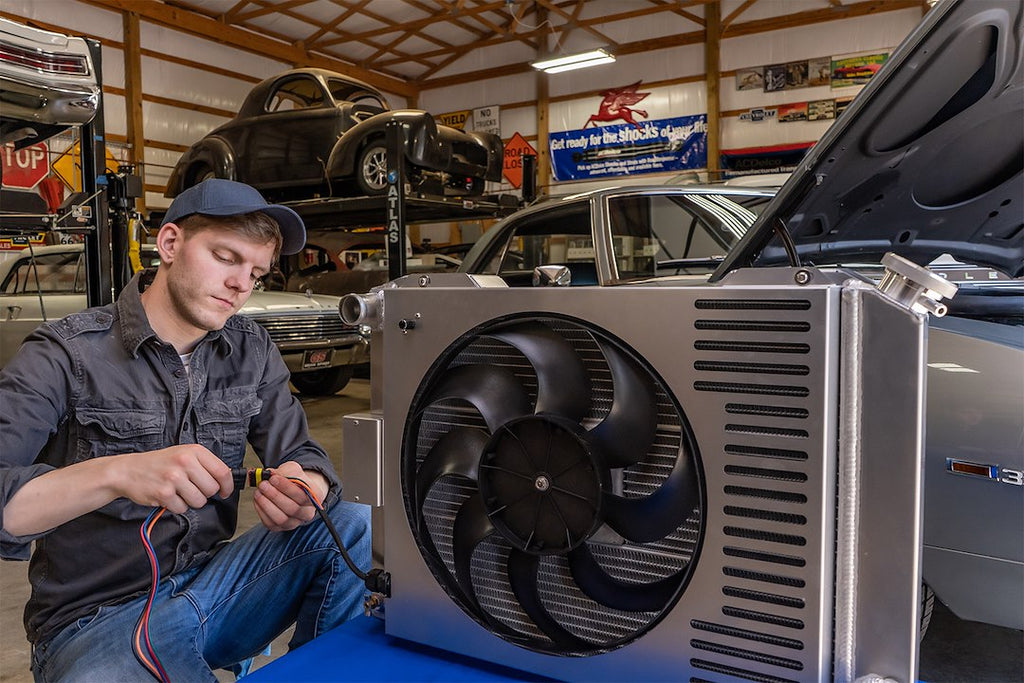

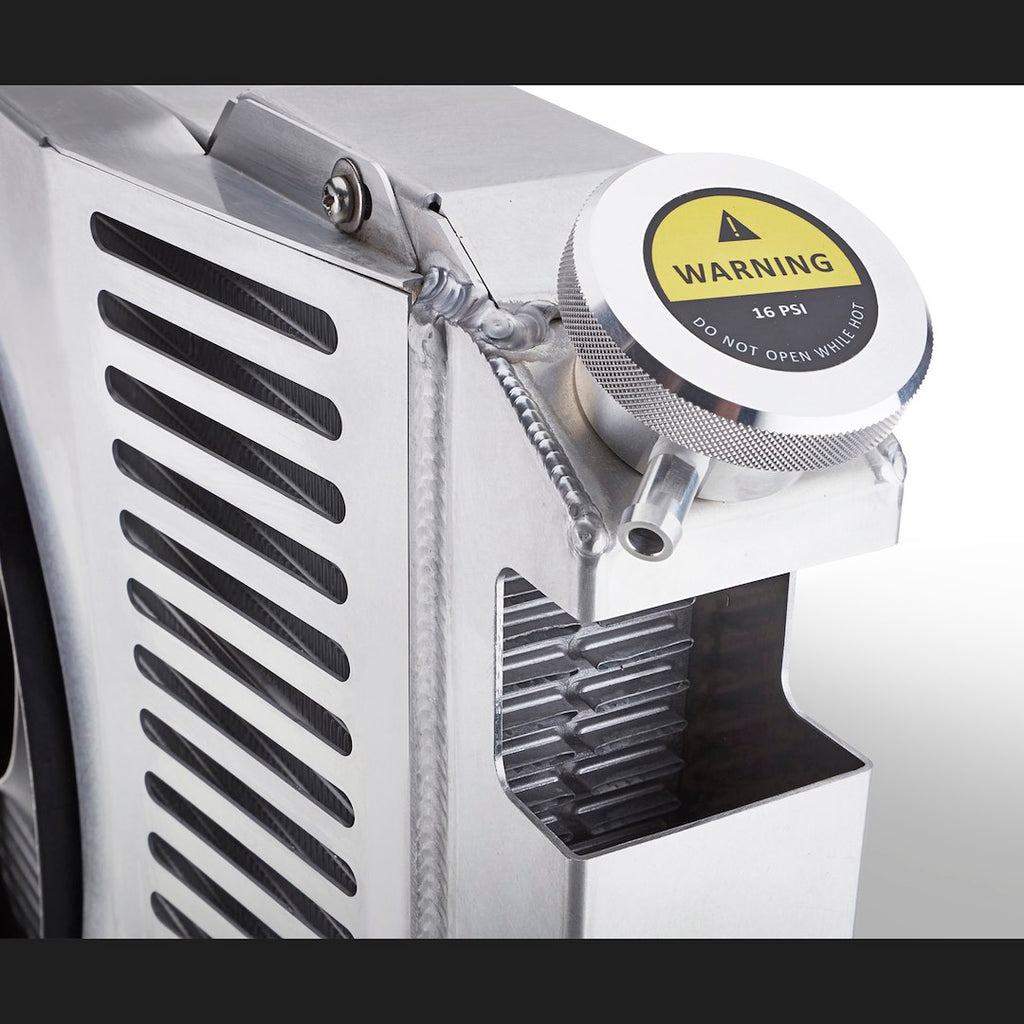

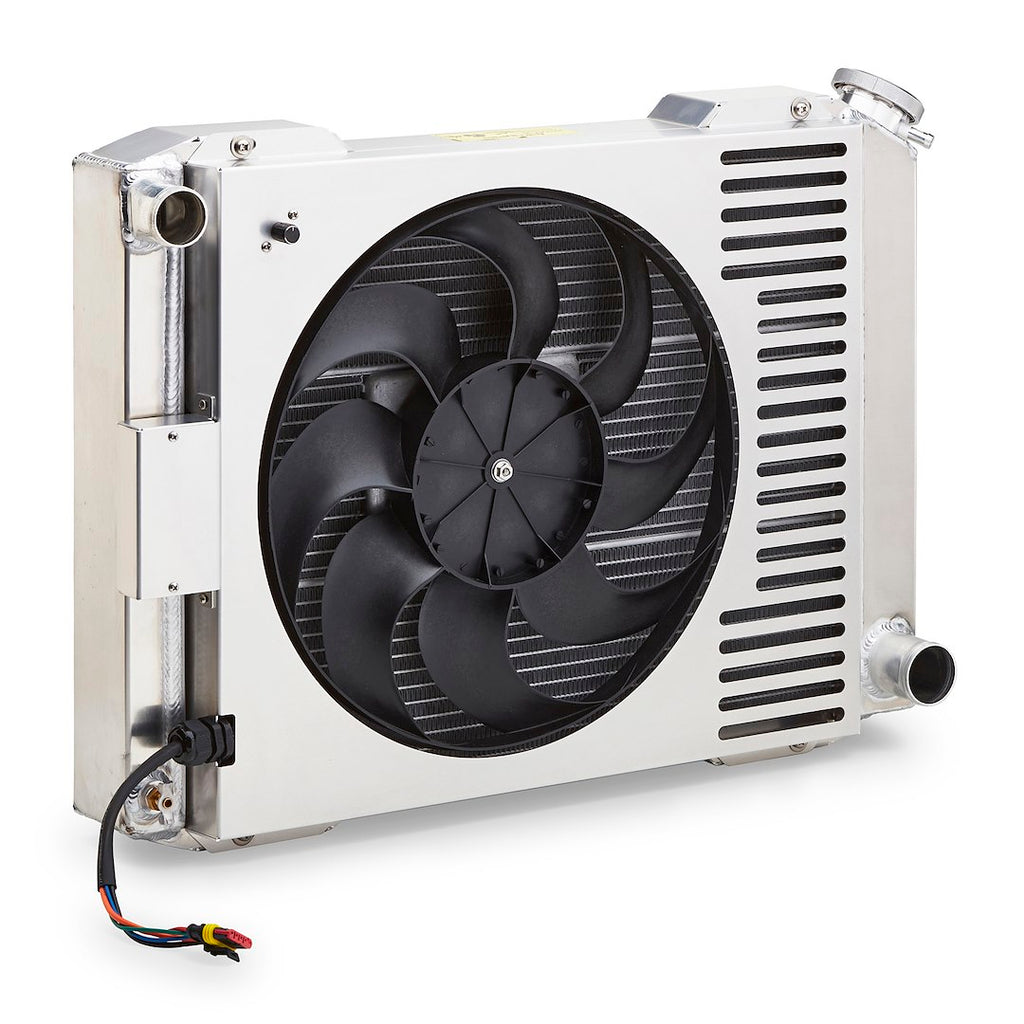

This innovative radiator system integrates the radiator, shroud, and electric fan into a single unit that is less than 4 inches thick. The adjustable thermostat allows for precise temperature control, while the 100 percent fabricated aluminum tanks and hybrid extruded tube core technology ensure optimal heat dissipation. The design includes a billet aluminum filler neck and a high-capacity overflow tube, further enhancing the system's reliability and efficiency.

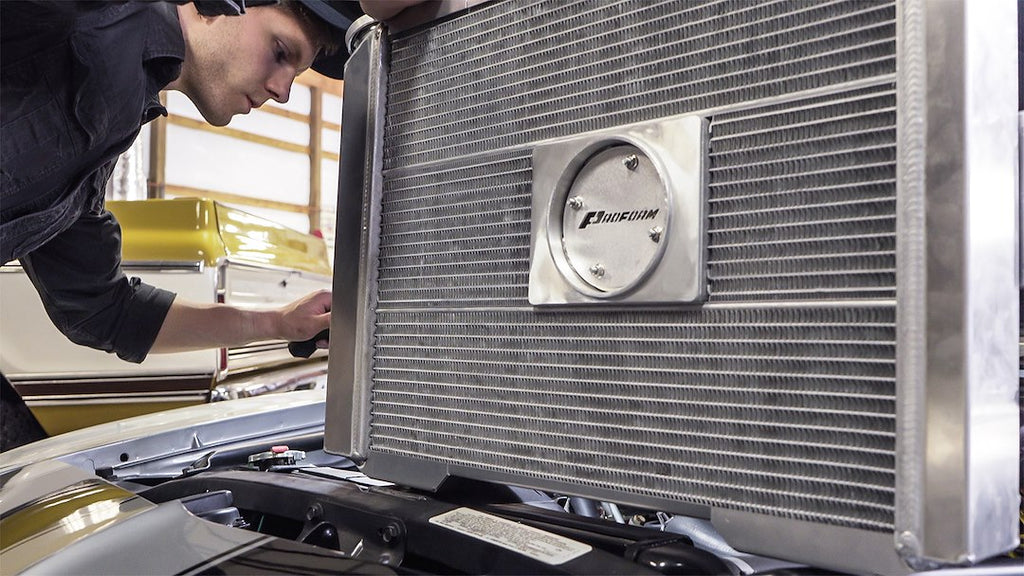

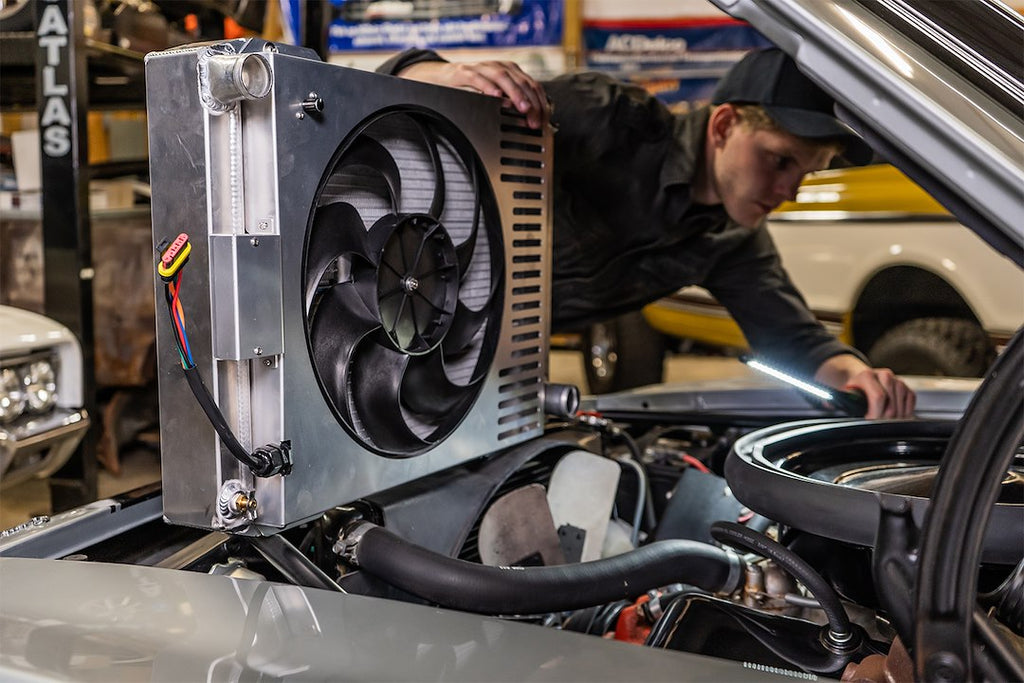

With a crossflow flow direction and dual core rows, this radiator is designed to provide superior cooling capabilities. The inlet and outlet sizes are 1-1/2 inches and 1-3/4 inches respectively, positioned for easy installation. This pre-assembled unit is ready to fit seamlessly into your vehicle, eliminating the need for complex modifications and ensuring a straightforward installation process.
Features

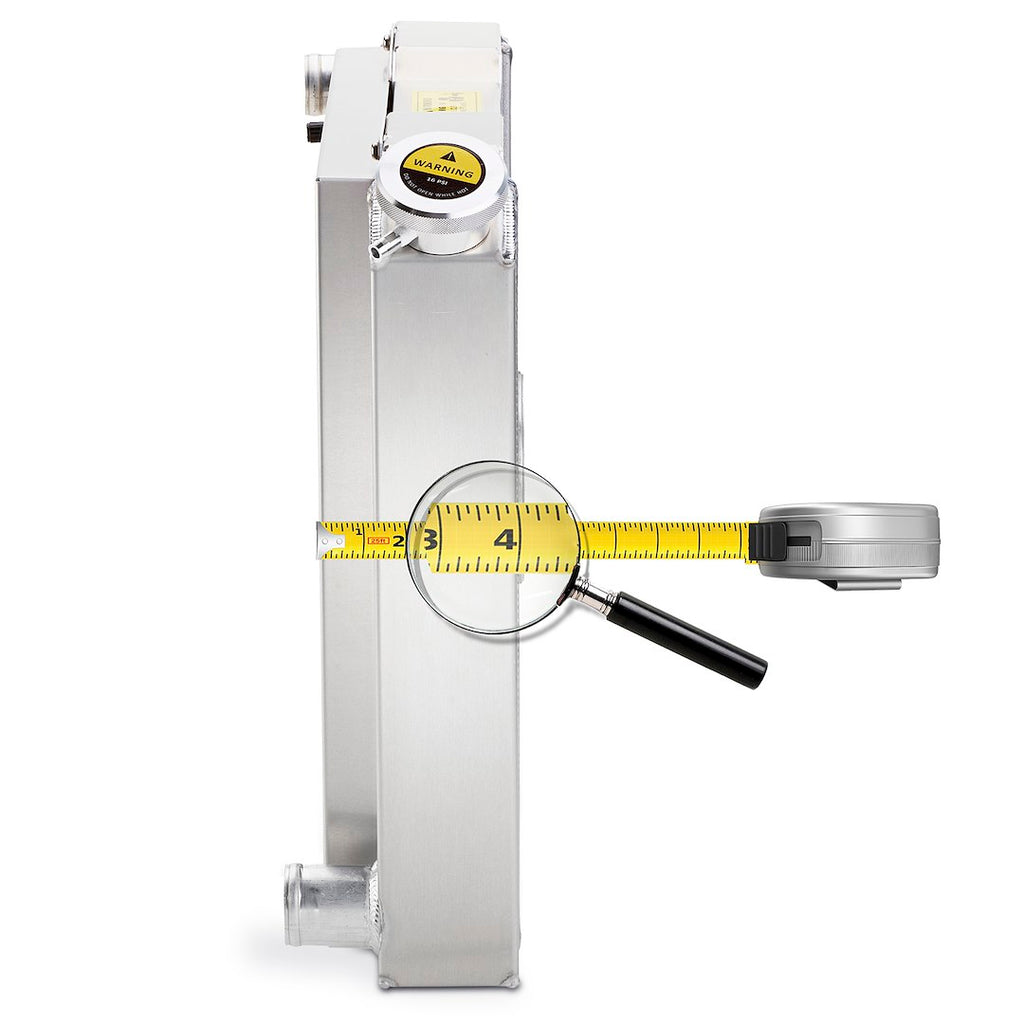

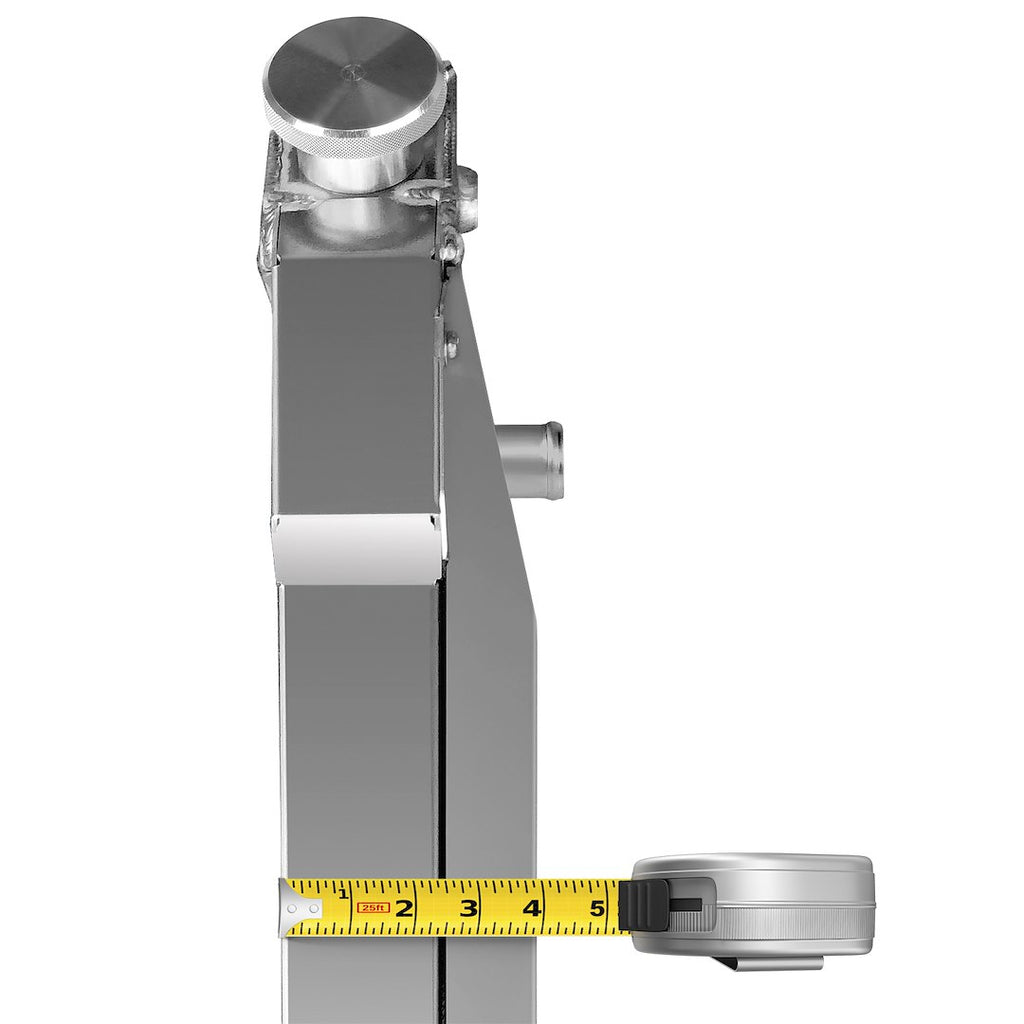

- Radiator And Shroud Less Than 4 Inch Thick

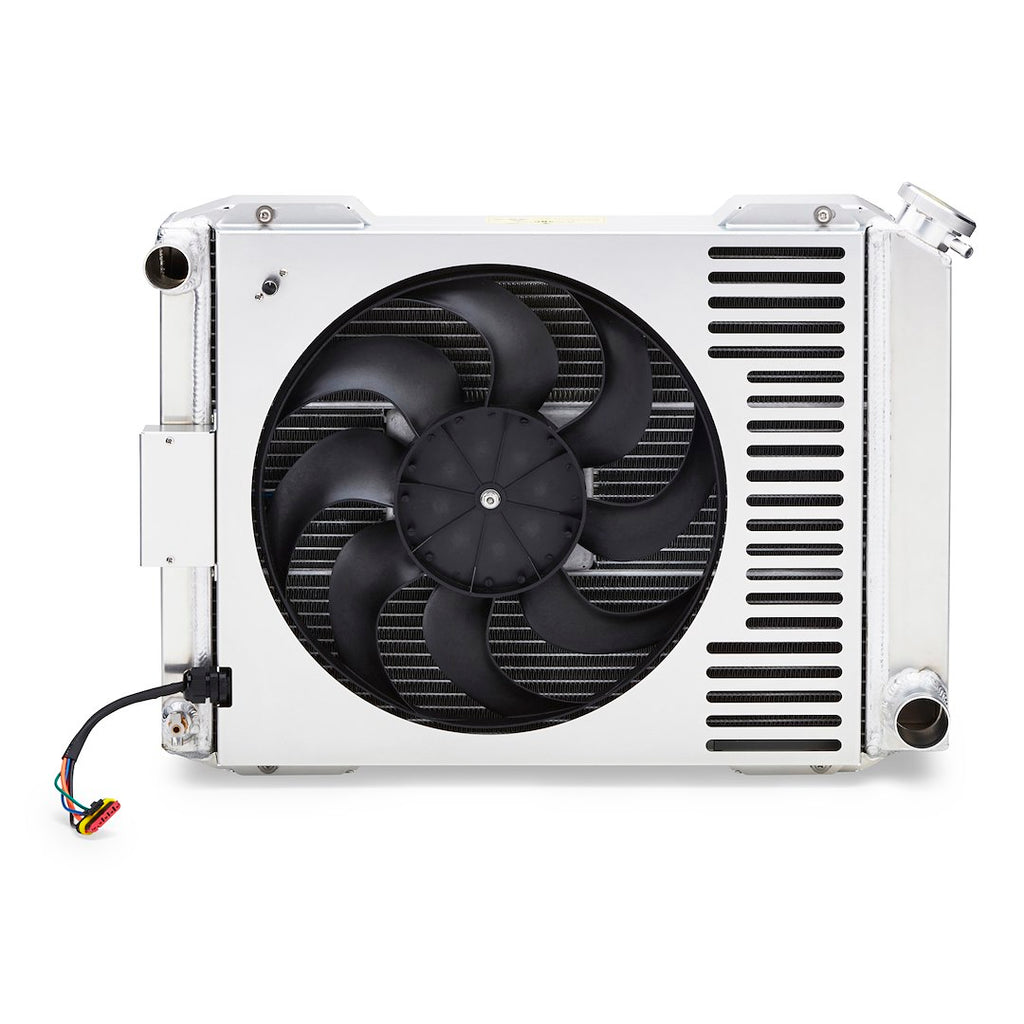

- Integrated Radiator/ Shroud/ Fan System
- Adjustable Thermostat
- 100 Percent Fabricated Aluminum Tanks

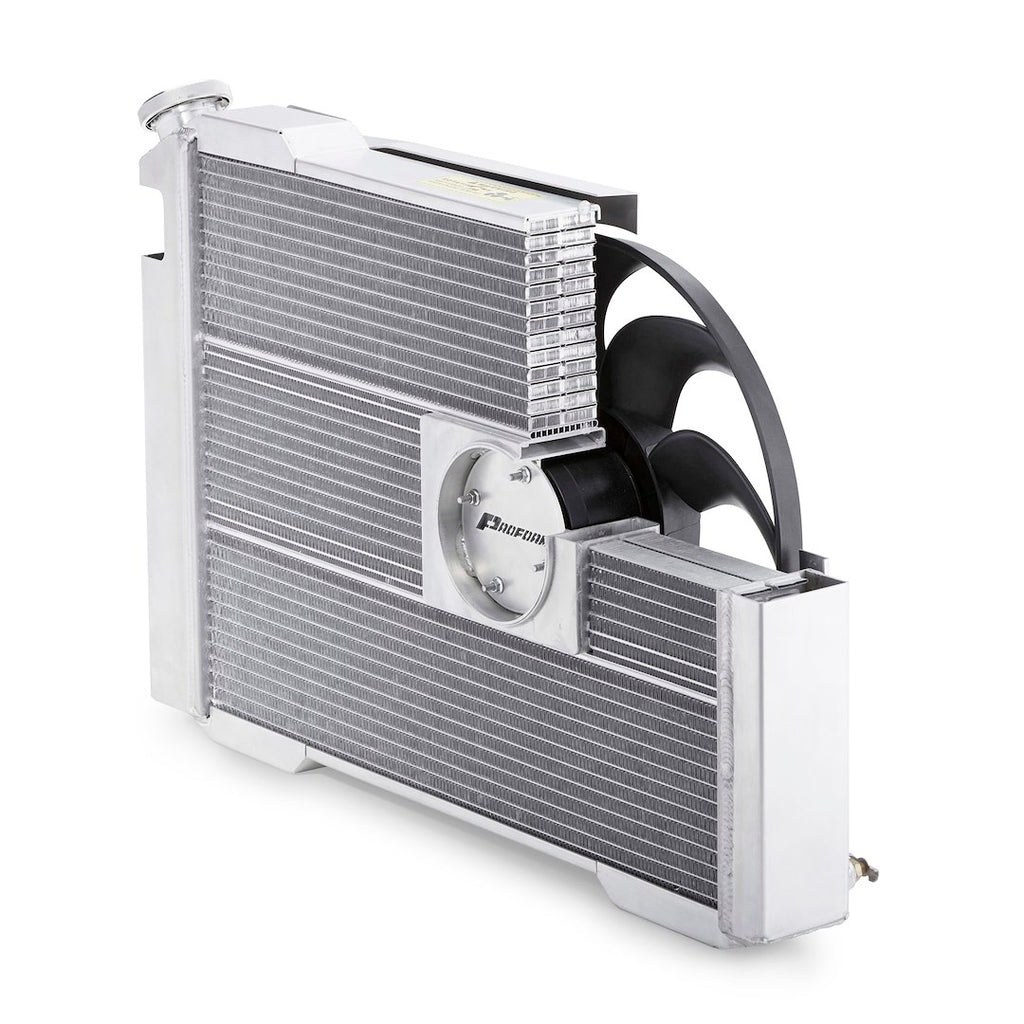

- Hybrid Extruded Tube Core Technology
- Billet Aluminum Filler Neck
- High-Capacity Overflow Tube
- Patented Innovation And Design
Specifications
- Manufacturer: Proform Parts
- Manufacturer Part Number: 69580-21
- Flow Direction: Crossflow
- Overall Length (IN): 25.4 Inch
- Overall Height (IN): 18-1/2 Inch

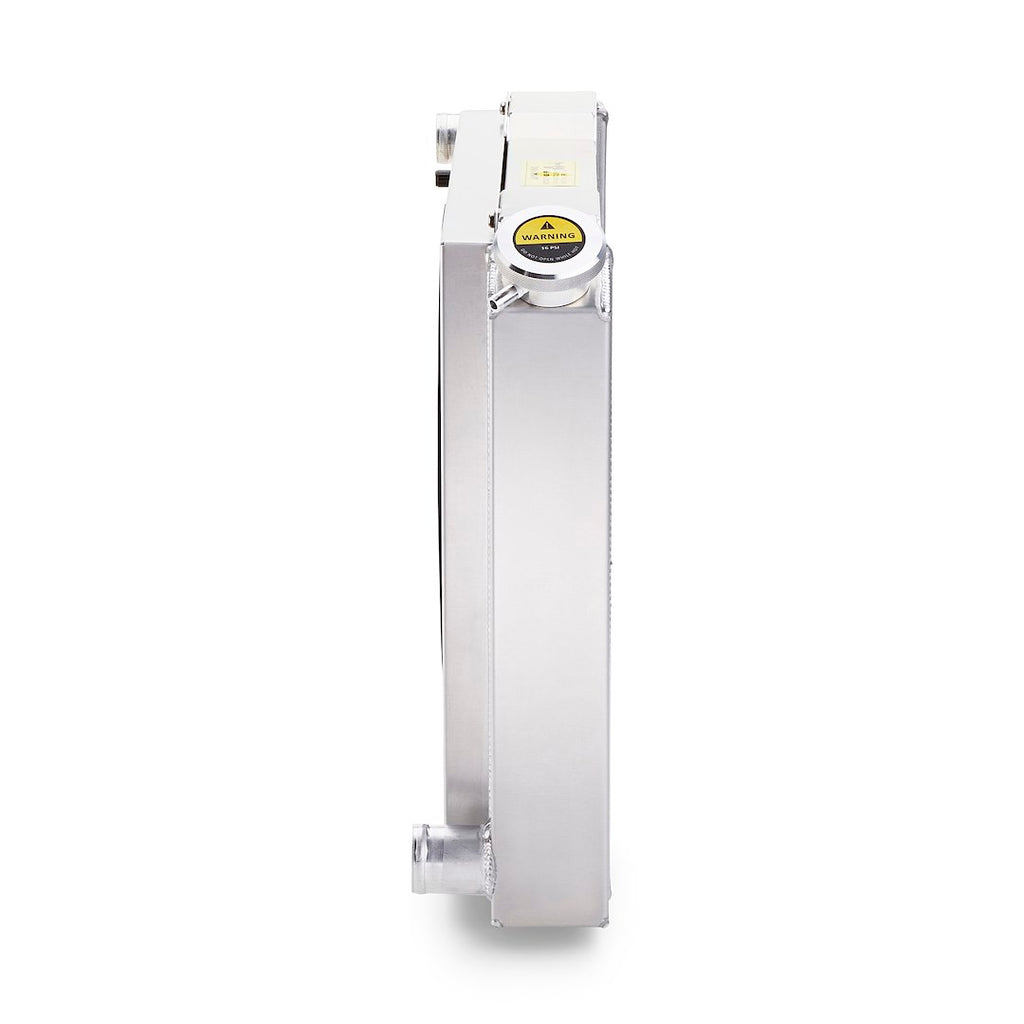

- Overall Depth (IN): 4 Inch
- Core Rows: Dual
- Core Material: Aluminum
- Inlet Hose Location: Driver Side
- Inlet Size (IN): 1-1/2 Inch
- Outlet Hose Location: Passenger Side
- Outlet Size (IN): 1-3/4 Inch
- Finish: Natural
- Color: Silver
- Core Length (IN): 21 Inch
- Core Height (IN): 17 Inch
- Core Depth (IN): 2.4 Inch
- Tank Material: Aluminum
- With Radiator Cap: Yes
- With Transmission Cooler: No
- Includes Fittings: No
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
