Advanced cooling system designed for American V8 muscle cars.

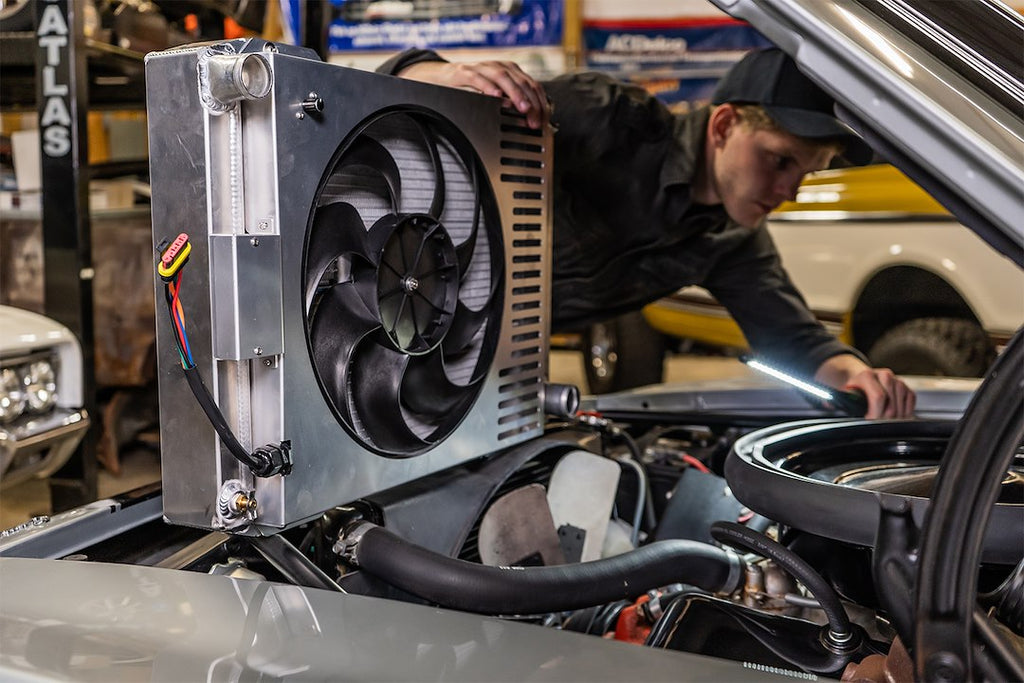

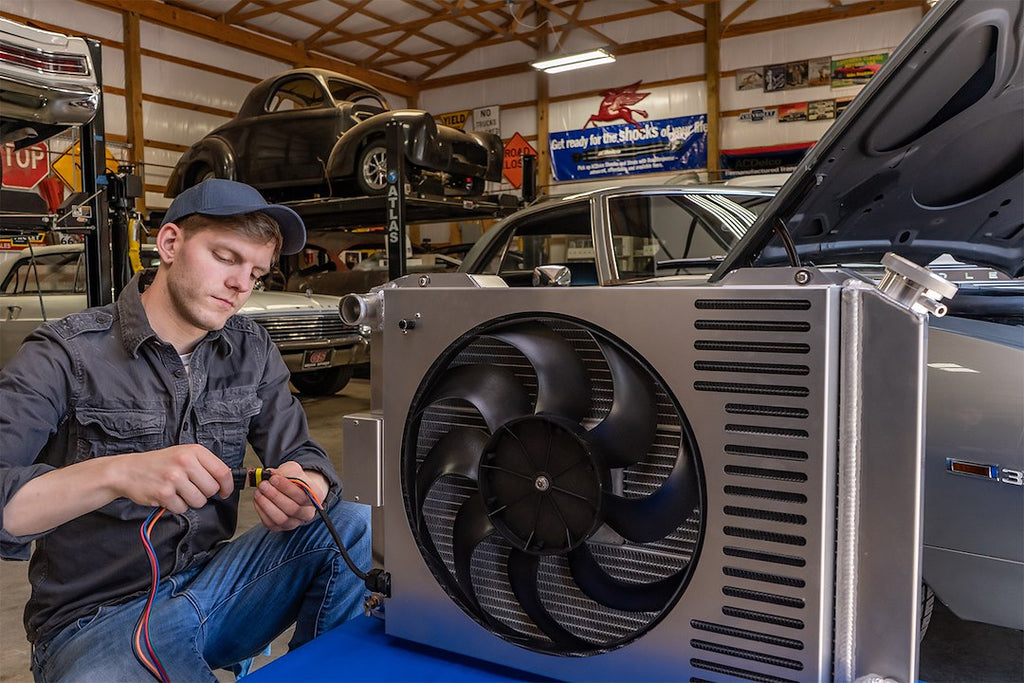

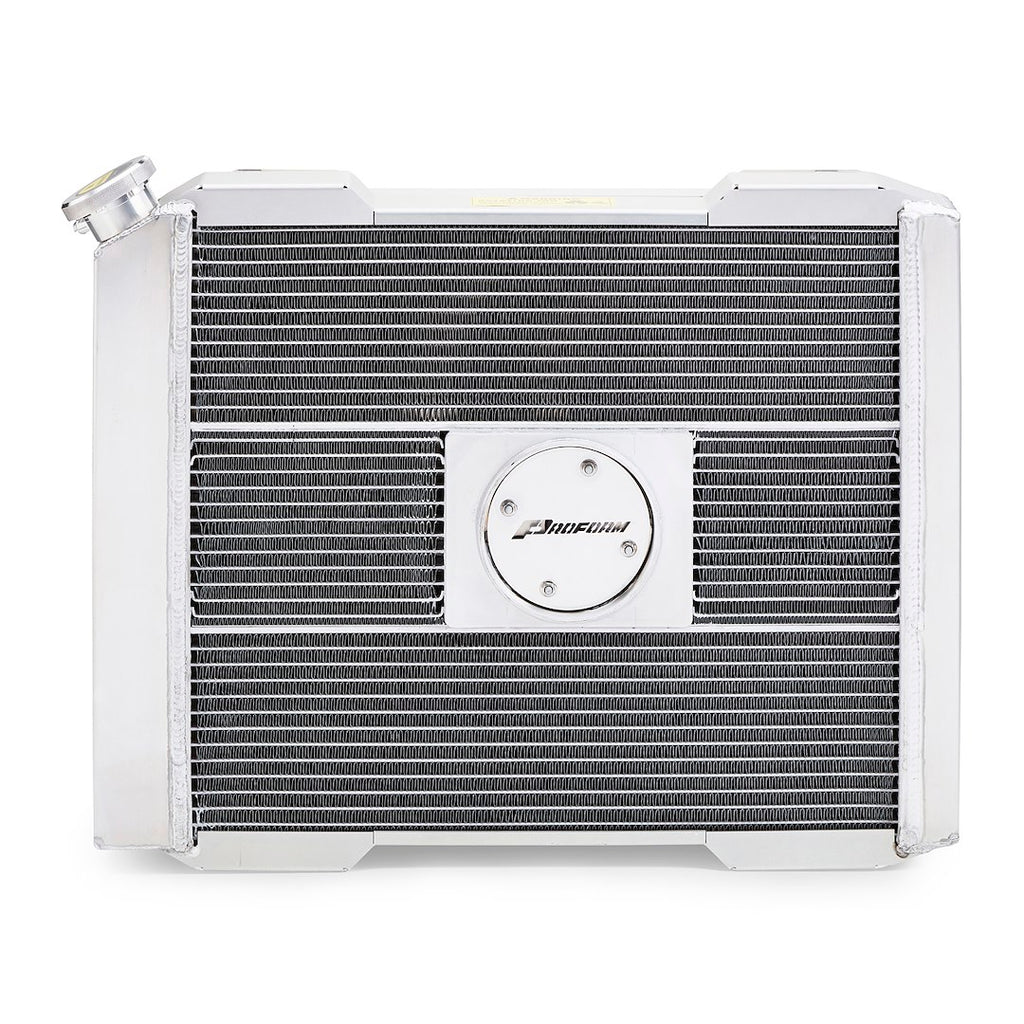

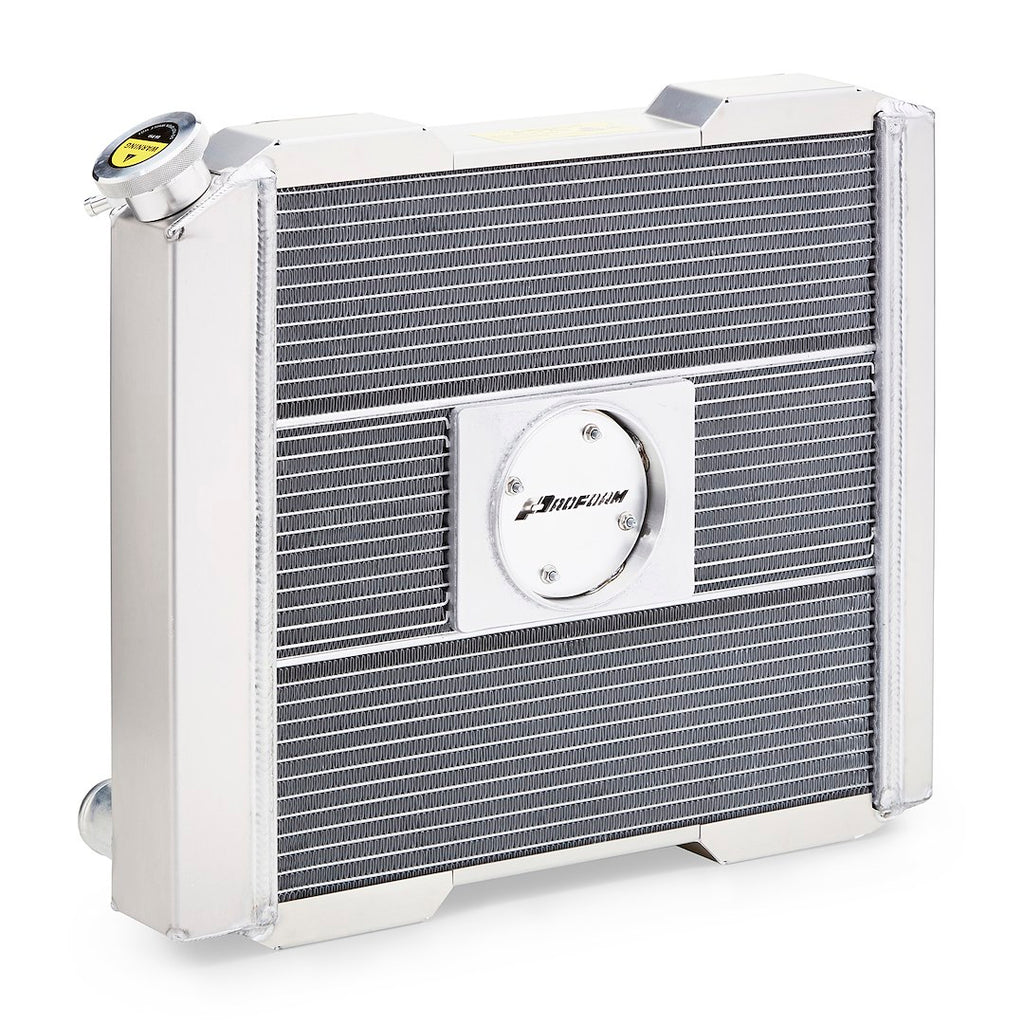

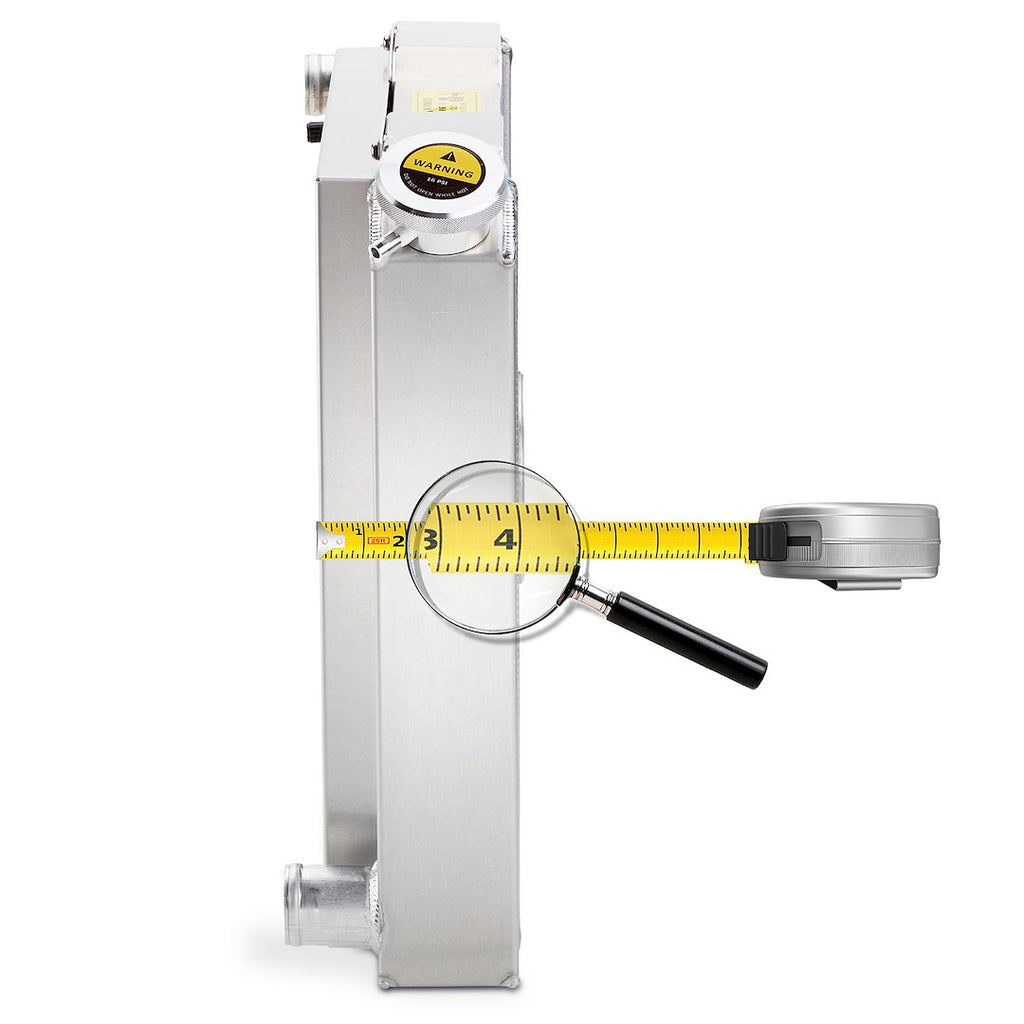

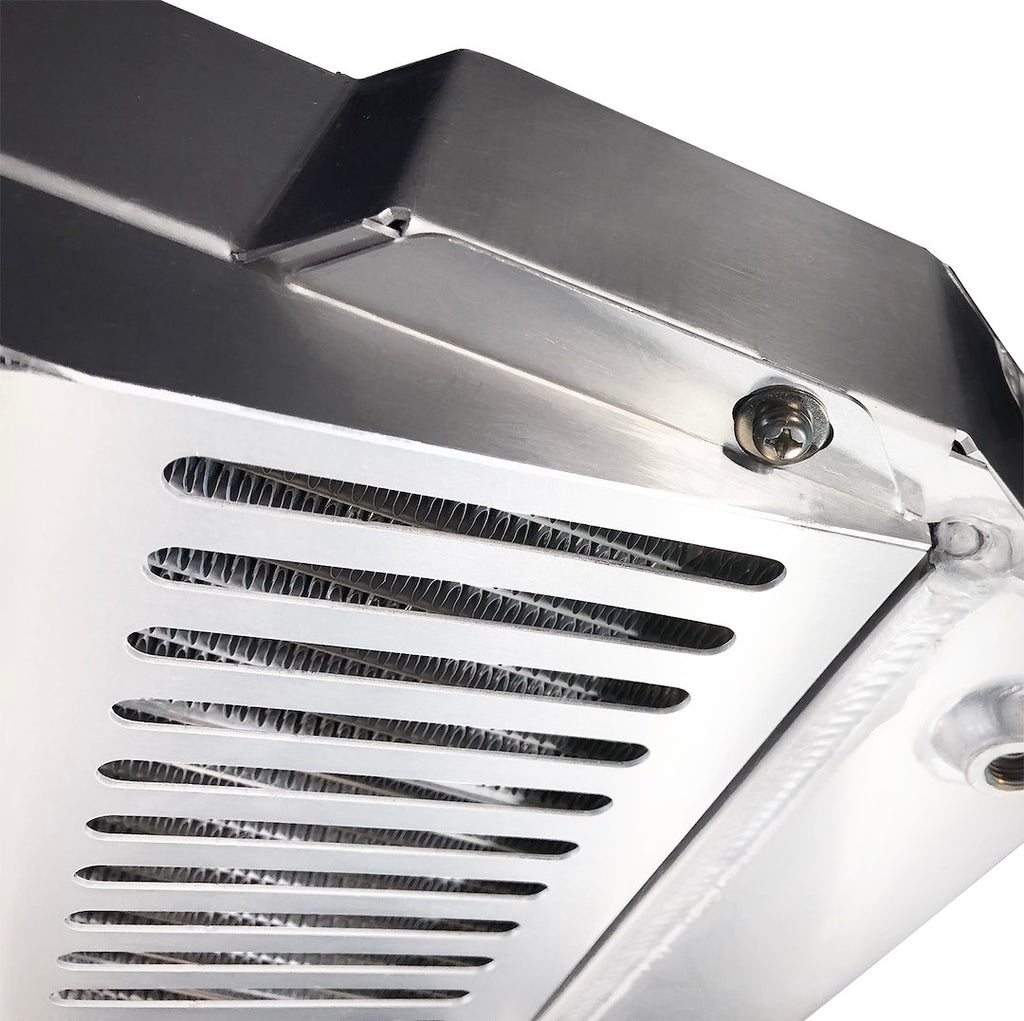

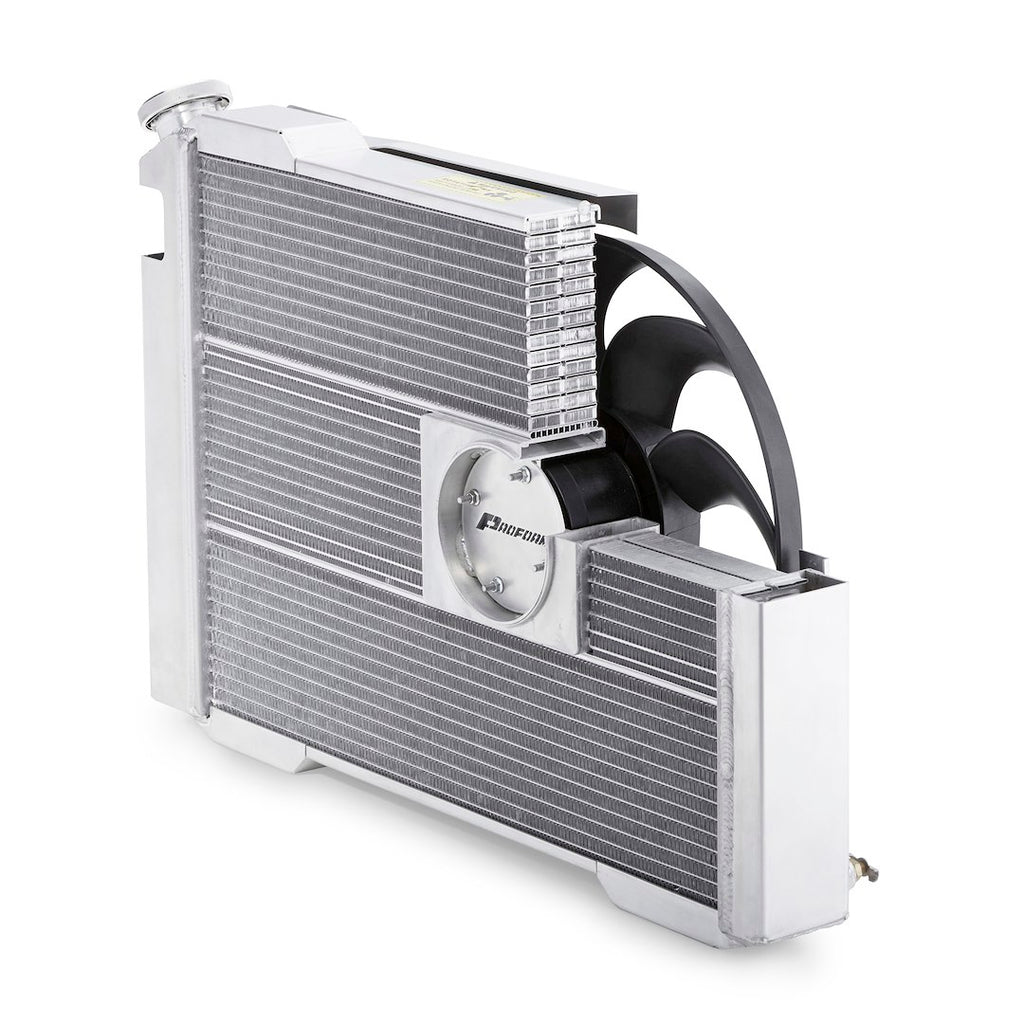

The Proform Aluminum Slim Fit Radiator is engineered to provide efficient cooling for American V8 muscle cars. With an overall dimension of 21.4 inches in length and 18.5 inches in height, this radiator features a core dimension of 17 inches by 17 inches with a depth of 2.4 inches, making it a compact solution for high-performance applications. The integrated radiator, shroud, and fan system is less than 4 inches thick, ensuring a streamlined fit while maximizing cooling efficiency.
Constructed from 100 percent fabricated aluminum tanks, this radiator utilizes hybrid extruded tube core technology to enhance heat dissipation. The adjustable thermostat allows for precise temperature control, while the billet aluminum filler neck and high-capacity overflow tube contribute to its robust design. This pre-assembled unit is ready to install right out of the box, eliminating the need for complex setups and ensuring a seamless integration into your vehicle.
The Proform Slim Fit Radiator is designed with a crossflow flow direction and features a driver side inlet of 1-1/2 inches and a passenger side outlet of 1-3/4 inches. Its natural aluminum finish not only provides durability but also adds a sleek aesthetic to your engine bay. This radiator is an innovative solution for those looking to enhance their vehicle's cooling system without compromising on space or performance.
Features

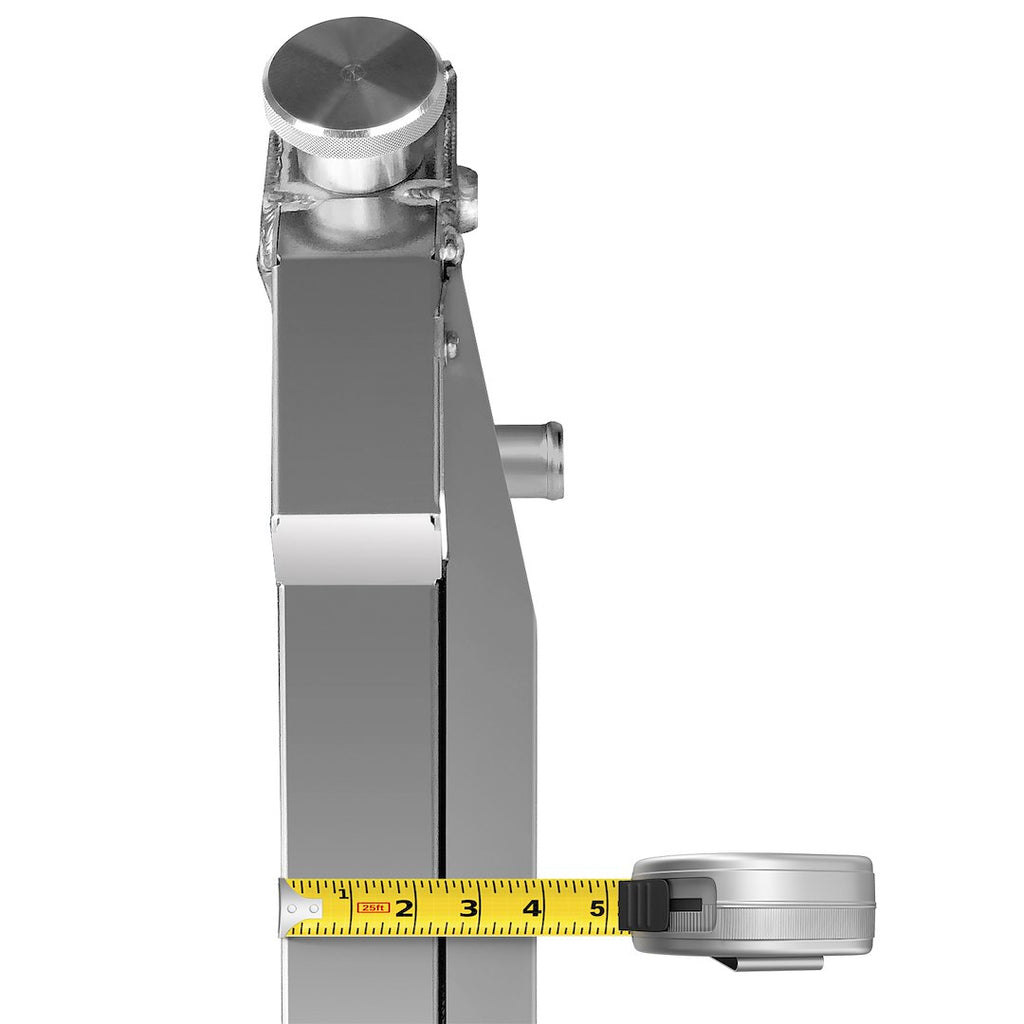

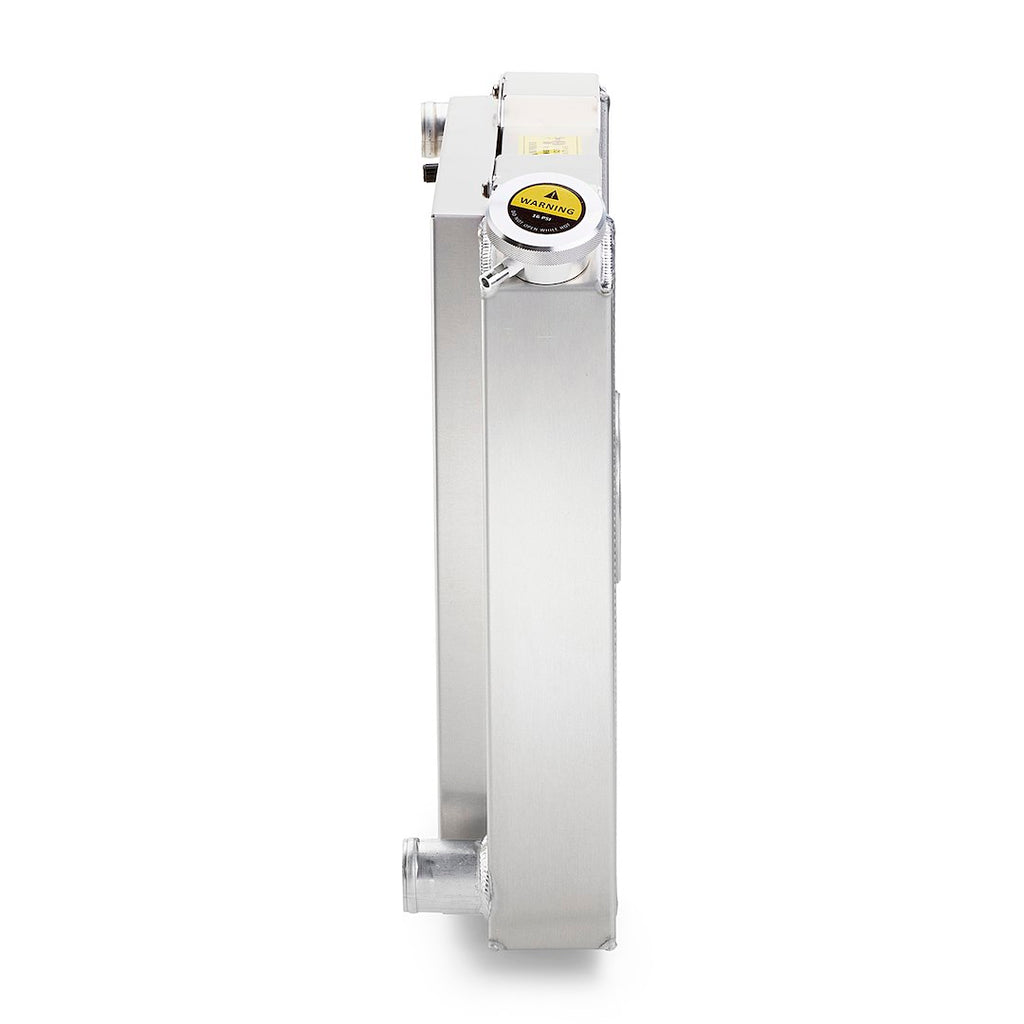

- Radiator And Shroud Less Than 4 Inch Thick

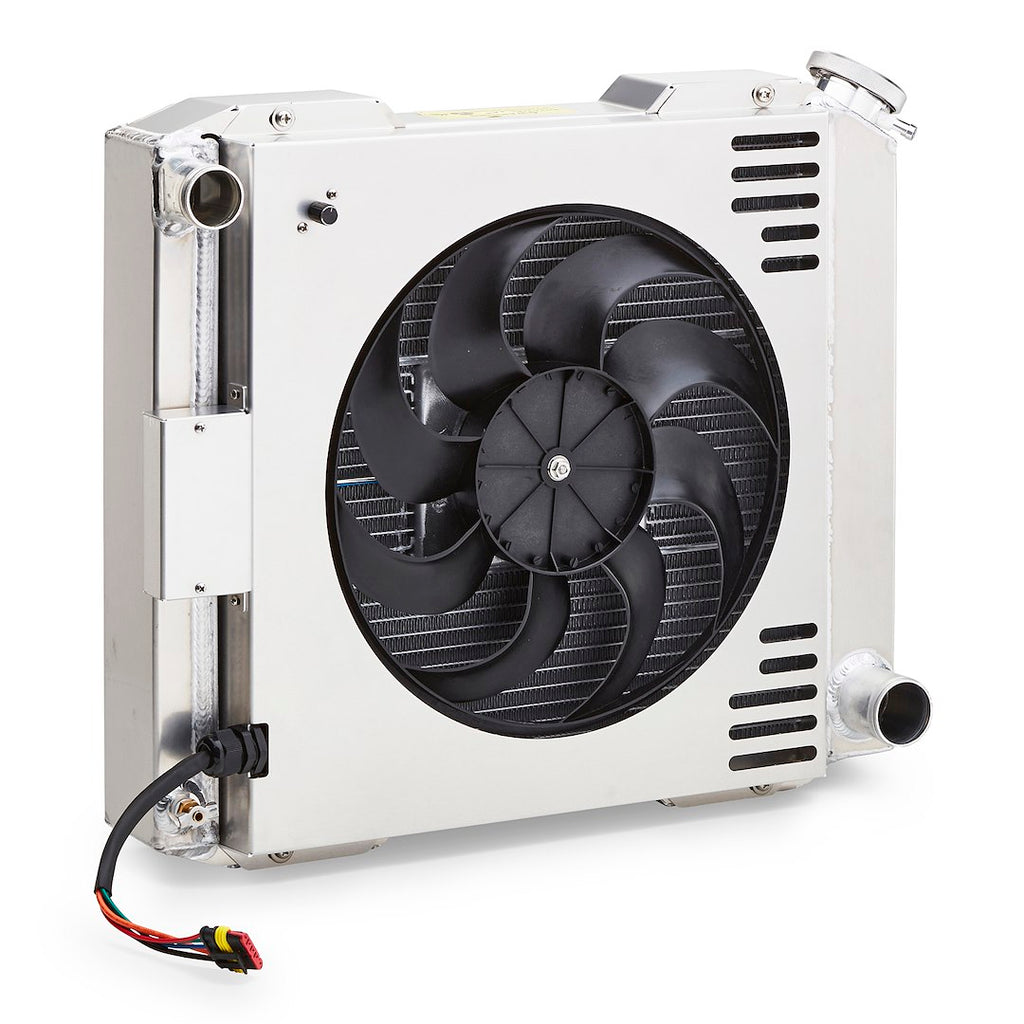

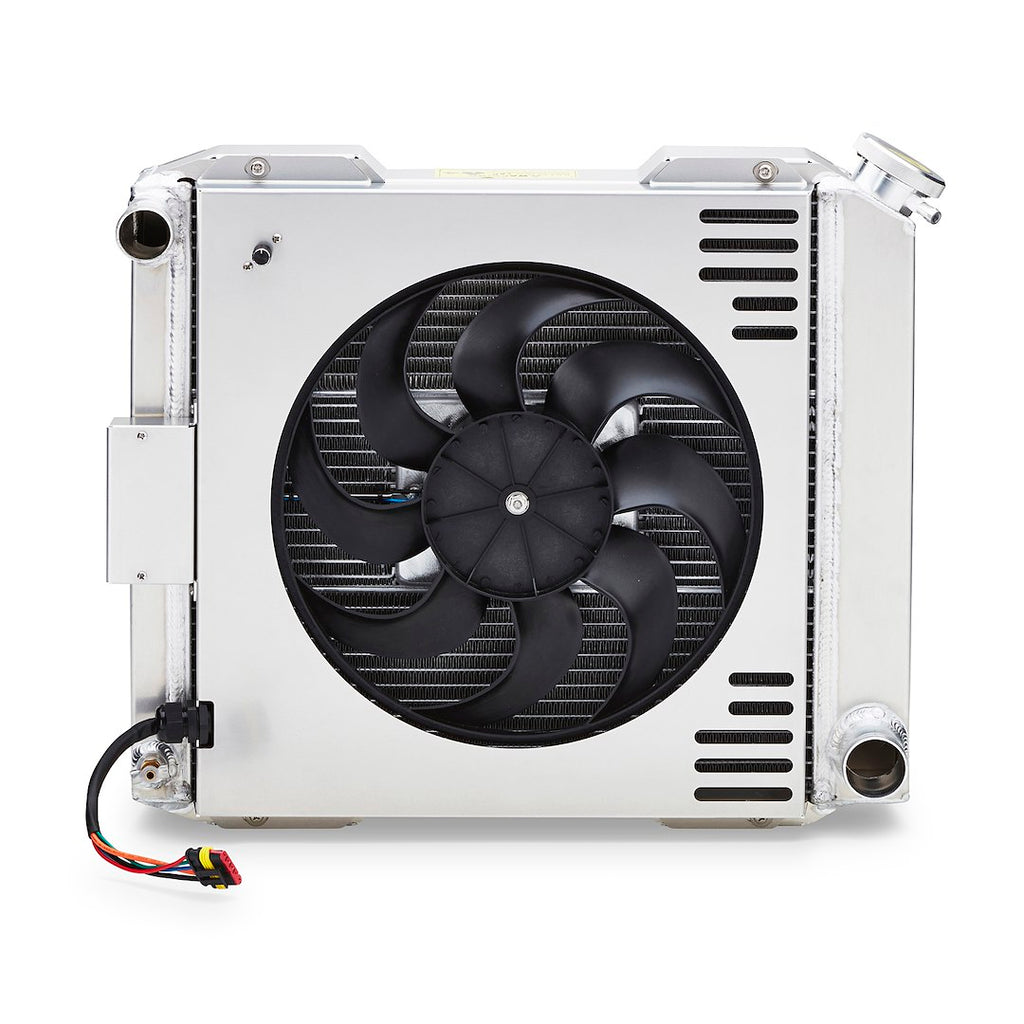

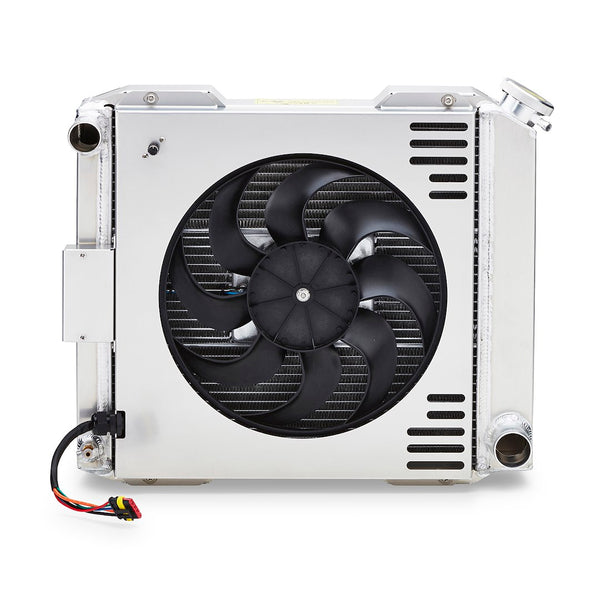

- Integrated Radiator/Shroud/Fan System
- Adjustable Thermostat
- 100 Percent Fabricated Aluminum Tanks

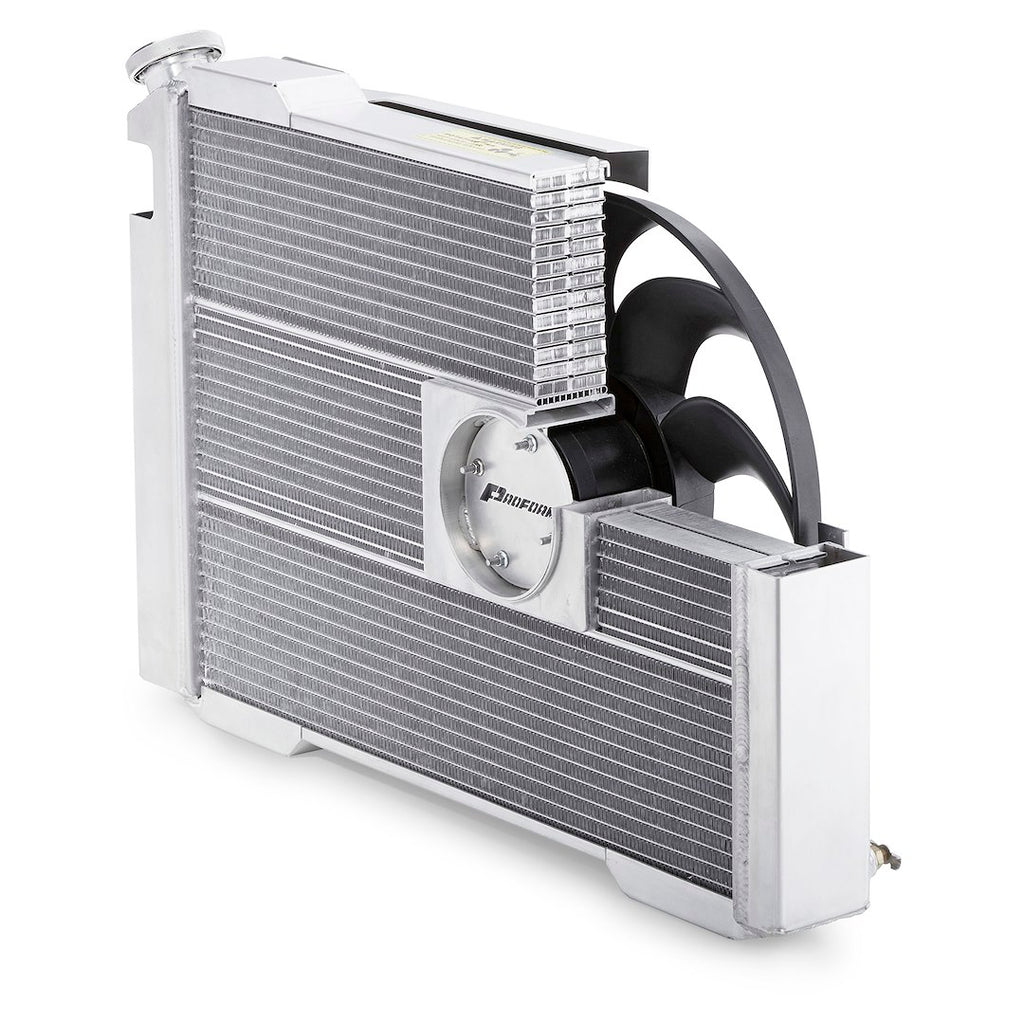

- Hybrid Extruded Tube Core Technology

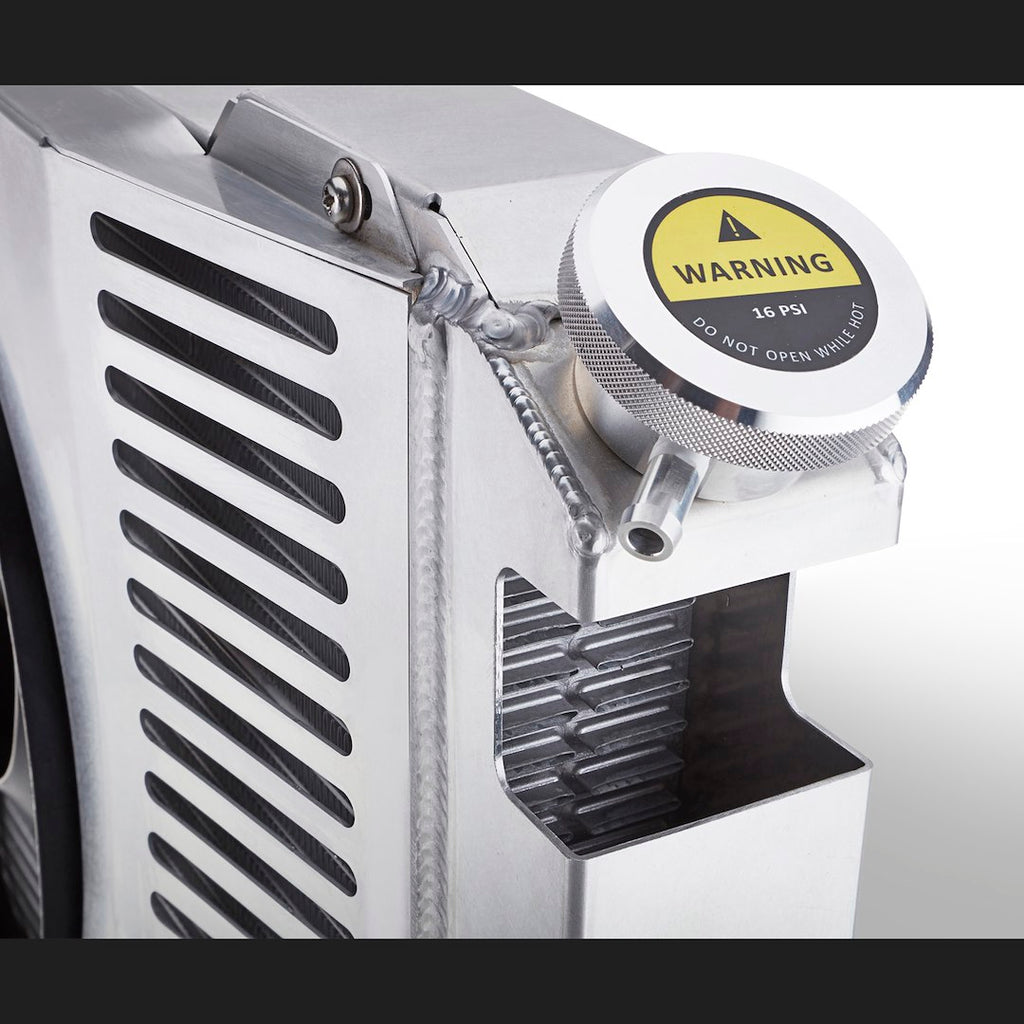

- Billet Aluminum Filler Neck
- High Capacity Overflow Tube
- Patented Innovation And Design
Specifications
- Manufacturer: Proform Parts
- Manufacturer Part Number: 69580-17
- Flow Direction: Crossflow
- Overall Length (IN): 21.4 Inch
- Overall Height (IN): 18-1/2 Inch
- Core Rows: 2
- Core Material: Aluminum
- Inlet Hose Location: Driver Side
- Inlet Size (IN): 1-1/2 Inch
- Outlet Hose Location: Passenger Side
- Outlet Size (IN): 1-3/4 Inch
- Finish: Natural
- Color: Silver
- Core Length (IN): 17 Inch
- Core Height (IN): 17 Inch
- Core Depth (IN): 2.4 Inch
- Tank Material: Aluminum
- With Radiator Cap: Yes
- With Transmission Cooler: No
- Includes Fittings: No
