Innovative design for efficient cooling in American V8 muscle cars.

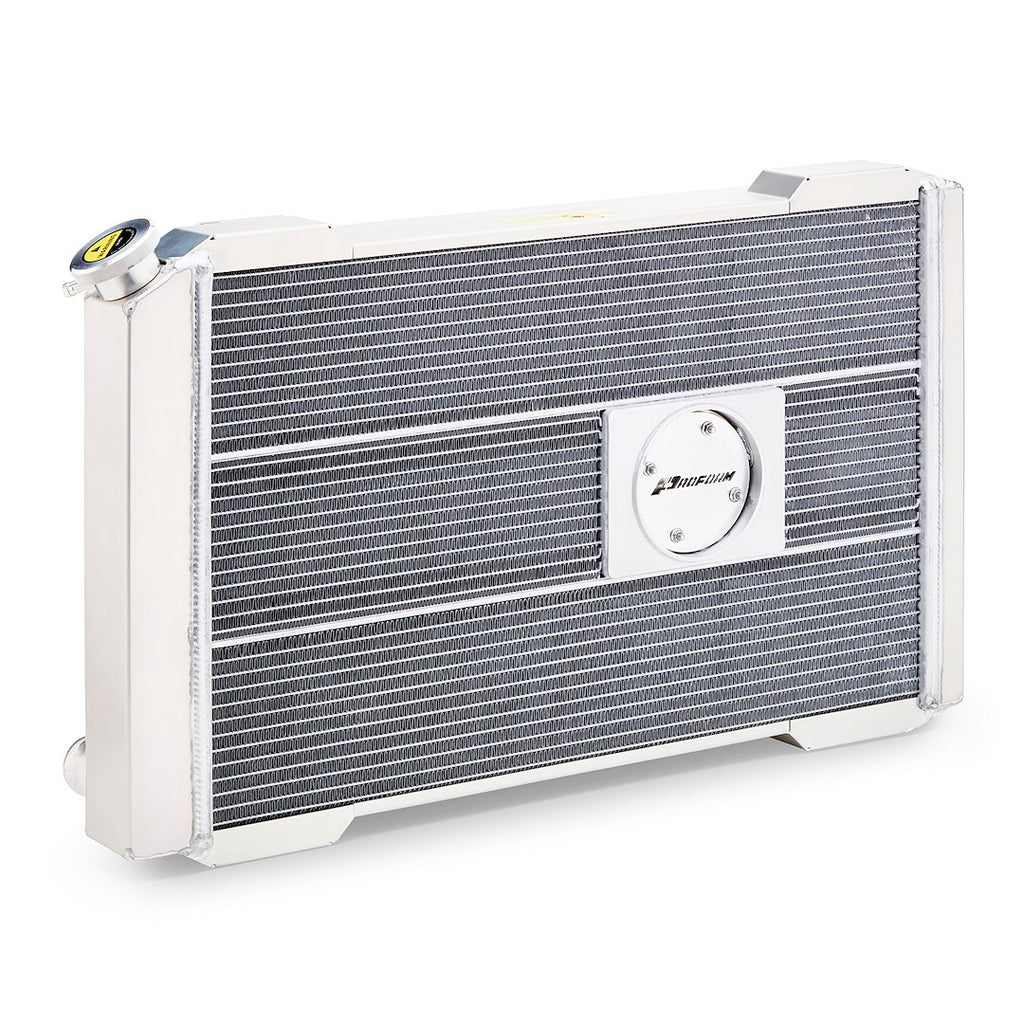

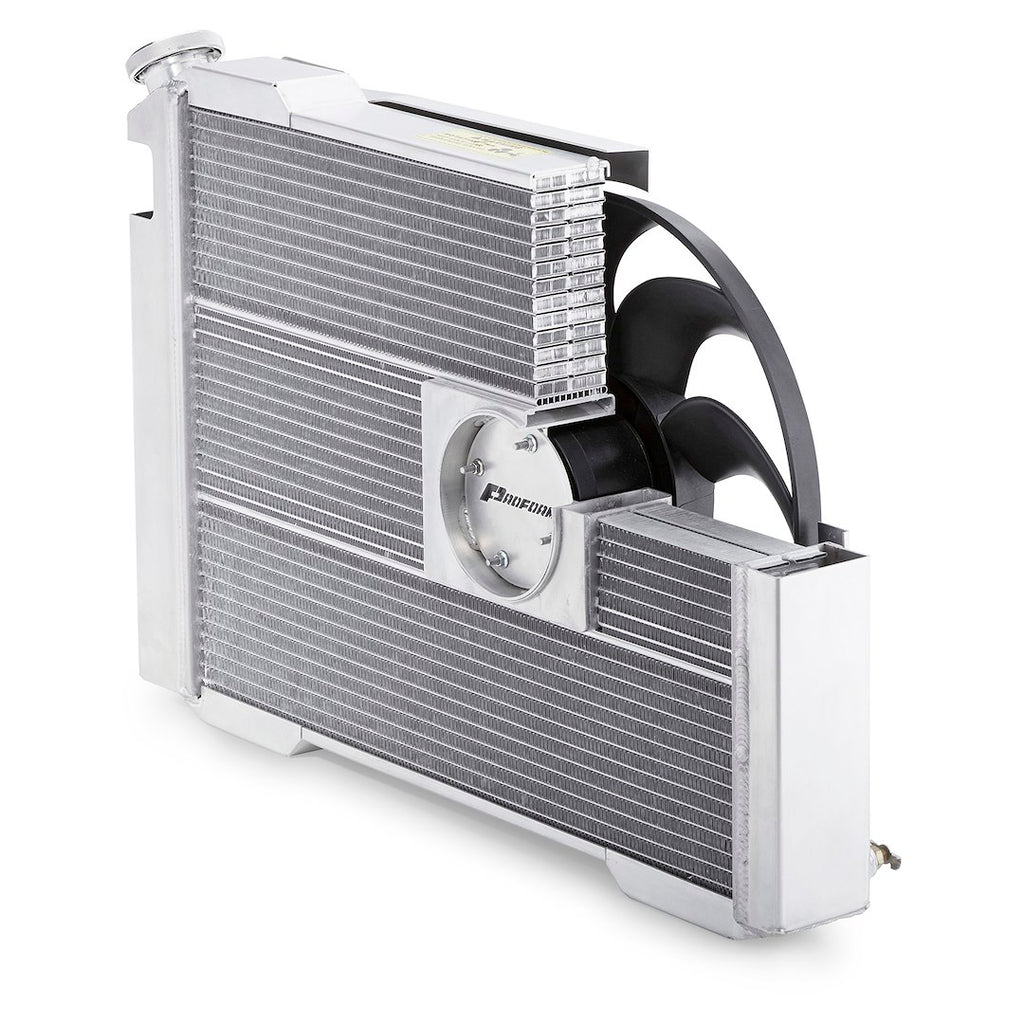

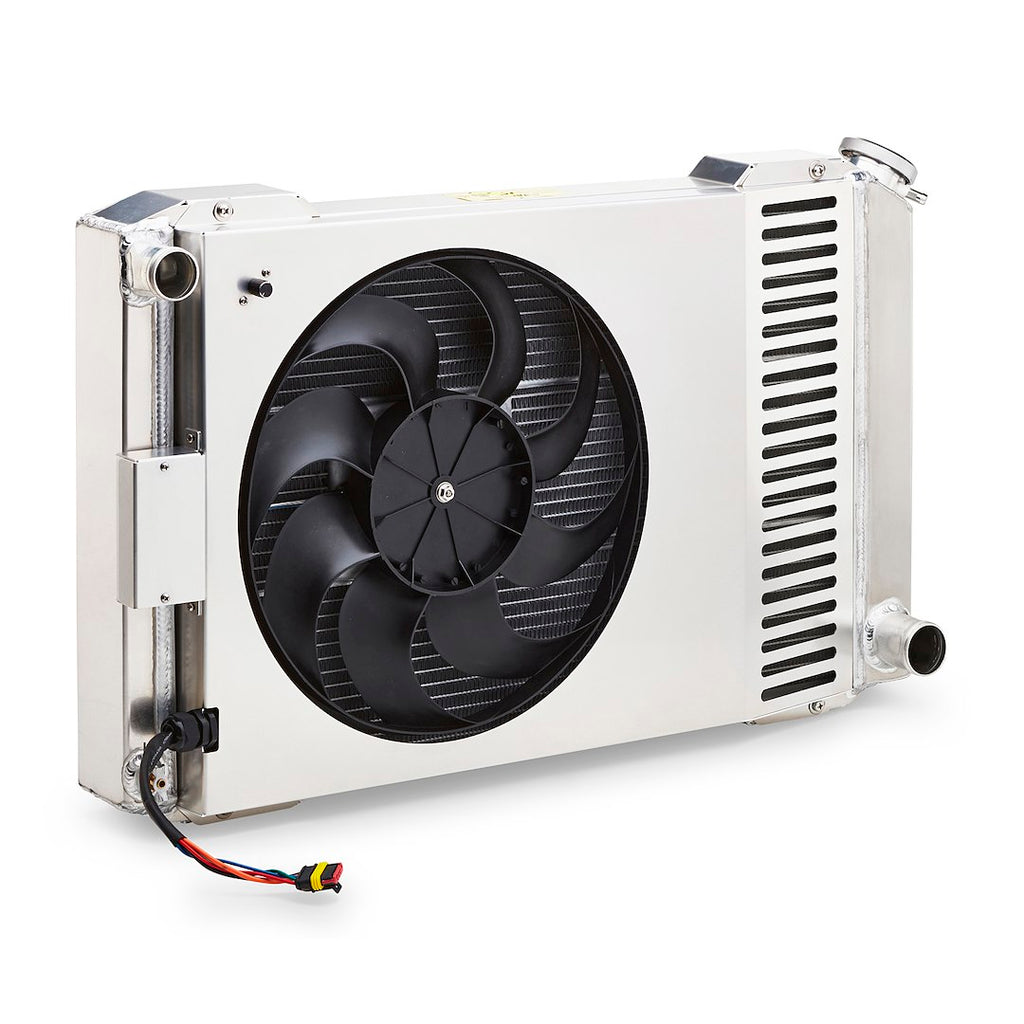

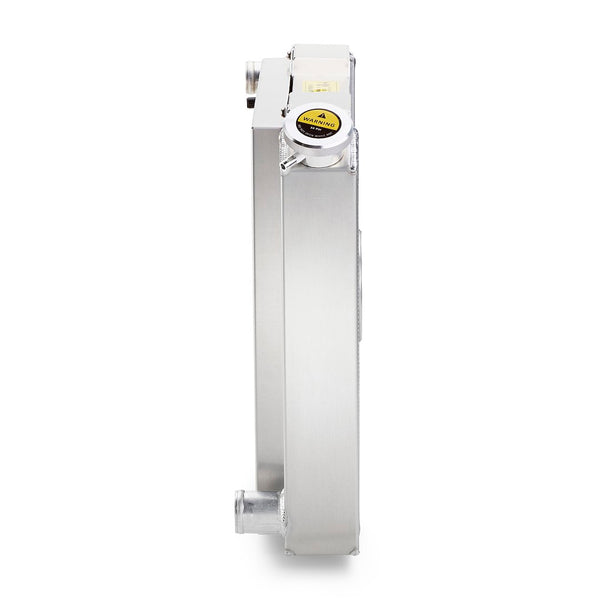

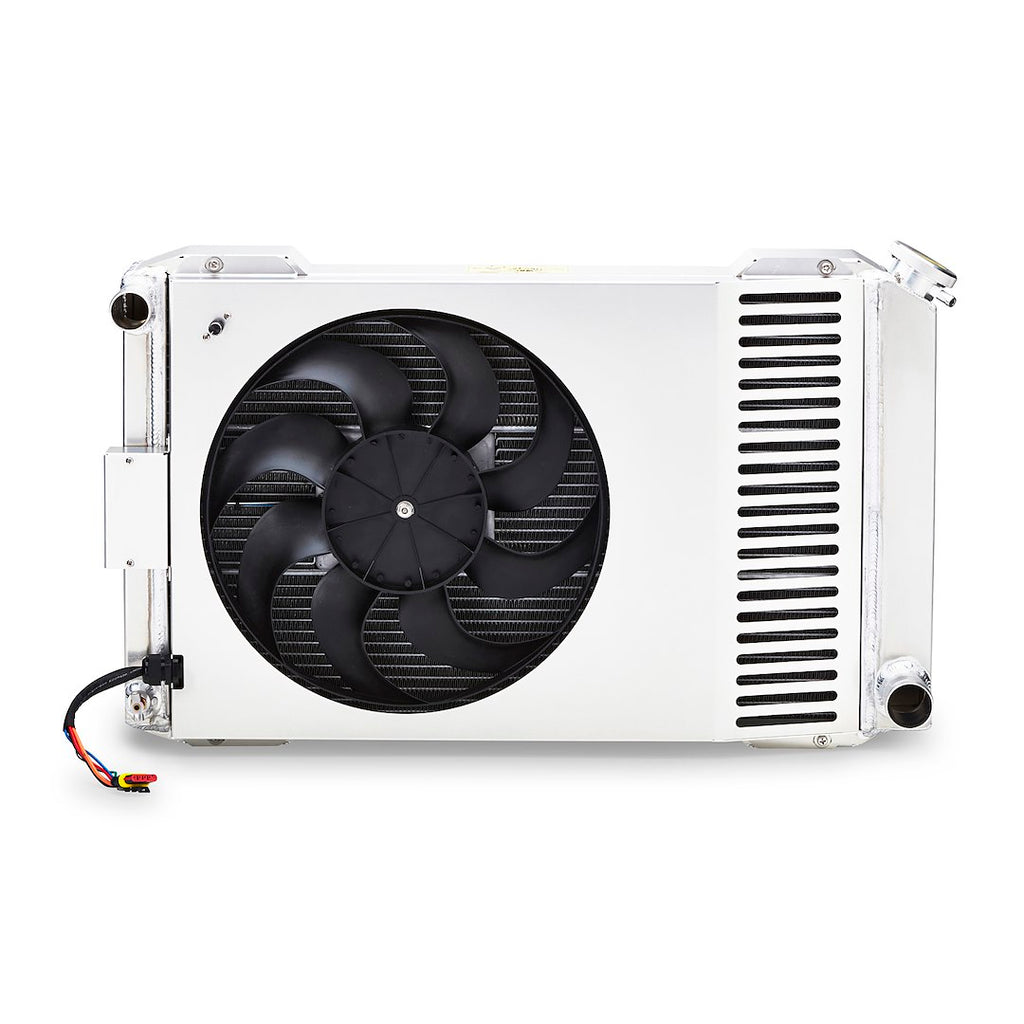

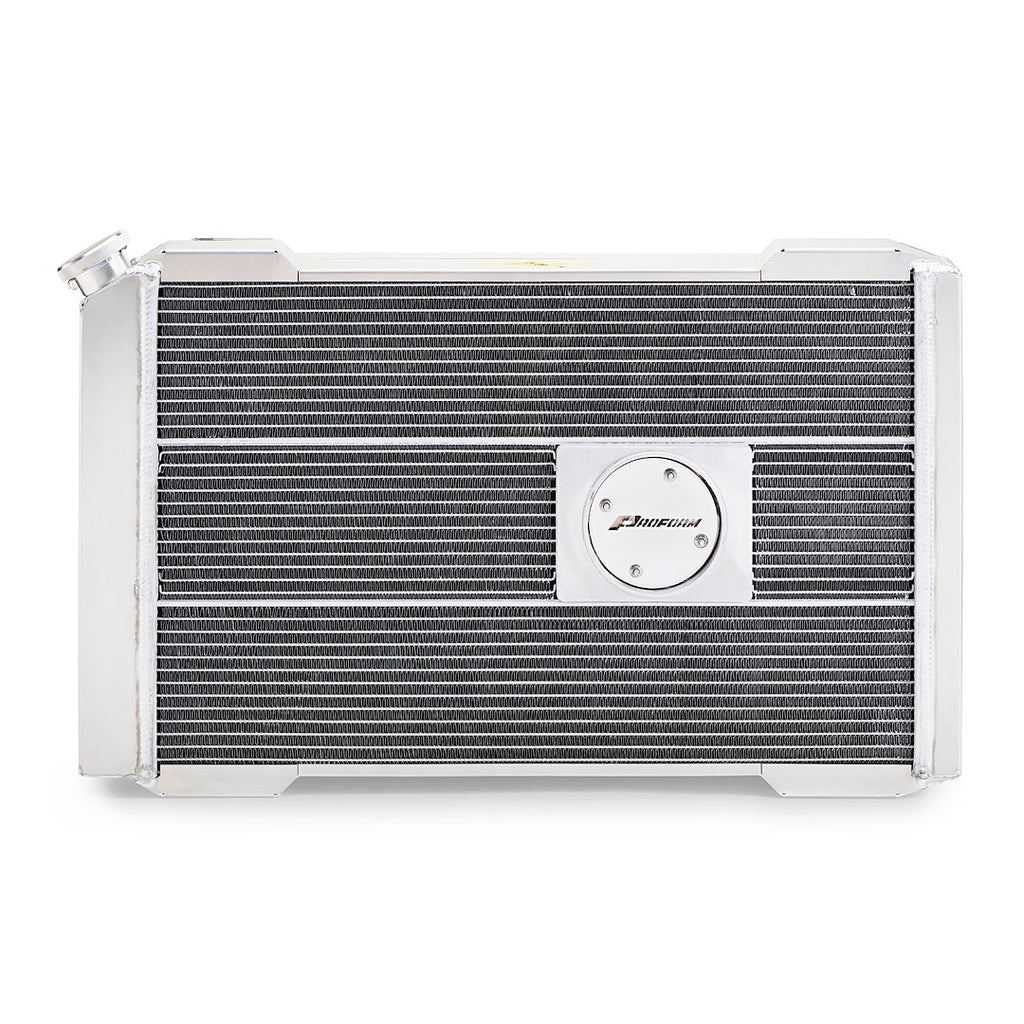

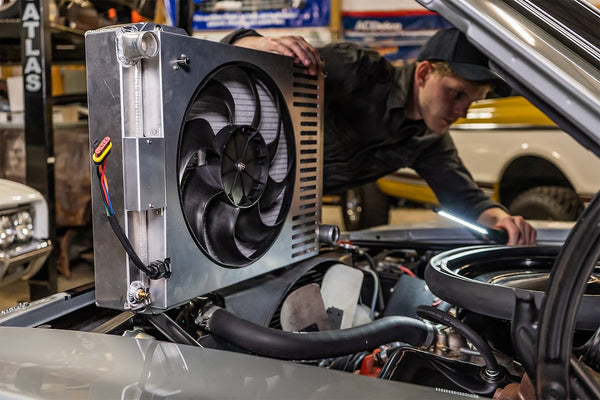

The Proform Aluminum Radiator System is engineered to provide optimal cooling performance for American V8 muscle cars. With an overall dimension of 30.3 inches in length and 18.5 inches in height, this radiator features a slim profile of less than 4 inches thick, integrating the radiator, shroud, and fan into a single unit. This pre-assembled system is designed for a custom fit, eliminating the need for complex installations and outdated cooling solutions.
Constructed with 100 percent fabricated aluminum tanks and utilizing hybrid extruded tube core technology, the radiator ensures durability and efficiency. The adjustable thermostat allows for precise temperature control, while the high capacity overflow tube enhances the system's reliability. The billet aluminum filler neck adds to the overall quality and aesthetic of the unit, making it a robust choice for performance enthusiasts.
This radiator system is designed with a crossflow flow direction and features a core dimension of 26 inches in length, 17 inches in height, and 2.4 inches in depth. The inlet and outlet sizes are 1-1/2 inches and 1-3/4 inches respectively, positioned for optimal flow. The natural aluminum finish not only provides a sleek look but also contributes to the overall performance of the cooling system.
Features

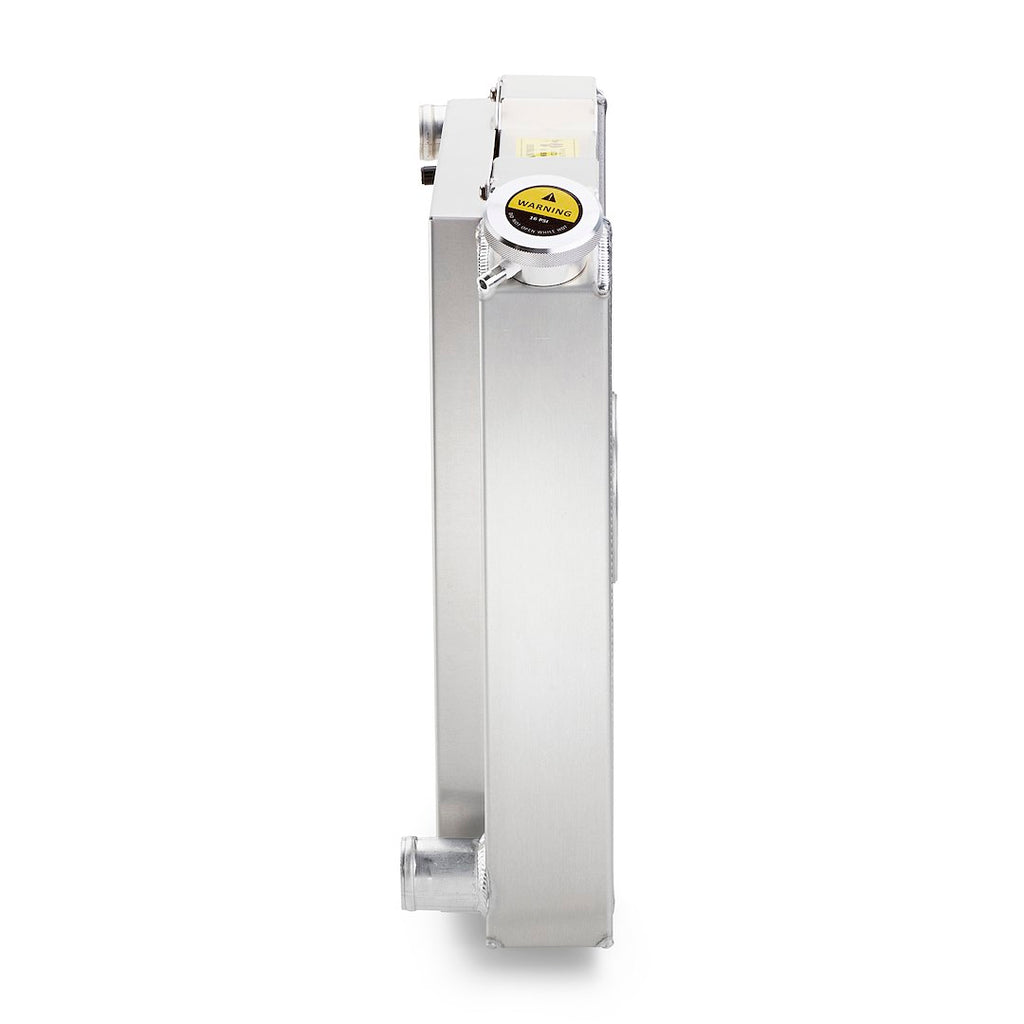

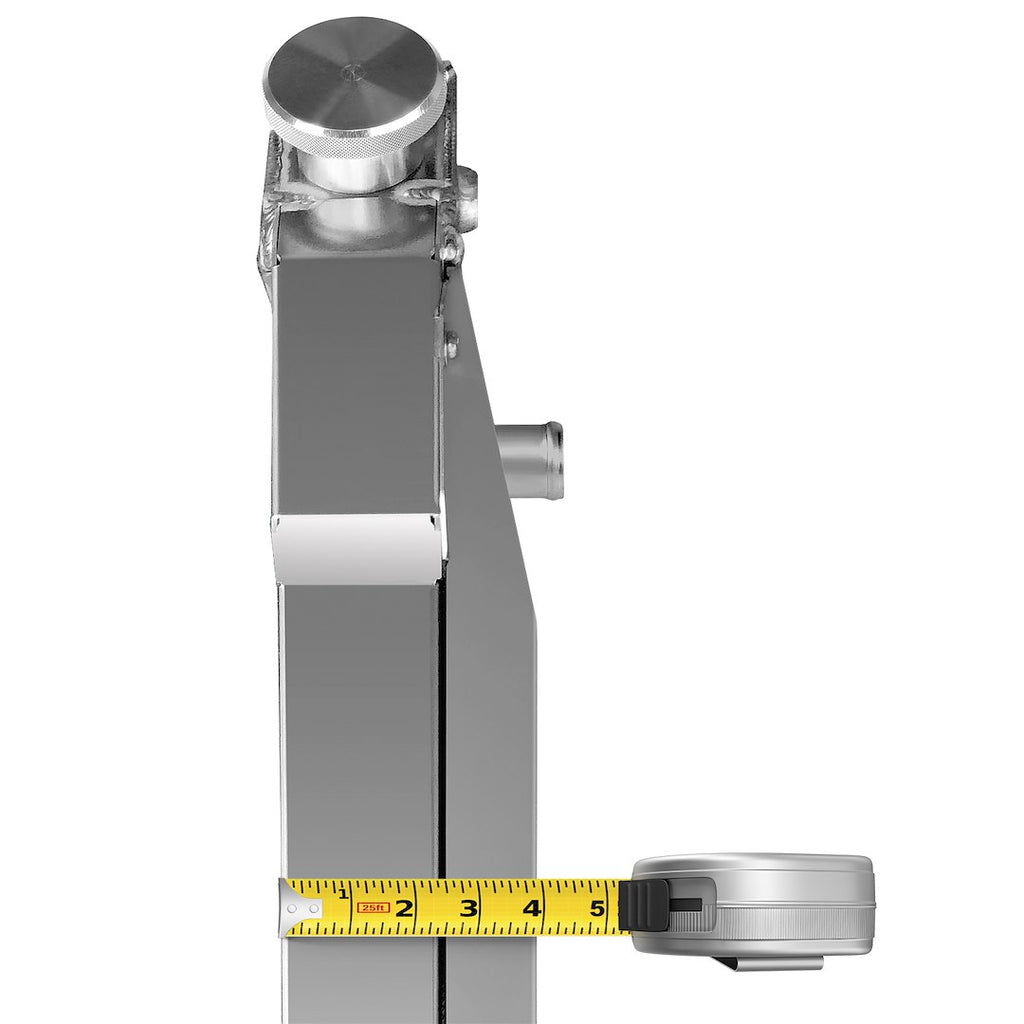

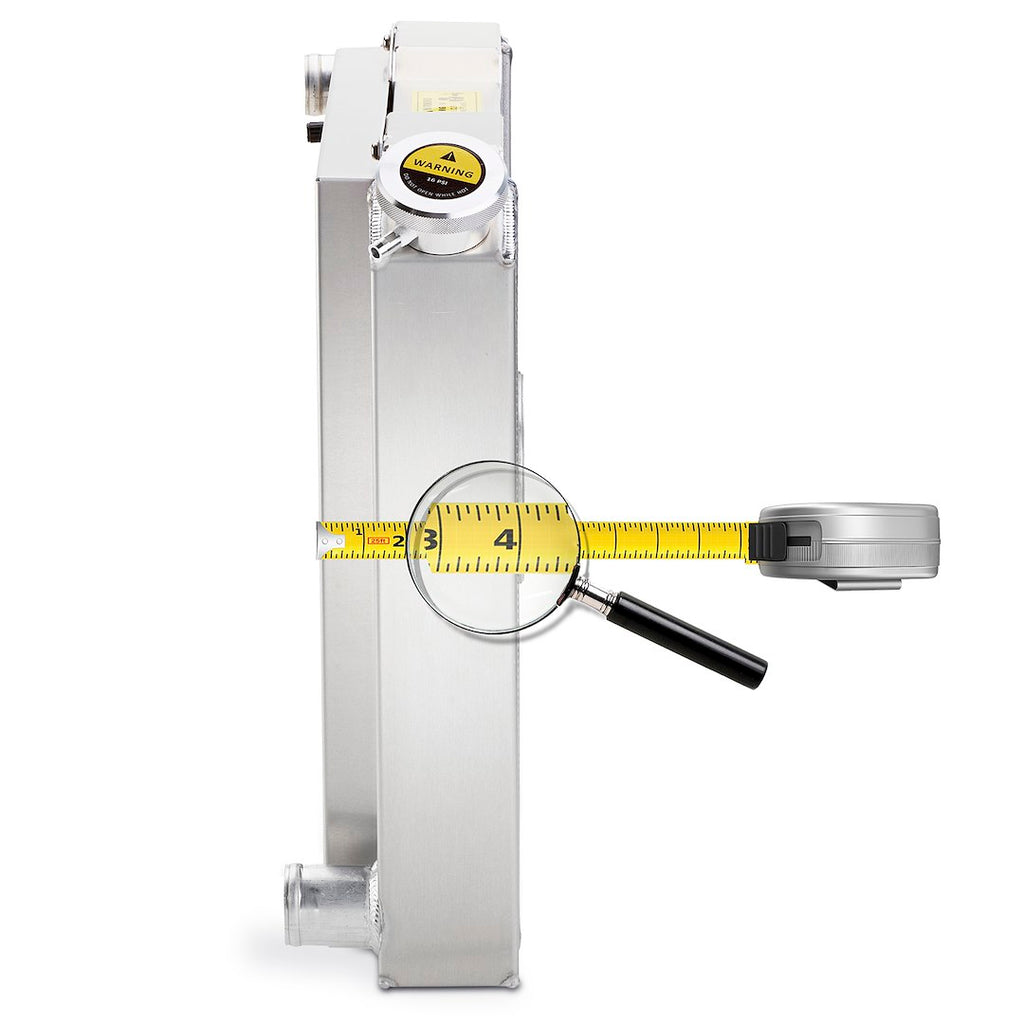

- Radiator And Shroud Less Than 4 Inch Thick

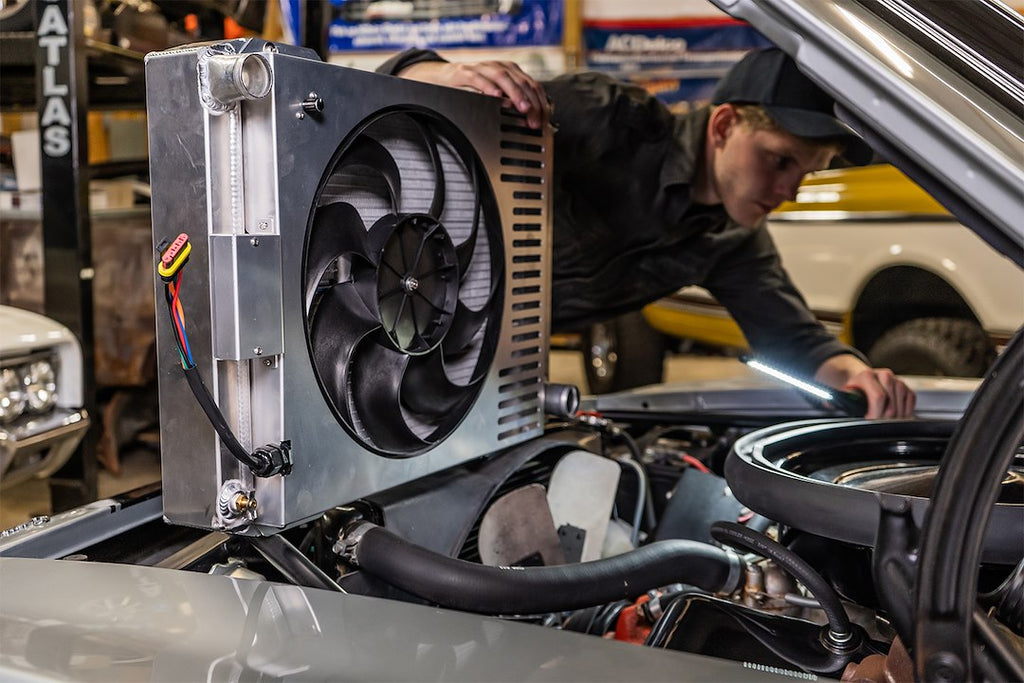

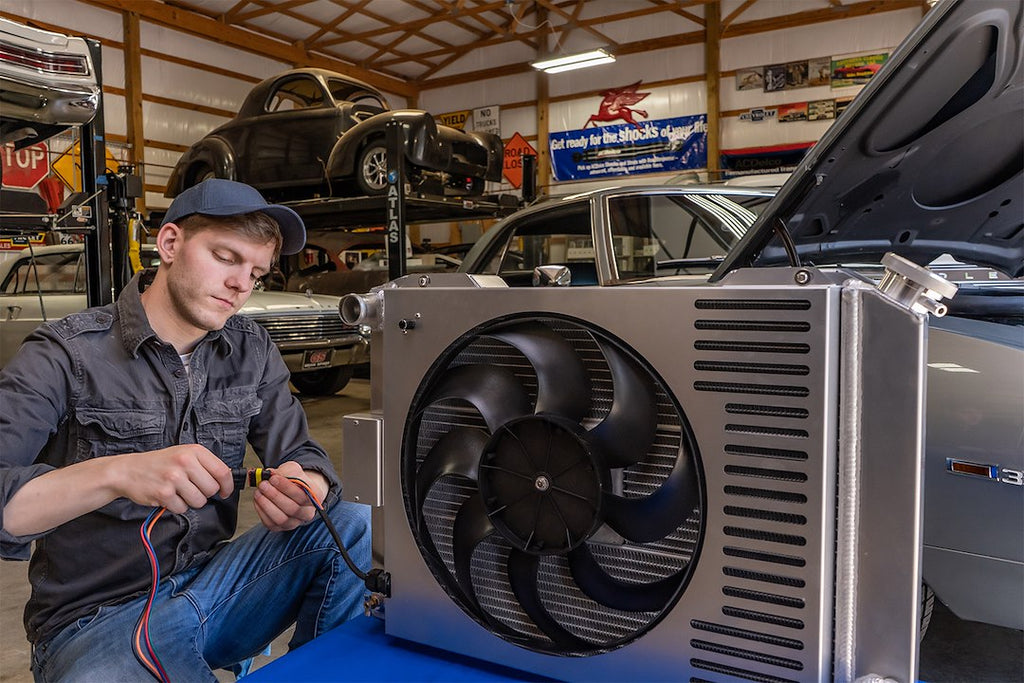

- Integrated Radiator/Shroud/Fan System
- Adjustable Thermostat
- 100 Percent Fabricated Aluminum Tanks

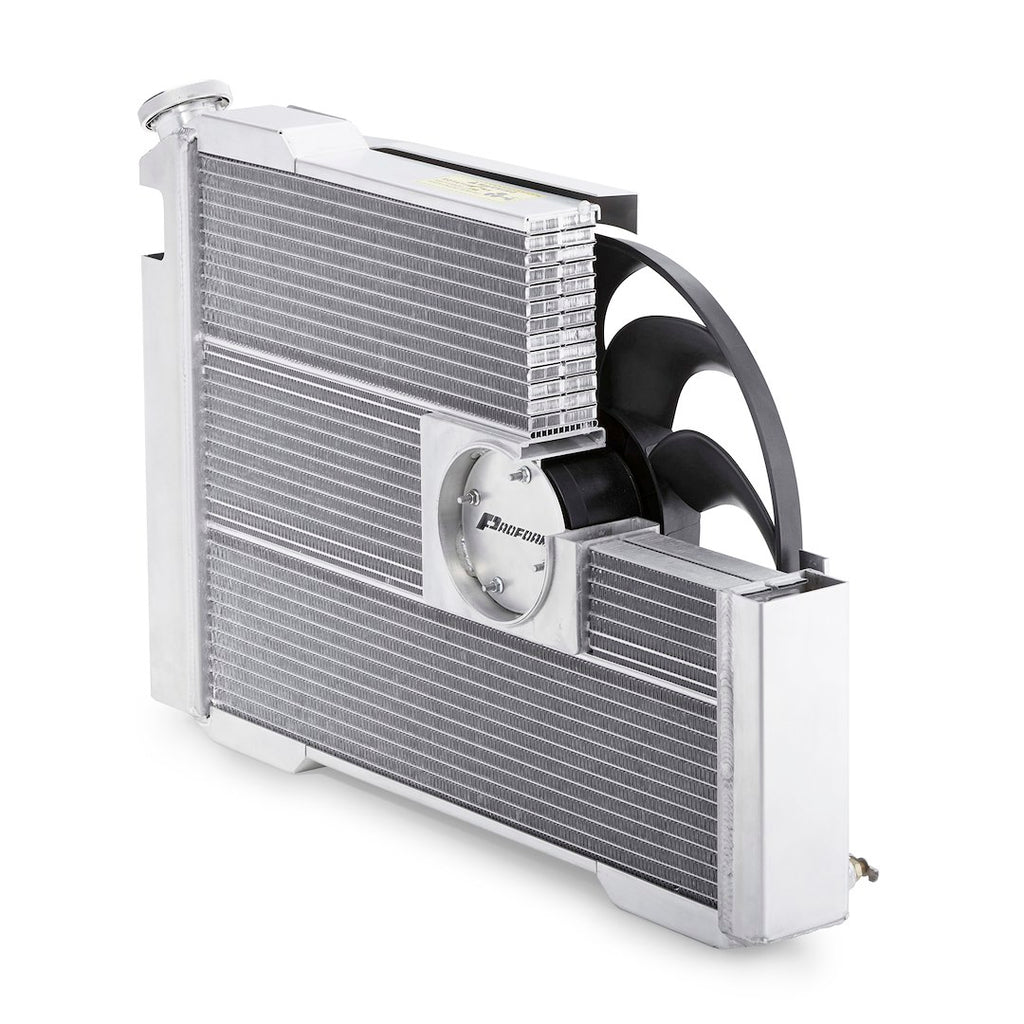

- Hybrid Extruded Tube Core Technology

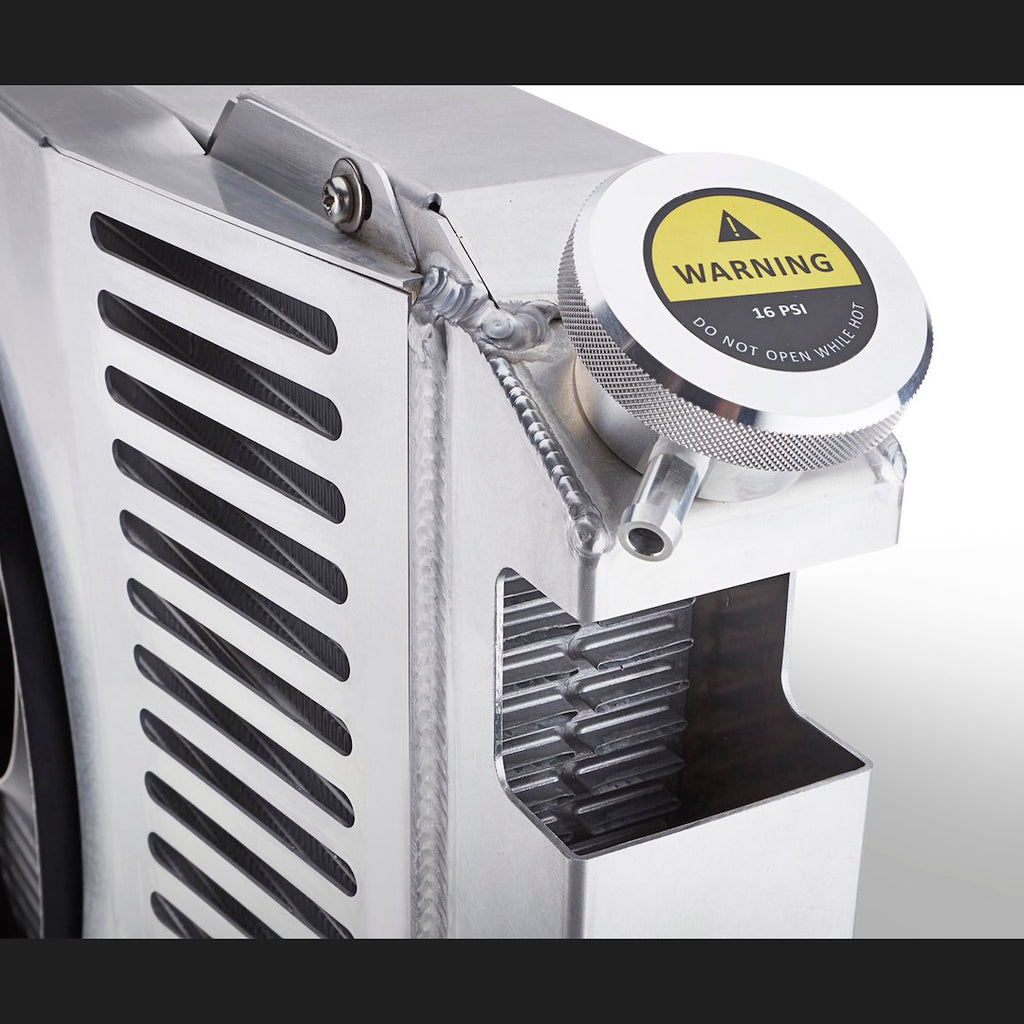

- Billet Aluminum Filler Neck
- High Capacity Overflow Tube
- Patented Innovation And Design
Specifications
- Manufacturer: Proform Parts
- Manufacturer Part Number: 69580-26
- Flow Direction: Crossflow
- Overall Length (IN): 30.3 Inch
- Overall Height (IN): 18-1/2 Inch
- Core Rows: 2
- Core Material: Aluminum
- Inlet Hose Location: Driver Side
- Inlet Size (IN): 1-1/2 Inch
- Outlet Hose Location: Passenger Side
- Outlet Size (IN): 1-3/4 Inch
- Finish: Natural
- Color: Silver
- Core Length (IN): 26 Inch
- Core Height (IN): 17 Inch
- Core Depth (IN): 2.4 Inch
- Tank Material: Aluminum
- With Radiator Cap: Yes
- With Transmission Cooler: No
- Includes Fittings: No
