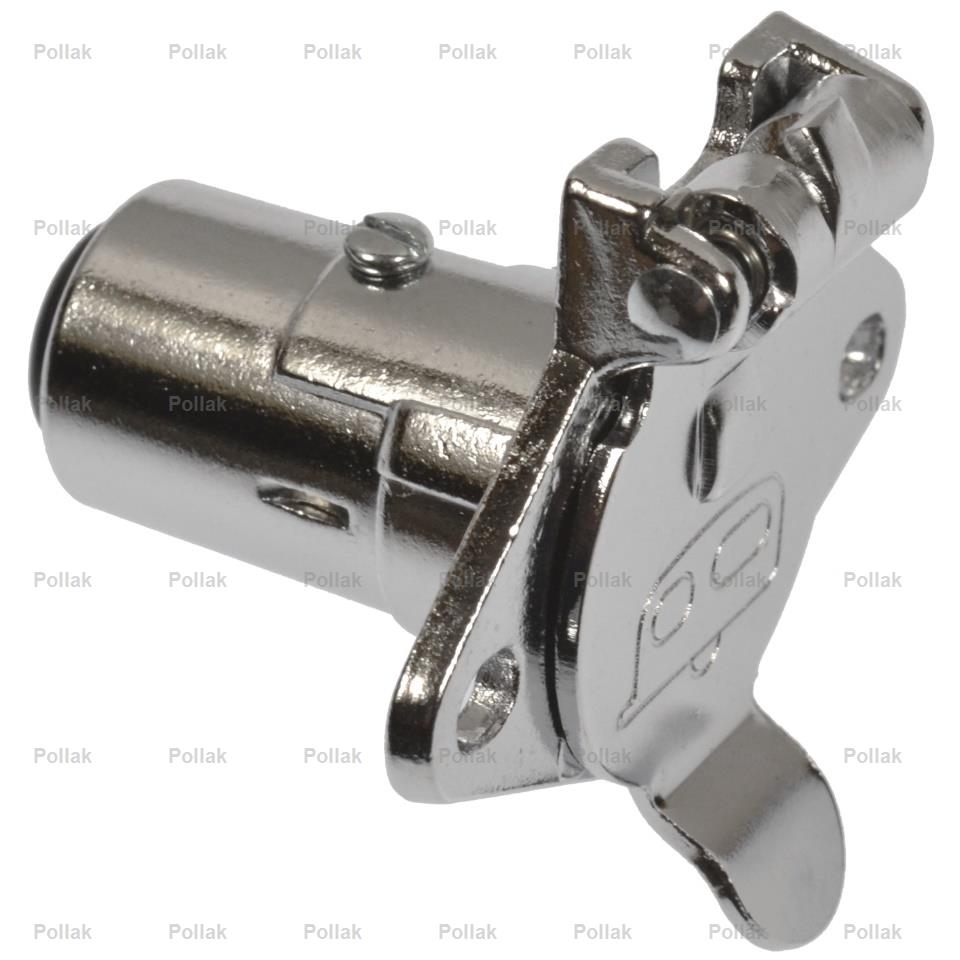

Pollak Trailer Wiring Connector (MPN: 11-410P)

Durable 4 Way Round Socket for Reliable Vehicle Connections

The Pollak Trailer Wiring Connector is designed for vehicle-side applications, featuring a robust 4 way round socket that operates efficiently within a voltage range of 12 to 24 volts and supports up to 20 amps. Constructed from chrome plated die cast ABS plastic, this connector ensures durability and resistance to environmental factors, making it suitable for various applications including heavy trucks, RVs, and marine use.

This connector incorporates a zinc die-cast 4-pole unit that includes several new and improved features, enhancing its functionality and reliability. The extended exterior and socket design effectively conceals terminals, providing added protection against dust and water ingress. Additionally, the connector is equipped with two 1/4 inch diameter mounting holes, spaced 2-7/8 inches on center, allowing for straightforward installation through a 1-3/8 inch diameter hole.

With a semi-universal fit, the Pollak Trailer Wiring Connector is engineered for easy integration into a variety of vehicle systems. Its design not only facilitates a secure connection but also simplifies the installation process, estimated to take about one hour. This product is a testament to Pollak's commitment to quality and innovation in the towing industry since 1909.

Features

• Zinc Die-Cast 4-Pole Unit Incorporates Many New And Improved Features

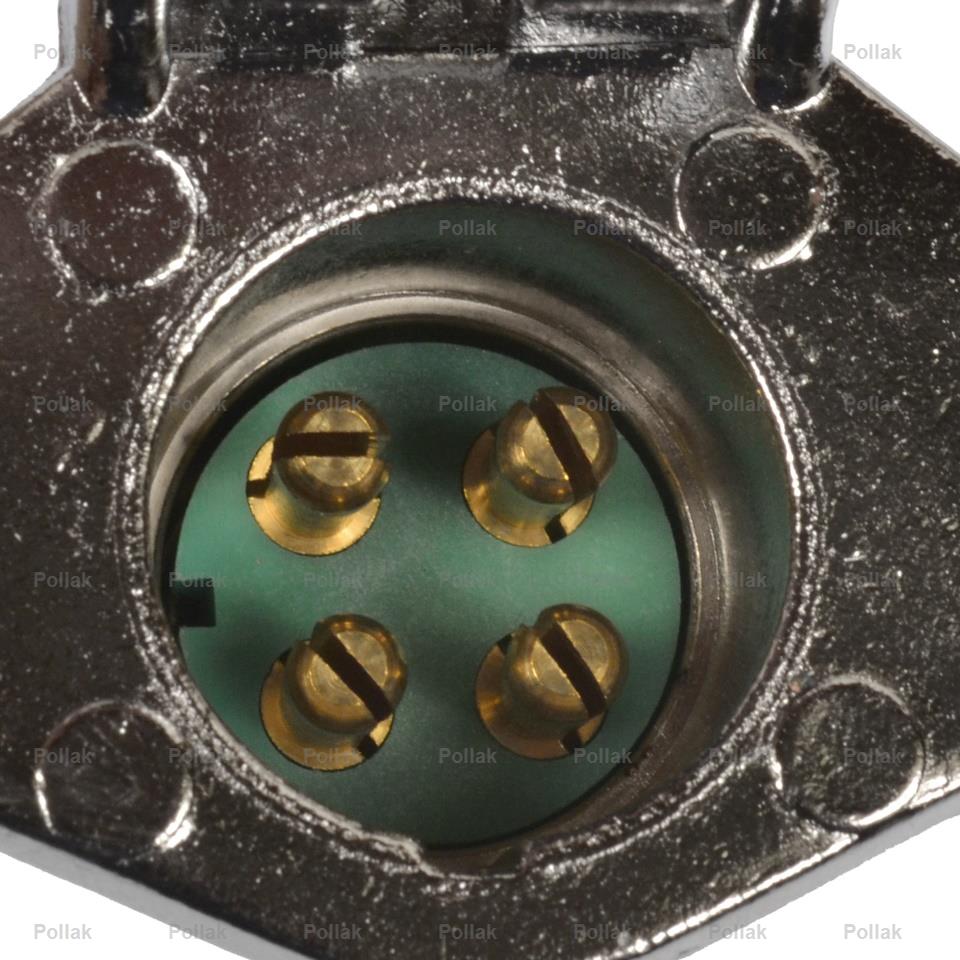

• Extended Exterior And Socket Conceals Terminals
• Dust And Water Resistant

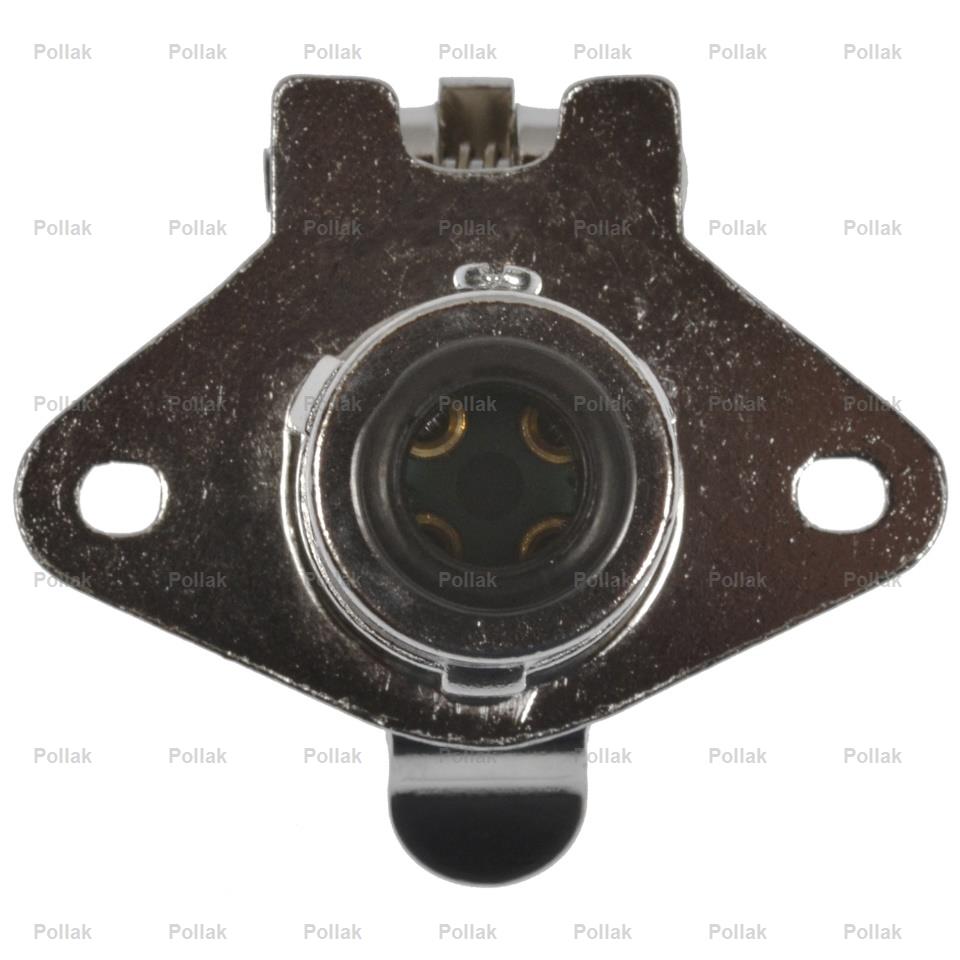

• Two 1/4 Inch Diameter Mounting Holes On 4-Pole Sockets, 2-7/8 Inch On Center, Mounts Through 1-3/8 Inch Diameter Hole

Specifications

• Manufacturer: Pollak
• Manufacturer Part Number: 11-410P
• Vehicle End or Trailer End: Vehicle End
• End Type: 4 Round
• Color: Silver
• Universality: Semi-Universal
• Material: Die Cast ABS Plastic
• Estimated Install Time (Hours): 1
• Marine: Yes

Technical Documents

• GF7.pdf
