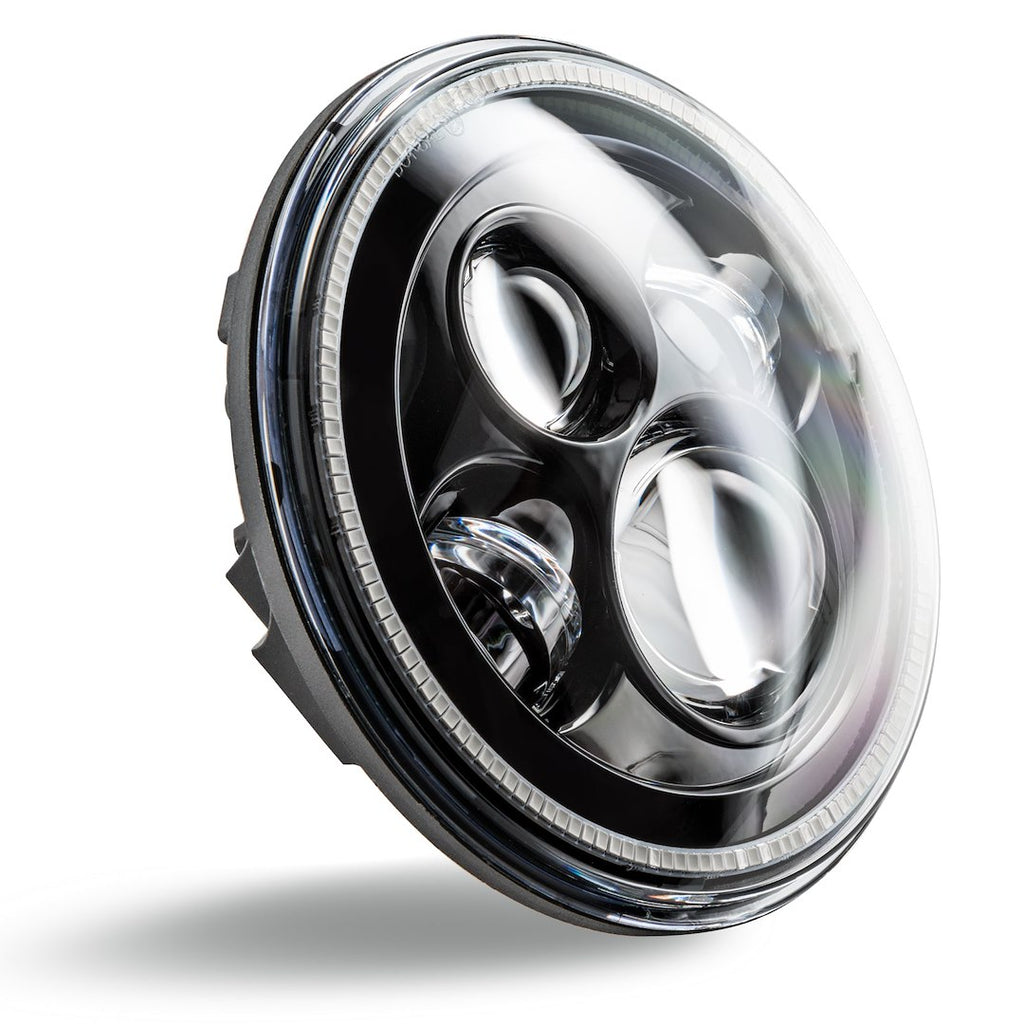

Oracle Lighting LED Headlight Assembly (MPN: 5769-335)

Advanced LED technology for enhanced visibility and reliability in vehicles.

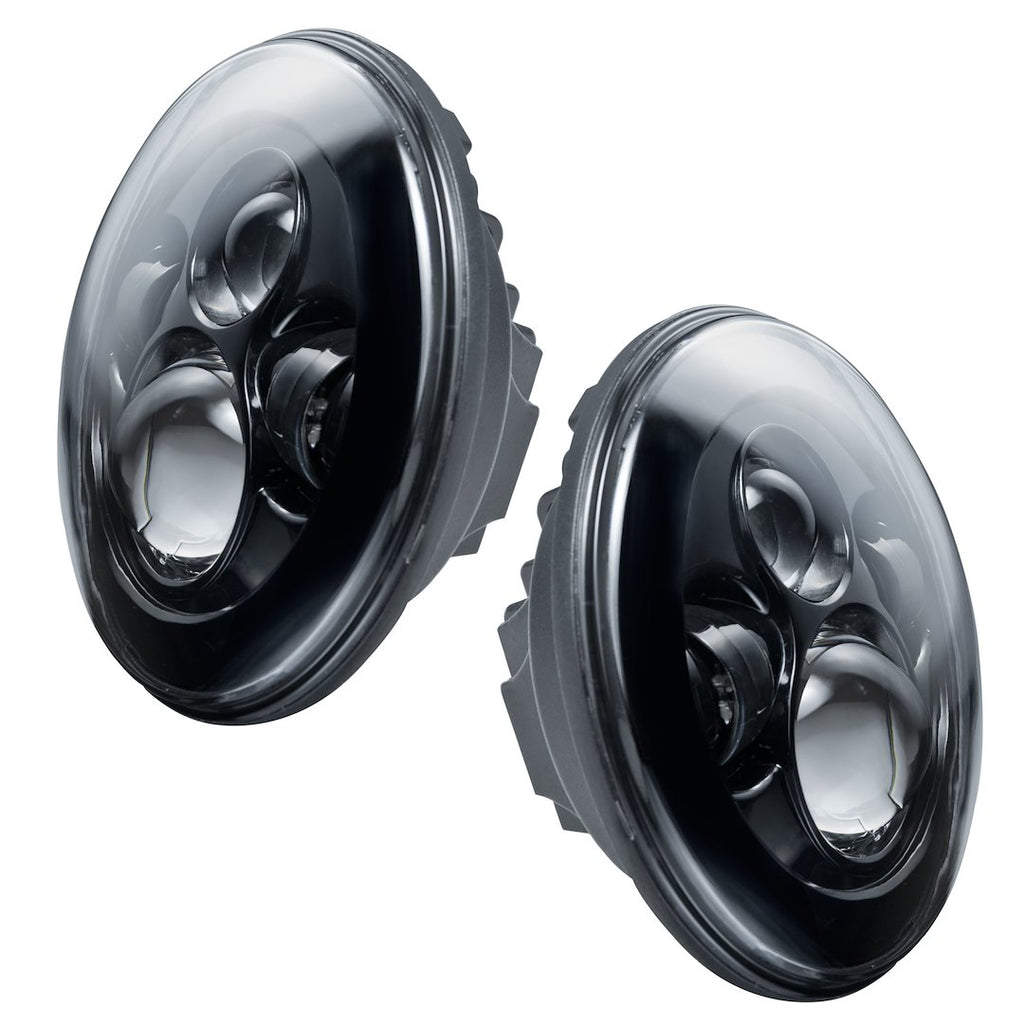

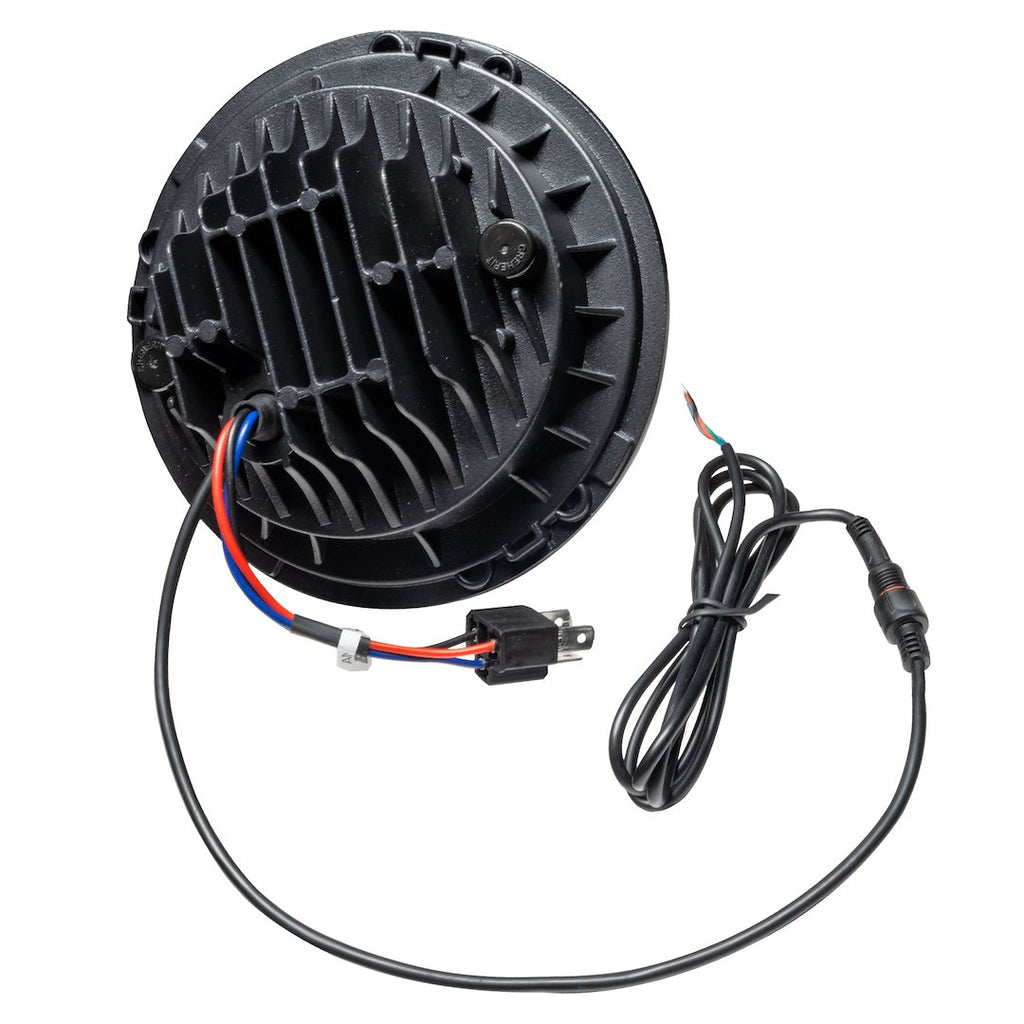

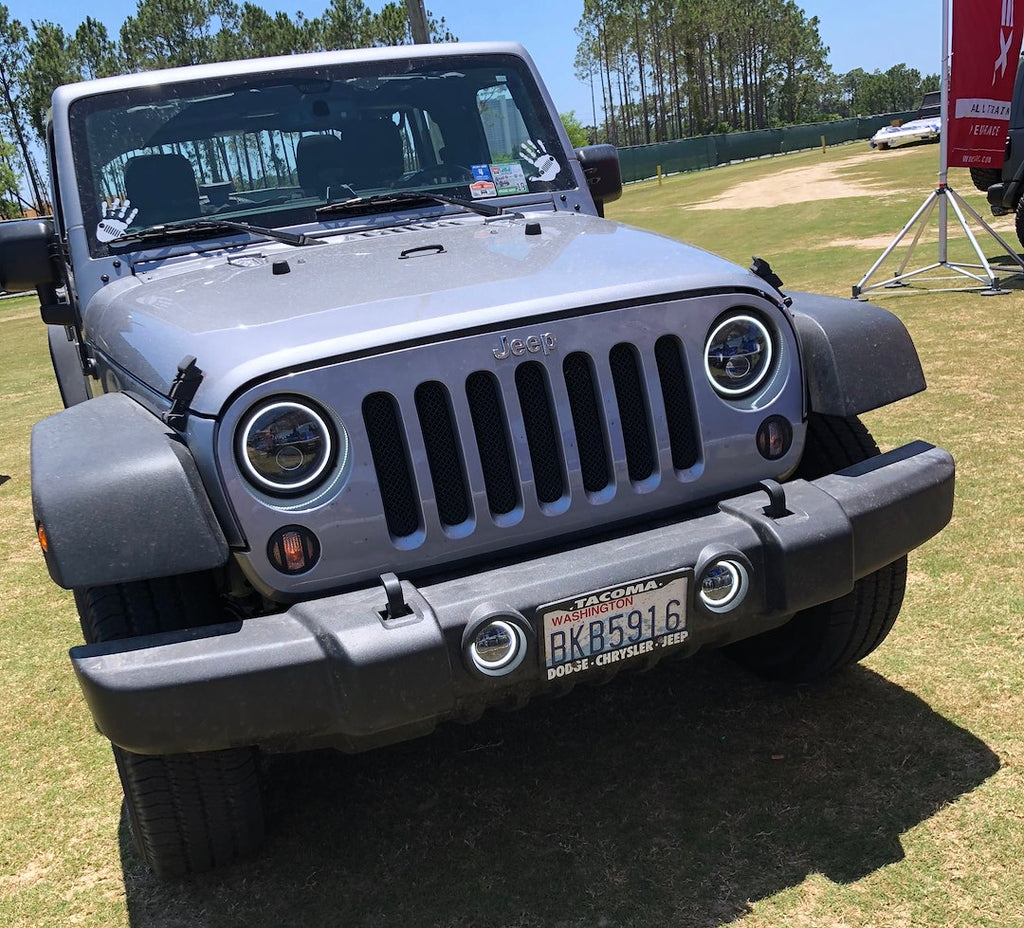

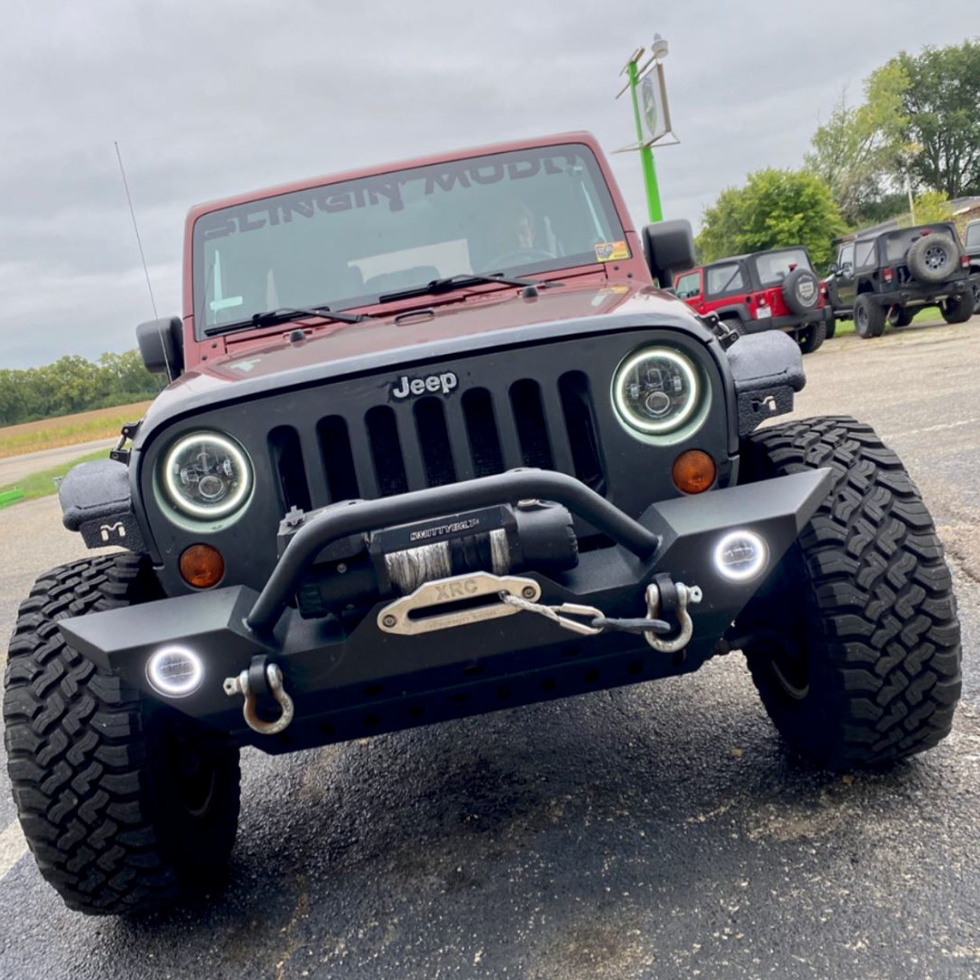

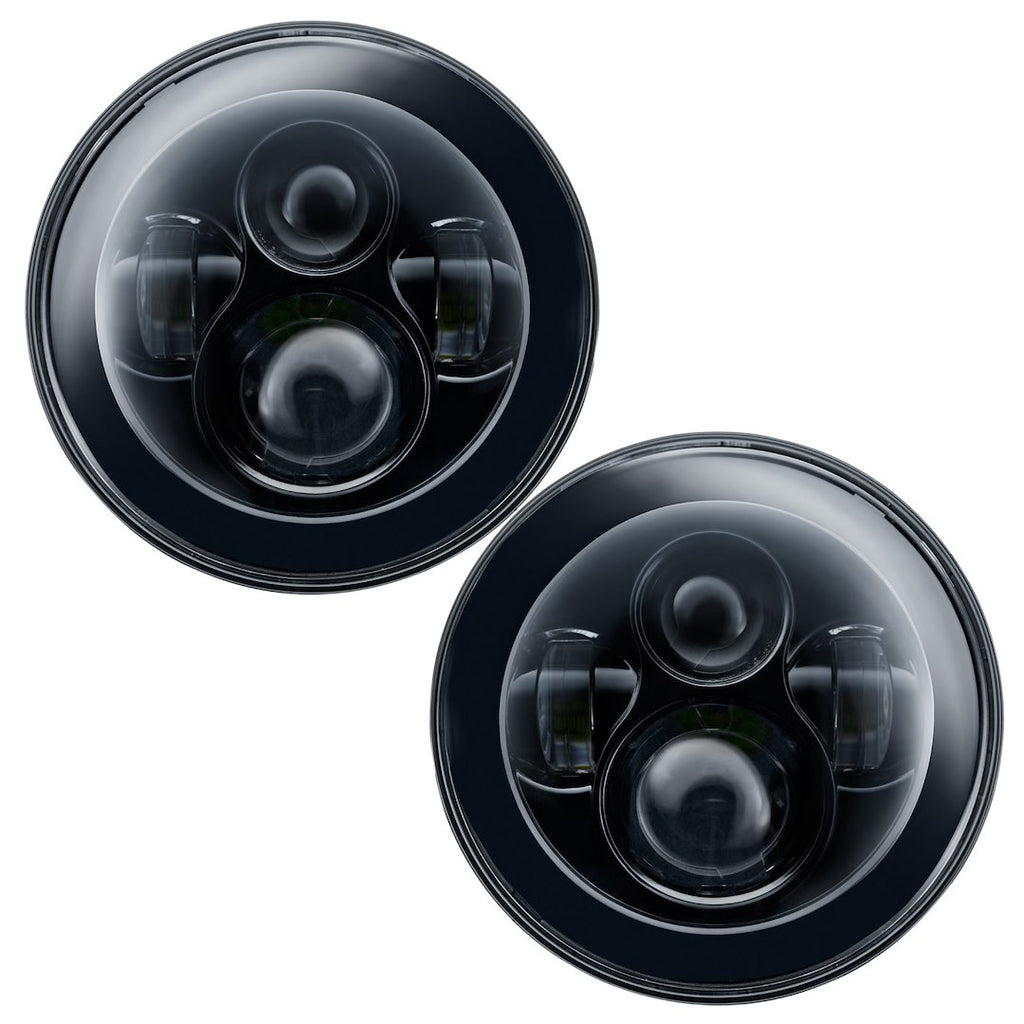

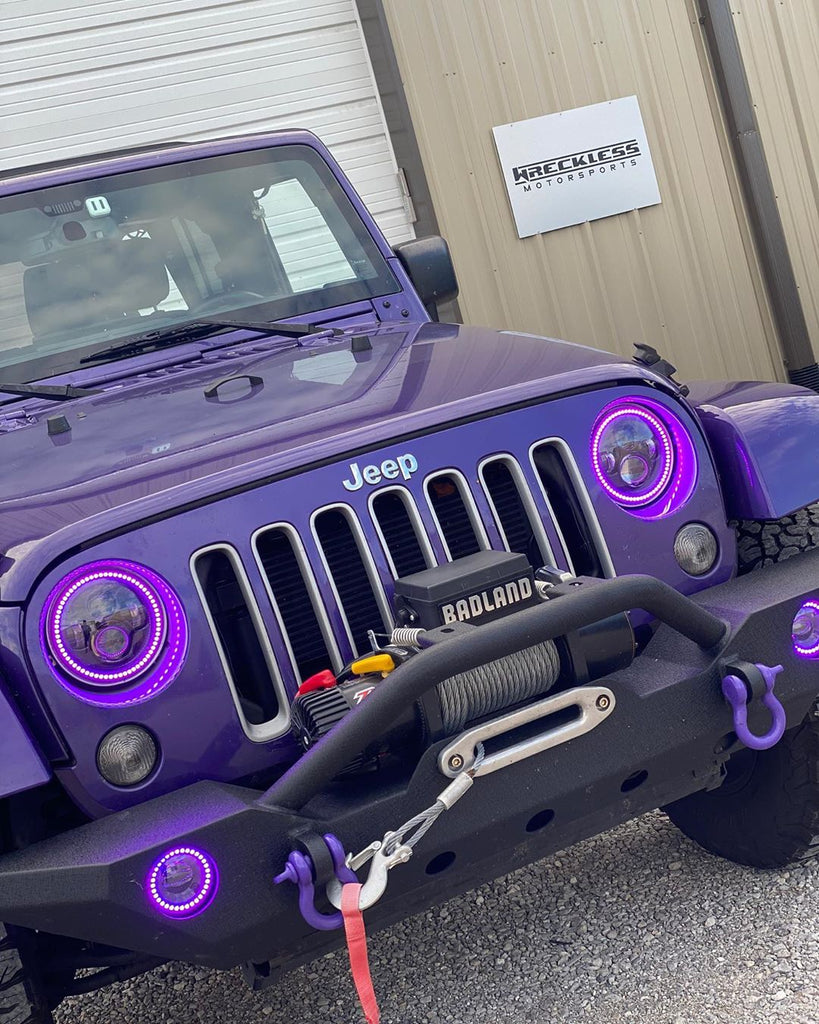

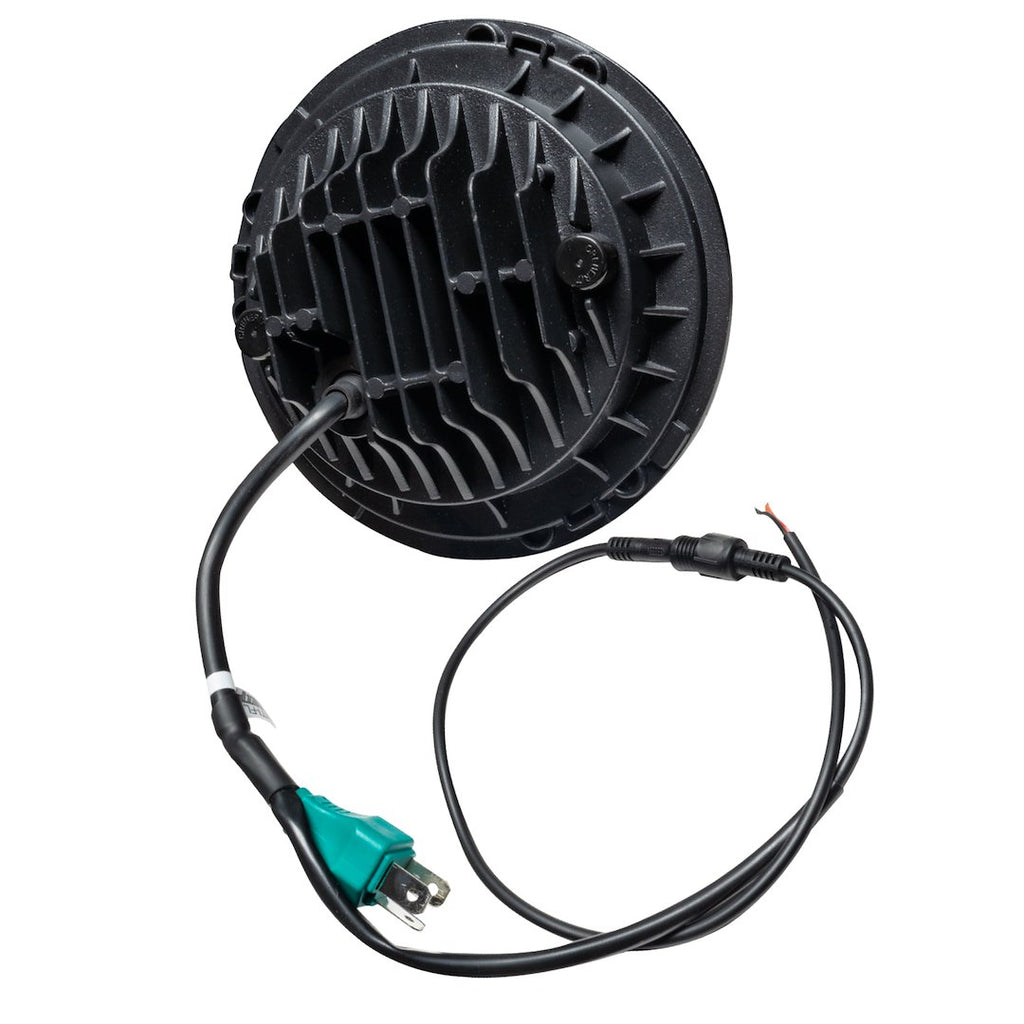

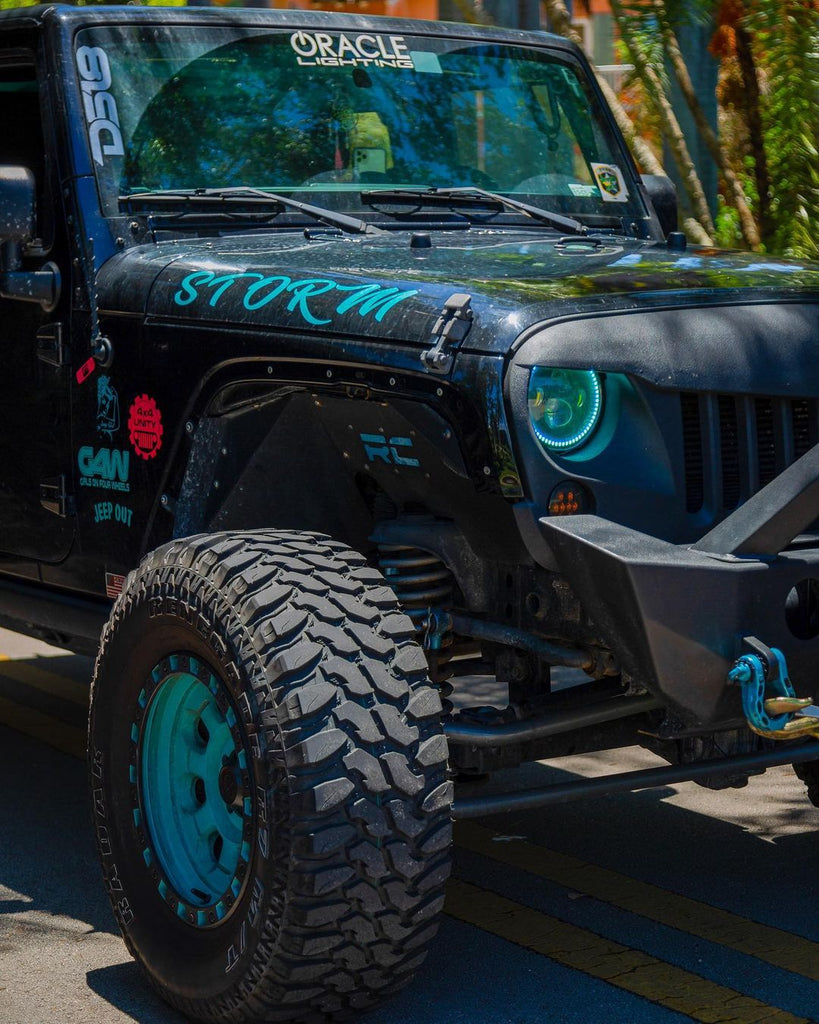

The Oracle Lighting LED Headlight Assembly is designed for vehicles utilizing 7 inch sealed beam lamps, providing a significant upgrade in brightness and reliability. This assembly features a rugged design suitable for various applications including Jeep Wranglers, off-road vehicles, buggies, and classic cars or trucks. Installation is straightforward with the included H4 and H13 plug and play connectors, allowing for quick setup without the need for additional wiring adapters.

This headlight assembly incorporates a constant current LED driver that enhances the performance of the halos, ensuring consistent brightness and preventing flicker issues through its integrated Can-Bus system. The assembly is built to withstand a wide input voltage range from 12 to 24 volts, protecting the LEDs from voltage spikes that could compromise their lifespan. Additionally, the upgraded LED chips from Cree to Phillips Luxeon ZES provide improved luminosity and efficiency.

Constructed with a durable polycarbonate lens and die-cast black housing, this headlight assembly is DOT and SAE certified, ensuring compliance with safety standards. The set includes two headlights, making it a comprehensive solution for vehicle lighting needs. With an estimated installation time of just 1.5 hours, this product is engineered for both performance and ease of use.

Features

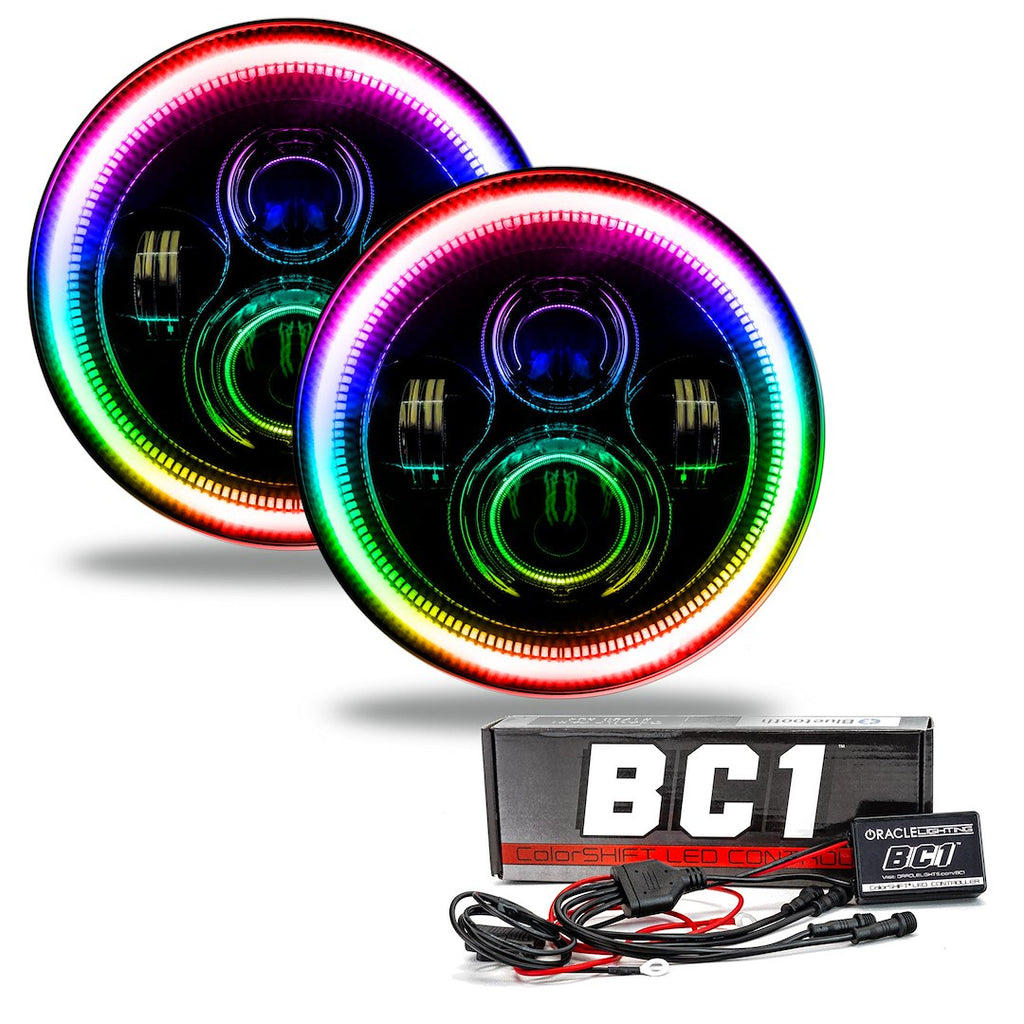

• Improvements In Brightness And Reliability By Adding A Constant Current LED Driver To The Main Circuit Board Inside Of The Lamp To Control The Halos
• No Need For Anti-Flicker Wiring Adapters: The New SMART Integrated Can-Bus System Automatically Adjusts- Preventing Flicker Issues
• Increased Reliability: By Conditioning The Power Going Into The LEDs This Prevents Degradation Which Can Shorten The Overall Lifespan Of The Product
• Wider Input Voltage Range: The New SMD Halos Can Operate On A Very Wide Voltage Range From 12 Volt To 24 Volt So That Voltage Spike Can Not Damage The LEDs
• Brighter LED Halos: By Moving The Heat Load Of The Resistors Off The PCB We Are Able To Increase The Number Of LEDs On The Circuit Board Without Thermal Issues
• LED Chips Upgraded From A Cree LED To A Phillips Luxeon ZES Chip

Specifications

• Manufacturer: Oracle Lighting
• Manufacturer Part Number: 5769-335
• Bulb Type: LED Composite
• Headlight Type: Projector Beam

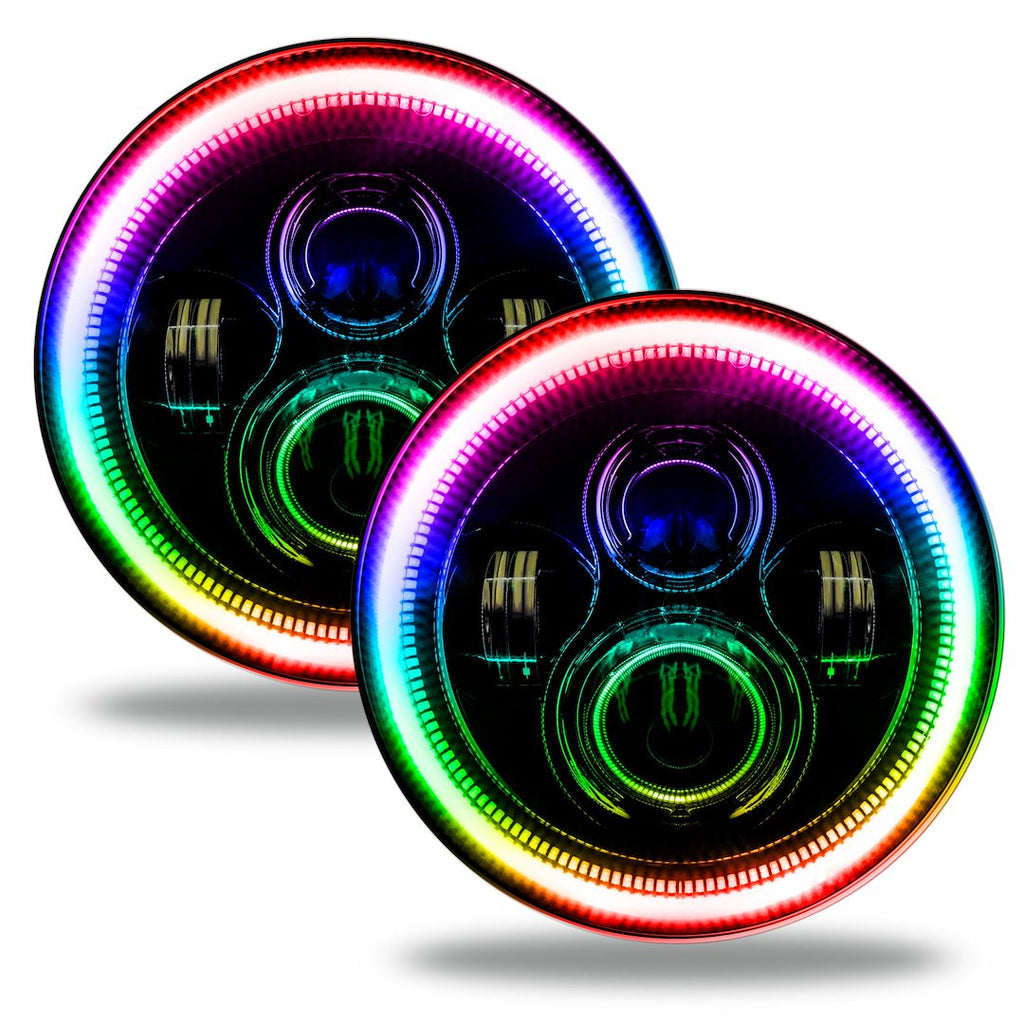

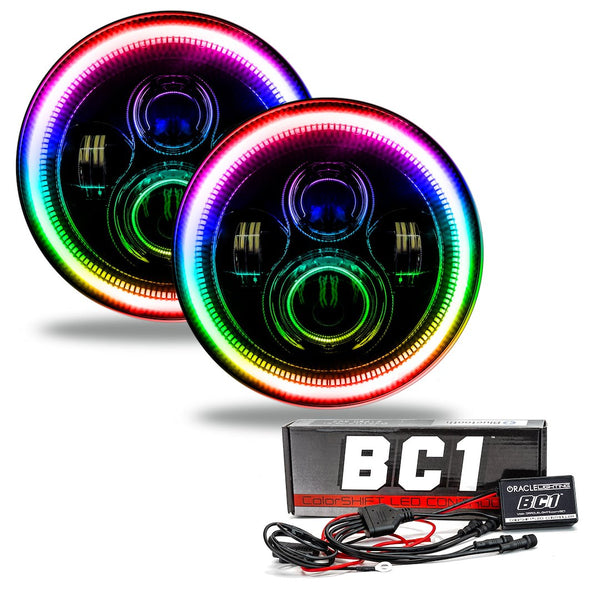

• Light Color: Amber/ Blue/ White/ Green/ Red
• Lens Color: Clear

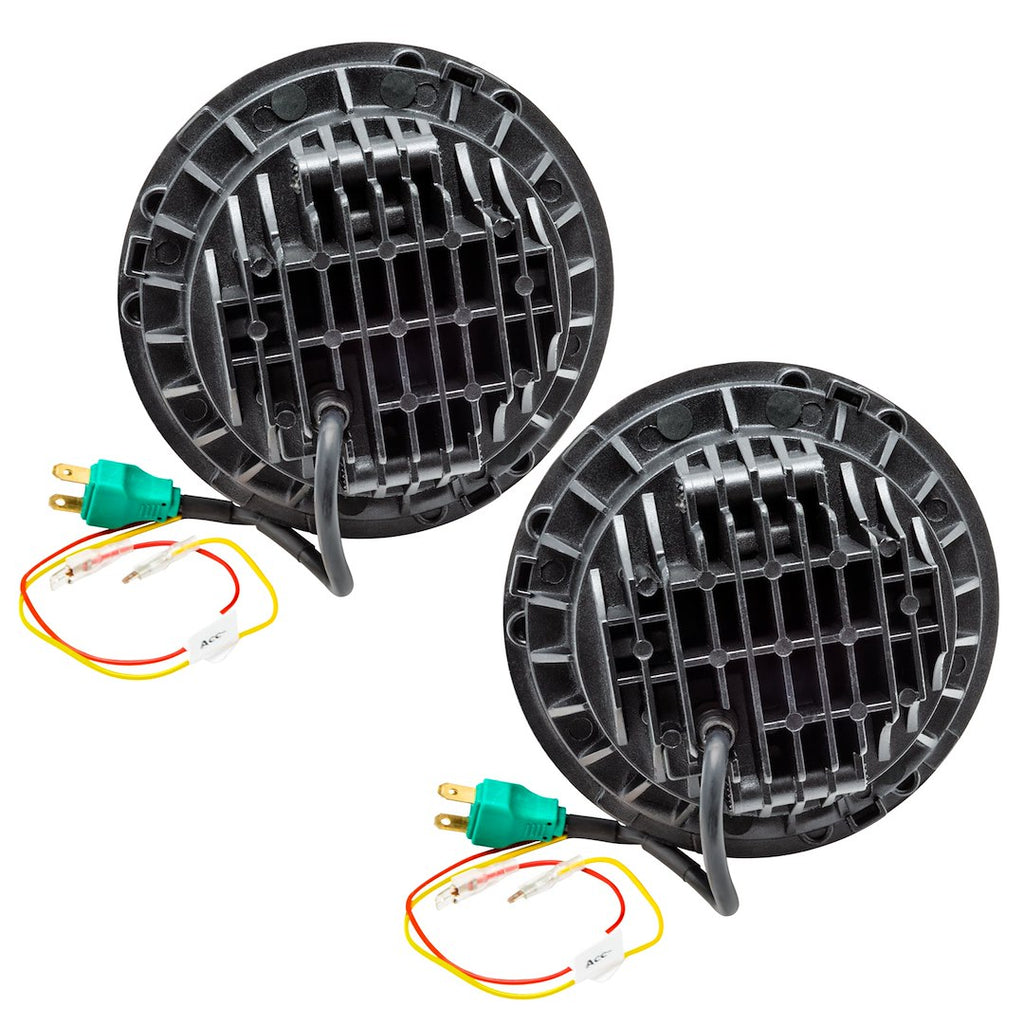

• Quantity: Set Of 2
• With Camera: No
• Ampere Rating At 12 Volts: 2.50 Amp
• Ampere Rating At 24 Volts: 1.3 Amp
• Lens Material: Polycarbonate
• Housing Color: Black
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 1955-1957 Chevrolet Bel Air
• 1969-1974 Chevrolet Blazer
• 1960-1974 Chevrolet C10 Pickup
• 1967-1979 Chevrolet C10 Suburban
• 1967-1969 Chevrolet Camaro
• 1969-1979 Chevrolet Nova
• 1975-1979 Dodge D100
• 1968-1974 Dodge D100 Pickup
• 1960-1967 Dodge D100 Series
• 1977-1979 Dodge D150
• 1975-1979 Dodge D200
• 1968-1974 Dodge D200 Pickup
• 1960-1967 Dodge D200 Series
• 1975-1979 Dodge D300
• 1968-1974 Dodge D300 Pickup
• 1960-1967 Dodge D300 Series
• 1979-1979 Dodge D50
• 1970-1976 Dodge Dart
• 1950-1959 Dodge Power Wagon
• 1966-1978 Ford Bronco
• 1969-1974 Ford E-100 Econoline
• 1969-1974 Ford E-200 Econoline
• 1969-1974 Ford E-300 Econoline
• 1961-1967 Ford Econoline
• 1953-1977 Ford F-100
• 1975-1977 Ford F-150
• 1953-1977 Ford F-250
• 1953-1977 Ford F-350
• 1964-1973 Ford Mustang
• 1955-1957 Ford Thunderbird
• 1961-1974 Jaguar XKE
• 1959-1983 Jeep CJ5
• 1976-1986 Jeep CJ7
• 1962-1969 Jeep Gladiator
• 1981-1986 Jeep Scrambler
• 2007-2018 Jeep Wrangler JK
• 1997-2006 Jeep Wrangler TJ
• 1987-1995 Jeep Wrangler YJ
• 1960-1987 Toyota Land Cruiser
• 1979-1981 Toyota Pickup
• 1950-1979 Volkswagen Beetle
• 1968-1974 Volkswagen Campmobile
• 1955-1974 Volkswagen Karmann Ghia
• 1973-1974 Volkswagen Thing

Technical Documents

• 5769_Install_Guide2.pdf
