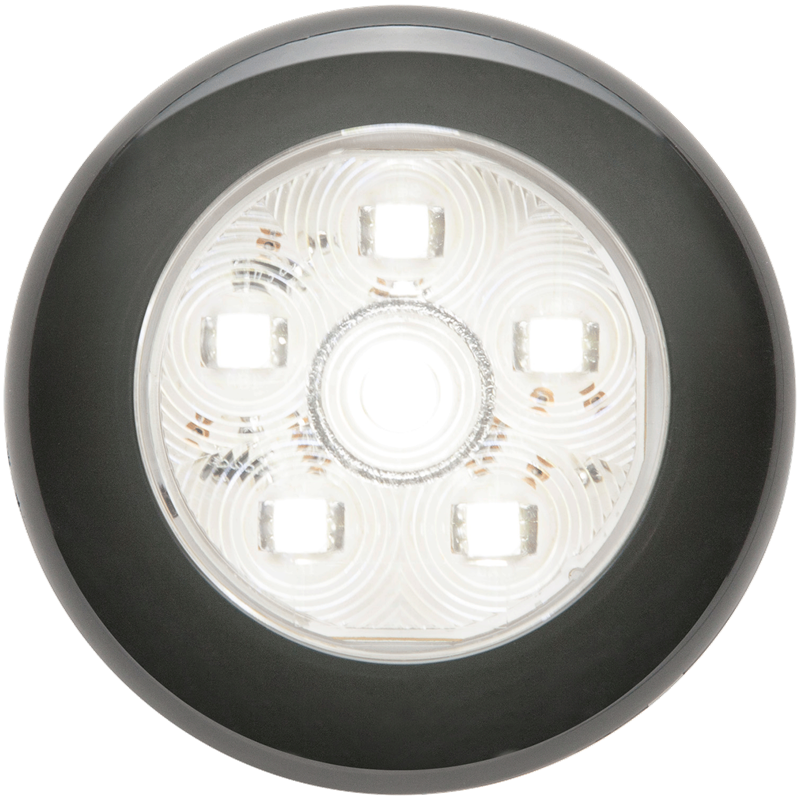

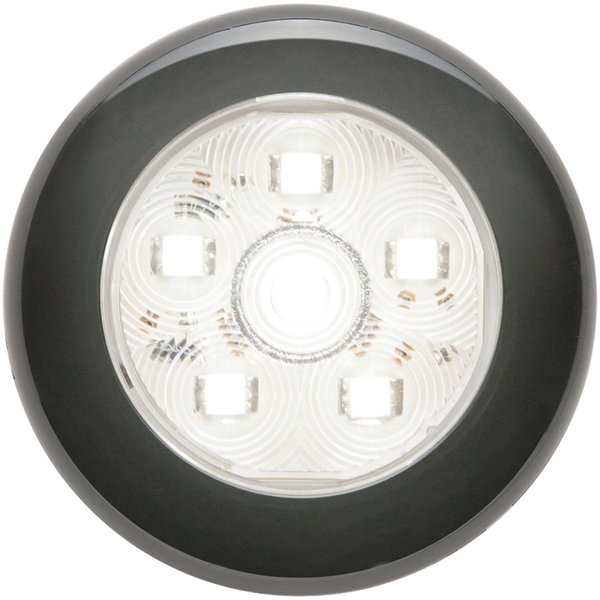

Optronics Work Light UCL60 Series (MPN: UCL60CSBB)

Compact LED utility light designed for effective illumination.

The Optronics Work Light UCL60 Series is a compact, surface mount utility light designed to provide effective illumination for various applications. With a raw lumen output of 224 lumens and an effective output of 168 lumens, this light is engineered to illuminate the hitch area of trailers efficiently. The round design features a durable polycarbonate housing and lens, ensuring longevity and resistance to environmental factors.

This work light operates on a 12-volt power source and has a low ampere draw of 0.02, making it energy efficient. The hard-wired connection includes a separate ground wire for easy installation. The sleek metallic black trim ring adds a modern touch to the overall design, while the white LED bulb offers bright and clear lighting.

Optronics International, a leader in vehicle lighting solutions, emphasizes quality and performance in its products. The UCL60 Series is suitable for a range of vehicles, including HD trucks, trailers, and RVs, making it a versatile choice for enhancing safety and visibility.

Features

• Raw Lumen Output: 224 Lumens, Effective Lumen Output: 168 Lumens
• Designed To Illuminate Hitch Area Of Trailer
• Compact, Surface Mount Design
• Hard Wired With Separate Ground Wire
• Polycarbonate Housing And Polycarbonate Lens

Specifications

• Manufacturer: Optronics
• Manufacturer Part Number: UCL60CSBB
• Type: Surface Mount
• Bulb Type: LED
• Power Source: 12 Volt
• Quantity: Single

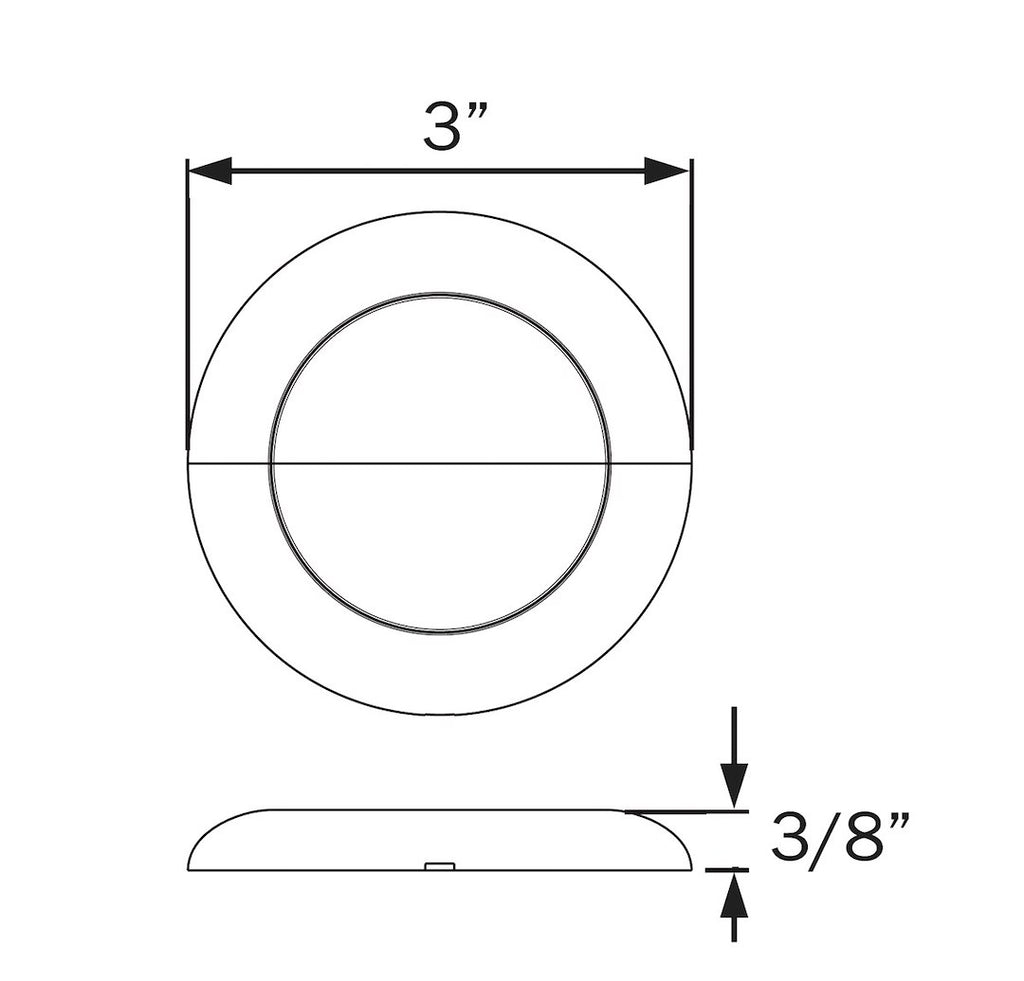

• Diameter (IN): 3 Inch
• Length (IN): Not Applicable
• Width (IN): Not Applicable
• Height (IN): 3/8 Inch
• Housing Color: Black
• Light Color: White
• Shape: Round
• Lens Material: Polycarbonate
• Housing Material: Polycarbonate
• Ampere Rating At 12 Volts: 0.02 Amp

Technical Documents

• UCL60CSBB_BUL.pdf
