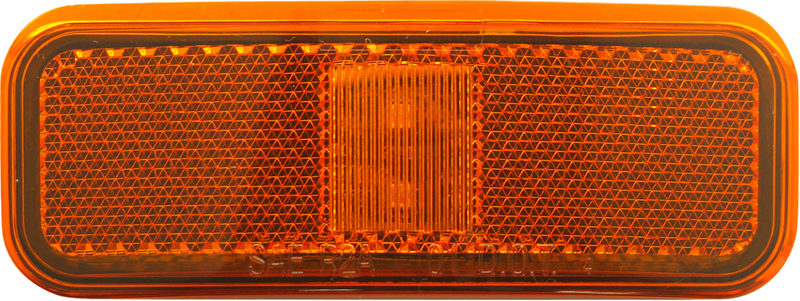

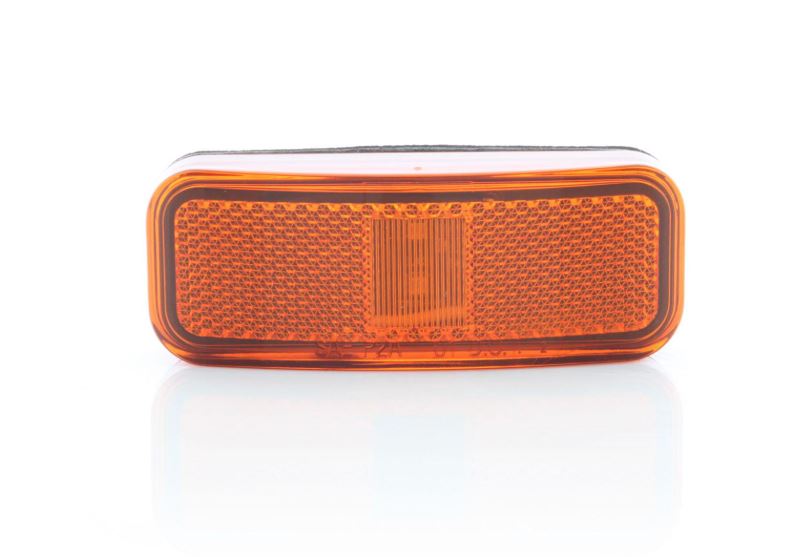

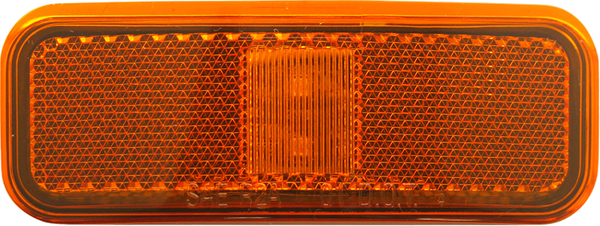

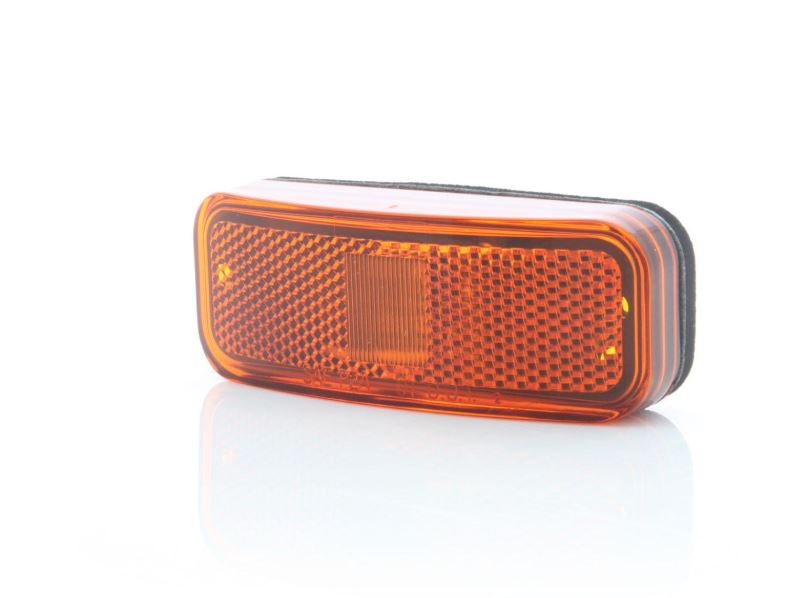

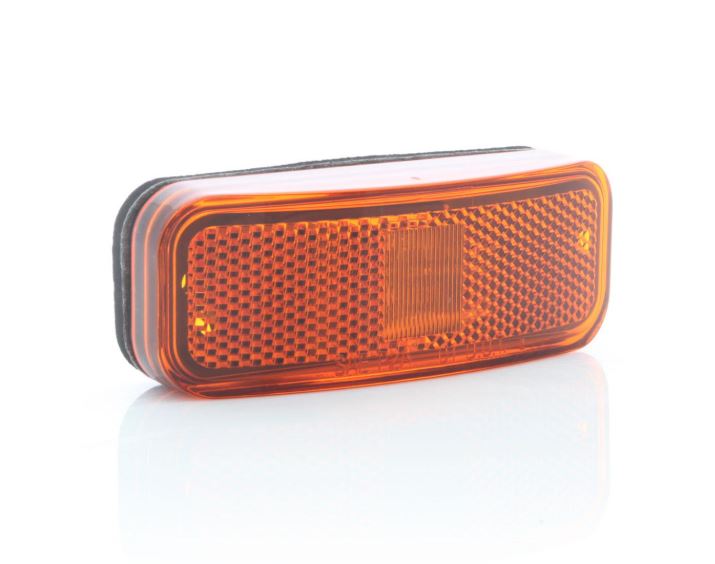

Optronics Marker Clearance Light (MPN: MCL40ABBP)

High-visibility LED light for enhanced vehicular safety and compliance.

The Optronics Marker Clearance Light is designed to provide reliable illumination for trailers and vehicles. This rectangular light features a durable acrylic lens and an ABS housing, ensuring longevity and resistance to environmental factors. With a compact size of 4 inches in length, 1.5 inches in width, and a depth of 0.94 inches, it is suitable for various mounting applications. The light operates on 12 volts with a low power draw of 0.04 amps, making it energy efficient while maintaining high visibility.

Equipped with two LED bulbs, this yellow marker light includes a reflex lens that eliminates the need for a separate reflector, enhancing its functionality. The snap-on, replaceable lens allows for easy maintenance and replacement, ensuring that the light remains operational over time. Designed for surface mounting, the installation process is straightforward, typically requiring about one hour to complete.

Optronics has established itself as a leader in vehicular safety lighting since 1972, focusing on quality and customer satisfaction. This marker clearance light exemplifies their commitment to innovation and compliance with industry standards, making it a reliable choice for enhancing safety on the road.

Features

• 2-LED Yellow Marker/Clearance Light With Reflex
• Snap-On, Replaceable Lens
• Lens With Reflex Eliminates Need For Separate Reflector

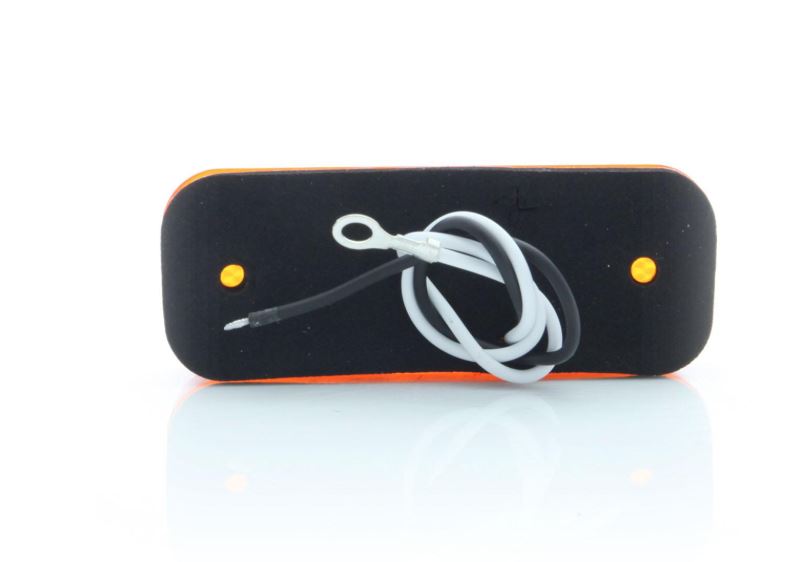

• 2-Wire, Black Base And PCB

Specifications

• Manufacturer: Optronics
• Manufacturer Part Number: MCL40ABBP
• Type: Marker/ Clearance Light
• Shape: Rectangular
• Diameter (IN): Not Applicable

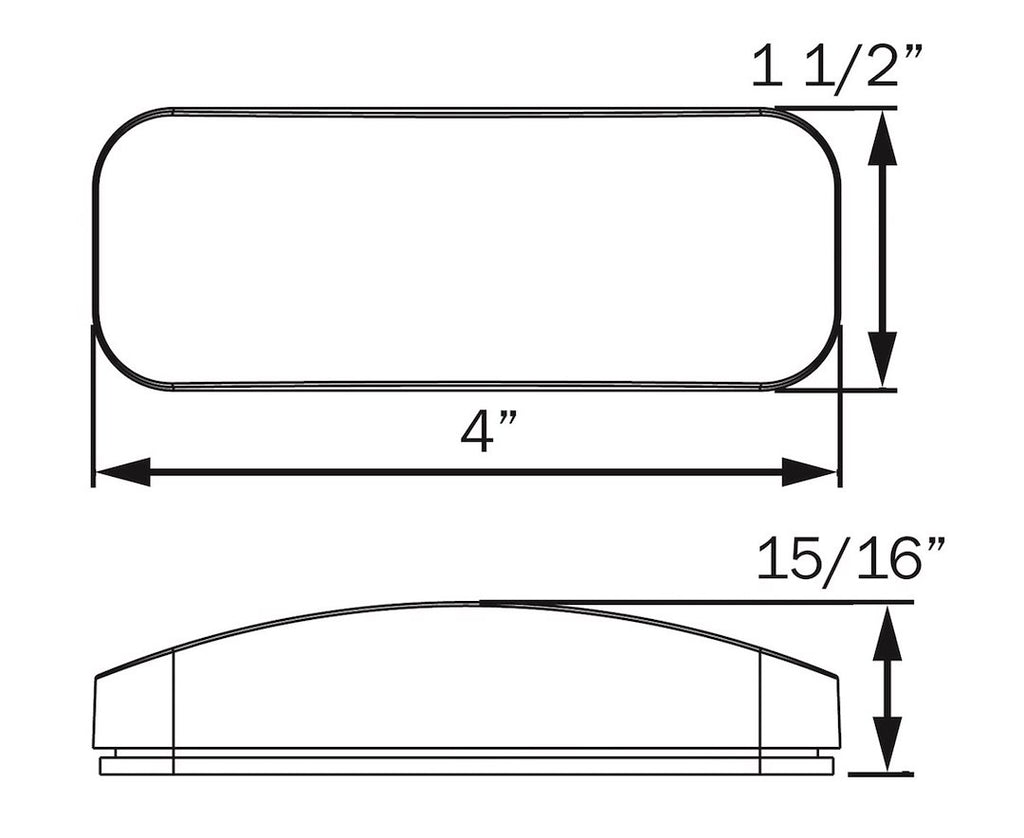

• Length (IN): 4 Inch
• Height (IN): 0.94 Inch
• Width (IN): 1-1/2 Inch
• Bulb Type: LED
• Lens Color: Yellow
• Lens Material: Acrylic
• Bulb Color: Yellow
• Housing Color: Yellow/ Black
• Housing Material: ABS Plastic
• Installation Type: Surface Mount
• Estimated Install Time (Hours): 1

Technical Documents

• MCL40ABBP_bulletin.pdf
