Old Man Emu Lift Kit Suspension (MPN: 2213K)

Enhance your vehicle's performance with advanced suspension technology.

Old Man Emu offers a comprehensive lift kit suspension designed to improve ride quality and control for off-road vehicles. This kit features the BP-51 remote reservoir shock absorbers, which utilize advanced internal bypass technology for position-sensitive damping. With 10 levels of independent compression and rebound adjustment, users can fine-tune their suspension for optimal performance under varying loads and conditions.

The suspension lift kit provides a 2-1/2 inch lift in the front and a 2 inch lift in the rear, accommodating vehicles with weights ranging from 0 to 330 pounds. This ensures that the vehicle maintains proper ride height and comfort, even when additional heavy components are added. The kit includes high-quality components such as 6061 grade aluminum shock absorber bodies with a hard anodized finish, enhancing heat dissipation and corrosion resistance.

Installation is straightforward as this kit serves as a direct replacement for both OE and aftermarket suspension systems. The remote-mounted oil reservoir allows for increased cooling and performance during extended off-road use, making it a reliable choice for serious off-road enthusiasts. With Old Man Emu's engineered solutions, this lift kit suspension is tailored to meet the demands of various vehicle outfits and road conditions.

Features

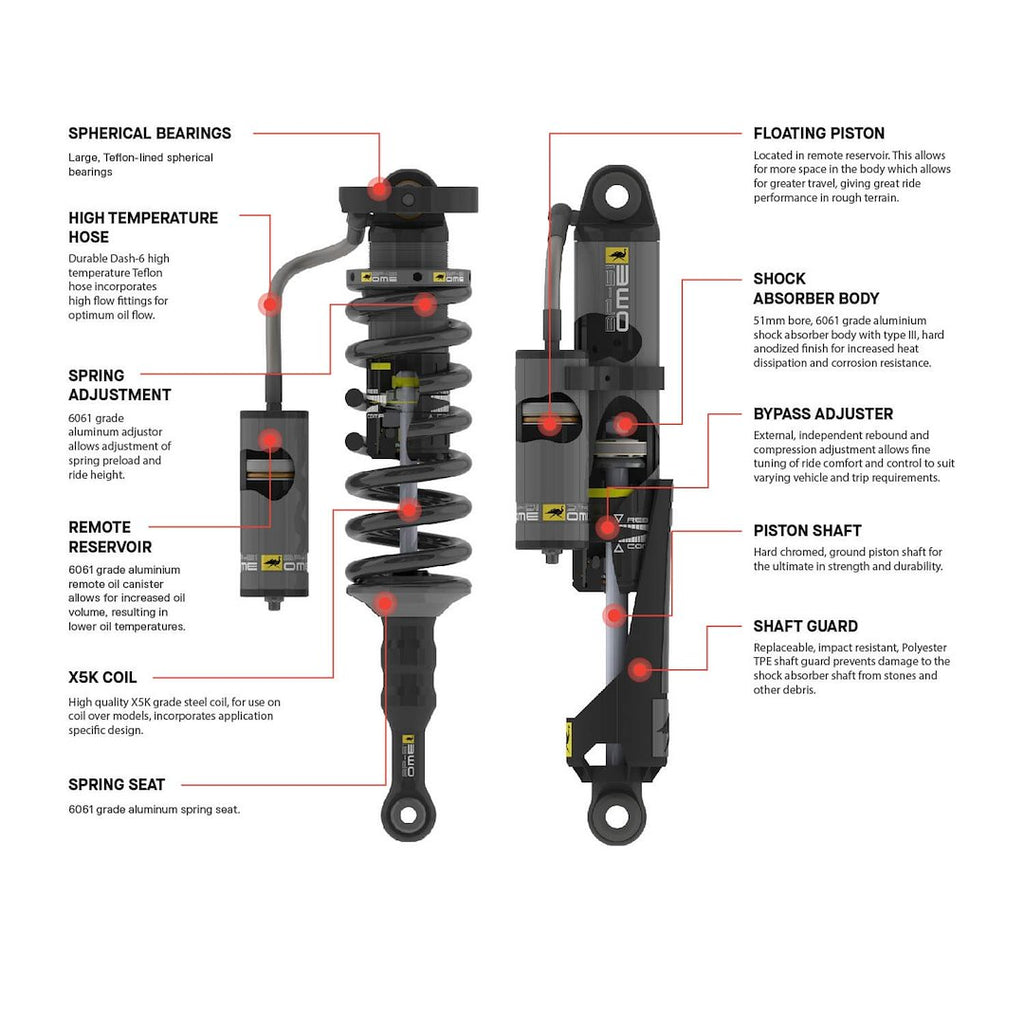

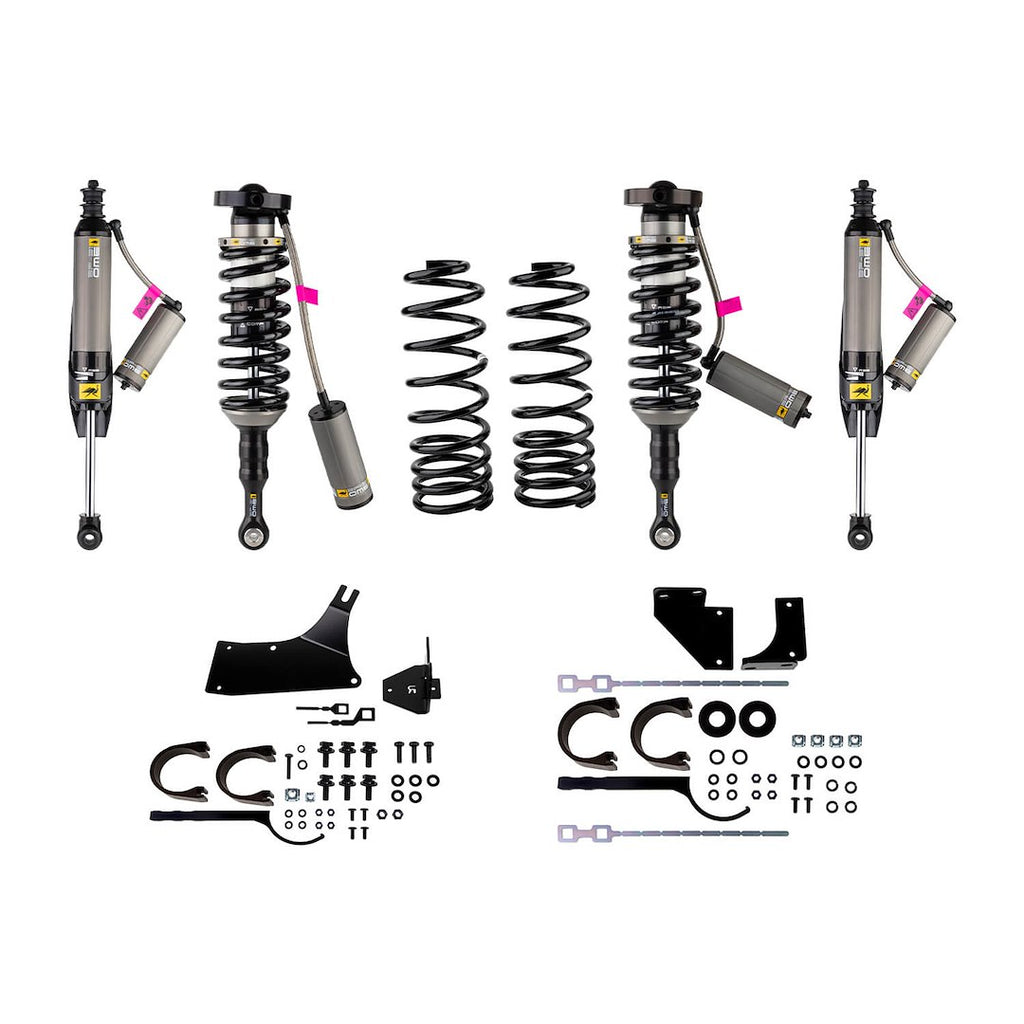

• Tuned And Matched Integrated Suspension Kit Allows For Increased Comfort And Control With Or Without Added Weight

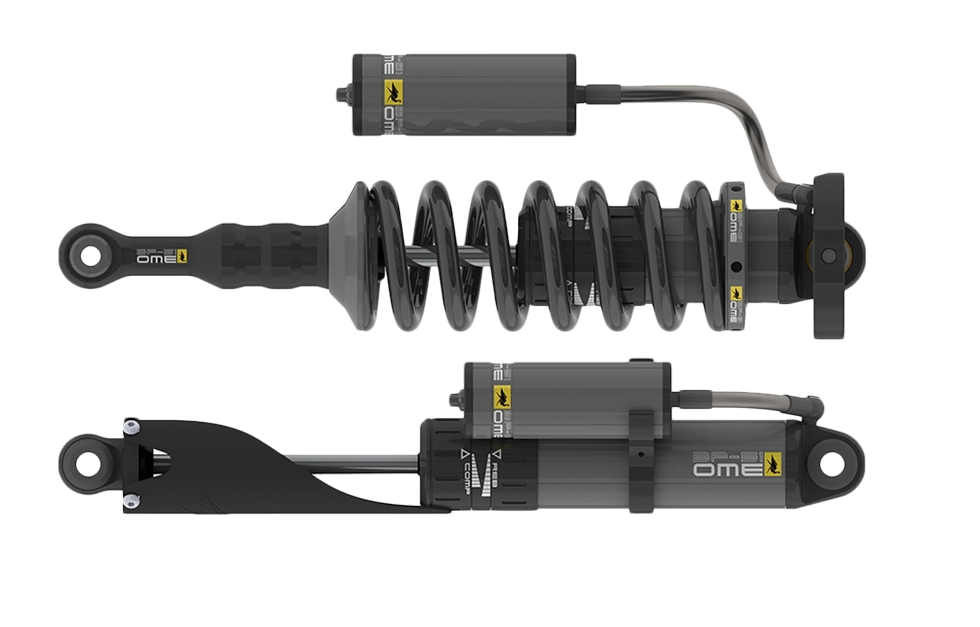

• Old Man Emu BP-51 Struts And Shocks
• Internal Bypass Design Technology Providing Position Sensitive Damping
• On Vehicle Tuning With 10 Levels Of Independent Compression AND Rebound Adjustment
• Remote Mounted Oil Reservoir To Provide Additional Oil Allowing For Increased Cooling And Performance During Extended Periods Of Offroad Use
• 6061 Grade Aluminum Shock Absorber Body With Type III, Hard Anodized Finish For Increased Heat Dissipation And Corrosion Resistance
• Direct Replacement For OE And Aftermarket Suspension Systems
• High Temperature Hose: Durable Dash 6 High-Temperature Teflon Hose Incorporates High-Flow Fittings For Optimum Oil Flow
• Spring Adjustment: 6061 Grade Aluminum Adjustor Allows Adjustment Of Spring Preload And Ride Height

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: 2213K
• Front Lift Amount (IN): 2-1/2 Inch
• Rear Lift Amount (IN): 2 Inch
• Front Lift Type: Coil Over Shock Absorber
• Rear Lift Type: Coil Spring
• Shocks: Front BP51 Remote Reservoir Coil Over Shock Absorbers/ Rear BP51 Remote Reservoir Shock Absorbers
• Color: Black Components/ Gray Shock Absorbers

Compatibility / Fit

• 2010-2024 Toyota 4Runner
