Old Man Emu Lift Kit Suspension (MPN: 2209K)

Enhance your vehicle's performance with advanced suspension technology.

Old Man Emu offers a comprehensive lift kit suspension designed to improve ride quality and control for off-road vehicles. This kit features BP-51 remote reservoir shock absorbers, which utilize advanced internal bypass technology for position-sensitive damping. With adjustable compression and rebound settings, users can fine-tune their suspension to match varying loads and road conditions, ensuring optimal performance both on and off the road.

The lift kit provides a 2-1/2 inch lift in the front and a 2 inch lift in the rear, accommodating vehicles with weights ranging from 0 to 330 pounds. This integrated suspension system is engineered to prevent vehicle sag, enhancing load-carrying capacity and overall ride comfort. The use of high-quality materials, including a 6061 grade aluminum shock absorber body, ensures durability and resistance to corrosion, making it suitable for extended off-road use.

Installation is straightforward as this kit serves as a direct replacement for original equipment and aftermarket suspension systems. The inclusion of remote-mounted oil reservoirs allows for increased cooling and performance during demanding conditions. With Old Man Emu's commitment to quality and performance, this lift kit suspension is a reliable choice for those looking to enhance their vehicle's capabilities.

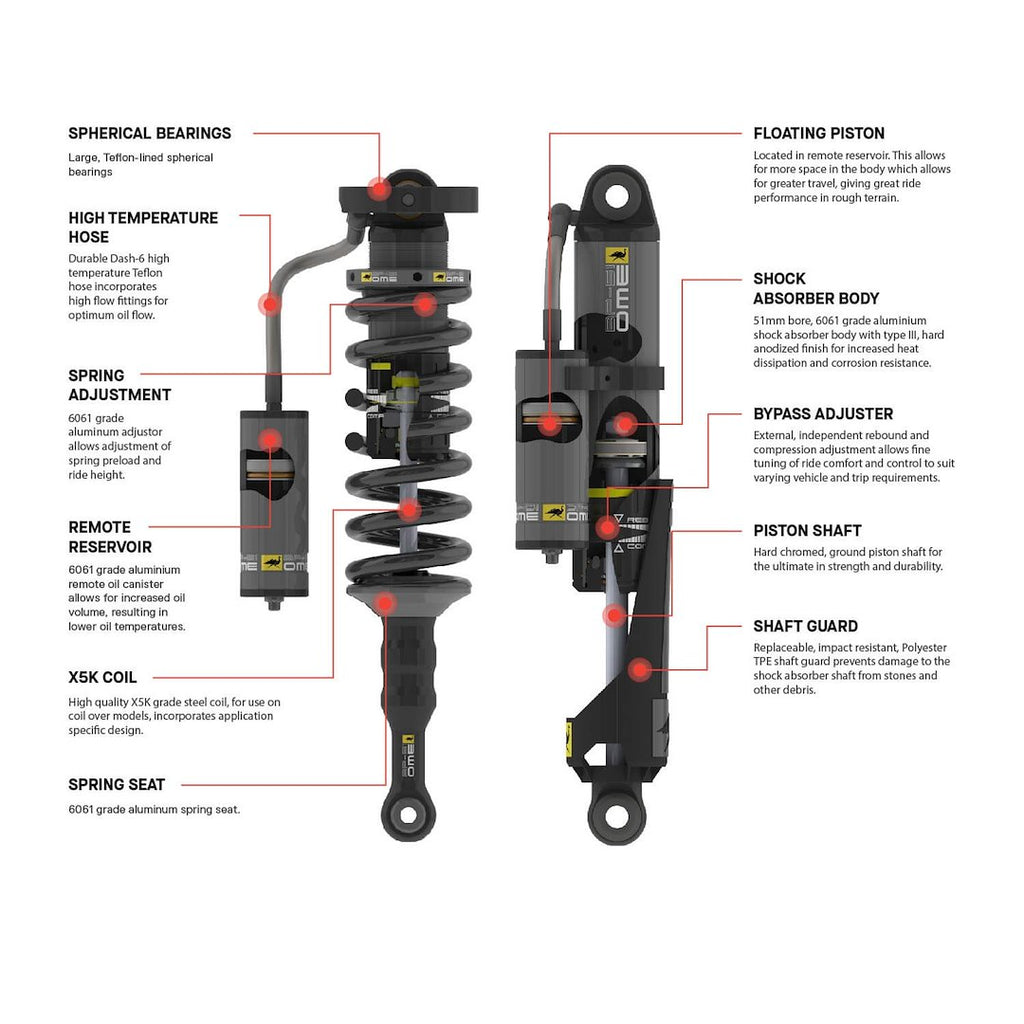

Features

• Tuned And Matched Integrated Suspension Kit Allows For Increased Comfort And Control With Or Without Added Weight
• Old Man Emu BP-51 Struts And Shocks
• Internal Bypass Design Technology Providing Position Sensitive Damping
• On Vehicle Tuning With 10 Levels Of Independent Compression AND Rebound Adjustment
• Remote Mounted Oil Reservoir To Provide Additional Oil Allowing For Increased Cooling And Performance During Extended Periods Of Offroad Use
• 6061 Grade Aluminum Shock Absorber Body With Type III, Hard Anodized Finish For Increased Heat Dissipation And Corrosion Resistance
• Direct Replacement For OE And Aftermarket Suspension Systems
• High Temperature Hose: Durable Dash 6 High-Temperature Teflon Hose Incorporates High-Flow Fittings For Optimum Oil Flow
• Spring Adjustment: 6061 Grade Aluminum Adjustor Allows Adjustment Of Spring Preload And Ride Height

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: 2209K
• Front Lift Amount (IN): 2-1/2 Inch
• Rear Lift Amount (IN): 2 Inch
• Front Lift Type: Coil Over Shock Absorber
• Rear Lift Type: Coil Spring
• Shocks: Front BP51 Remote Reservoir Coil Over Shock Absorbers/ Rear BP51 Remote Reservoir Shock Absorbers
• Color: Black Components/ Gray Shock Absorbers

Compatibility / Fit

• 2010-2024 Toyota 4Runner
