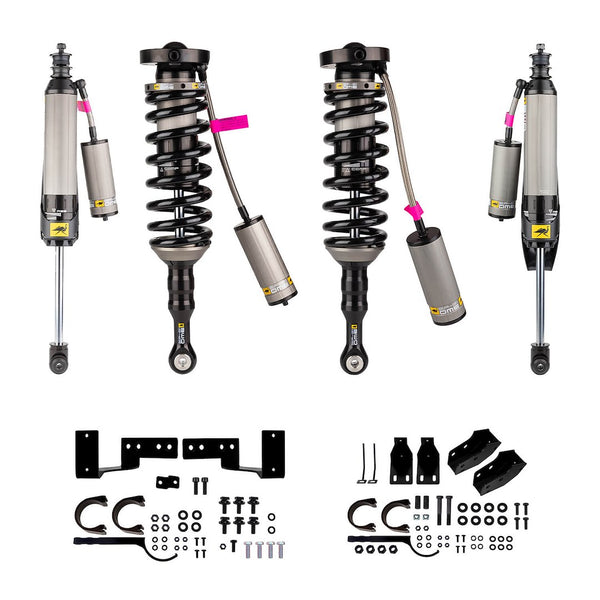

Old Man Emu Leveling Kit Suspension (MPN: 1203K)

Enhance your vehicle's performance with advanced suspension technology.

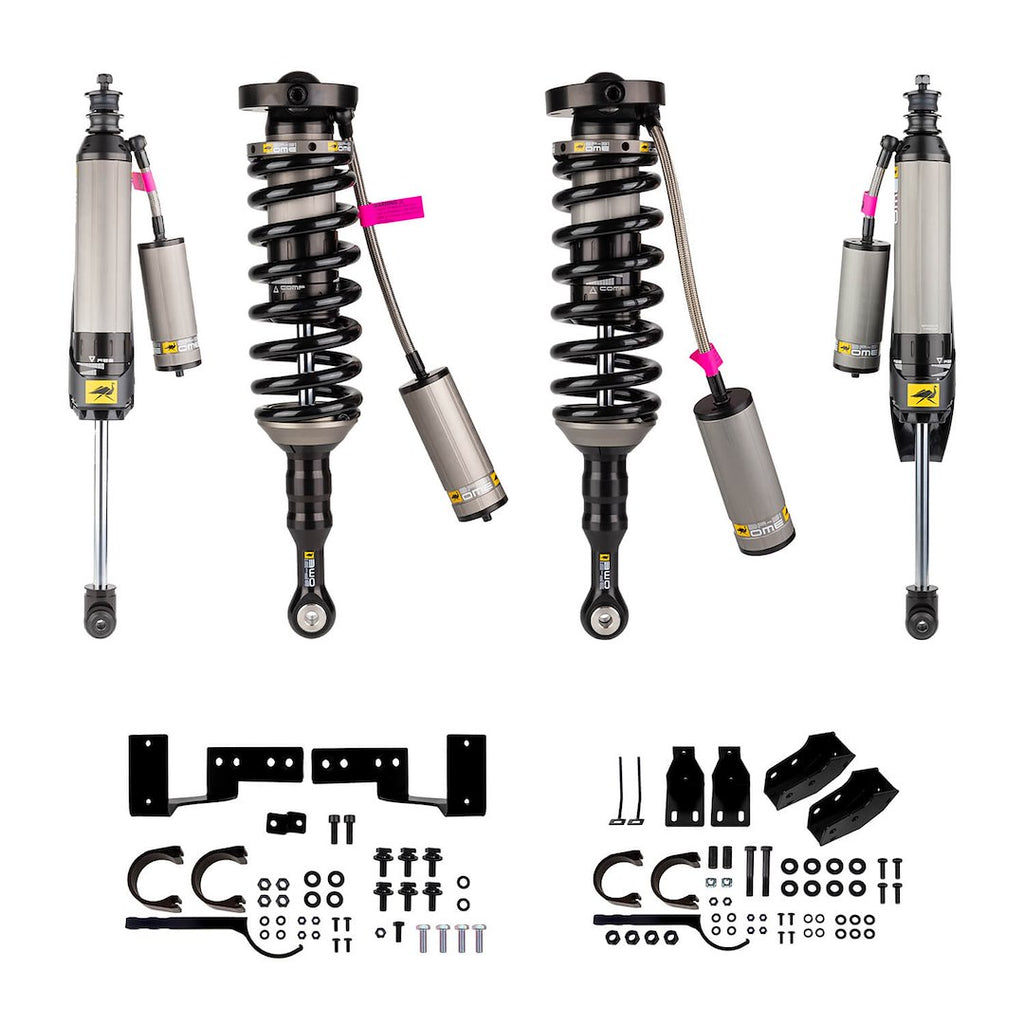

Old Man Emu presents a comprehensive leveling kit suspension designed to improve ride quality and control for off-road vehicles. This kit features BP-51 remote reservoir coil over shock absorbers that provide a 2 inch lift in the front, accommodating weights from 0 to 330 pounds, while maintaining a stable rear without lift. The BP-51 shocks utilize cutting-edge internal bypass technology, allowing for position-sensitive damping that enhances comfort and handling on various terrains.

The suspension system is engineered to prevent vehicle sag caused by heavy components, ensuring optimal performance regardless of load. With 10 levels of independent compression and rebound adjustment, users can fine-tune the suspension to meet their specific driving conditions. The remote-mounted oil reservoir increases cooling efficiency, making it suitable for extended off-road use.

Constructed from 6061 grade aluminum with a hard anodized finish, the shock absorbers are designed for durability and resistance to corrosion. This integrated suspension kit is a direct replacement for OE and aftermarket systems, making installation straightforward and efficient. With a total estimated installation time of 2 hours, this kit is an effective solution for enhancing your vehicle's off-road capabilities.

Features

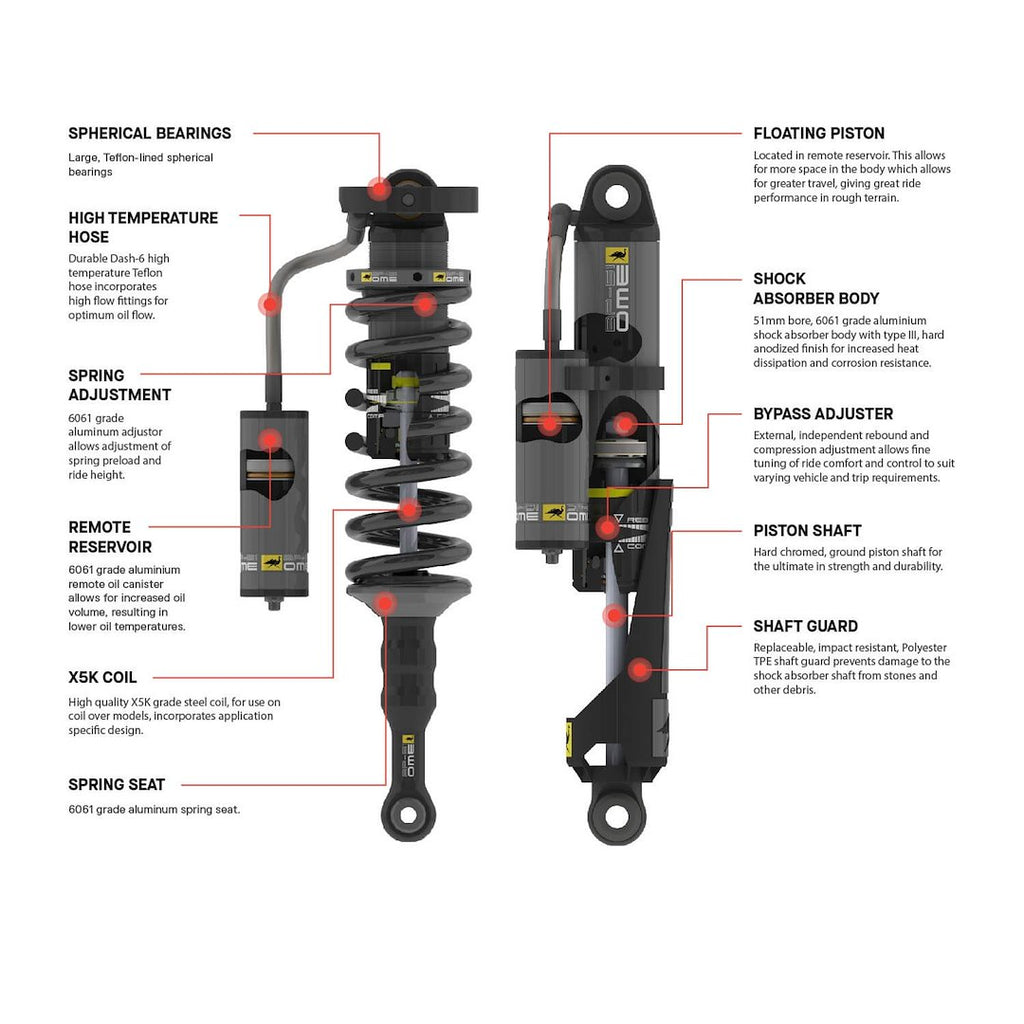

• Tuned And Matched Integrated Suspension Kit Allows For Increased Comfort And Control With Or Without Added Weight

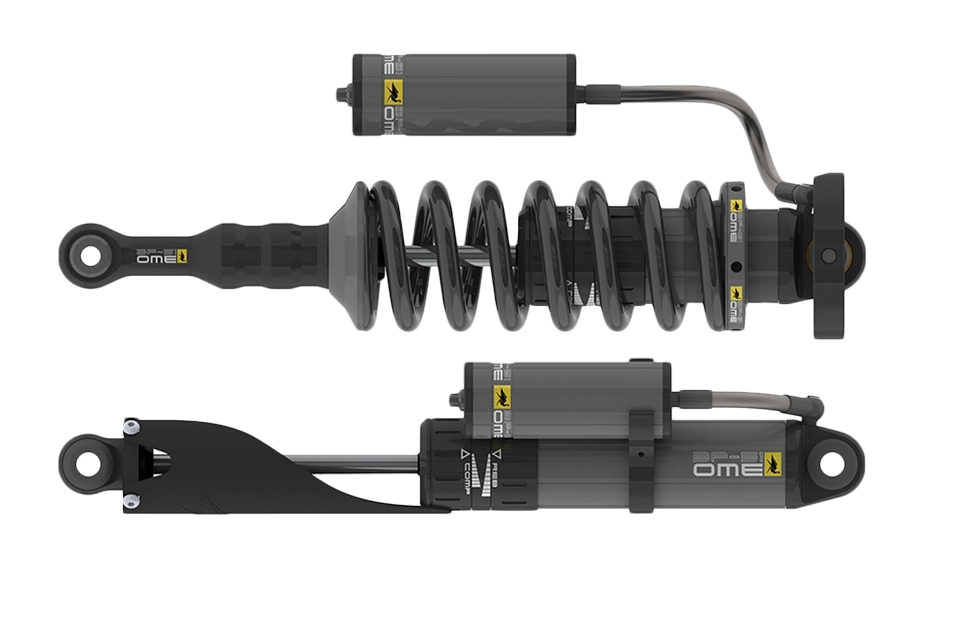

• Old Man Emu BP-51 Struts And Shocks
• Internal Bypass Design Technology Providing Position Sensitive Damping
• On Vehicle Tuning With 10 Levels Of Independent Compression AND Rebound Adjustment
• Remote Mounted Oil Reservoir To Provide Additional Oil Allowing For Increased Cooling And Performance During Extended Periods Of Offroad Use
• 6061 Grade Aluminum Shock Absorber Body With Type III, Hard Anodized Finish For Increased Heat Dissipation And Corrosion Resistance
• Direct Replacement For OE And Aftermarket Suspension Systems
• High Temperature Hose: Durable Dash 6 High-Temperature Teflon Hose Incorporates High-Flow Fittings For Optimum Oil Flow
• Spring Adjustment: 6061 Grade Aluminum Adjustor Allows Adjustment Of Spring Preload And Ride Height

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: 1203K
• Lift Height: 2 Inch Lift
• Type: Coil Over Shock Absorber
• Includes Shock/Struts: Yes
• Color: Black Components/ Silver Shocks
• Material: Aluminum
• Estimated Install Time (Hours): 2

Compatibility / Fit

• 2005-2023 Toyota Tacoma

Technical Documents

• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
• ARB_4x4_Accessories_-_ARB_USA_Warranty_Booklet_October_2020.pdf
