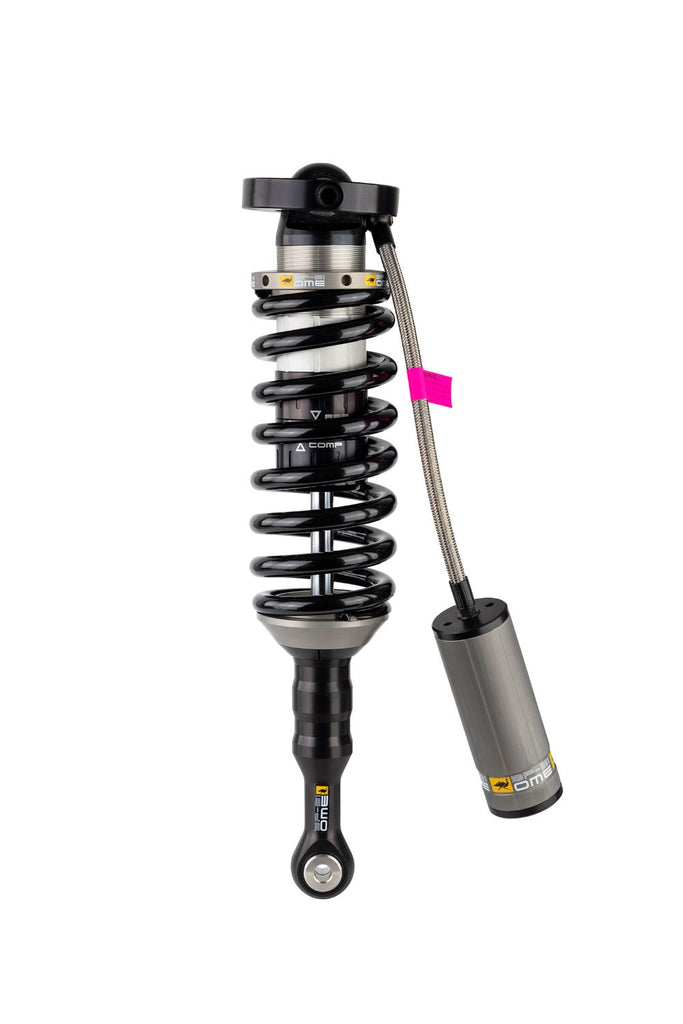

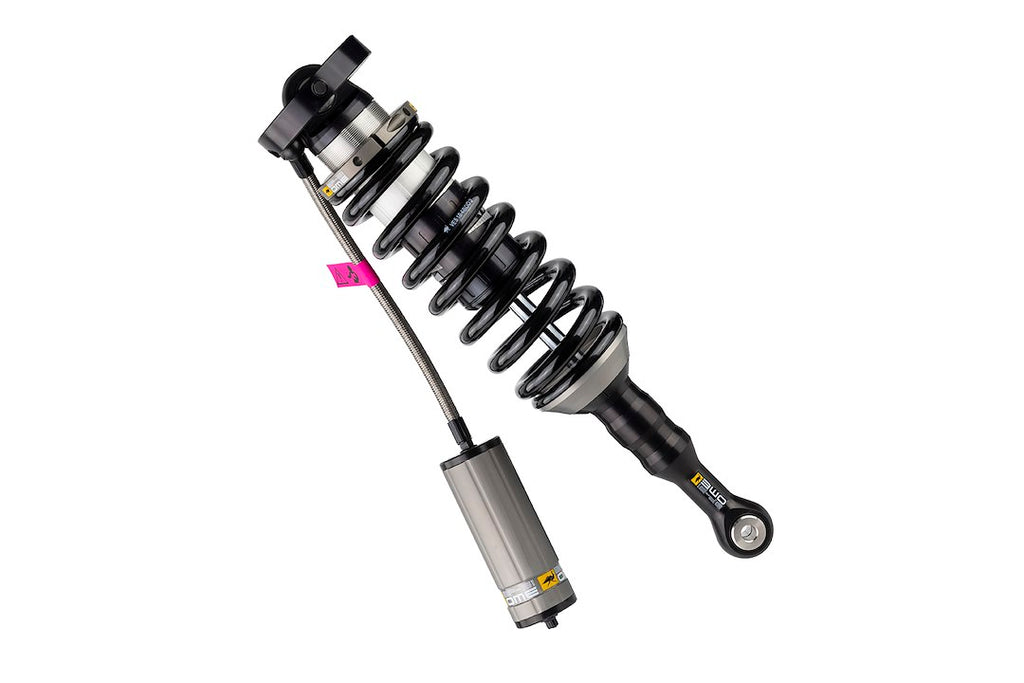

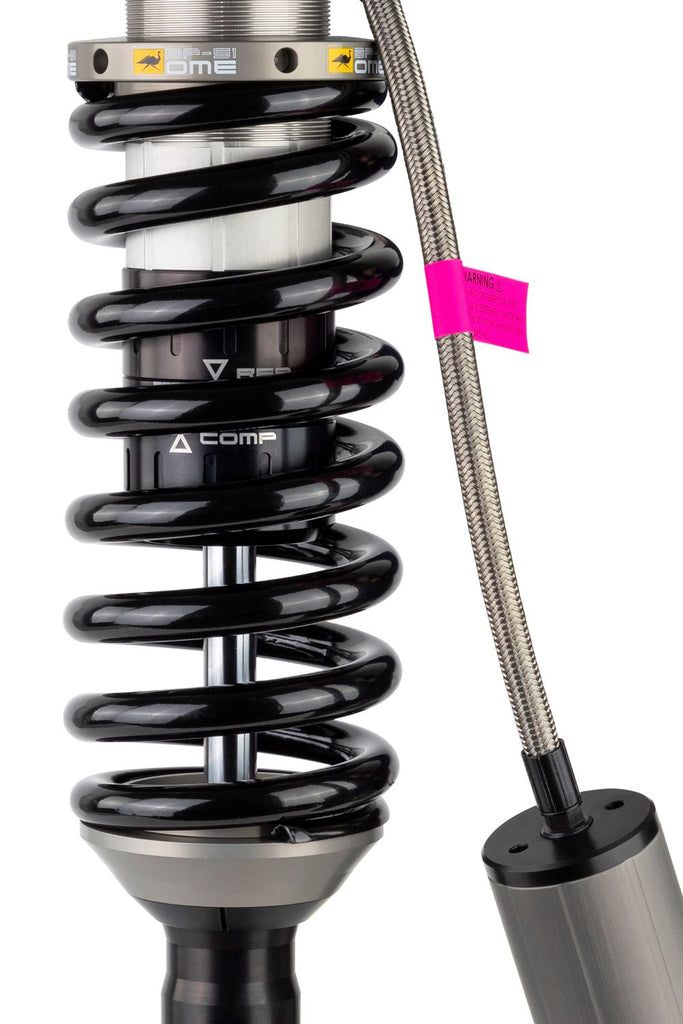

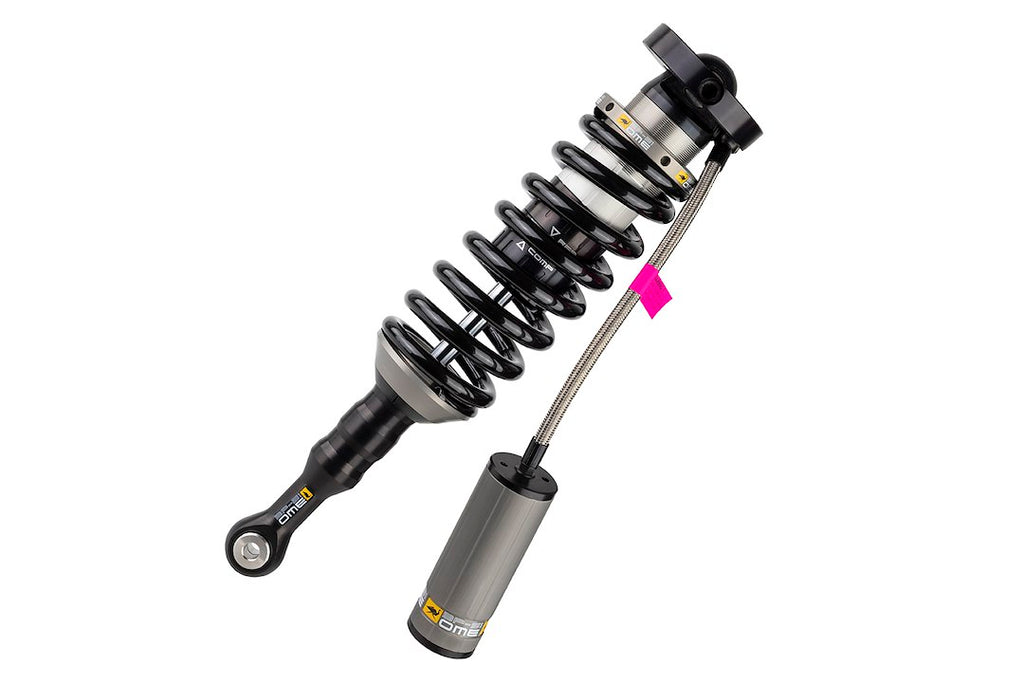

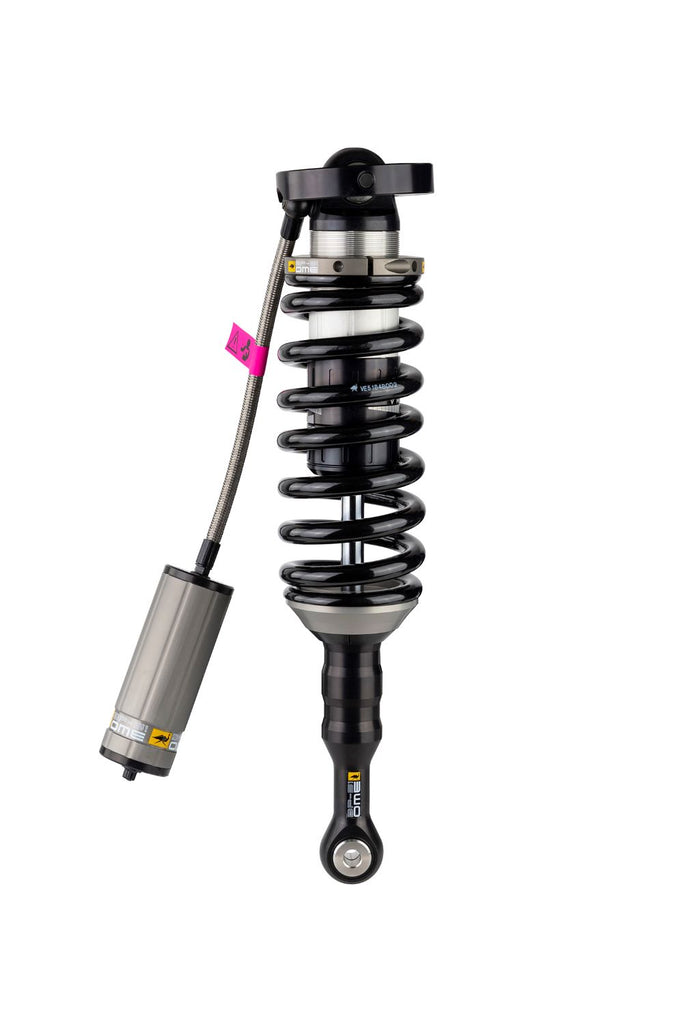

Old Man Emu BP-51 Coil Over Shock Absorber (MPN: BP5190004L)

Advanced suspension technology for enhanced off-road performance and comfort.

The Old Man Emu BP-51 Coil Over Shock Absorber is engineered to provide superior performance for both on and off-road applications. This suspension system features independent compression and rebound valve adjustment, allowing for precise tuning to match various driving conditions. The ride height is adjustable, enabling users to customize their vehicle's stance for improved handling and stability.

Constructed with high-quality X5K grade steel coils, the BP-51 is designed for durability and reliability. The internal bypass technology ensures that damping is position sensitive, providing comfort at ride height while increasing control as the suspension approaches its limits. With a maximum bore size and greater oil volume, this shock absorber offers enhanced tunability and performance.

The BP-51 is manufactured entirely in-house by the Old Man Emu team, ensuring the highest quality standards are met. This shock absorber is compatible with coil over models and features a sleek black and gray finish, making it a functional and aesthetic upgrade for your vehicle's suspension system.

Features

• Internal Bypass, Shim Controlled And Position Sensitive Damping
• Provides Comfort At Ride Height
• Damping Increases As You Get Closer To The End Zone
• Increased Control At End Zones
• Maximum Bore Size And Bypass Diameter
• Greater Oil Volume
• More Tunable Ability To Generate Force
• On Car Adjustable

Specifications

• Manufacturer: ARB
• Manufacturer Part Number: BP5190004L
• Adjustable: Yes
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 2-1/2 Inch To 3 Inch Lift
• Extended Height (IN): 24.60 Inch
• Compressed Height (IN): 15.64 Inch
• Quantity: Single
• Valving Type: Compression And Rebound
• Shock Type: Hydraulic
• Shock Body Color: Black/ Gray
• Shock Body Material: Aluminum
• Spring Style: Single Flat End
• Spring Color: Black
