Durable chrome plated wheel with high load capacity and TPMS compatibility.

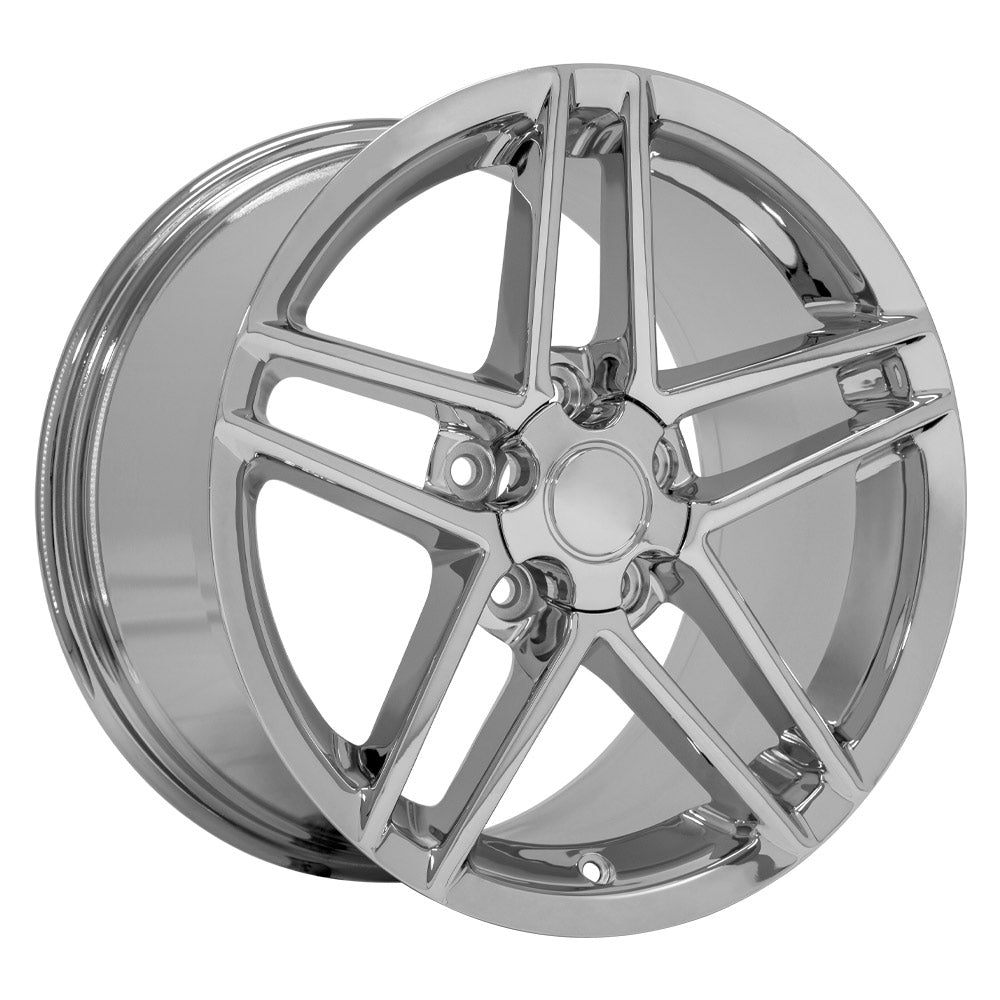

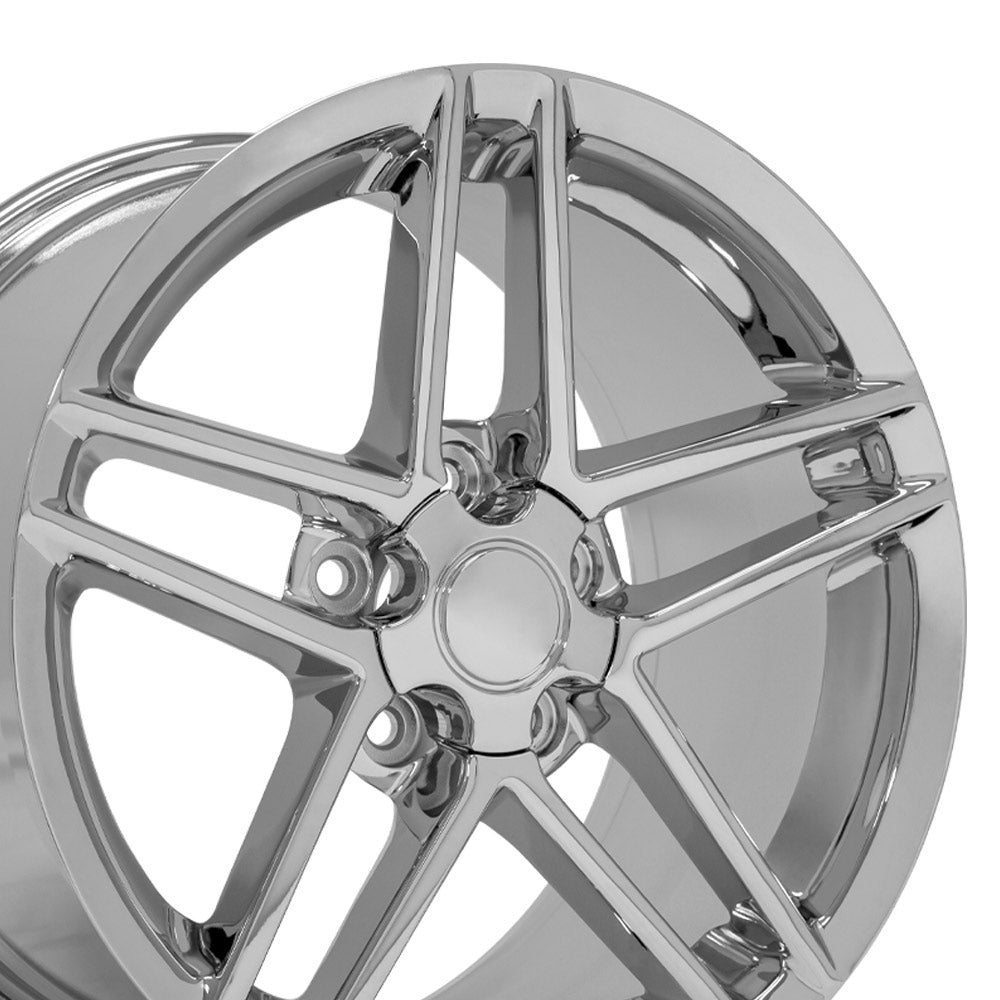

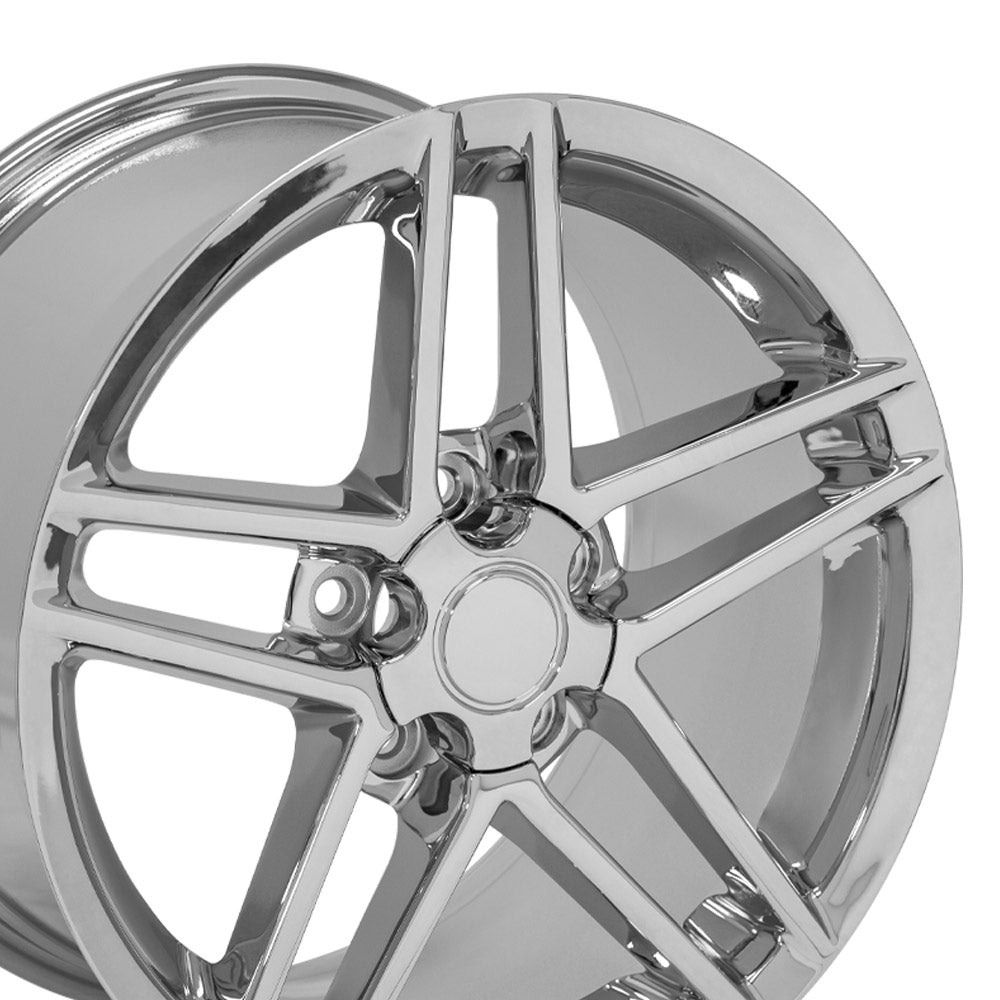

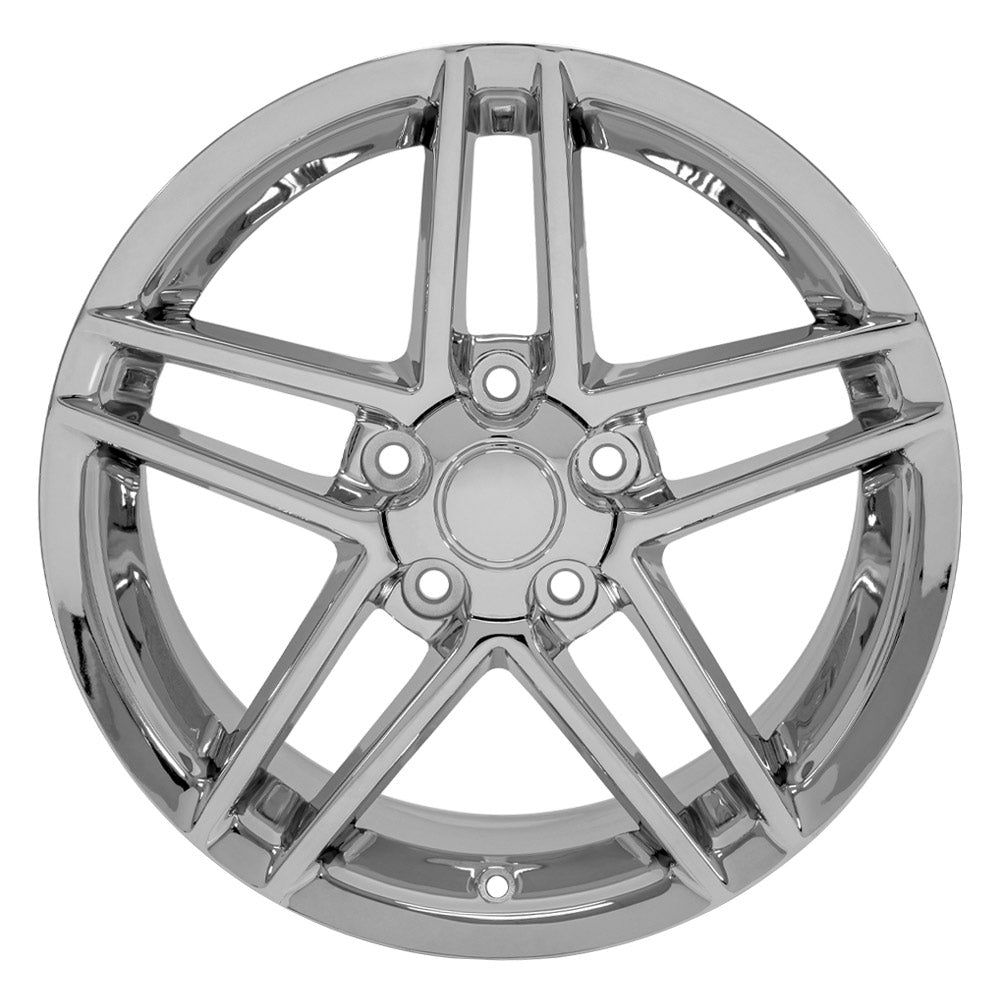

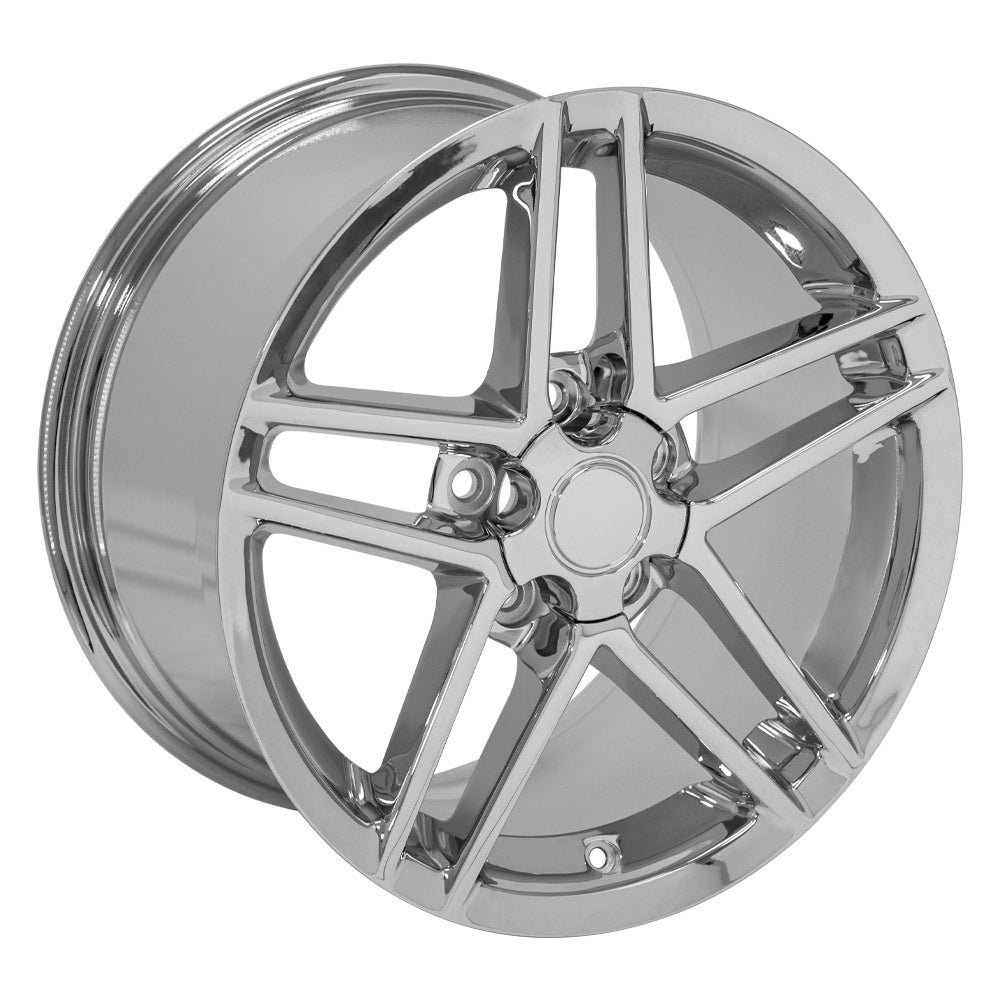

The OE Wheels CV07A is a robust aluminum wheel designed for performance and durability. With a diameter of 17 inches and a width of 9.5 inches, this wheel features a 5 x 120.7 millimeter bolt pattern and a 54 millimeter offset, making it suitable for a variety of vehicles. The chrome plated finish not only enhances its aesthetic appeal but also provides resistance against corrosion and wear.
Engineered to meet SAE-J2530 requirements, the CV07A ensures reliability and safety on the road. It has a load capacity of 1600 pounds, accommodating larger tires with a maximum diameter of 32.7 inches. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for accurate tire pressure readings.
The design includes a 60 degree conical seat lug nut type and a center bore of 70.30 millimeters, ensuring a secure fit. Additionally, the wheel comes with a center cap, contributing to its sleek appearance. For maintenance, it is recommended to clean the wheel with soap and water, avoiding harsh chemicals to preserve its finish.
Features
- Chrome Plated Finish
- Durable Aluminum Construction
- Compatible With Tire Pressure Monitoring System
- With Center Cap
Specifications
- Manufacturer: OE Wheels
- Manufacturer Part Number: CV07A-17095-5475-54C
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 9.5
- Offset: 54
- Backspacing: 7.38
- Finish: Chrome Plated
- Color: Silver
- Material: Aluminum
- Bolt Pattern Inch: 5x4.75
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x120.7
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 70.30
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 5 Double Spoke
- With Inserts: No
- Load Capacity: 1600
- Size: 17x9.5
- Max Tire Diameter: 32.7
- Center Cap Design: Without Logo
- Finish Warranty: 1 Year
- Structural Warranty: Lifetime
- Quantity: Single
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1993-1999 Chevrolet Camaro
- 1984-1989 Chevrolet Corvette
- 1997-2004 Chevrolet Corvette
- 1993-2002 Pontiac Firebird
