Efficient hydraulic drive for boats up to 33000 pounds displacement.

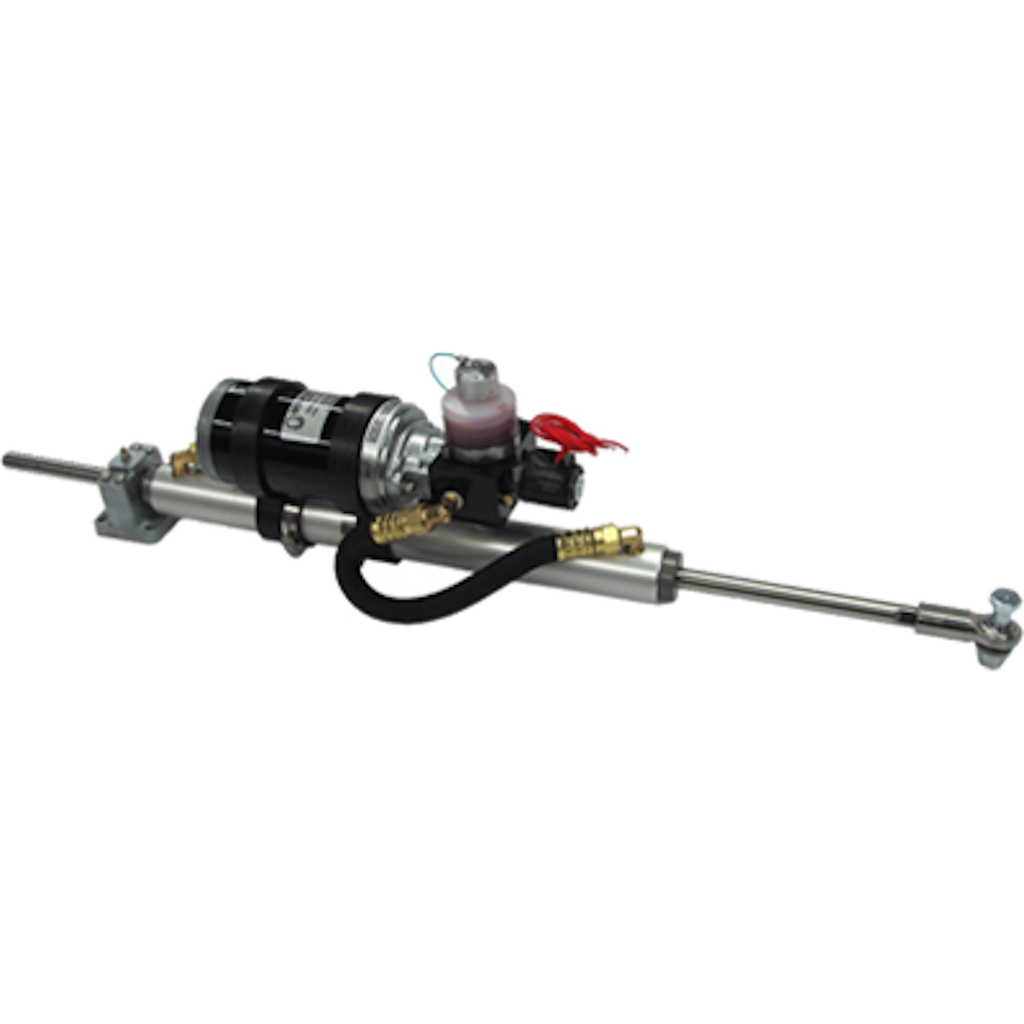

The Octopus Hydraulic Linear Drive Unit is engineered for boats with a displacement of up to 33000 pounds, providing reliable and efficient performance for long passage making. This drive unit features a hydraulic linear design with a 12 inch stroke length and a maximum thrust of 882 pounds, ensuring effective steering control under various conditions. With a flow rate of 0.5 to 1 liter per minute and operating on 12 volts DC at 19 amperes, this system is optimized for low current consumption, significantly enhancing battery life.
Independent studies have demonstrated that Octopus piston pumps are three times more efficient than traditional gear pumps, which translates to reduced battery consumption and extended operational range. The adjustable flow rate allows users to configure the performance to suit their specific vessel requirements, ensuring optimal functionality. The design incorporates only three moving parts, which increases reliability and minimizes maintenance needs, making it a robust choice for marine applications.
Features
- Reliable: Only Three Moving Parts, Increasing Reliability
- Efficient- Three Times More Efficient, Half The Battery Consumption
- Adjustable Flow Rate: Configure Performance To Suit Your Vessel
- Octopus Linear Drives Are Available With A Large Range Of Stroke And Pump Sizes
Specifications
- Manufacturer: Octopus
- Manufacturer Part Number: OCTAF1212LAM12
- Compatibility: Boats Up To 33000 Pound
- Drive Type: Hydraulic Linear
- Stroke Length: 12 Inch
- Maximum Thrust: 882 Pound
- Input Voltage: 12 Volt
- Motor Current Rating: 19 Amp
