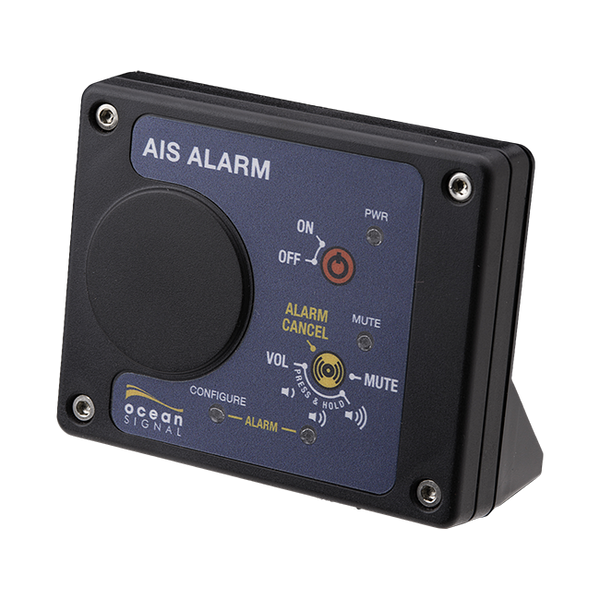

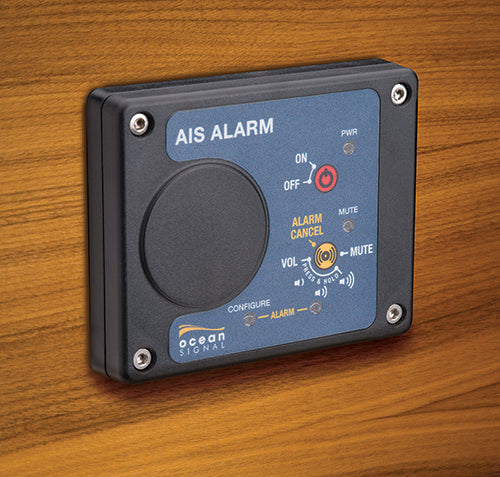

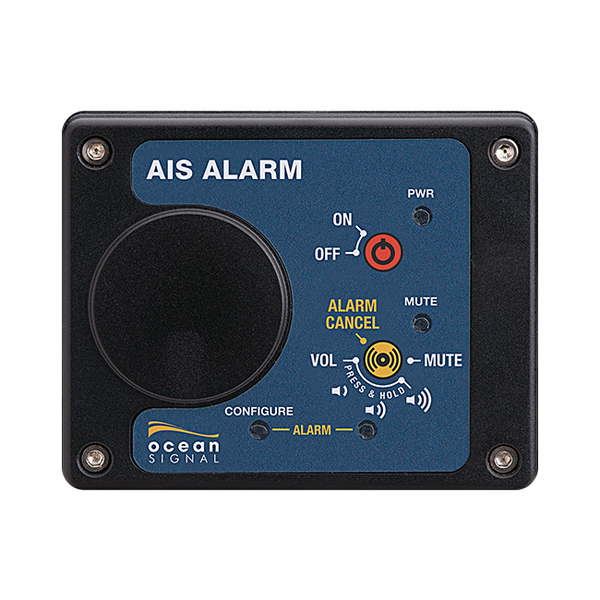

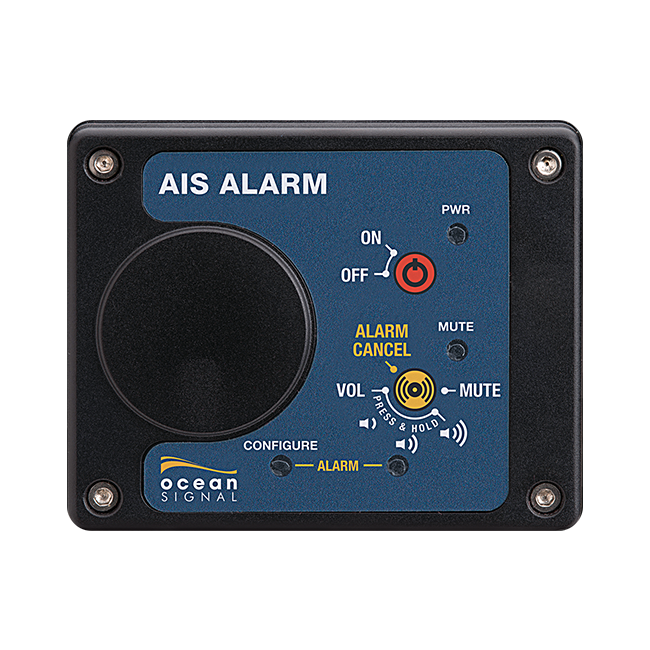

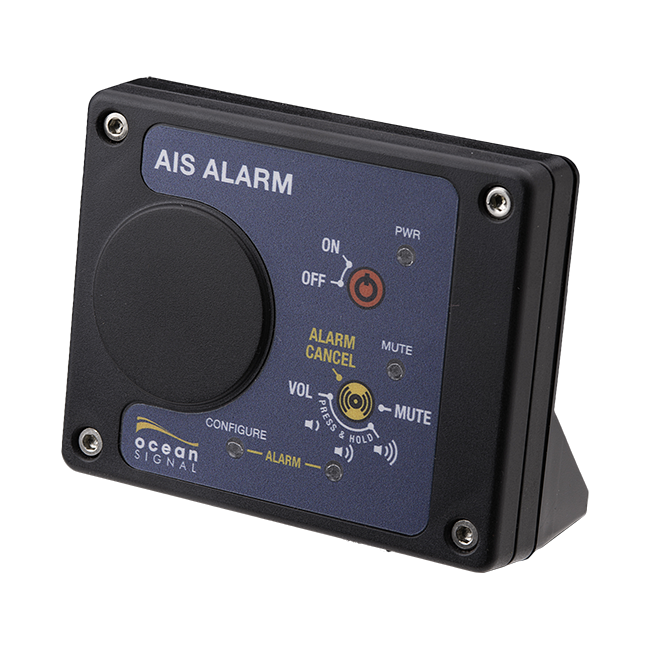

Ocean Signal Automatic Identification System Alarm (MPN: 741S-02037)

Reliable alarm system for AIS MOB and SART devices with user programmability.

The Ocean Signal Automatic Identification System Alarm is engineered to provide immediate audible alerts upon receiving signals from AIS Man Overboard (MOB) or AIS Search and Rescue Transmitter (SART) devices. This alarm system is designed for straightforward integration with existing AIS receivers using NMEA 0183, ensuring that crew members are promptly notified of emergencies. Its compact dimensions and rugged, waterproof construction allow for versatile mounting options, making it suitable for various vessel environments.

This AIS alarm can be programmed by the user to recognize up to 30 individual Maritime Mobile Service Identity (MMSI) numbers, enhancing its functionality in emergency situations. The device features multiple tones to differentiate between various AIS signals, and it operates effectively within a temperature range of -15 to 55 degrees Celsius. With a sound level of 87 decibels at one meter, the alarm ensures that alerts are heard clearly, even in noisy marine conditions.

Additionally, the Ocean Signal AIS Alarm includes an integrated relay option that can connect to external alarms or the vessel's engine kill switch, providing further safety measures. The alarm is supplied with essential accessories, including power cables, USB cables, a mounting bracket, screws, and a gasket, facilitating a complete installation. This system is a critical component for enhancing safety on the water.

Features

• Ocean Signal AIS Alarm For Man Overboard Emergencies Can Be Programmed By The User With Up To 30 Individual MMSI Numbers
• Multiple Tones To Identify The Source Of The AIS Signal As Well As Being Waterproof To Allow For External Mounting
• AIS Alarm Box May Be Configured By The User To Enter The Up To 30 MMSI Numbers To Provide Visual And Audible Alarms By Downloading The Software At The Link Below
• An Integrated Relay Option Allows For Connection To An External Alarm Or The Vessel’s Engine Kill Switch
• Relay Can Be Programmed To Activate If Required
• Ocean Signal AIS Alarm Has A Rugged, Waterproof Exterior Allowing For External Mounting, Ensuring Installation In Any Desired Location For Optimum Impact

Specifications

• Manufacturer: Ocean Signal
• Manufacturer Part Number: 741S-02037
• Compatibility: AIS MOB And AIS SART Devices
• Sound/ Tone: Multiple Tones
• Sound Level: 87 Decibels At 1 Meter
• Universality: Fully Universal
• Mounting Type: Panel/ Bracket Mount
• Power Supply: 10.8 To 15.6 Volt DC
• Waterproof Level: Waterproof Up To 1 Meter Depth
• Dimensions: 3-1/2 Inch Width x 2.8 Inch Depth x 2.8 Inch Height
• Operating Temperature: 5 To 131 Degree Fahrenheit
• Programmable: Yes
• Includes: With 1 Power Cable/ 2 USB Cables/ Mounting Bracket/ Mounting Screws/ Mounting Gasket

Technical Documents

• AIS-Alarm-User-Manual.pdf
