Nitrous Express Electric Fuel Pump System (MPN: 15003)

High-performance fuel pump system for gas and methanol applications.

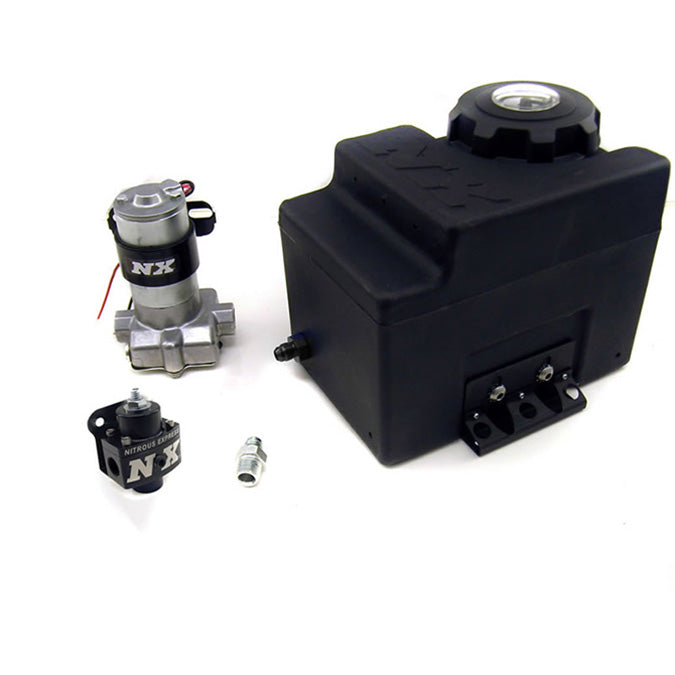

The Nitrous Express Electric Fuel Pump System is designed for high-performance applications, providing reliable fuel delivery for both gasoline and methanol. This system features a one-gallon, high-strength composite fuel cell that can be easily mounted in most factory battery trays without any modifications. The preassembled unit includes a high-output internally mounted fuel pump and an adjustable external regulator, ensuring quick and straightforward installation.

This adjustable regulator is boost referencing, making it suitable for supercharged and turbocharged setups. When utilizing gasoline, the system supports up to 600 nitrous horsepower, while methanol applications can achieve up to 300 nitrous horsepower. The design minimizes the need for timing retard, particularly in V8 engines using nitrous boosts of up to 150 horsepower, which often require no timing adjustments.

The Nitrous Express system effectively eliminates pressure drop at the fuel rail in EFI vehicles, enhancing overall performance. Additionally, it comes equipped with an integrated fuel level gauge and all necessary mounting hardware, facilitating a hassle-free installation process.

Features

• High Strength, Composite Fuel Cell That Can Be Mounted In Most Factory Battery Trays Without Modification
• Pump Will Support Will Support Up To 600 Nitrous Horsepower On Gasoline Or Race Fuel, 300 Nitrous Horsepower On Methanol
• Fuel Pressure Can Be Adjusted From 5 To 12 Pounds Per Square Inch

Specifications

• Manufacturer: Nitrous Express
• Manufacturer Part Number: 15003
• Mounting Style: In-Line
• Fuel Type: Alcohol/ Gasoline
• Free Flow Rate: 1 Gallon Per Hour
• Maximum Pressure (PSI): 5 To 12 Pounds Per Square Inch
• Estimated Install Time (Hours): 1

Technical Documents

• safetank.pdf
