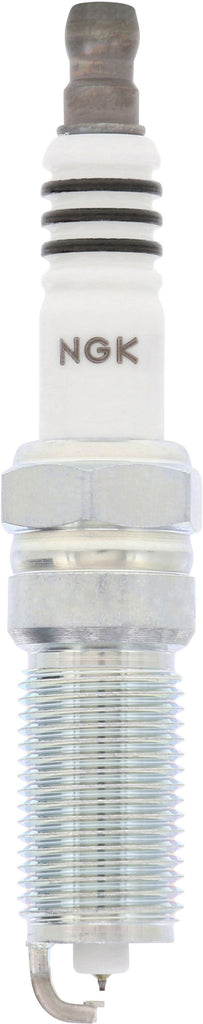

NGK Ruthenium HX Spark Plug (MPN: 90495)

Advanced spark plug technology for enhanced engine performance and efficiency.

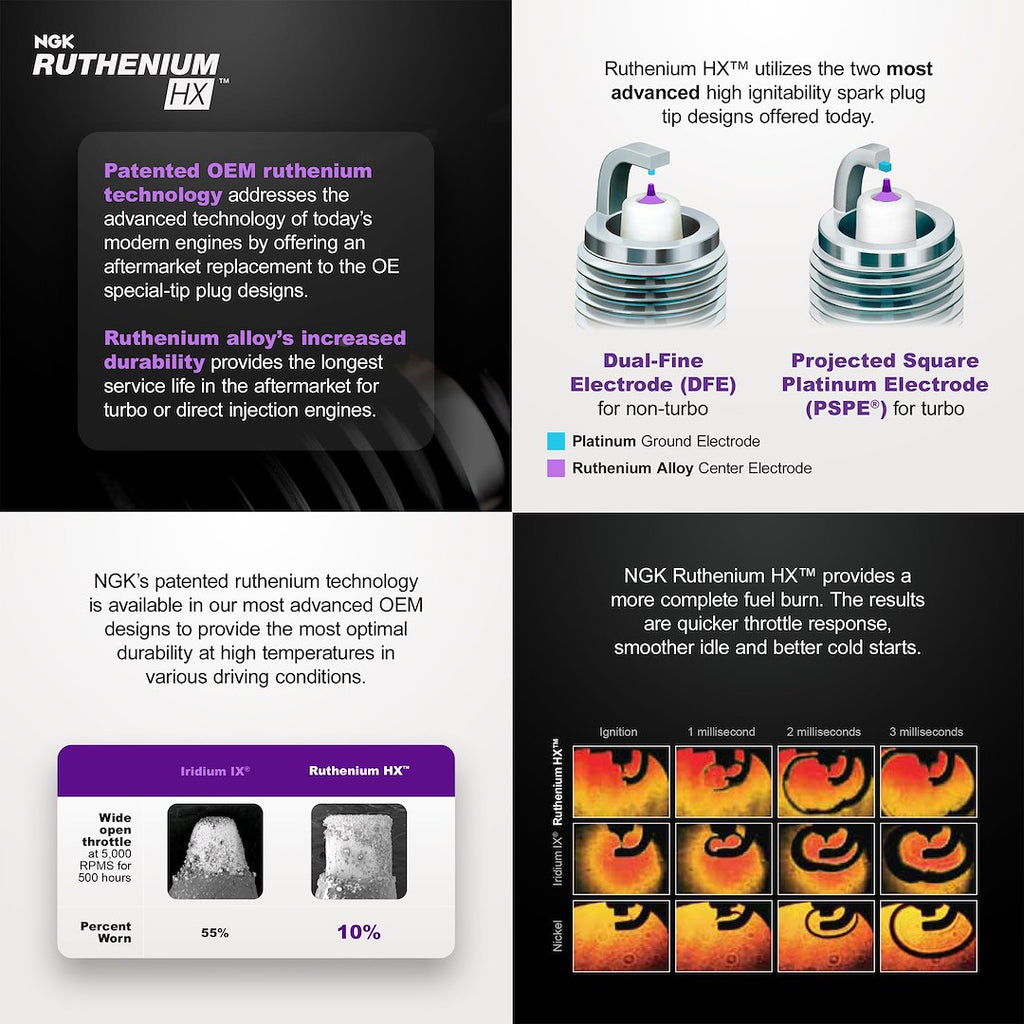

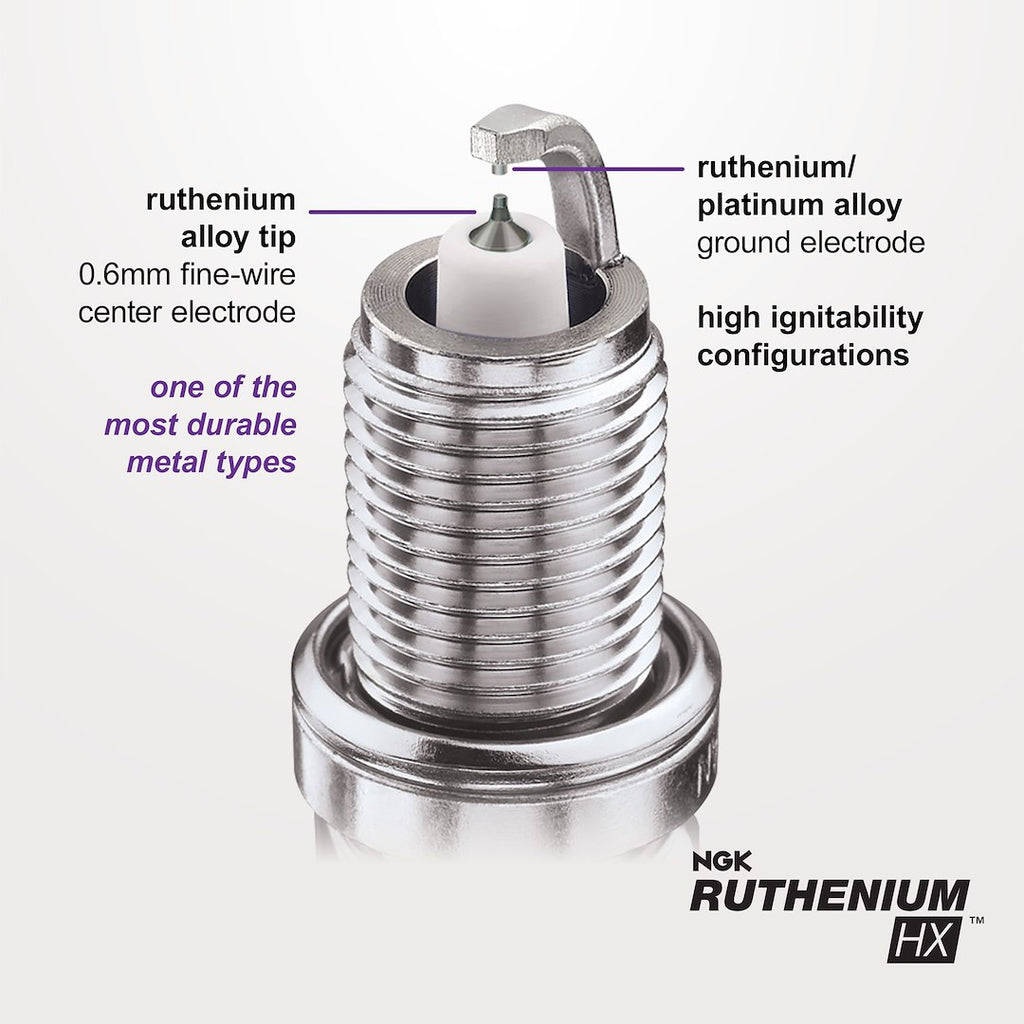

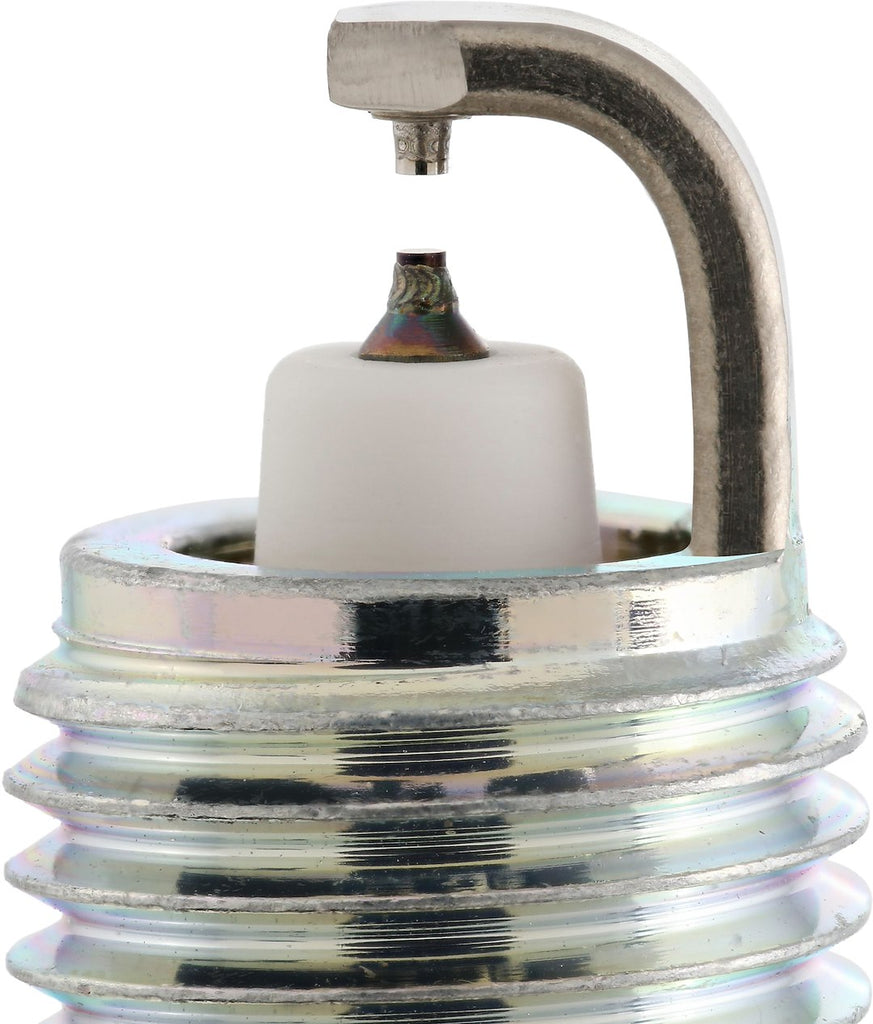

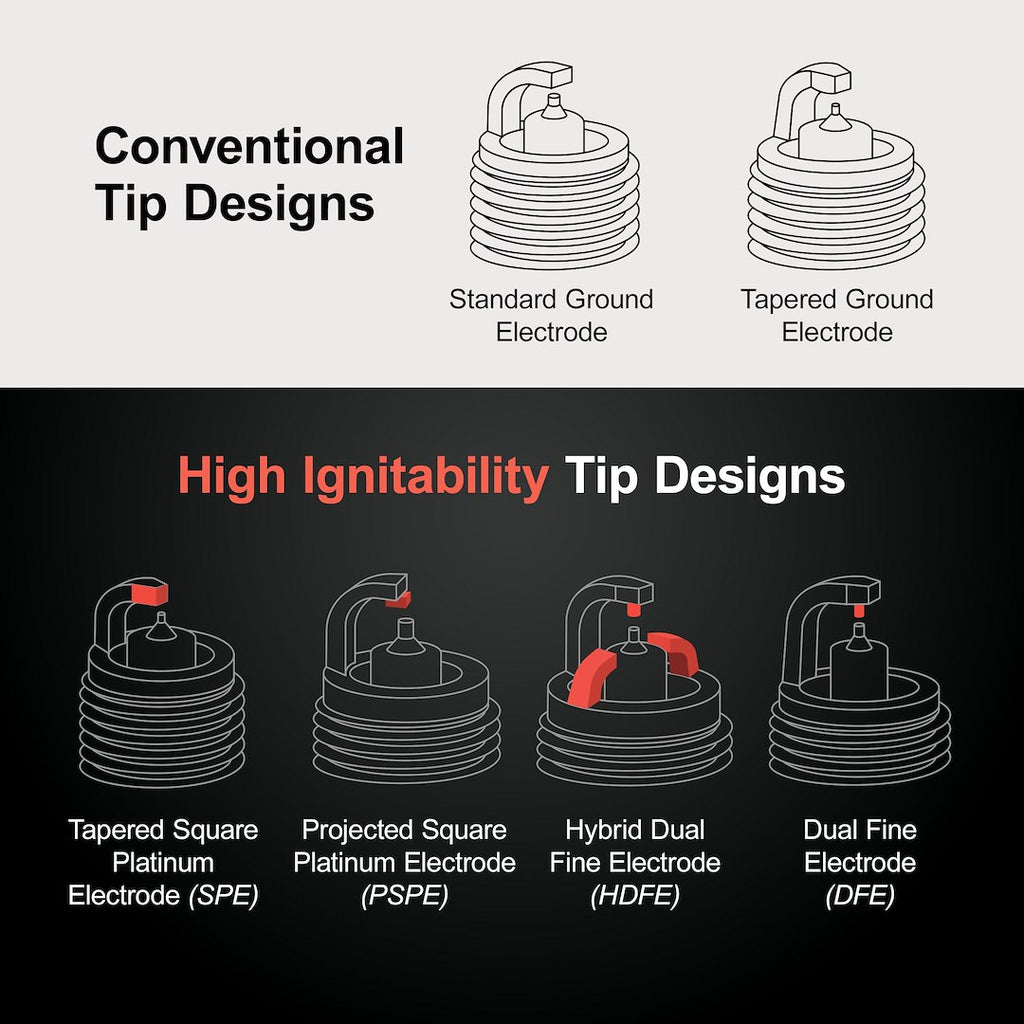

The NGK Ruthenium HX Spark Plug is engineered for modern engines that require high ignitability and performance. Featuring a Double Fine Electrode design, this spark plug enhances spark energy concentration, allowing for ignition across a broader range of air-fuel ratios. The 0.4mm Ruthenium alloy fine wire center electrode and 0.8mm platinum fine wire ground electrode work together to improve combustion efficiency, ensuring a more complete fuel burn under various driving conditions.

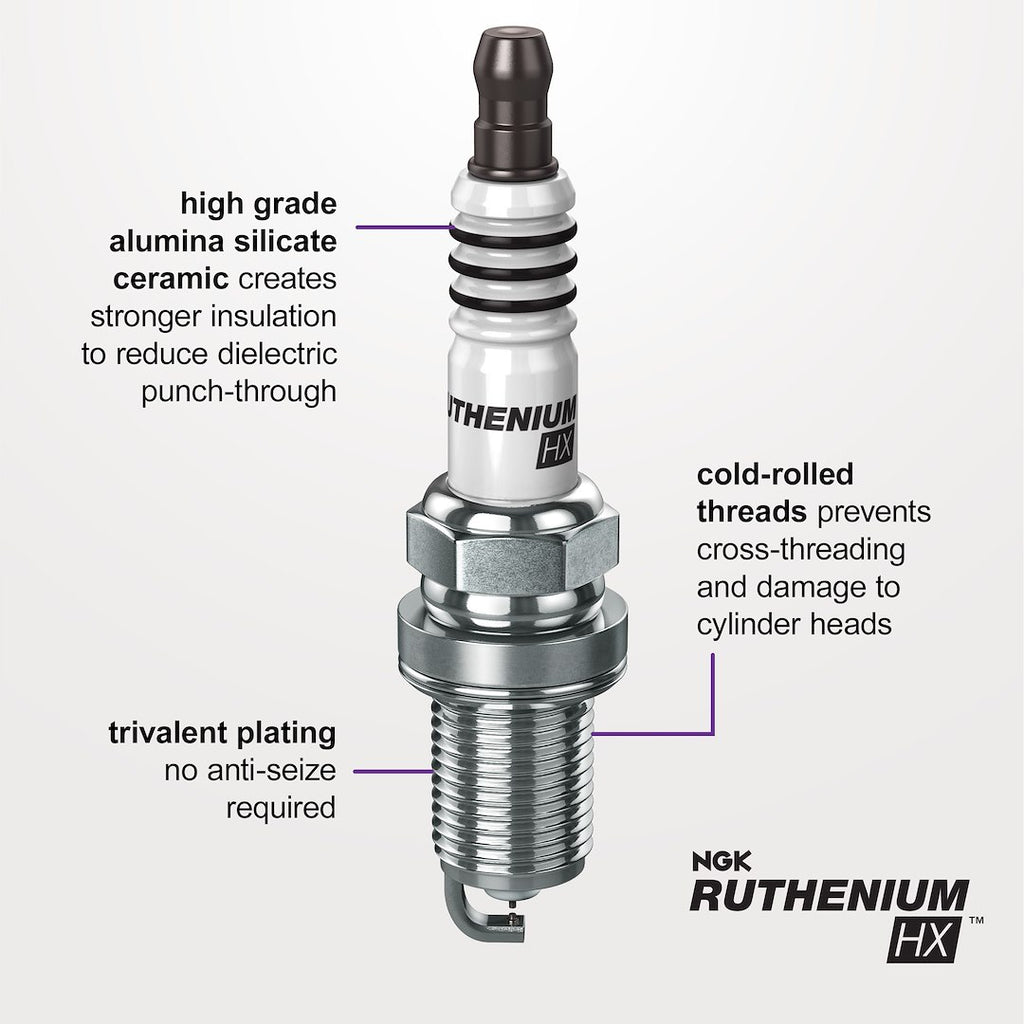

Constructed with trivalent metal platinum, the Ruthenium HX offers superior anti-corrosion and anti-seizing properties, which contribute to its longevity and reliability. The corrugated ribs on the insulator help prevent flashover, while the pure alumina silicate ceramic insulator provides exceptional strength and heat transfer capabilities. Additionally, the copper core facilitates effective heat removal, further enhancing the spark plug's performance.

Manufactured in an ISO 11565-certified facility, the NGK Ruthenium HX Spark Plug represents the forefront of spark plug technology in the automotive aftermarket. It is designed to perform better at high temperatures compared to traditional precious metal spark plugs, making it a suitable choice for a wide range of engine types.

Features

• Ruthenium HX Brings The Most Advanced Spark Plug Technology To The Automotive Aftermarket, Delivering Better Efficiency And Power For Today’s Engines
• Superior Oxidation Resistance
• Ruthenium HX Provides More Complete Fuel Burn
• Ruthenium Performs Better At High Temperatures In Various Driving Conditions Compared To The Leading Precious Metal Spark Plugs
• Ruthenium HX Spark Plugs Are Manufactured In An ISO 11565-Certified Facility

Specifications

• Manufacturer: NGK Spark Plugs
• Manufacturer Part Number: 90495
• Resistor: Yes
• Electrode Type: U-Groove
• Electrode Core Material: Copper
• Electrode Tip Material: Ruthenium
• Insulator Type: Projected
• Thread Size (IN): 0.551 Inch
• Quantity: Single
• Reach: 0.984 Inch
• Seat Type: Tapered
• Wrench Diameter: 5/8 Inch Hex

Compatibility / Fit

• 2016-2018 Buick Envision
• 2014-2017 Buick Regal
• 2013-2019 Cadillac ATS
• 2016-2019 Cadillac CT6
• 2014-2019 Cadillac CTS
• 2016-2023 Chevrolet Camaro
• 2018-2019 Chevrolet Equinox
• 2013-2018 Chevrolet Malibu
• 2018-2019 Chevrolet Traverse
• 2017-2019 Ford E-350 Super Duty
• 2012-2018 Ford Edge
• 2013-2019 Ford Escape
• 2015-2023 Ford Expedition
• 2012-2019 Ford Explorer
• 2010-2020 Ford F-150
• 2011-2019 Ford F-250 Super Duty
• 2011-2019 Ford F-350 Super Duty
• 2011-2019 Ford Fiesta
• 2010-2019 Ford Flex
• 2013-2018 Ford Focus
• 2013-2020 Ford Fusion
• 2015-2019 Ford Mustang
• 2013-2019 Ford Police Interceptor Sedan
• 2014-2019 Ford Police Interceptor Utility
• 2014-2018 Ford Special Service Police Sedan
• 2010-2017 Ford Taurus
• 2014-2016 Ford Transit Connect
• 2015-2019 Ford Transit-150
• 2015-2019 Ford Transit-250
• 2015-2019 Ford Transit-350
• 2015-2019 Ford Transit-350 HD
• 2018-2020 GMC Terrain
• 2017-2019 Jaguar XE
• 2013-2015 Jaguar XF
• 2015-2019 Land Rover Discovery Sport
• 2013-2015 Land Rover LR2
• 2012-2017 Land Rover Range Rover Evoque
• 2015-2019 Lincoln MKC
• 2010-2016 Lincoln MKS
• 2010-2019 Lincoln MKT
• 2013-2020 Lincoln MKZ
• 2015-2020 Lincoln Navigator
• 2007-2013 Mazda 3
• 2006-2007 Mazda 6
• 2007-2012 Mazda CX-7
