Advanced charging technology for 24 Volt battery systems with multiple features.

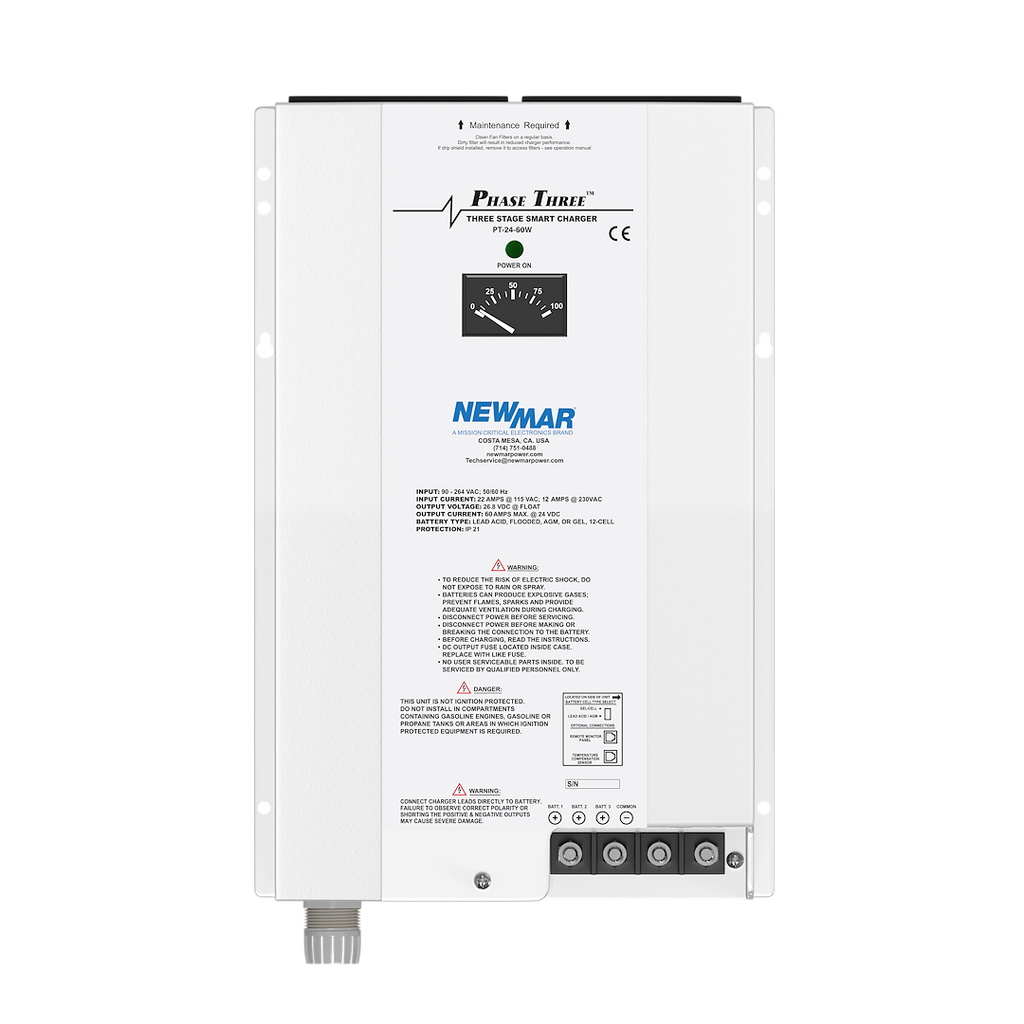

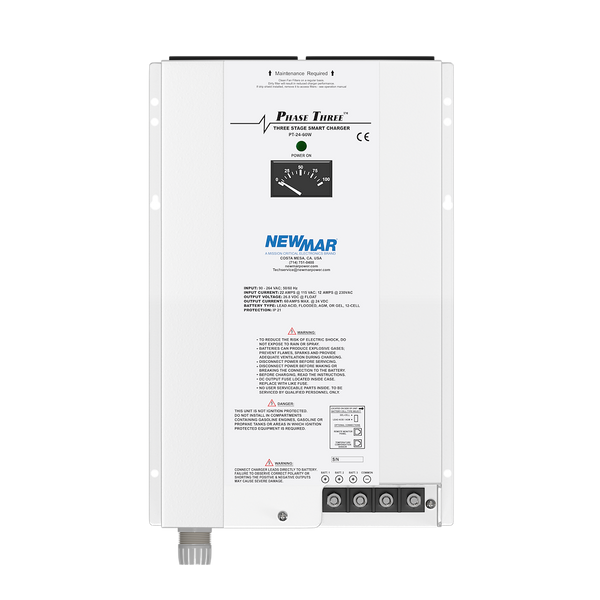

The NewMar Smart Series Battery Charger is designed for efficient charging of 24 Volt Gel-Cell, Flooded Lead-Acid, and AGM batteries. This 3-bank charger operates with a 207 to 253 Volt AC power supply and delivers a robust 60 Amp output current, making it suitable for a wide range of applications including vehicles, industrial generators, and marine systems. The charger utilizes a three-stage charging process—Bulk, Absorption, and Float—to ensure optimal battery recovery and conditioning, thereby maximizing performance and extending battery life.
Constructed with a rugged stainless steel case and a durable white powder coat finish, the charger is built to withstand harsh environments. Its internal circuitry is coated with polyurethane for enhanced corrosion resistance. The device features multiple isolated output banks and an ammeter to indicate total output current, while an optional temperature compensation sensor adjusts the output voltage based on ambient temperature changes. This ensures that the charger operates efficiently under varying conditions.
In addition to its primary charging function, the NewMar Smart Series can also serve as a power supply, allowing it to power loads without a battery in line. The charger is equipped with LED indicators and an optional remote panel for clear status display, ensuring users can monitor performance easily. With compliance to numerous safety and EMC standards, this charger is a reliable choice for maintaining battery systems ranging from 120 to 600 Ampere hours.
Features
- Built To Last: Rugged Stainless Steel Case With A Durable White Powder Coat Finish With Drip Shield And Polyurethane Coated Internal Circuitry
- Smart Circuitry Provides Three Stage Charging--Bulk, Absorption, Float
- Multiple Isolated Output Banks; Ammeter Indicates Total Output Current
- Optional Sensor Adjusts Output Voltage Based On Battery Temperature
- Current Limiting-Prevents Damage From Overloading
- Charger Status Clearly Displayed With L.E.D., Ammeter, Or Optional Remote Panel
- Use As A Power Supply; Can Power Loads Without A Battery In Line
- Wide Model Range Covers Battery System Ratings From 14 To 950 Ampere Hours
- Numerous Safety And EMC Compliances
Specifications
- Manufacturer: NewMar
- Manufacturer Part Number: PT-24-60W
- Count Of Batteries Charged: 3
- Battery Type: AGM/ Flooded Lead-Acid/ Gel Batteries
- Charging Current: 60 Amp
- Output Voltage: 24 Volt
- Input Voltage: 207 To 253 Volt
- Number Of Stages: 3 Stage
- Universality: Fully Universal
- Length (IN): 7.2 Inch
- Width (IN): 12 Inch
- Height (IN): 17-1/2 Inch
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
