Advanced charging technology for 24 Volt battery systems with robust features.

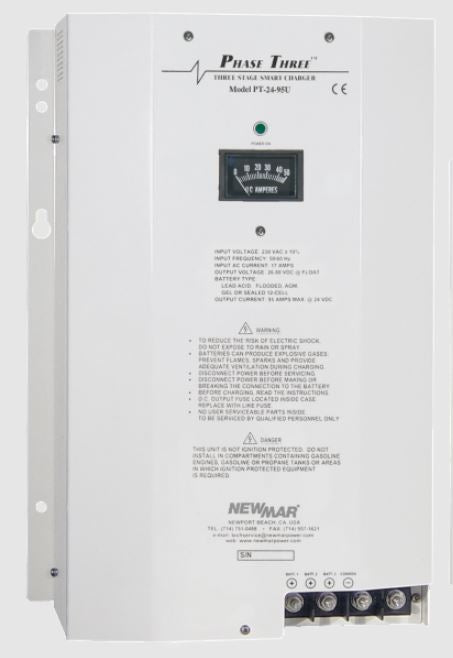

The NewMar Smart Battery Charger is designed for efficient charging of 24 Volt Gel-Cell, Flooded Lead-Acid, and AGM batteries. This 3-bank charger operates with a wide input voltage range of 90 to 264 Volt AC, making it versatile for various applications. It utilizes a three-stage charging process—Bulk, Absorption, and Float—to ensure optimal battery performance and longevity. The charger is capable of delivering a maximum output current of 95 Amps, suitable for battery systems ranging from 180 to 950 Ampere Hours.
Constructed with a rugged stainless steel case and a durable white powder coat finish, the charger is built to withstand harsh environments. The internal circuitry is coated with polyurethane for enhanced corrosion resistance. An optional temperature compensation sensor adjusts the output voltage based on ambient temperature, ensuring safe and efficient charging. The charger also features LED indicators and an ammeter for clear status display, along with a remote panel option for added convenience.
This charger is not only effective for battery maintenance but can also function as a power supply, capable of powering loads without a battery in line. With multiple isolated output banks and current limiting features, it prevents damage from overloading, making it a reliable choice for industrial, marine, and remote communication applications.
Features
- Built To Last: Rugged Stainless Steel Case With A Durable White Powder Coat Finish With Drip Shield And Polyurethane Coated Internal Circuitry
- Smart Circuitry Provides Three Stage Charging--Bulk, Absorption, Float
- Multiple Isolated Output Banks; Ammeter Indicates Total Output Current
- Optional Sensor Adjusts Output Voltage Based On Battery Temperature
- Current Limiting-Prevents Damage From Overloading
- Charger Status Clearly Displayed With L.E.D., Ammeter, Or Optional Remote Panel
- Use As A Power Supply; Can Power Loads Without A Battery In Line
- Wide Model Range Covers Battery System Ratings From 14 To 950 Ampere Hours
- Numerous Safety And EMC Compliances
Specifications
- Manufacturer: NewMar
- Manufacturer Part Number: PT-24-95U
- Count Of Batteries Charged: 3
- Battery Type: AGM/ Flooded Lead-Acid/ Gel Batteries
- Charging Current: 95 Amp
- Output Voltage: 24 Volt
- Input Voltage: 90 To 264 Volt
- Number Of Stages: 3 Stage
- Universality: Fully Universal
- Length (IN): 7.2 Inch
- Width (IN): 12 Inch
- Height (IN): 17-1/2 Inch
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
