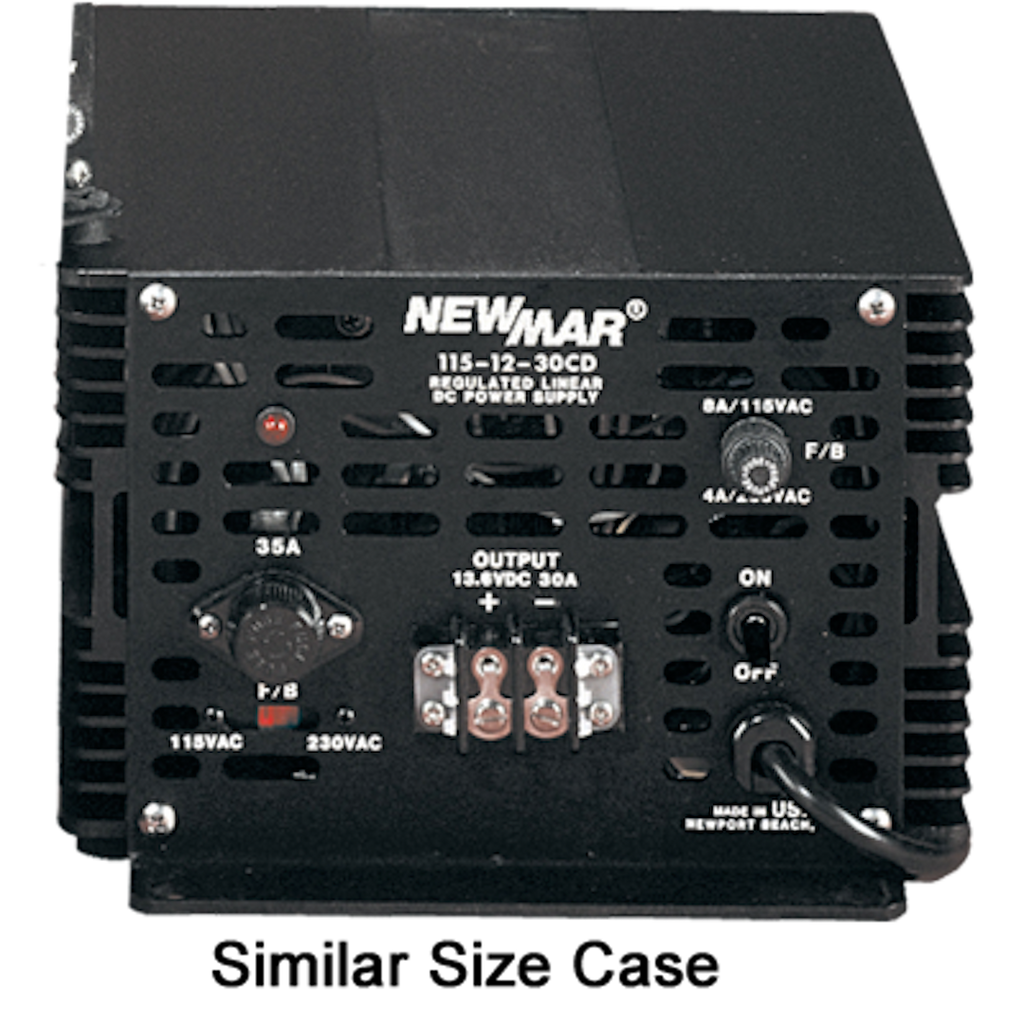

NewMar Power Supply Heavy Duty Series (MPN: 115-12-35CD)

Reliable power supply for 12 Volt communication equipment on vessels.

The NewMar Power Supply Heavy Duty Series is designed to provide reliable power for 12 and 24 Volt communication and navigation equipment, particularly in commercial marine environments. With an input voltage range of 115/230 AC and a stable output of 13.6 Volt DC, this power supply ensures consistent performance under various load conditions. The unit features a robust aluminum case with integral shock mounts, making it suitable for harsh conditions while maintaining a compact size of 9-1/2 inches in width, 14 inches in depth, and 6-1/2 inches in height.

This power supply is engineered with a proven linear circuit design that delivers a pure, noise-free output, ensuring the longevity of connected devices. It operates efficiently within a temperature range of 0 to 65 degrees Celsius and includes a thermally activated cooling fan to manage heat dissipation effectively. The design also incorporates significant safety features, including overvoltage protection, current limiting, thermal overload protection, and fusing for both input and output.

With excellent regulation and ripple specifications, the output voltage is maintained within 1 percent under all rated line and load conditions. The polyurethane conformal coated PC board enhances durability, while the corrosion-resistant aluminum case ensures the unit can withstand hostile environments. This power supply is an essential component for any vessel requiring dependable power for communication equipment.

Features

• Excellent Regulation And Ripple Spec: Output Voltage Maintained Within 1 Percent Under All Rated Line And Load Conditions
• Polyurethane Conformal Coated PC Board And Corrosion Resistant Heavy Duty Aluminum Case With Integral Shock Mounts Assures Survival In Hostile Environments
• Heat Generated By Semi-Conductors Is Extracted And Dissipated By Large Heat Sink Fins For Cool Operation
• Protection: Overvoltage, Current Limit; Thermal Overload And Input and Output Fusing
• Thermally Activated Cooling Fan On “CD” Units

Specifications

• Manufacturer: NewMar
• Manufacturer Part Number: 115-12-35CD
• Compatibility: 12 Volt Communication Equipment
• Voltage: 115/ 230 AC Input/ 13.6 Volt DC Output
• Ampere Rating: 7.5 Amp Input At 115 Volt/3.5 Amp Input At 230 Volt And 35 Amp Intermittent/35 Amp Continuous Output
• Operating Temperature: 0 To 65 Degree Celsius
• Dimensions: 9-1/2 Inch Width x 14 Inch Depth x 6-1/2 Inch Height
• Color: Black
• Material: Aluminum
• Includes: With Integral Shock Mounts/ Thermally Activated Cooling Fan
