Efficiently converts 20 to 50 Volt DC to 13.6 Volt DC output.

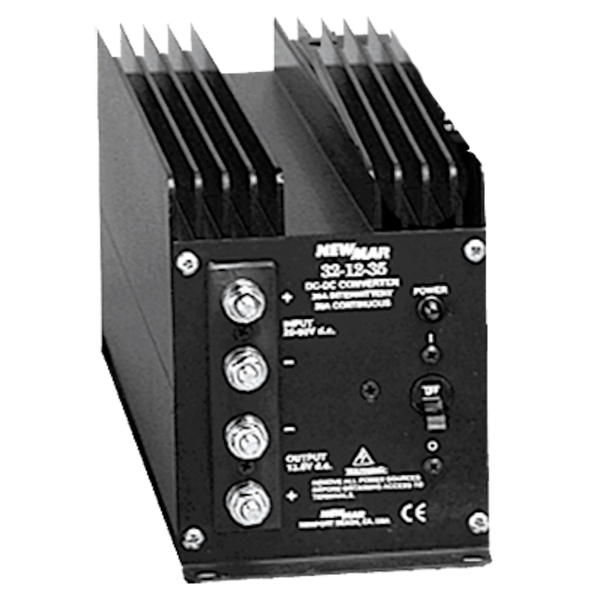

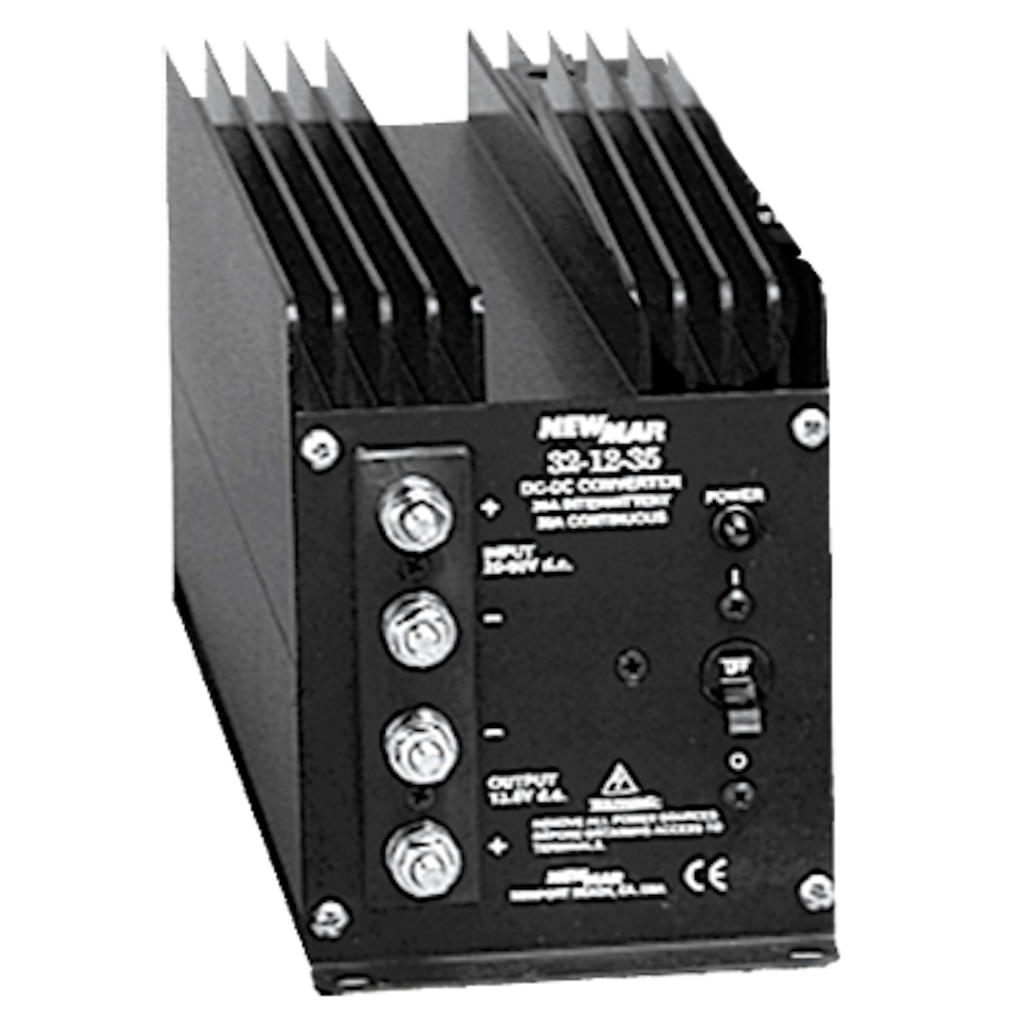

The NewMar Power Converter Standard Series is designed to convert 20 to 50 Volt DC input to a stable 13.6 Volt DC output, making it suitable for powering communication and navigation equipment in negative ground systems. With a continuous output of 30 Amperes and an efficiency rating of 85 percent, this converter ensures reliable performance under various load conditions.
Constructed with a robust aluminum case and featuring a polyurethane conformal coating on the PC boards, this power converter is built to withstand harsh environments. The large heat sink fins effectively dissipate heat generated by the semi-conductors, promoting cool operation and extending the lifespan of the components.
Safety is a priority with numerous protection circuits integrated into the design, including short circuit, reverse polarity, and overvoltage protection. The converter operates efficiently within a temperature range of 0 to 50 degrees Celsius and utilizes a 40 KHz switching frequency for optimal performance.
Features
- Excellent Regulation: Output Voltage Maintained Within 1 Percent Under All Line And Load Conditions Within Rating
- Heat Generated By Semi-Conductors Is Extracted And Dissipated By Large Heat Sink Fins That Maximize Air Contact For Cool Operation And Long Life Of Components
- Polyurethane Conformal Coating On PC Boards And Corrosion-Resistant Anodized Aluminum Case With Heavy Duty Shock Mounts Assure Survival In Hostile Environments
- Numerous Converter And Load Protection Circuits
- Typical 85 Percent Efficiency
Specifications
- Manufacturer: NewMar
- Manufacturer Part Number: 32-12-35
- Converts: 20-50 Volt DC To 13.6 Volt DC
- Ampere Rating: 30 Amp
- Number Of Outlets: 1
- Efficiency: 85 Percent
- Length: 16 Inch
- Width: 4-3/4 Inch
- Height: 6 Inch
- Remote On/Off Capable: No
- With Volt/Watt Meter: No
- With Short Circuit: Yes
- With Reverse Battery Protection: Yes
- With Thermal Protection: Yes
- With Built-In Charger: Yes
- With Fuse: No
