NewMar Marine Isolation Transformer (MPN: GI-60-FS)

Advanced galvanic isolator for effective corrosion protection.

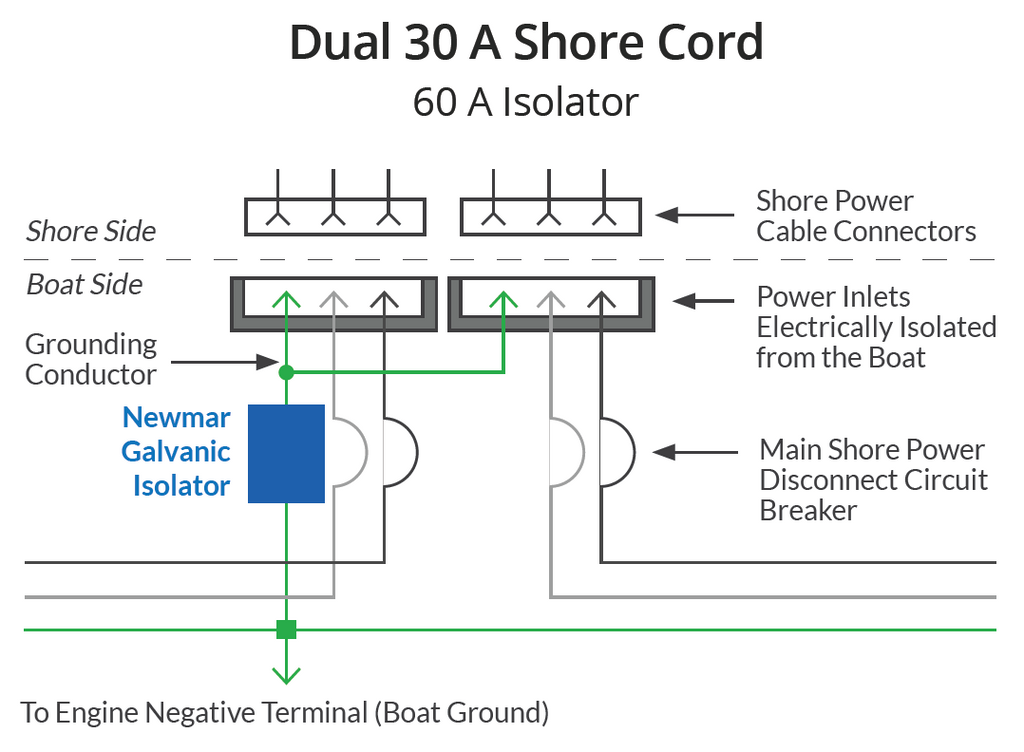

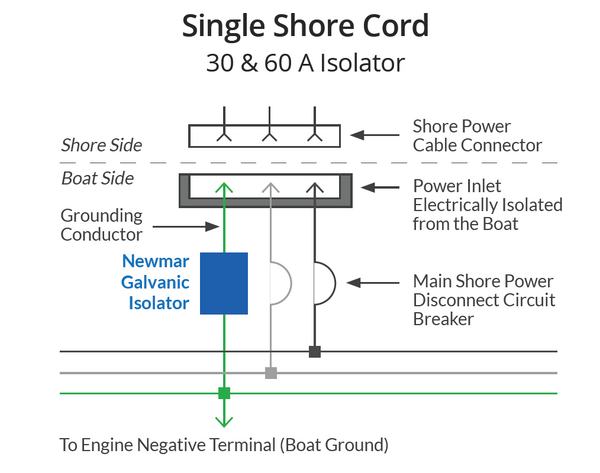

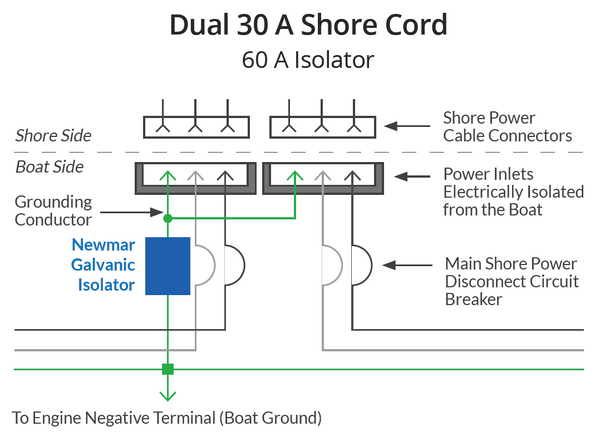

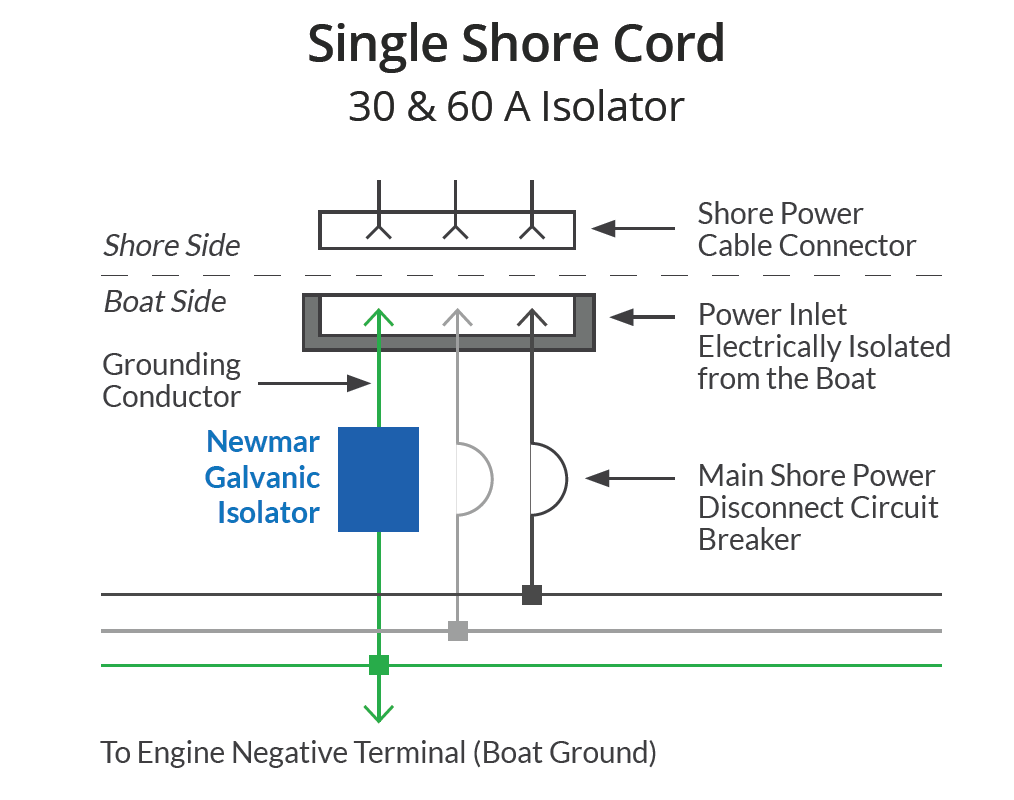

The NewMar Marine Isolation Transformer is designed to block low voltage currents and significantly reduce corrosive action on vital metallic components in marine environments. By installing this galvanic isolator between the AC safety ground and the DC bonding system, users can effectively mitigate the galvanic corrosion effect on sacrificial anodes while maintaining the integrity of the critical safety ground path. This innovative solution not only enhances safety but also leads to substantial savings in boat maintenance costs, including haul-out fees and zinc replacements.

This transformer operates within a voltage range of 115 to 230 volts and is capable of handling a maximum short circuit current of 5000 amps. It is built to withstand ambient temperatures of up to 50 degrees Celsius, ensuring reliable performance in various marine conditions. The unit is certified to the UL1500 standard for ignition protection, providing an additional layer of safety for users.

The fail-safe feature of the NewMar Marine Isolation Transformer ensures that the ground connection is maintained in the event of isolator failure, further enhancing the safety of the electrical system on board. With its robust design and advanced features, this transformer is an essential component for any vessel looking to protect against galvanic corrosion.

Features

• Protects Against Corrosion
• Maintains A Safe Environment
• Certified To UL1500 Standard For Ignition Protection
• Tested To 50 Degree Celsius Ambient Temperature
• The Fail-Safe Feature Ensures Ground Maintenance
• Connection In The Event Of Isolator Failure

Specifications

• Manufacturer: NewMar
• Manufacturer Part Number: GI-60-FS
• Type: Galvanic
• Voltage: 115 To 230 Volt

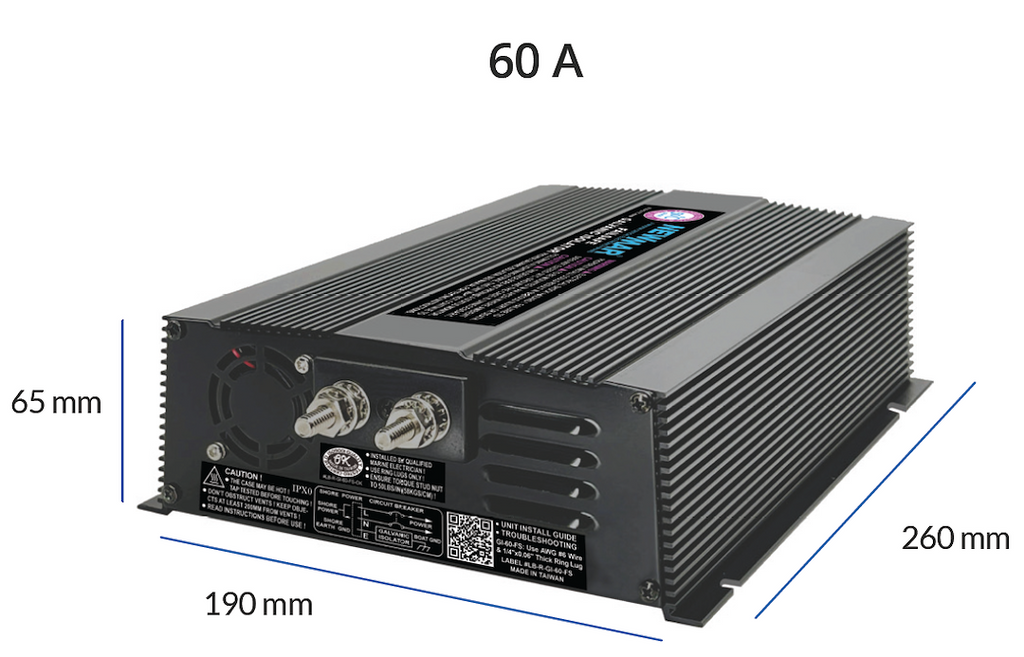

• Dimensions: 10.2 Inch Length x 2-1/2 Inch Height x 7.4 Inch Depth
• Includes: With Fail Safe

Technical Documents

• GI-60-Dimensions.pdf
• Newmar_GalvanicIsolator_Datasheet.pdf
