Advanced galvanic isolator for effective corrosion protection in marine environments.

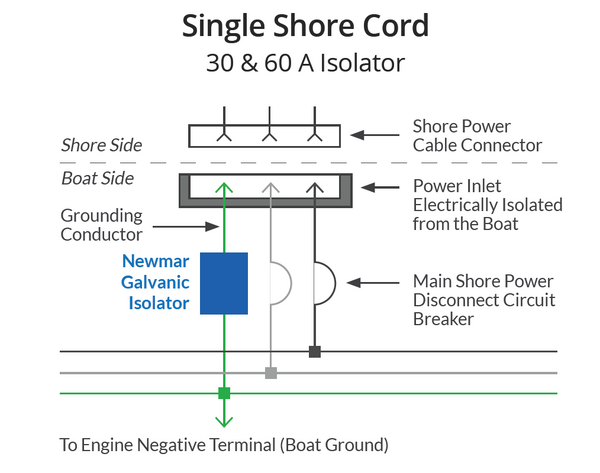

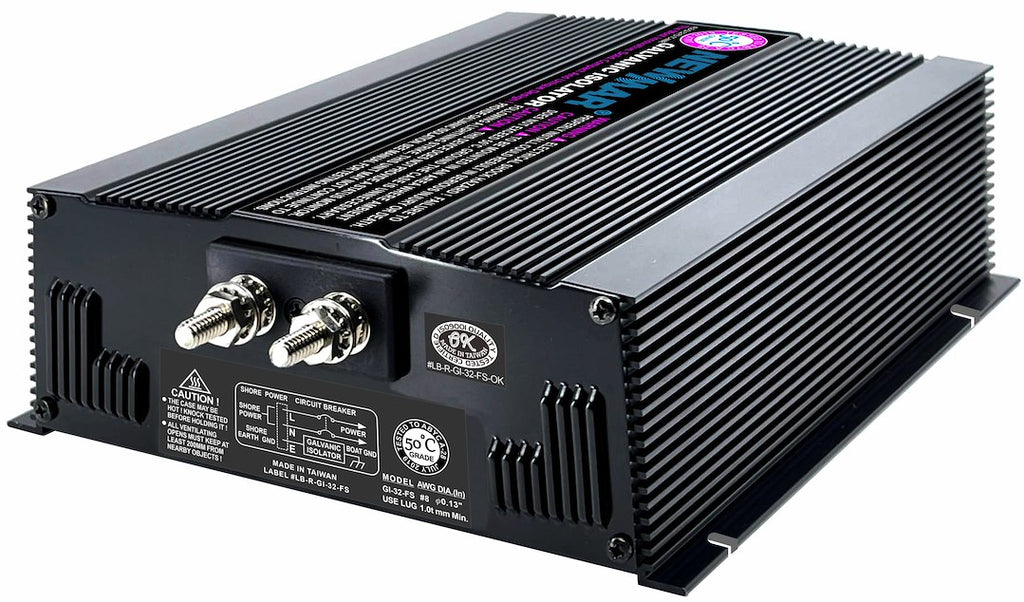

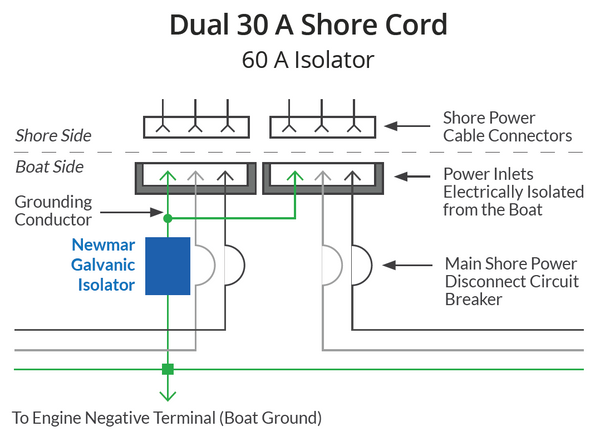

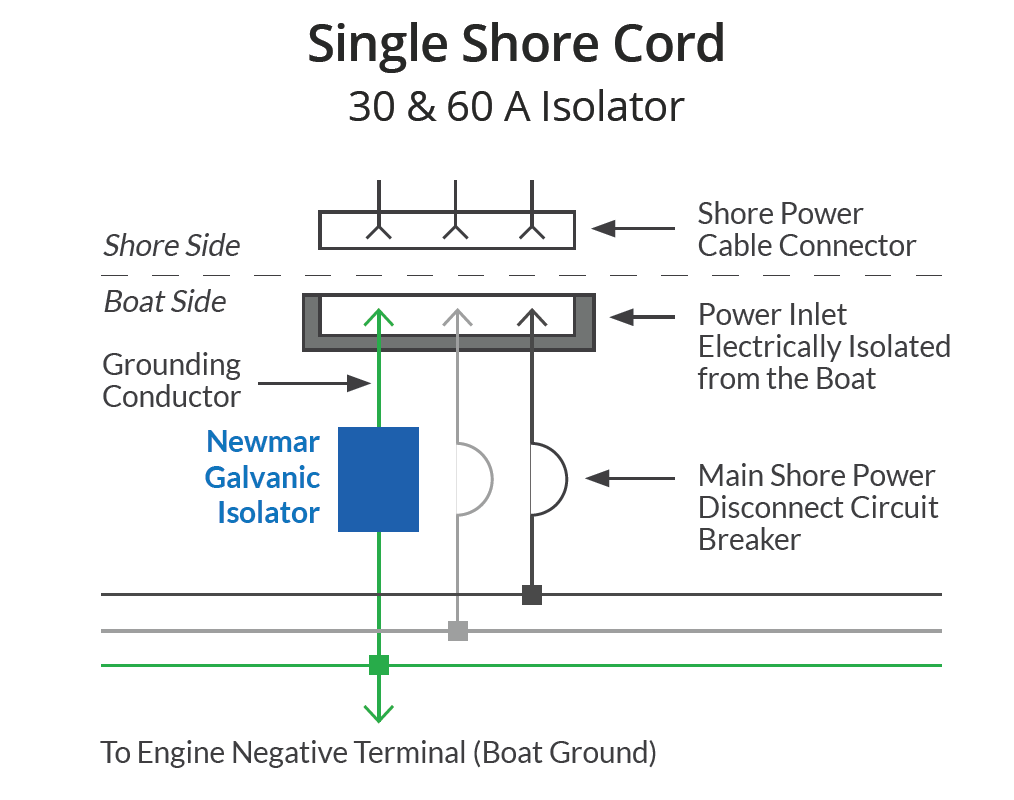

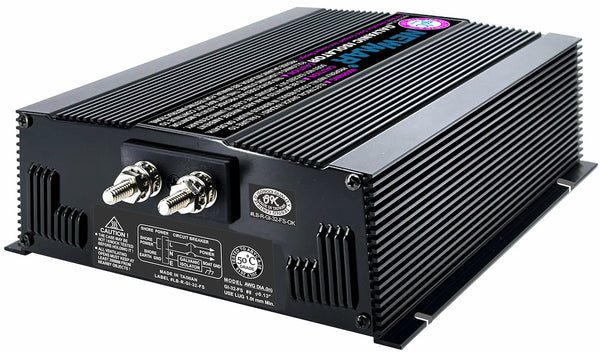

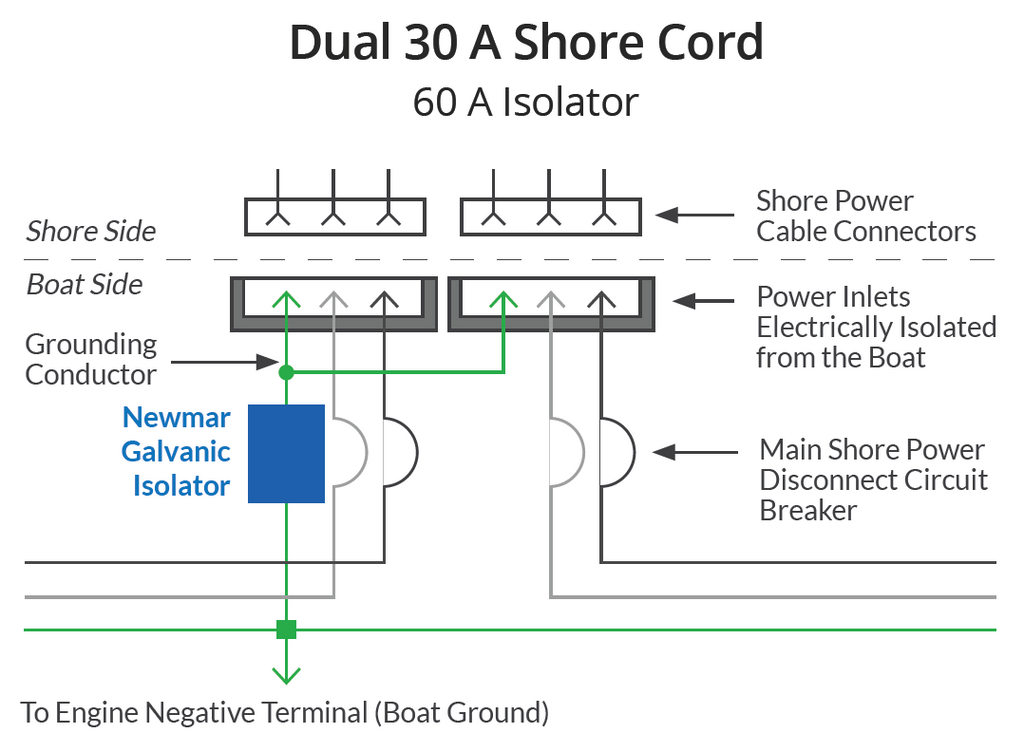

The NewMar Marine Isolation Transformer is designed to block low voltage currents and significantly reduce corrosive action on vital metallic components in saltwater applications. By installing this galvanic isolator between the AC safety ground and the DC bonding system, users can effectively mitigate the galvanic corrosion effect on sacrificial anodes while maintaining the integrity of the critical safety ground path. This innovative solution not only protects against corrosion but also contributes to cost savings by reducing boat haul-out fees and zinc replacement costs.
This transformer operates within a voltage range of 115 to 230 volts and is capable of handling a maximum short circuit current of 5000 amps. With dimensions of 7.9 inches in length, 2.7 inches in height, and 7.4 inches in depth, it is compact yet powerful. The unit is certified to the UL1500 standard for ignition protection and has been tested to operate effectively at ambient temperatures of up to 50 degrees Celsius, ensuring reliability in various marine conditions.
Additionally, the NewMar Marine Isolation Transformer features a fail-safe mechanism that ensures ground maintenance connection in the event of isolator failure. This robust design meets the latest ABYC A-28 2019 standards, providing peace of mind for boat owners seeking a reliable solution for galvanic protection.
Features
- Protects Against Corrosion
- Maintains A Safe Environment
- Certified To UL1500 Standard For Ignition Protection
- Tested To 50 Degree Celsius Ambient Temperature
- The Fail-Safe Feature Ensures Ground Maintenance
- Connection In The Event Of Isolator Failure
Specifications
- Manufacturer: NewMar
- Manufacturer Part Number: GI-30-FS
- Type: Galvanic
- Voltage: 115 To 230 Volt

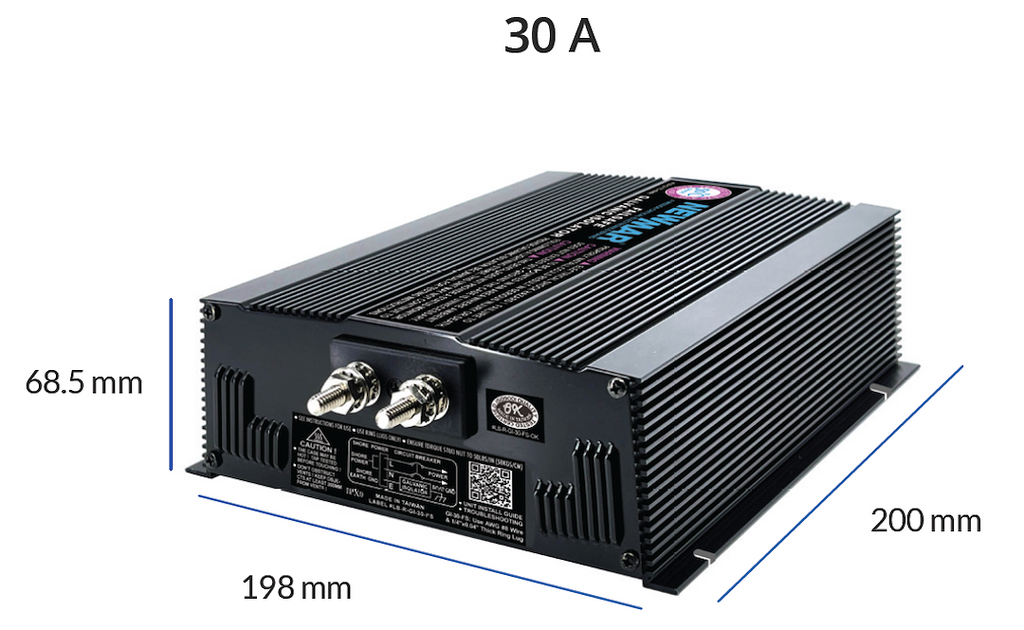

- Dimensions: 7.9 Inch Length x 2.7 Inch Height x 7.4 Inch Depth
- Includes: With Fail Safe
