Durable and waterproof junction box for reliable wiring connections.

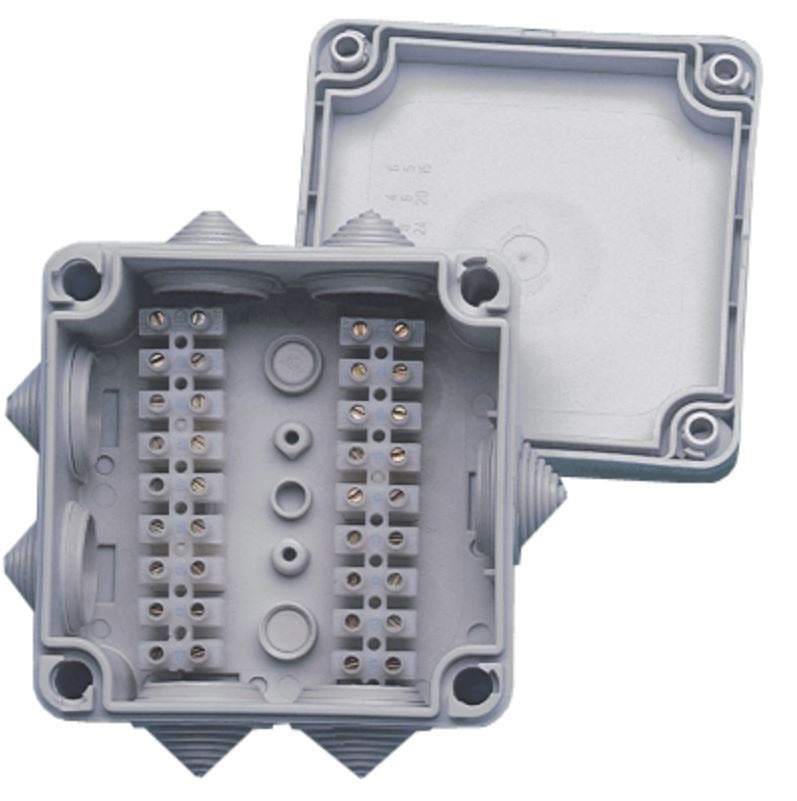

The Newmar Junction Box Thru-Dex PX Series is designed for making secure wiring connections in various environments, including areas that may experience occasional spray. Constructed from high-impact polypropylene, this junction box offers a rugged and non-corrosive solution for electrical installations. Its snap-on cover ensures a watertight seal, providing protection against moisture and environmental factors.
With dimensions of 4.45 inches in width and depth, and a height of 2.29 inches, this junction box features an 18 pair terminal strip and accommodates 16 gauge wire. The design includes multiple position connector strips with captive screw compression wire terminals, allowing for easy and efficient wiring. Additionally, the box is equipped with universal cut-to-fit graduated diameter cable entries, making it versatile for a wide range of cable sizes.
The Newmar Junction Box is rated IP54 for waterproofing, ensuring that it can withstand water projected in jets from any direction without sustaining damage. This makes it suitable for both above and below deck applications, enhancing its utility in various settings. Multiple knockouts are provided for conduit access, further increasing its adaptability for different installation needs.
Features
- Ideal For Making Wiring Connections Above Or Below Decks, Even In Areas Subject To Occasional Spray
- Similar To BX Series Junction Boxes, But Made From Rugged, Non-Corrosive, High Impact Polypropylene
- Snap-On Cover Provides Watertight Seal
- “Universal” Cut-To -Fit Graduated Diameter Cable Entries Accommodate Wide Cable Range
- Multiple Position Connector Strips With “captive” Screw Compression Wire Terminals Installed, See Matrix Below For Connector Strip Specifications Per Box
- Multiple Knockouts Provided For Conduit Access
- IEC Waterproof Rating: IP55: Water Projected In Jets Against The Enclosure From Any Direction Shall Have No Harmful Effects
Specifications
- Manufacturer: NewMar
- Manufacturer Part Number: PX-3
- Dimensions: 4.45 Inch Width X 4.45 Inch Depth X 2.29 Inch Height
- Terminal Strip: 18 Pair
- Wire Gauge: 16
- Protection: IP54 Waterproof
- Color: Gray
- Material: Polypropylene
- Includes: With Brass Compression Screw Terminals/ 2 Connector Strips
