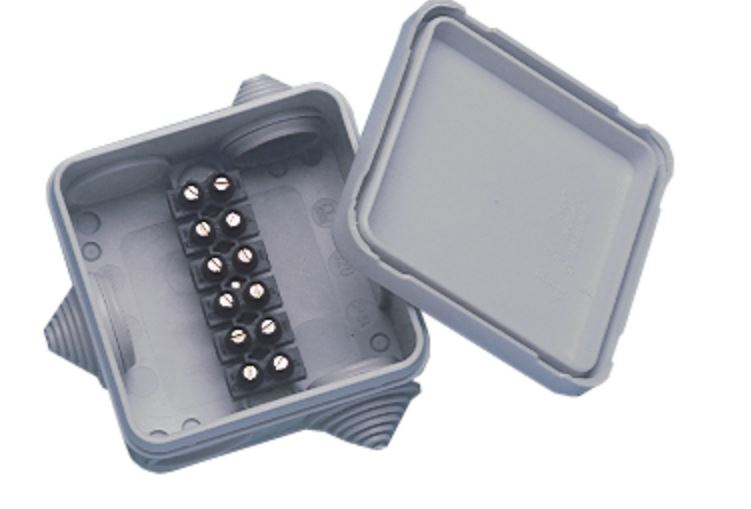

Newmar Junction Box Thru-Dex PX Series (MPN: PX-1)

Durable junction box designed for reliable wiring connections in various environments.

The Newmar Junction Box Thru-Dex PX Series is engineered for robust performance in both above and below deck applications. With dimensions of 2.95 inches in width, 2.95 inches in depth, and 1.66 inches in height, this junction box is compact yet functional, accommodating a 6 pair terminal strip and 16 gauge wire. Constructed from high impact polypropylene, it offers superior resistance to corrosion and environmental factors, making it suitable for areas subject to occasional spray.

This junction box features a snap-on cover that ensures a watertight seal, providing an IP54 waterproof rating. The design includes multiple position connector strips with captive screw compression wire terminals, allowing for secure and efficient wiring connections. Additionally, the graduated diameter cable entries are designed to accommodate a wide range of cable sizes, enhancing versatility in installation.

With multiple knockouts for conduit access and a total of five cable entry ports, including three rubber grommet cable entries, the Newmar Junction Box Thru-Dex PX Series is a practical solution for various wiring needs. Its durable construction and thoughtful design make it a reliable choice for both professional and DIY applications.

Features

• Ideal For Making Wiring Connections Above Or Below Decks, Even In Areas Subject To Occasional Spray
• Similar To BX Series Junction Boxes, But Made From Rugged, Non-Corrosive, High Impact Polypropylene
• Snap-On Cover Provides Watertight Seal
• “Universal” Cut-To -Fit Graduated Diameter Cable Entries Accommodate Wide Cable Range
• Multiple Position Connector Strips With “captive” Screw Compression Wire Terminals Installed, See Matrix Below For Connector Strip Specifications Per Box
• Multiple Knockouts Provided For Conduit Access
• IEC Waterproof Rating: IP55: Water Projected In Jets Against The Enclosure From Any Direction Shall Have No Harmful Effects

Specifications

• Manufacturer: NewMar
• Manufacturer Part Number: PX-1
• Dimensions: 2.95 Inch Width X 2.95 Inch Depth X 1.66 Inch Height
• Terminal Strip: 6 Pair
• Wire Gauge: 16
• Protection: IP54 Waterproof
• Color: Gray
• Material: Polypropylene
• Includes: 5 Cable Entry Ports/ 3 Rubber Grommet Cable Entries
