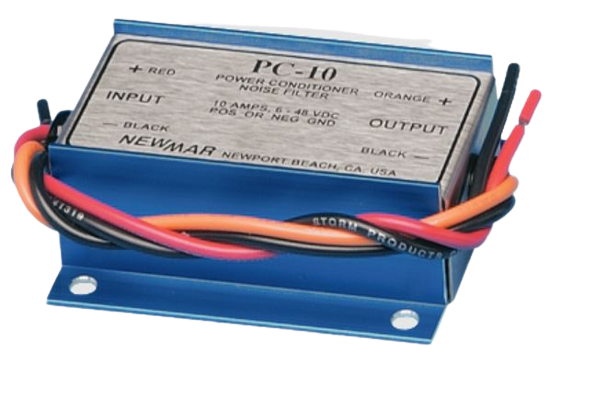

NewMar Ignition Noise Filter (MPN: PC-10)

Reduce electronic interference for clearer audio and video performance.

The NewMar Ignition Noise Filter is designed to mitigate the electronic noise generated by various automotive and marine systems, including alternators and ignition systems. This interference can disrupt the performance of radios and other electronic devices, leading to unwanted static and garbled images. By utilizing this filter, users can significantly improve the clarity of audio and video outputs, ensuring a more reliable experience in vehicles and vessels.

Constructed from heavy-duty aluminum, the filter is built to withstand harsh conditions while providing effective noise attenuation. It operates efficiently within a voltage range of 6 to 48 volts DC and supports a maximum current of 10 amperes. The filter features nickel-plated brass stud connectors, which are designed to accommodate high current cables and terminals, ensuring secure and reliable connections.

Installation is straightforward, thanks to the integral mounting flanges and color-coded wire leads that facilitate in-line installation. With overall dimensions of 4-1/4 inches in width, 1-1/4 inches in depth, and 3 inches in height, this filter is compact yet powerful, making it an essential component for enhancing the performance of electronic systems in various applications.

Features

• Heavy Duty Aluminum Construction
• Operate On 6 To 48 Volt DC Systems
• Integral Mounting Flanges For Secure Installation
• Nickle Plated, Brass Stud Connectors On Alternator Filters Accommodate High Current Cables And Terminals
• Color Coded Wire Leads On PC Models Make In-Line Installation Easy

Specifications

• Manufacturer: NewMar
• Manufacturer Part Number: PC-10
• Filter Style: Affected Equipment
• Color: Blue
• Material: Aluminum
• Includes Hardware: Yes

Technical Documents

• Manual-for-PC-10-PC-25-Noise-Filters-Newmar-M-PCINST-C-022219.pdf
