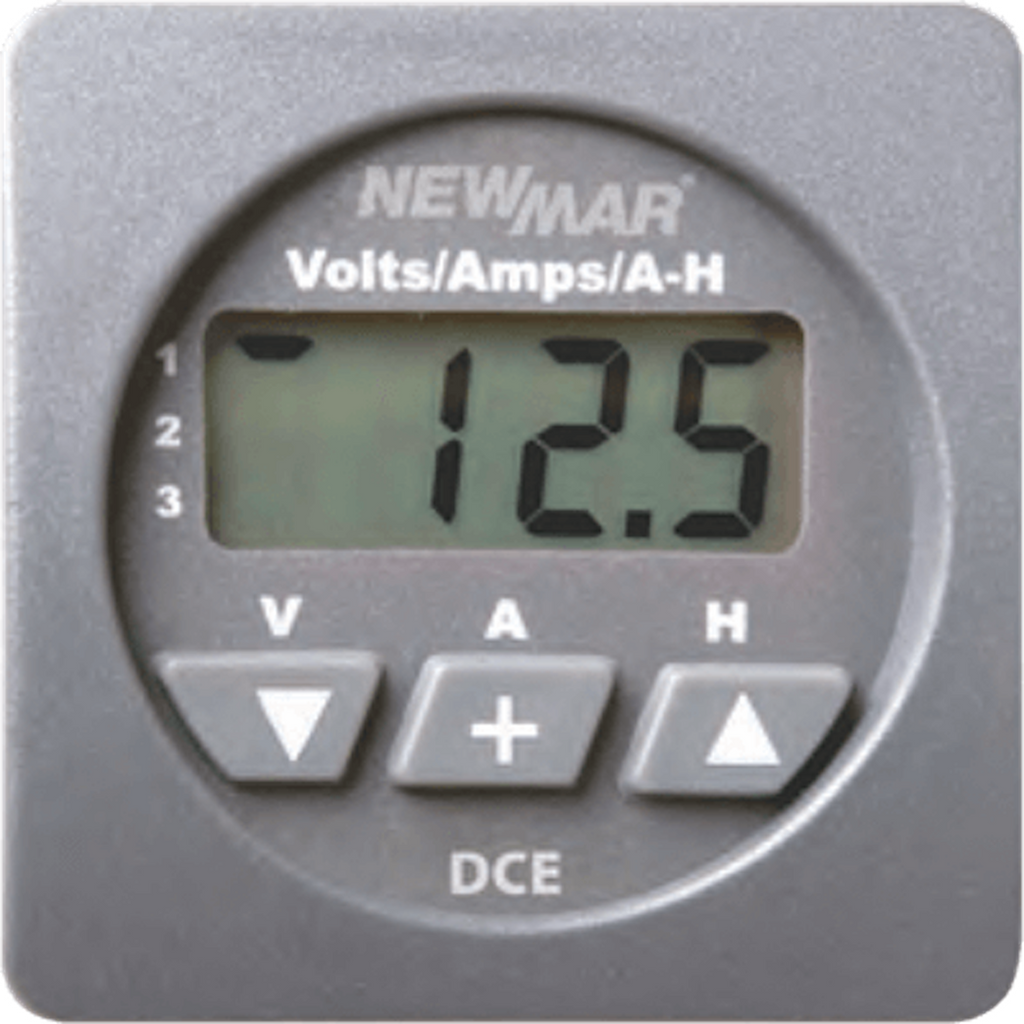

NewMar Gauge Voltmeter (MPN: DCE)

Accurate monitoring for battery systems with advanced features.

The NewMar Gauge Voltmeter is designed for precise instrumentation of battery systems, providing readings for three banks of batteries within a voltage range of 9.5 to 33 Volt AC. This unit features a large 2-1/2 inch LCD display that ensures easy visibility, with digits measuring 1 1/4 inch tall for monitoring from a distance. The keypad interface simplifies programming and function selection, making it user-friendly for various applications.

This voltmeter not only tracks voltage but also monitors amps and amp-hours for the house bank, applying Peukert's and efficiency factors for accurate readings. Users can set low and high voltage alarms, as well as low amp-hours remaining alarms, which activate a built-in 85 dB alarm and flashing display for immediate attention. The device outputs NMEA 0183 serial data, and the data line can be configured for external alarm output or charger control.

With five levels of backlighting available, the NewMar Gauge Voltmeter is equipped to function effectively in various lighting conditions. All setup, calibration constants, and alarm values are stored in non-volatile memory, ensuring reliability and ease of use over time.

Features

• Large LCD Read-Out Design
• Digits Are An Easy-To-Read 1 1/4 Inch Tall, Allowing Monitoring From A Distance
• Large Button Keypads Make Programming And Function Selection A Breeze
• All Instrument Ratings And Functions Are Identical To The DCE Described Above

Specifications

• Manufacturer: NewMar
• Manufacturer Part Number: DCE
• Size (IN): 2-1/2 Inch
• Type: Electrical
• Voltage Range: 9.5 To 33 Volt AC
• Display: LCD
• Sweep: Not Applicable
• Needle Color: Keypad
• Bezel Color: Black
• Number Color: Black
• Lighting: Back Lighting
• Liquid-Filled: No
• Includes Sending Unit: No

Technical Documents

• Manual-DCE_Newmar_112718.pdf
