Newmar DC Master Panel (MPN: ES-1)

High capacity DC control panel with advanced metering features.

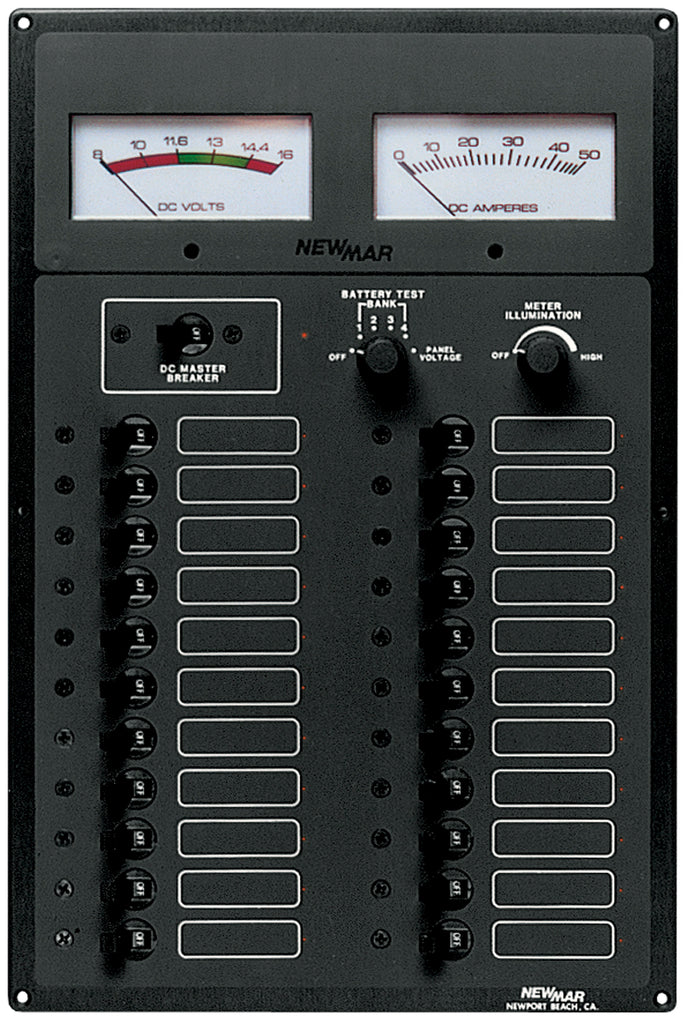

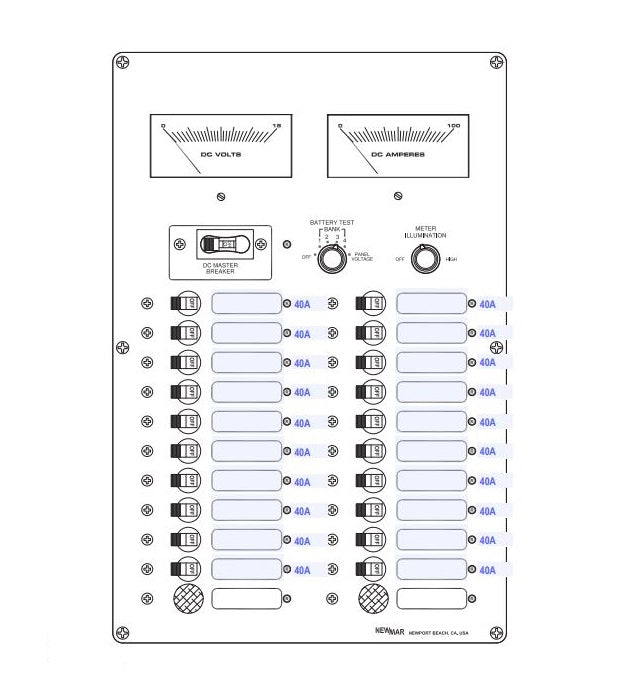

The Newmar DC Master Panel is designed for efficient management of DC circuits, featuring a robust capacity of 22 branch circuits with 20 already installed. This panel is engineered to provide comprehensive metering capabilities, ensuring accurate monitoring of electrical performance. With dimensions of 10 inches in width, 4 inches in depth, and 15 inches in height, it fits seamlessly into various setups while maintaining a sleek black finish.

Equipped with an analog DC volt and ammeter that is back illuminated and adjustable with a dimmer, this panel enhances visibility and usability in different lighting conditions. The inclusion of a 100 Amp standard DC master breaker and a four battery bank test switch further adds to its functionality, allowing for effective management of power distribution. Red circuit 'On' indicator lights provide immediate visual feedback on circuit status, ensuring operational awareness.

The Newmar DC Master Panel also features a multiple position ground bus bar, facilitating organized and efficient wiring. This product is a reliable choice for those requiring a high-performance DC control solution, backed by over 50 years of expertise from Newmar in the electronic power products industry.

Features

• Analog DC Volt And Ammeter, Back Illuminated With Dimmer
• 4 Battery Bank Test Switch
• DC Master Breaker: 100 Amp Standard
• 22 Branch Circuit Capacity, 20 Installed Standard
• Red Circuit "On" Indicator Lights
• Multiple Position Ground Bus Bar Provided

Specifications

• Manufacturer: NewMar
• Manufacturer Part Number: ES-1
• Type: DC Master Panel
• Ampere Rating: DC: Three 5 Amp/ Five 10 Amp/ Six 15 Amp/ Six 20 Amp
• Circuit Capacity: 22 Branch DC Circuit Capacity With 2o Installed
• Dimensions: 10 Inch Width x 4 Inch Depth x 15 Inch Height
• Color: Black
• Includes: With LS-III Label Set/ Light Indicator/ 4 Battery Bank Test Switch

Technical Documents

• Manual-ES-1.pdf
