Efficiently charge two battery banks without voltage drop.

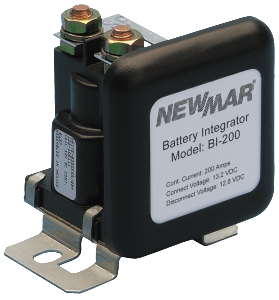

The NewMar Battery Isolator is designed for the efficient charging of two separate battery banks from a single source. This device operates with a continuous current of 200 amps and a peak current of 600 amps, ensuring robust performance in demanding applications. It features a compact design with dimensions of 3-1/4 inches in width, 2-1/2 inches in depth, and 3 inches in height, making it suitable for various installations. The isolator is CE certified and operates effectively within a temperature range of -40 to 85 degrees Celsius.
This battery integrator functions as a smart switch, connecting independent battery banks only when a charging voltage is present, thus preventing discharge between banks when not charging. It eliminates voltage drop during charging, allowing multiple batteries to be charged as a single bank. The unit can also be remotely activated to provide additional power from a secondary battery during engine start, enhancing overall system reliability.
Constructed with a heavy-duty silver-plated contactor and designed for marine environments, the NewMar Battery Isolator ensures durability and longevity. It includes a voltage sense circuit and is easy to install with a three-wire hookup for two bank systems. Optional features such as a remote light indicator and manual override switch enhance its functionality, making it a versatile choice for users needing reliable battery management.
Features
- Enables Charging Of Two Separate Banks With Out Voltage Drop, Yet Maintains 100 Percent Isolation At All Other Times
- For Systems Of Three Banks Or More, An Additional Unit Must Be Installed For Each Additional Bank
- Heavy Duty Silver-Plated Contactor, Continuous Duty Rated To 100 Ampere Or 200 Ampere Depending On Model
- Voltage Sense Circuit, Epoxy Encapsulated And Heavy Duty Continuous Rated Solenoid Are All Designed For Use In Marine Environments
- 12 Volt, 100 Ampere Model Has Ignition Protection Rating
- Easy Three-Wire Hook Up For Two Bank Systems
- Terminal For Optional Wiring Of Remote Light Indicating When Battery Banks Are Integrated
- Optional Internal Connection Can Be Wired Though Key Starter Or Manual Over Ride Switch, Tying Battery Banks Together For Extra Boost During Engine Start
Specifications
- Manufacturer: NewMar
- Manufacturer Part Number: BI-200
- Used With: Charging Of Two Separate Banks From Single Source
- Amperage: 200 Amp
- Includes Solenoid: No
- Includes Switches: No
- Includes Fuse: No
