Efficiently charge two battery banks without voltage drop.

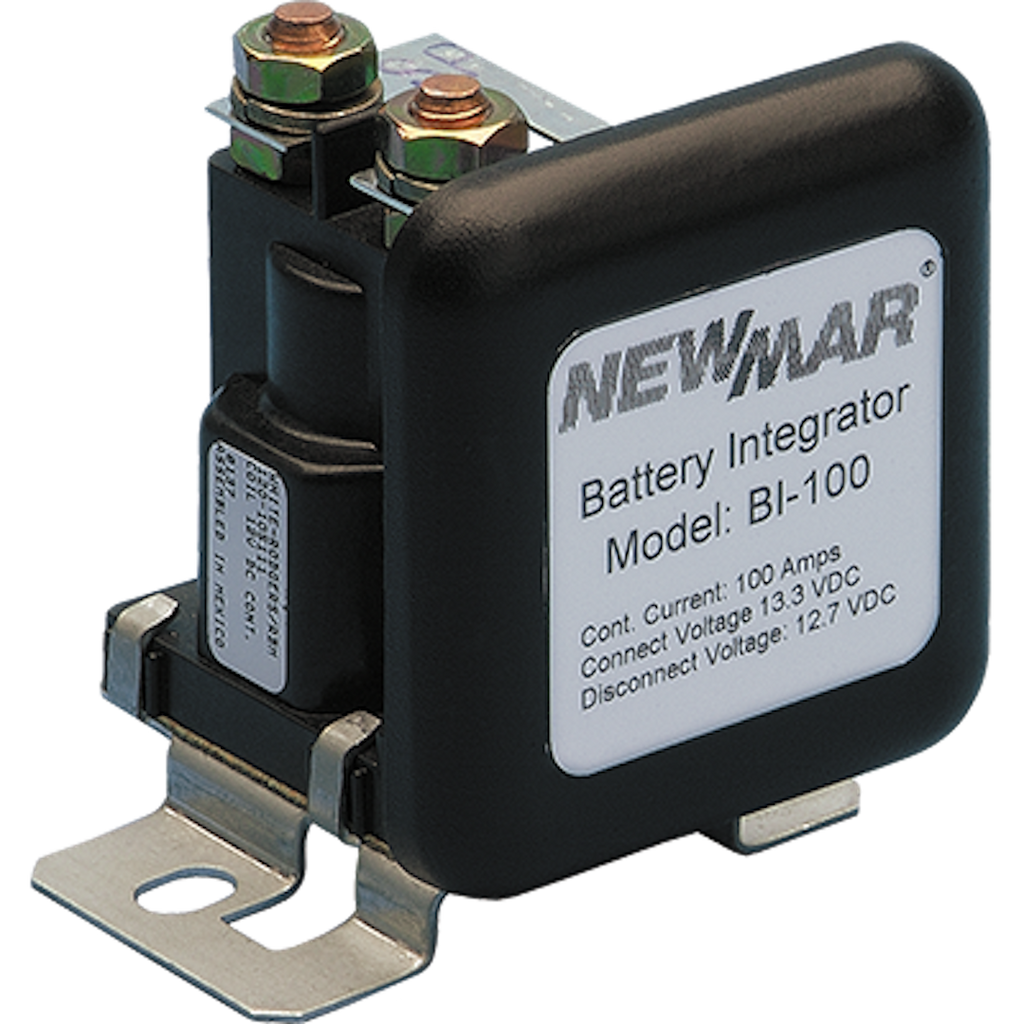

The NewMar Battery Isolator is designed for the efficient charging of two separate battery banks from a single source. This device operates continuously at 100 amps and can handle peak currents of up to 400 amps, ensuring reliable performance in demanding conditions. With a compact size of 3-1/4 inches in width, 2-1/2 inches in depth, and 3 inches in height, it is suitable for various installations, particularly in marine environments where space is limited.
This battery isolator features a heavy-duty silver-plated contactor and a voltage sense circuit that ensures no voltage drop occurs during charging. It automatically connects the battery banks when a charging voltage is present and isolates them when the voltage drops, preventing discharge between banks. The unit is CE certified and ignition protected, making it safe for use in vehicles and boats.
Additionally, the NewMar Battery Isolator includes an easy three-wire hookup for straightforward installation. It also offers the option for remote activation, allowing users to connect additional batteries for a boost during engine start. This functionality enhances the versatility of the isolator, making it a valuable component for systems with multiple battery banks.
Features
- Enables Charging Of Two Separate Banks With Out Voltage Drop, Yet Maintains 100 Percent Isolation At All Other Times
- For Systems Of Three Banks Or More, An Additional Unit Must Be Installed For Each Additional Bank
- Heavy Duty Silver-Plated Contactor, Continuous Duty Rated To 100 Ampere Or 200 Ampere Depending On Model
- Voltage Sense Circuit, Epoxy Encapsulated And Heavy Duty Continuous Rated Solenoid Are All Designed For Use In Marine Environments
- 12 Volt, 100 Ampere Model Has Ignition Protection Rating
- Easy Three-Wire Hook Up For Two Bank Systems
- Terminal For Optional Wiring Of Remote Light Indicating When Battery Banks Are Integrated
- Optional Internal Connection Can Be Wired Though Key Starter Or Manual Over Ride Switch, Tying Battery Banks Together For Extra Boost During Engine Start
Specifications
- Manufacturer: NewMar
- Manufacturer Part Number: BI-100
- Used With: Charging Of Two Separate Banks From Single Source
- Amperage: 100 Amp
- Includes Solenoid: Yes
- Includes Switches: Yes
- Includes Fuse: No
