Efficiently diagnose MSD ignition systems with advanced testing capabilities.

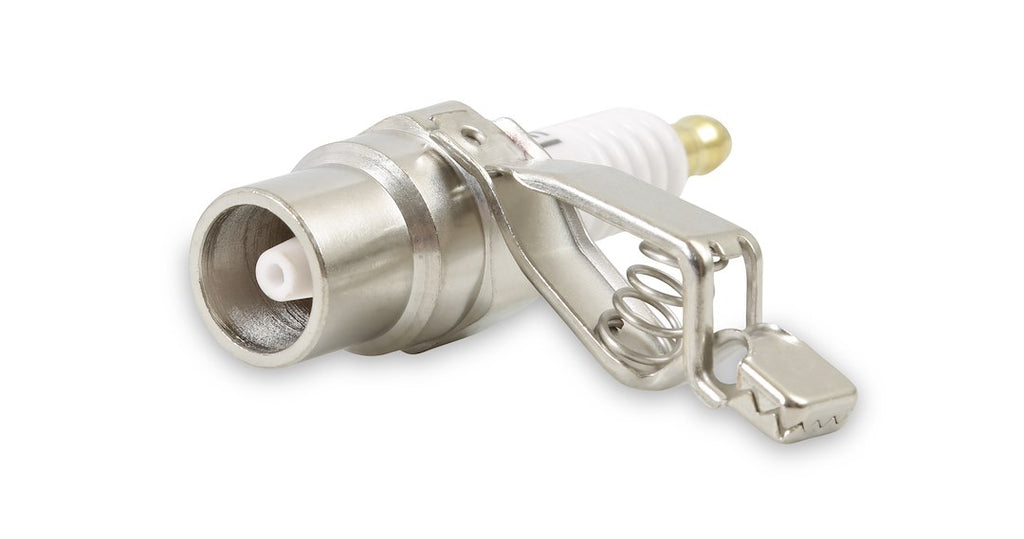

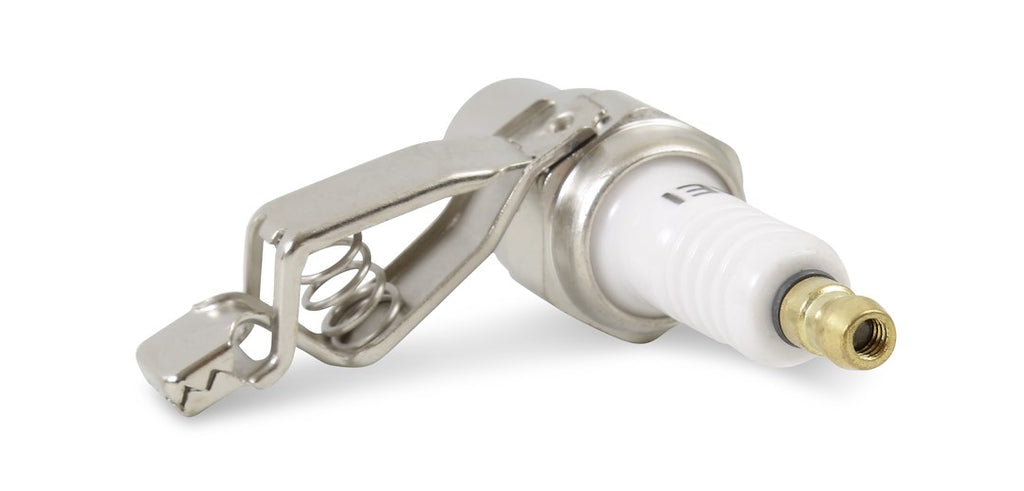

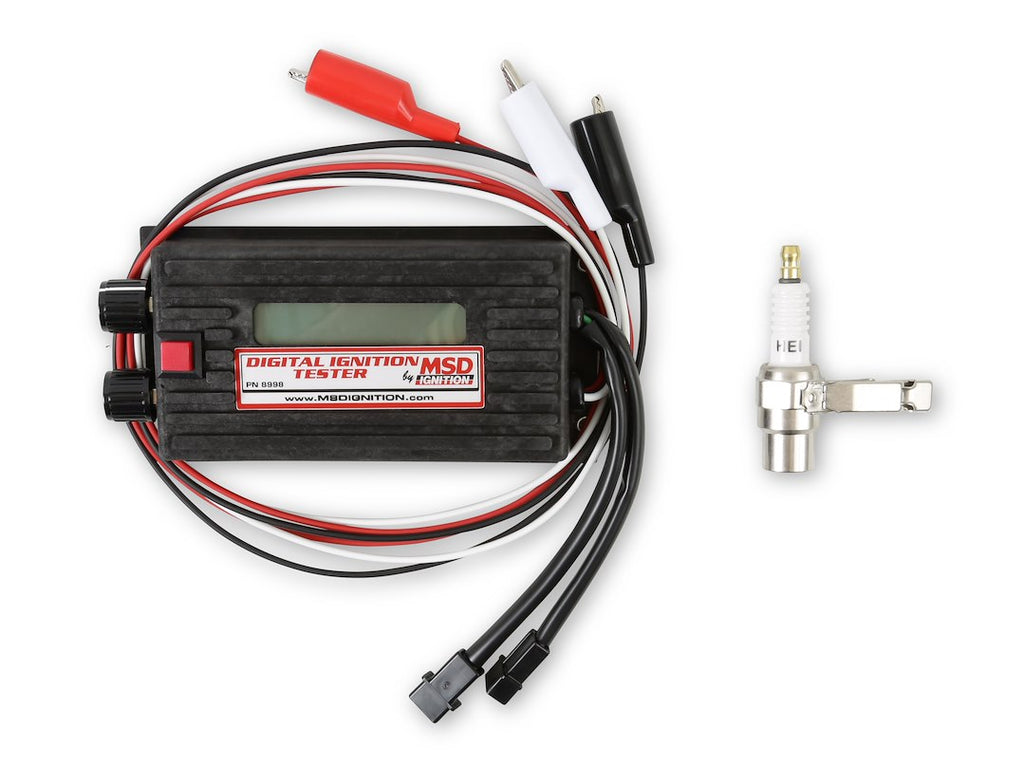

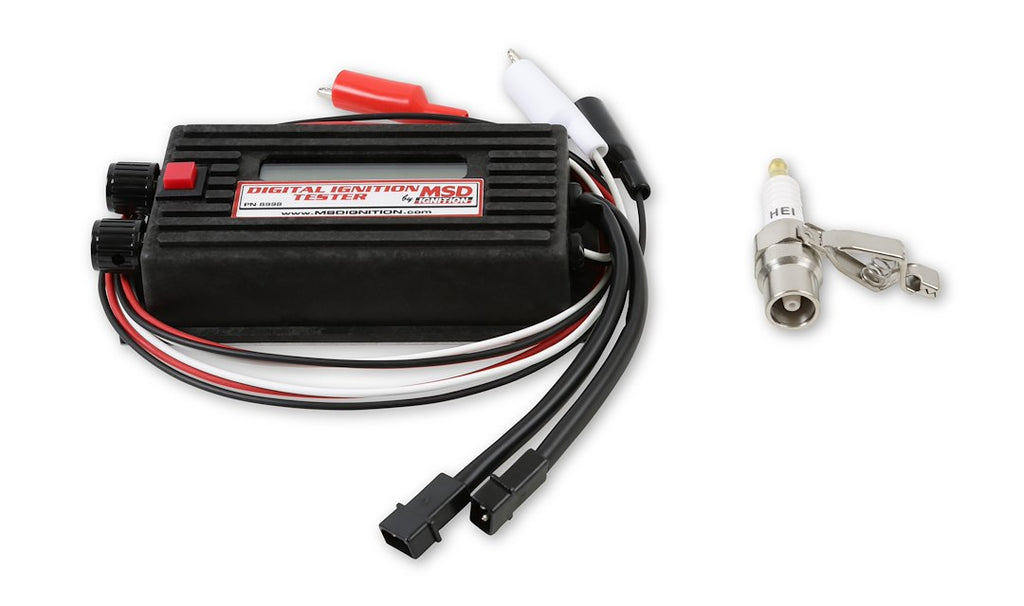

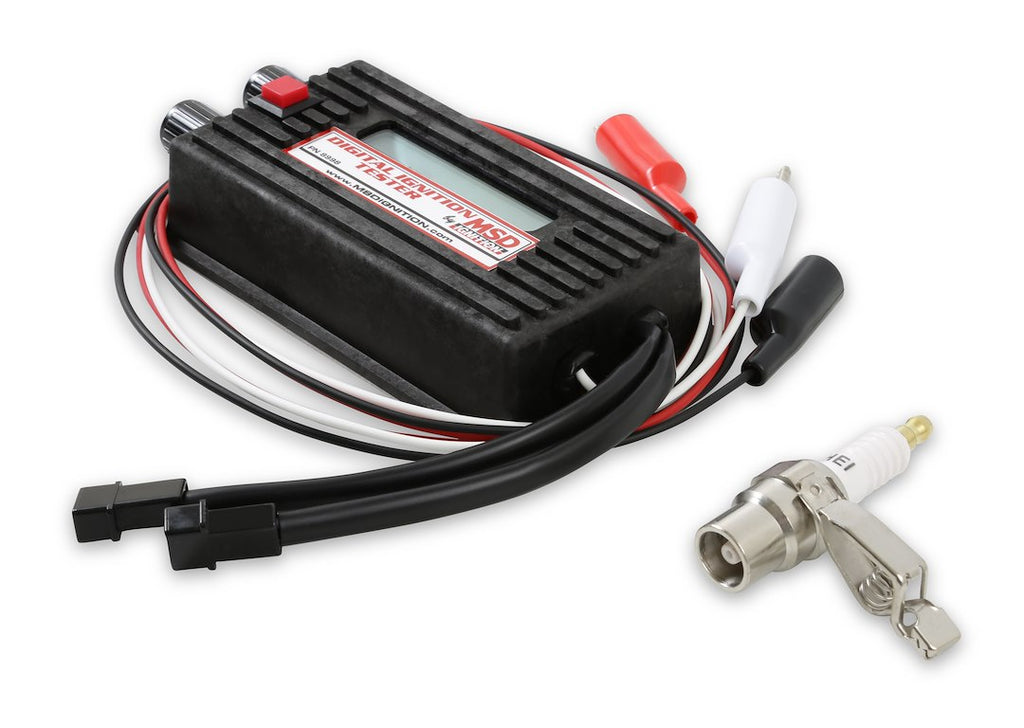

The MSD Ignition Test Tool is designed for testing the operation of all MSD single channel capacitive discharge ignition controls. This handheld device generates a simulated trigger signal that mimics engine operation, allowing for effective troubleshooting of ignition issues. It includes a load-producing clip-on spark plug for connection to the coil wire, enabling users to identify ignition problems if the spark fails to jump the gap.

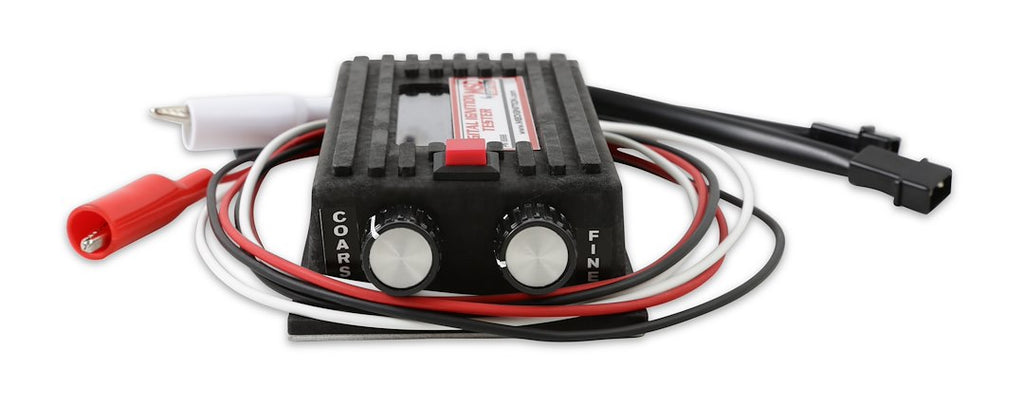

Equipped with an LCD display, the tester provides clear readouts of simulated RPM, facilitating the verification of rev limits, RPM activated switches, shift light functionality, and tachometer accuracy. The tool is compatible with 4, 6, or 8 cylinder engines and can simulate RPMs up to 16,000, making it versatile for various applications. Additionally, it features a circuit to check the operation of cam sync signals, enhancing its diagnostic capabilities.
This tool is essential for racers utilizing MSD's digital programmable ignition controls, particularly those employing non-magnetic pickups for individual cylinder management. By ensuring the proper functioning of ignition systems, the MSD Ignition Test Tool aids in maintaining optimal engine performance.
Features
- Hand Held Tester Generates A Trigger Signal To Fire MSD DIS, 6, 7, 8 And 10 Series Ignition Controls And The Coil
- LCD Display Shows The Simulated RPM And Can Be Used To Confirm The Operation Of Rev Limits, RPM Activated Switches, Shift Lights And Tachometers
- Additional Circuit Will Check The Operation Of Cam Sync Signals
- Triggers Through Breaker Points, Amplifier And Magnetic Pickup Trigger Inputs From The MSD Ignition
Specifications
- Manufacturer: MSD Ignition
- Manufacturer Part Number: 8998
- Compatibility: 4/6/8 Cylinder Engines And Will Simulate Up To 16,000 RPM
- Used For: Testing MSD Capacitive Discharge Ignition Controls
- Number Of Channels: Single Channel
- Display Type: LCD
- Tests Ignition Operation: Yes
- Tests Coil Operation: Yes
- Tests Rev Limits: Yes
- Tests RPM Switch Operation: Yes
- Tests Shift Light Operation: Yes
- Tests Tachometer Accuracy: Yes
