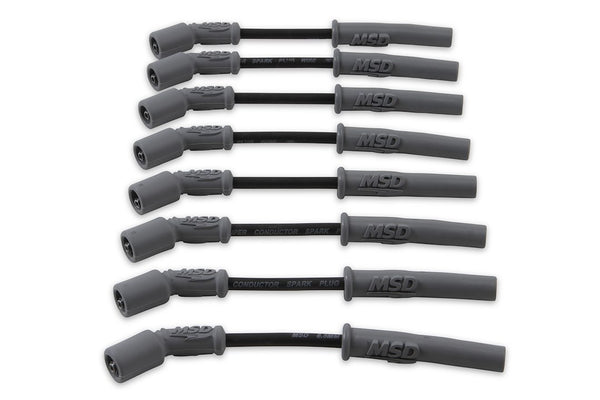

MSD Ignition Spark Plug Wire Set (MPN: 32813)

High-performance spark plug wire set with low resistance and EMI suppression.

The MSD Ignition Spark Plug Wire Set features an 8.5 millimeter diameter and is designed for high-performance applications. This wire set utilizes a copper alloy conductor with a resistance of less than 50 Ohms per foot, ensuring maximum energy transfer to the spark plug for optimal ignition of the air/fuel mixture. The helix-wound design incorporates a ferro-magnetic impregnated center core that effectively suppresses electromagnetic interference, enhancing overall engine performance.

Constructed from silicone and synthetic materials, the wire set is built to withstand high temperatures and abrasion, ensuring durability in demanding environments. Each wire is pre-assembled with straight spark plug boots and 45-degree LS1 coil boots, providing a secure and reliable connection. The proprietary outer sleeve further protects the wires, making them suitable for various automotive applications.

With a total of eight wires included, this spark plug wire set is engineered to deliver superior spark and reliability. The combination of advanced materials and design features makes the MSD Ignition Spark Plug Wire Set a critical component for those seeking enhanced engine performance and efficiency.

Features

• Copper Alloy Conductor Has A Resistance Value Of Less Than 50 Ohm Per Foot For Superior Spark
• Ferro Magnetic Impregnated Core Creates An Effective EMI Choke
• Forty Feet Of Conductor Is Wound Into A Single Foot Of Wire For High EMI Suppression
• Conductor Core Features DuPont Kevlar Material For Increased Tensile Strength
• Durable Outer Sleeve Is A Proprietary Compound For Resistance To High Heat Or Abrasion

Specifications

• Manufacturer: MSD Ignition
• Manufacturer Part Number: 32813
• Assembled: Yes
• Diameter (MM): 8.5 Millimeter
• Wire Material: Silicone and Synthetic
• Color: Black
• Number Of Wires: 8
• Distributor Boot Color: Gray
• Distributor Terminal Ends: 45 Degree
• Spark Plug Boot Color: Gray
• Spark Plug Boot Ends: Straight
• Distributor Boot Material: Silicone and Synthetic
• Spark Plug Boot Material: Silicone and Synthetic
• Conductor Type: Copper Alloy With Ferro Magnetic Impregnated Center Core
• Wire Resistance: 40 To 50 Ohms Per Foot Resistance
• Includes Coil Wire: No
• RFI Suppression: No

Compatibility / Fit

• 1998-2002 Chevrolet Camaro
• 1997-2004 Chevrolet Corvette
• 2004-2004 Pontiac GTO

Technical Documents

• frm31839_wire_brochure_outlines_rs.pdf
