Streamline your electrical connections with advanced relay technology.

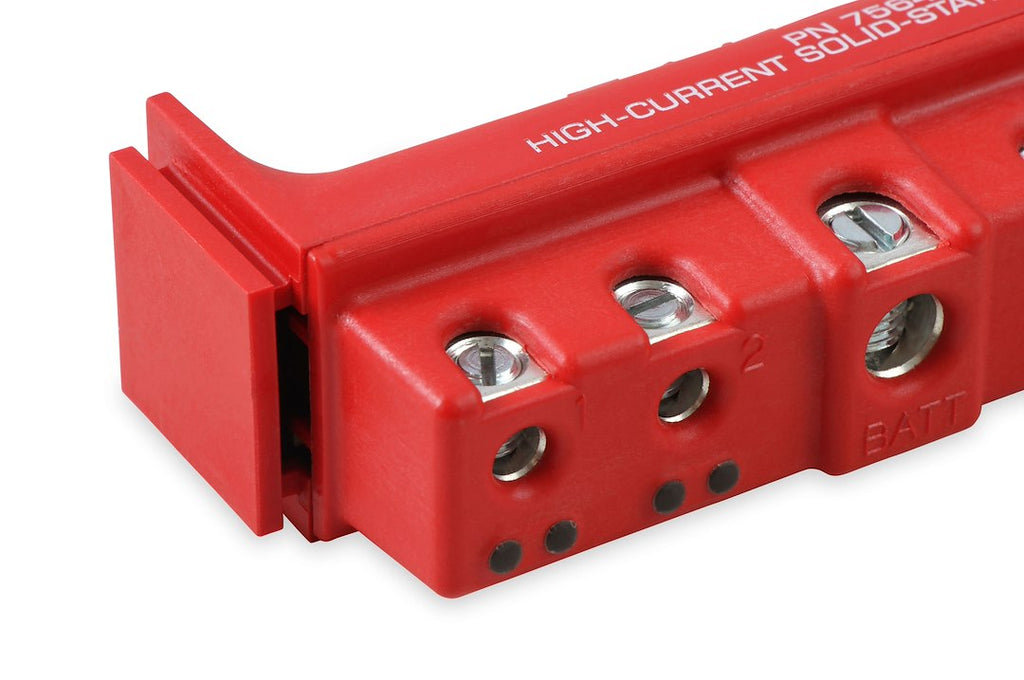

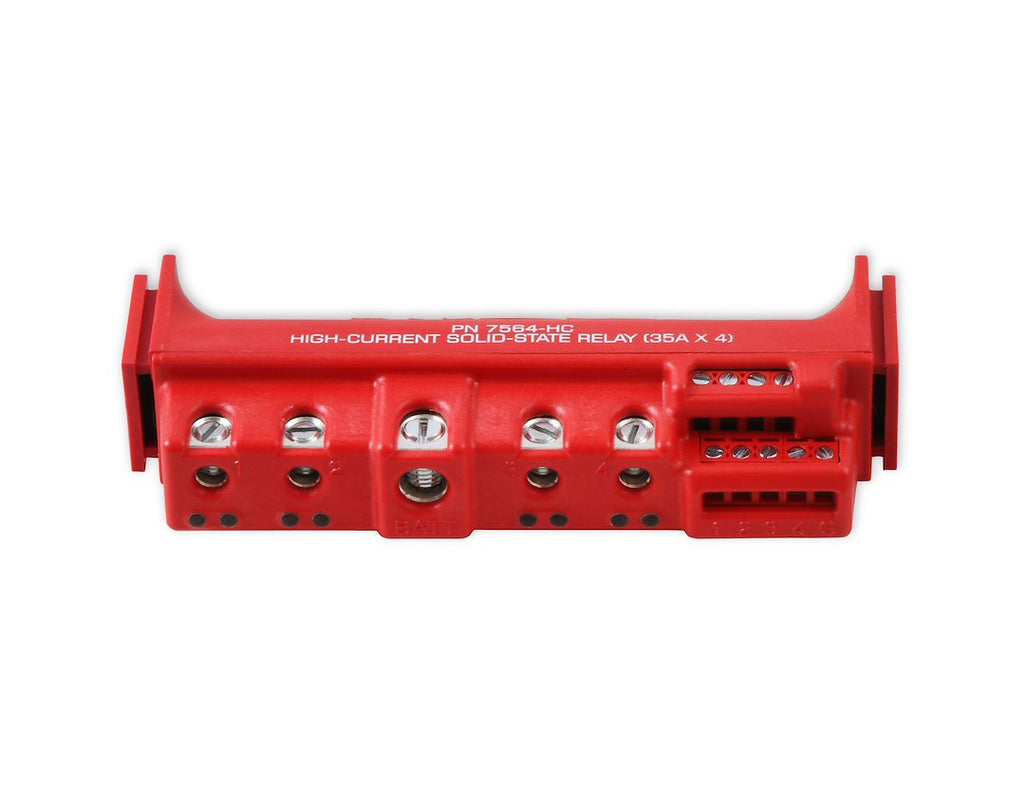

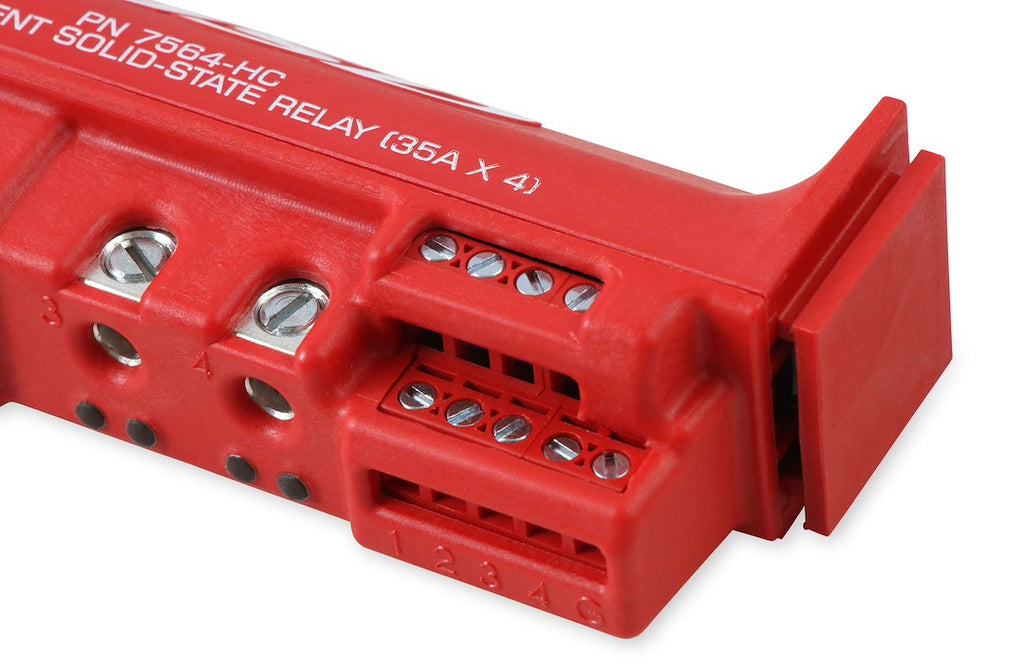

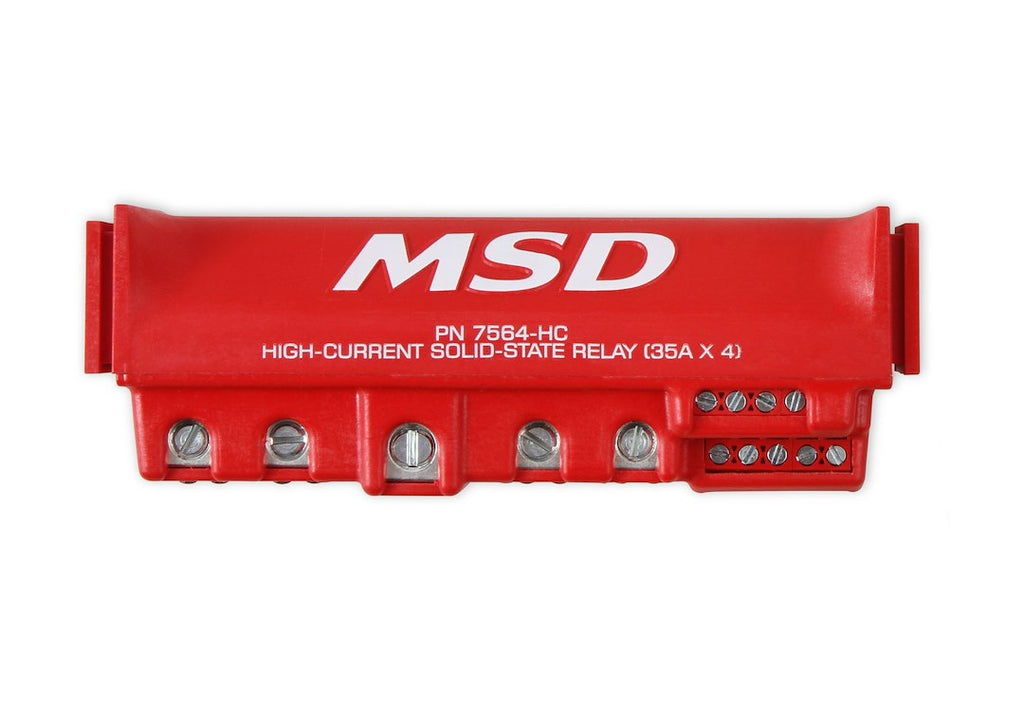

The MSD Ignition Solid-State High Current Relay Block is designed to simplify wiring by replacing four standard relays with a single compact module. This relay block features four independent channels, each capable of handling up to 35 Amperes of continuous current, allowing for a total power capacity of 140 Amperes. It supports both power and ground activation, making it versatile for various applications such as controlling electric fans, water pumps, and auxiliary lighting.
Incorporating Pulse Width Modulation (PWM) capabilities, this relay block can control output at a frequency of 15 Hertz with a duty cycle ranging from 50 to 90 percent. This feature enhances the control over connected devices, ensuring efficient operation. The relay block is equipped with LED status indicators for each channel, providing real-time feedback on wiring and operational status.

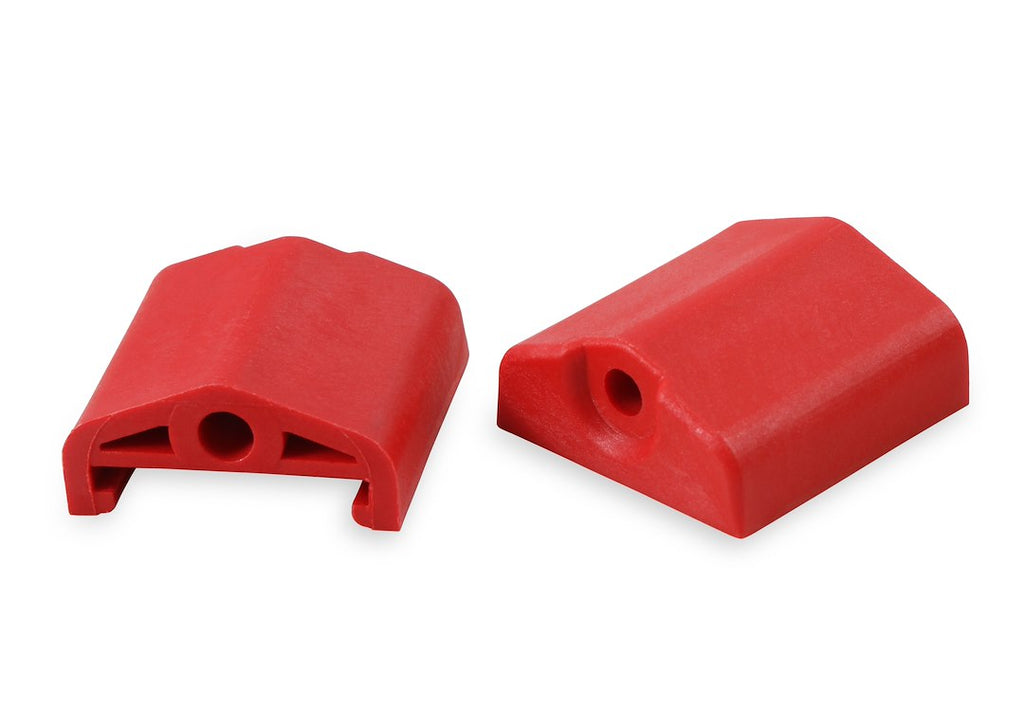

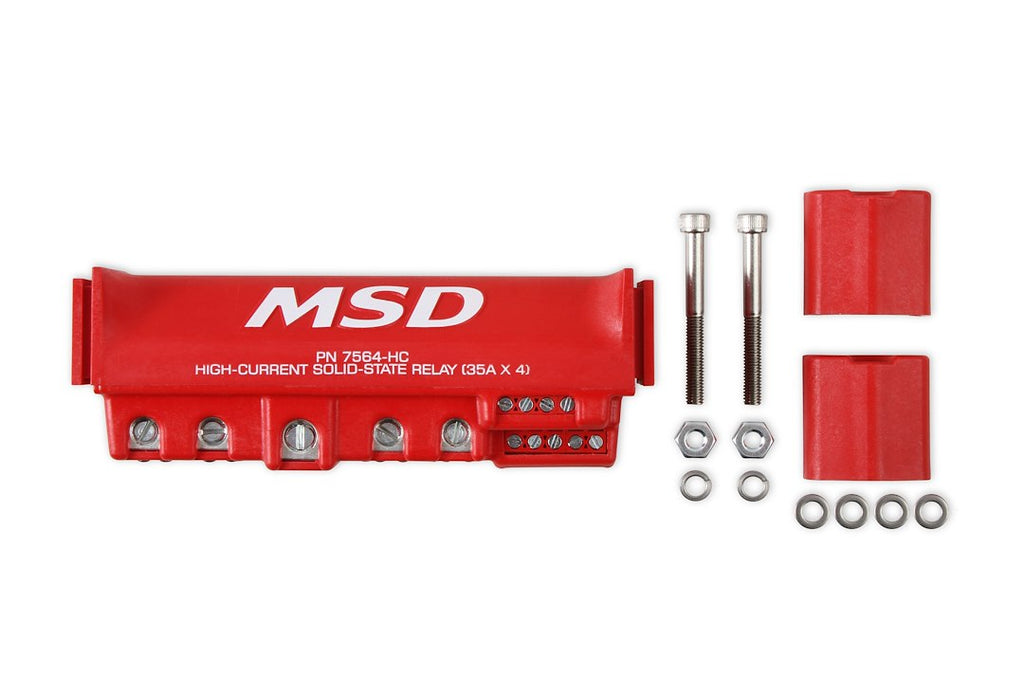

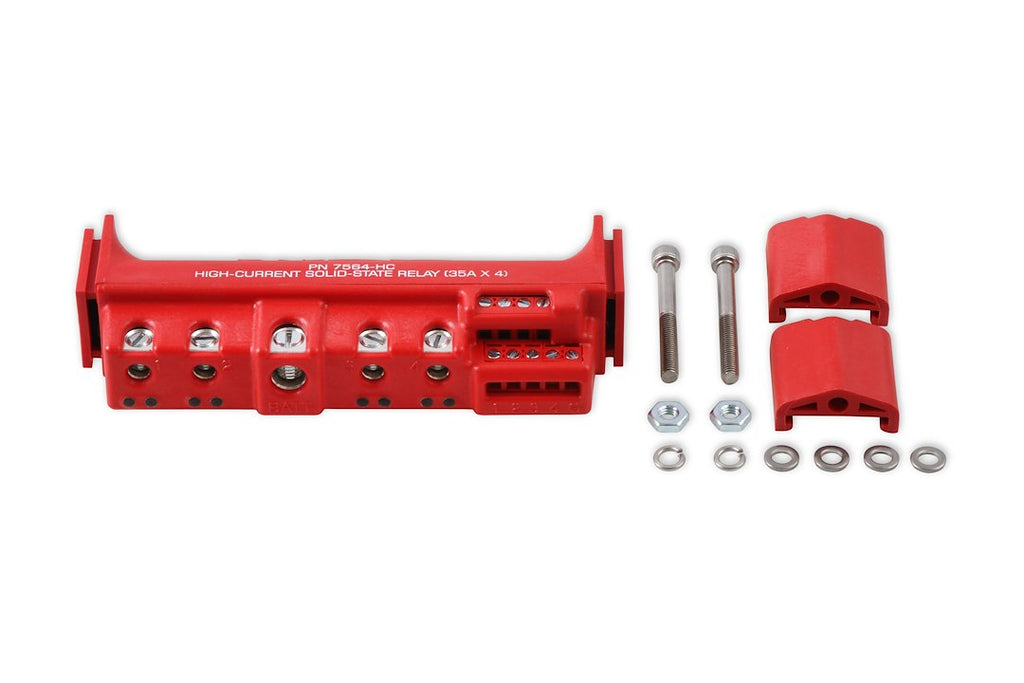

Safety is a priority with built-in protections against over-temperature, short circuits, and overloads, along with a channel reset function. The installation process is straightforward, utilizing supplied hardware and adjustable mounting tabs for flexible positioning. The MSD Ignition Solid-State High Current Relay Block is an effective solution for managing multiple electrical accessories while maintaining a clean and organized wiring setup.
Features
- 4 Independent Channels, 35 Ampere Each Continuous Or 100 Ampere For 8 Seconds
- Combined Total Continuous Current Rating Of 140 Ampere
- Channels Can Be Run In Parallel For Devices Requiring More Than 35 Ampere Single-Channel Rating
- Over-Temp, Short Circuit And Overload Protection
- Diagnostic LED's And Status Indicators
- Single Wire Activation By Switching Power Or Ground
- A PWM Signal Can Be Used In The Solid-State Relay Module With A Maximum Frequency Of 150 Hertz And A Duty Cycle Range From 50 Percent To 90 Percent
- Clean, Easy Install With Minimum Wiring
Specifications
- Manufacturer: MSD Ignition
- Manufacturer Part Number: 7564-HC
- Holds: 4 Relay
- Ampere Rating (A): 35 Amp
- Includes Relays: Yes
- Includes Wiring Harness: No
- Includes Circuit Breaker: Yes
