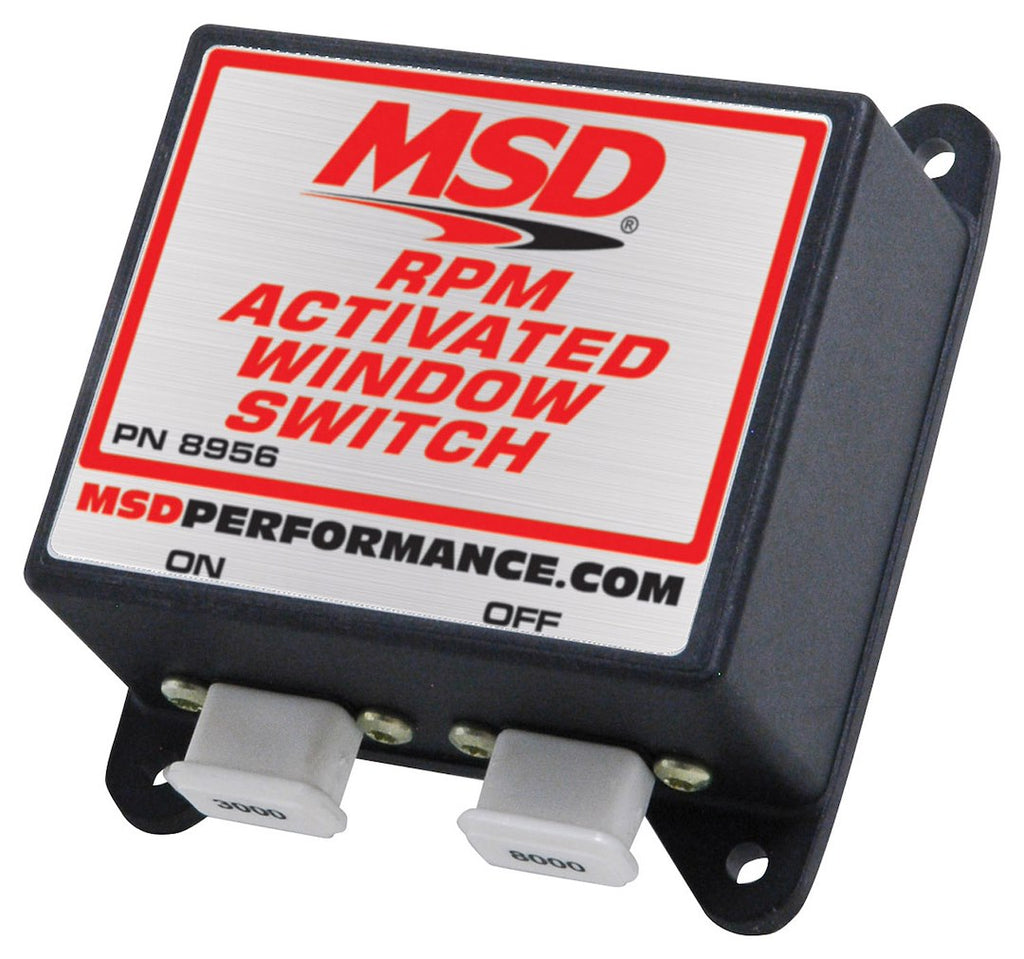

MSD Ignition RPM Activated Switch (MPN: 8956)

Versatile switch for precise RPM control and circuit activation.

The MSD Ignition RPM Activated Switch is designed to provide precise control over various electrical circuits based on engine RPM. This switch can activate or deactivate circuits, making it suitable for applications such as turning on bulbs, solenoids, or activating MSD timing controls at specific RPM thresholds. It features two activation wires, allowing for easy integration into existing systems, and can be connected to stock inductive ignitions or MSD ignition controls.

With adjustable RPM settings, the switch allows users to set both activation and deactivation points, ensuring that circuits are only engaged when necessary. This functionality is particularly beneficial for applications like nitrous systems, where it is crucial to deactivate before reaching the engine's rev limit. The switch is capable of handling up to 1.5 Amperes, providing reliable performance across various automotive applications.

Installation is straightforward, making it accessible for both professional and DIY enthusiasts. The high-quality construction meets standard requirements, ensuring durability and consistent performance. The MSD Ignition RPM Activated Switch is an essential tool for those looking to enhance their vehicle's electrical control systems.

Features

• Perform A Variety Of Different Functions From Turning On A Bulb Or Solenoid To Activating An MSD Timing Control At A Desired RPM
• High Quality Product
• Meets The Standard Requirements
• Deliver Performance And Reliability
• Easy Installation

Specifications

• Manufacturer: MSD Ignition
• Manufacturer Part Number: 8956
• Type: Window Switch
• Input: From Stock Inductive Ignitions or MSD Ignition Controls
• Adjustment Style: Pills

Technical Documents

• 8956.pdf
• msd_brand_warranties.pdf
