Streamline your electrical connections with a compact relay solution.

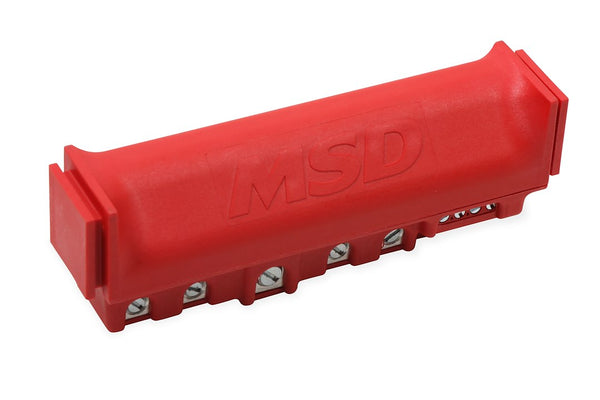

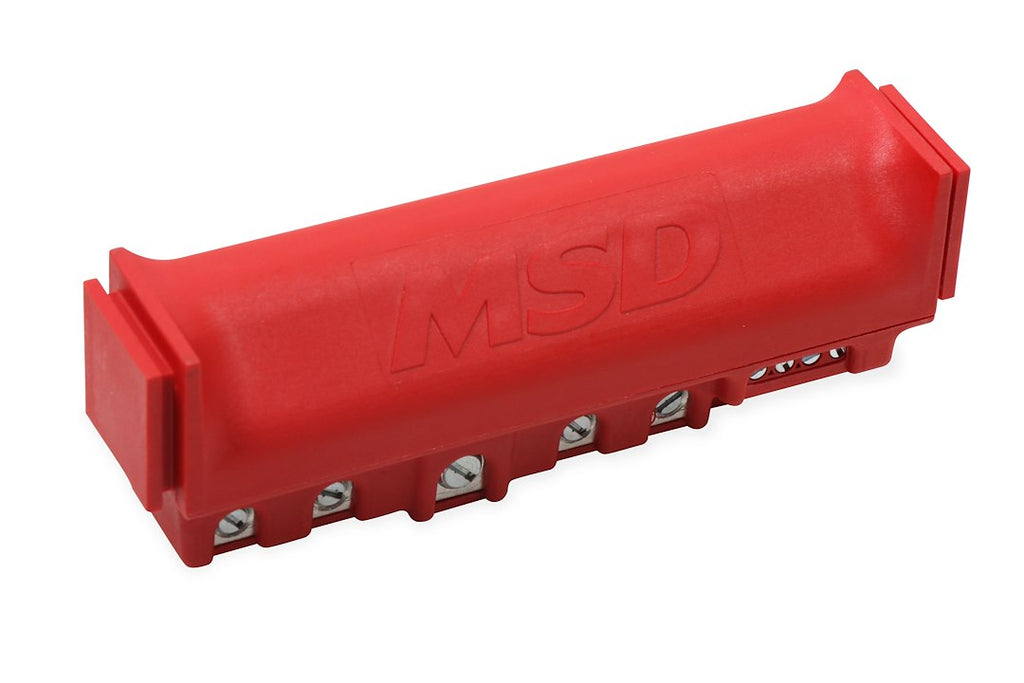

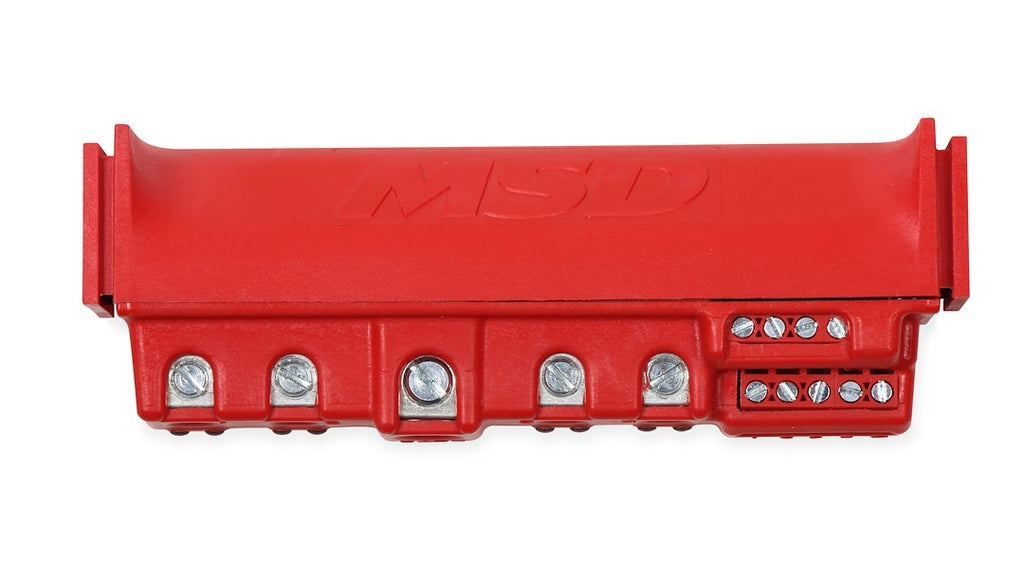

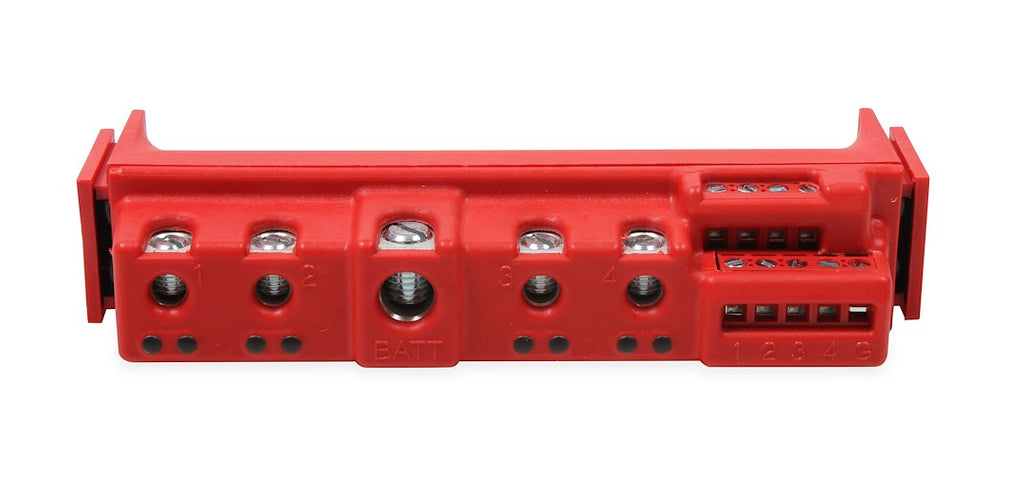

The MSD Ignition Relay Block is designed to simplify wiring by replacing four standard relays with a single, efficient module. This relay block features four independent channels that can be activated using either power or ground, making it versatile for various applications. Each channel supports up to 20 Amperes of continuous current, allowing for a total capacity of 80 Amperes, suitable for controlling electric fans, water pumps, nitrous solenoids, and auxiliary lighting.

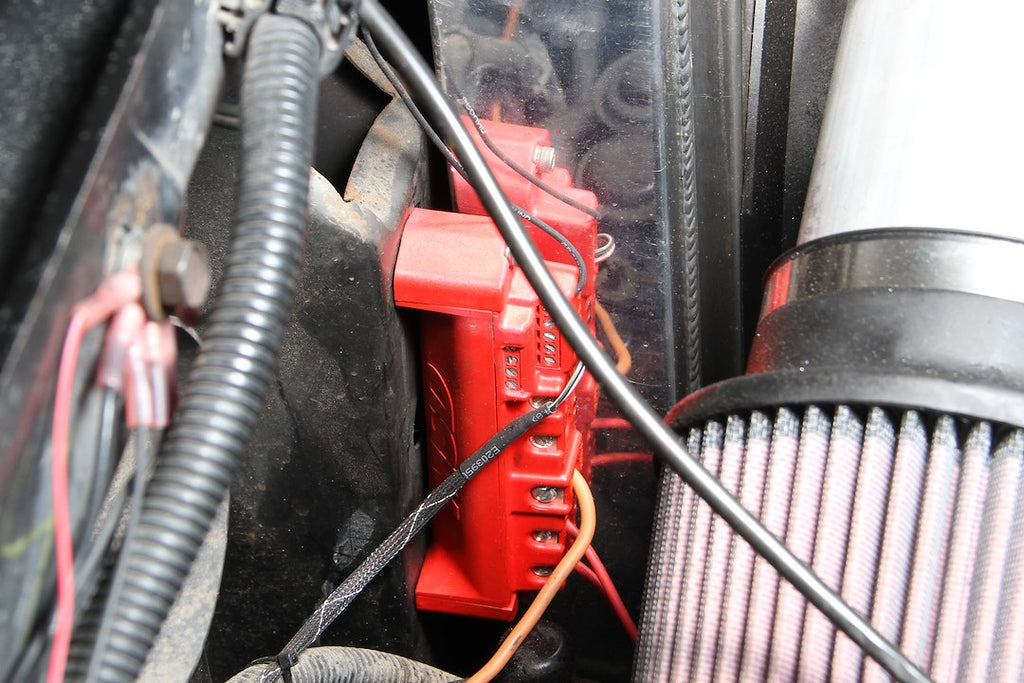

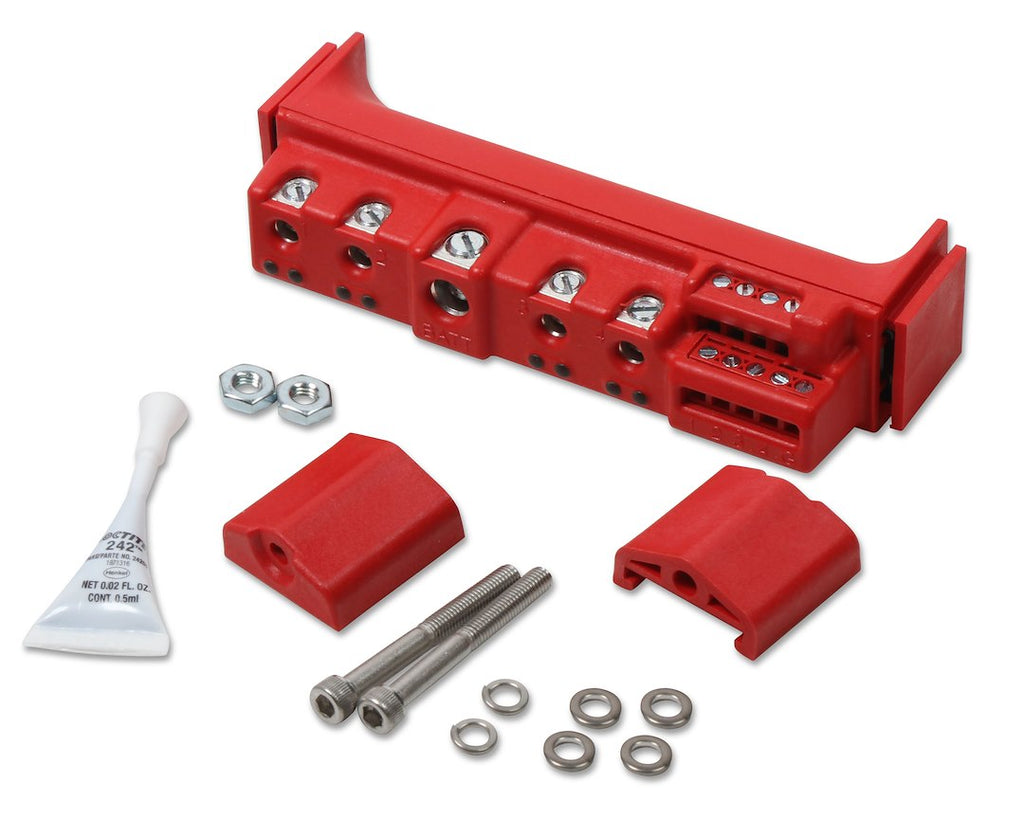

Equipped with LED status indicators, the relay block provides clear diagnostics for proper wiring and operation of each channel. It includes built-in protection against over-temperature, short circuits, and overloads, ensuring reliable performance in demanding environments. The compact design allows for easy installation with multiple mounting options, and the supplied hardware facilitates a clean setup with minimal wiring required.
This relay block is an effective solution for managing electrical accessories, enhancing the organization of wiring projects while maintaining functionality and safety. Its robust construction and thoughtful design make it a valuable addition to any electrical system.
Features
- Over Temperature Short Circuit And Overload Protection
- Diagnostic LED’s
- Activate With Power Or Ground
- Channels Can Be Run In Parallel For Devices Requiring More Than 20 Ampere Single-Channel Rating

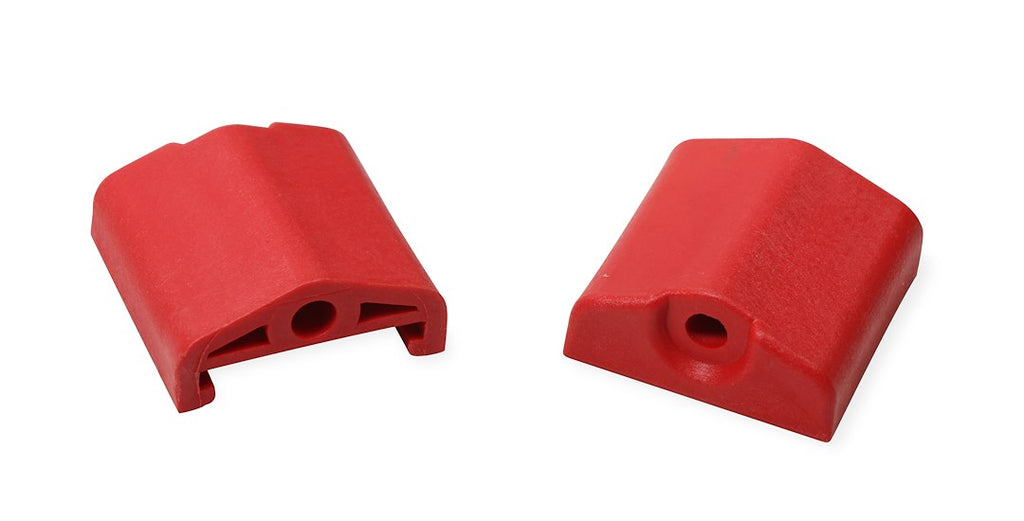

- Multiple Mounting Options
- Clean, Easy To Install With Minimum Wiring
Specifications
- Manufacturer: MSD Ignition
- Manufacturer Part Number: 7564
- Holds: 4 Relay
- Ampere Rating (A): 50 Amp
- Includes Relays: Yes
- Includes Wiring Harness: No
- Includes Circuit Breaker: Yes
