Compact design for enhanced performance in Chevy V8 engines.

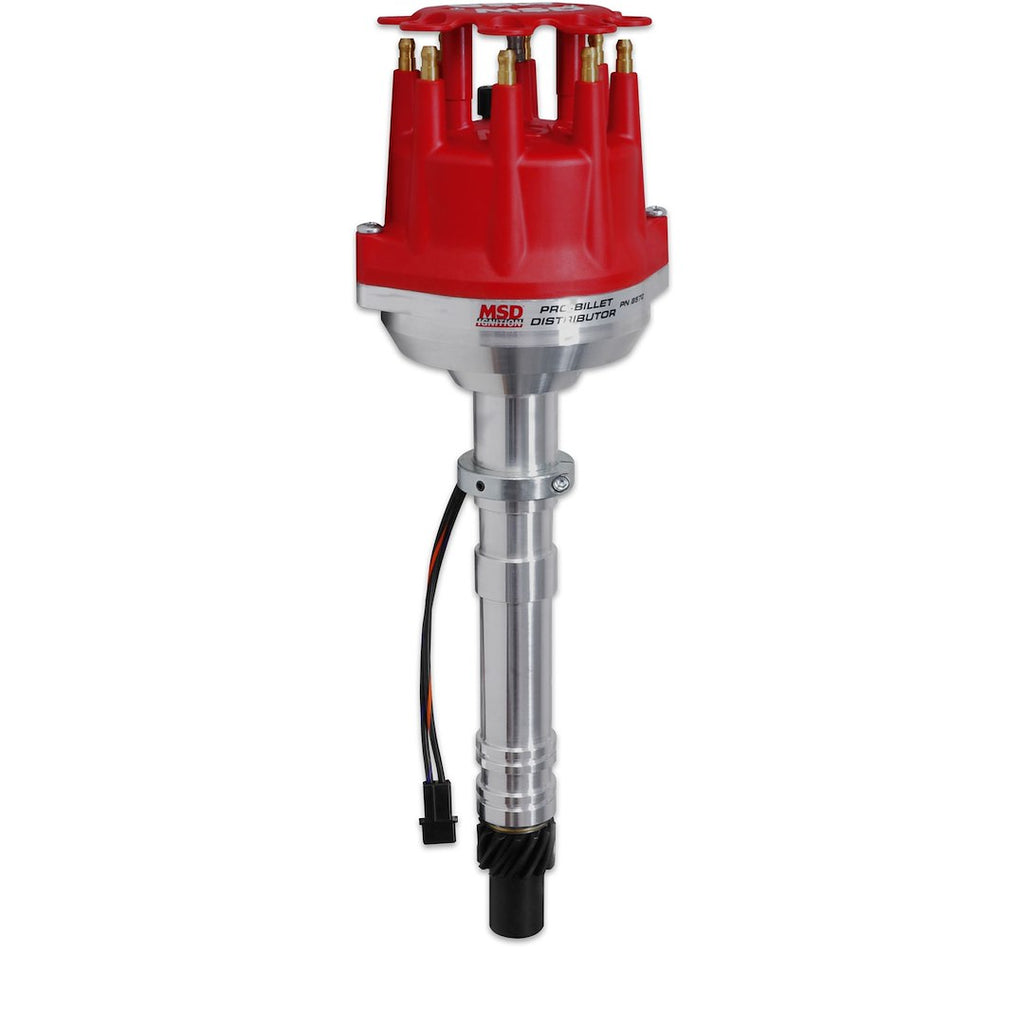

The MSD Ignition Pro-Billet Distributor is engineered specifically for Chevy V8 engines, catering to those with space constraints due to firewall interference or oversized intake manifolds. This distributor features a compact design that is 3/8 inch narrower and nearly 1 inch shorter than standard models, making it suitable for tight engine compartments. It incorporates a high output magnetic pickup and a precision machined reluctor, ensuring accurate ignition triggering across the RPM range.
This distributor is equipped with a fully adjustable mechanical advance system, allowing users to customize the advance curve to meet their specific performance needs. The polished steel shaft is QPQ coated and supported by a sealed ball bearing, while the advance plate and weights are crafted from chrome moly steel for reduced friction. Additionally, the mechanical advance assembly can be locked out for use with crank trigger systems, providing versatility for various applications.
The small diameter cap, made from durable Rynite material, enhances the overall design and includes an optional wire retainer for added convenience. Special oil tracts improve lubrication to the distributor and cam gear, and O-ring seals can be added to modified blocks to enhance oil pressure control. This distributor is a reliable choice for both street and strip applications.
Features

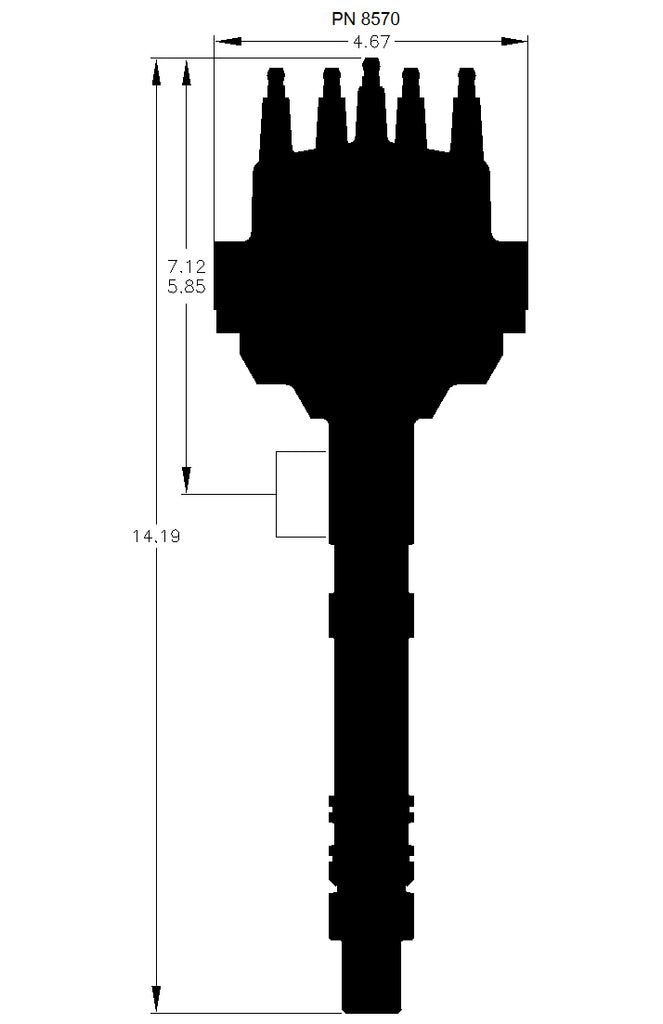

- CNC Machined Billet Aluminum Housing Is 3/8 Inch Smaller In Diameter And 7/8 Inch Shorter Than Conventional Chevy V-8 Distributors With The “Points” Type Cap
- Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
- Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
- Special Oil Tract Improves Lubrication To The Distributor And Cam Gear, O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
Specifications
- Manufacturer: MSD Ignition
- Manufacturer Part Number: 8570
- Condition: New
- Finish: Polished Shaft
- Recommended Use: Street/ Strip
- Spark Advance Type: Mechanical Advance
- Spark Distribution Type: Magnetic Trigger
- Drive Gear Type: Iron Gear
- With Ignition Module: No
- With Tach Drive: No
- Includes Cap And Rotor: Yes
- Cap Color: Red
- Cap Type: HEI/ Male Posts
- Coil In Cap: No
Compatibility / Fit
- 1900-1900 Chevrolet Big Block 1965-1990 Gen IV
- 1900-1900 Chevrolet Big Block 1991-1995 Gen V
- 1900-1900 Chevrolet Small Block 1955-1986
- 1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
- 1900-1900 Chevrolet Small Block 383
Technical Documents
