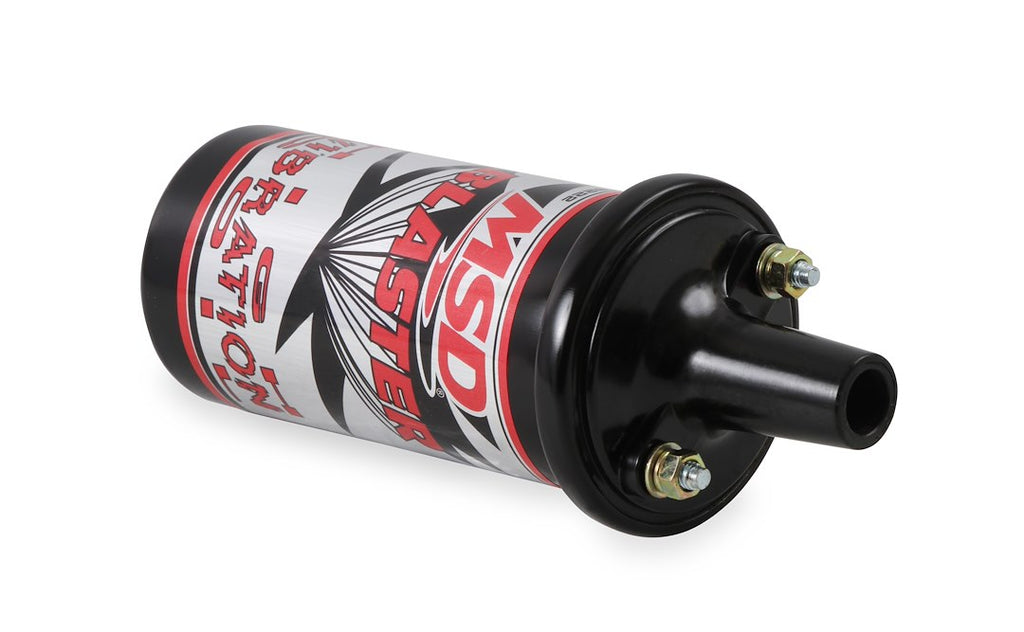

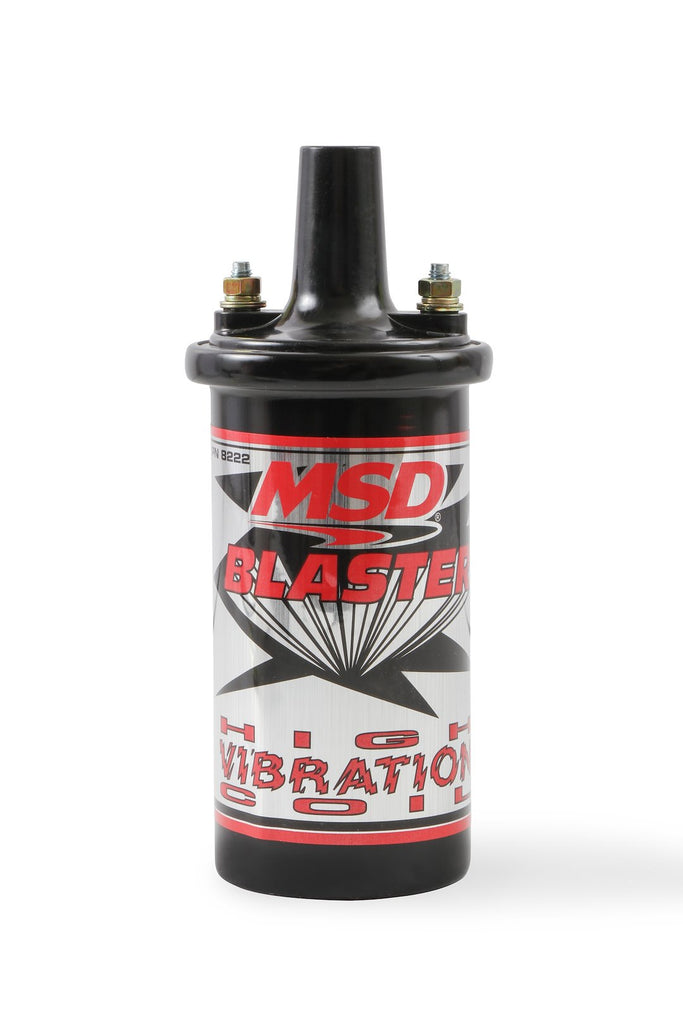

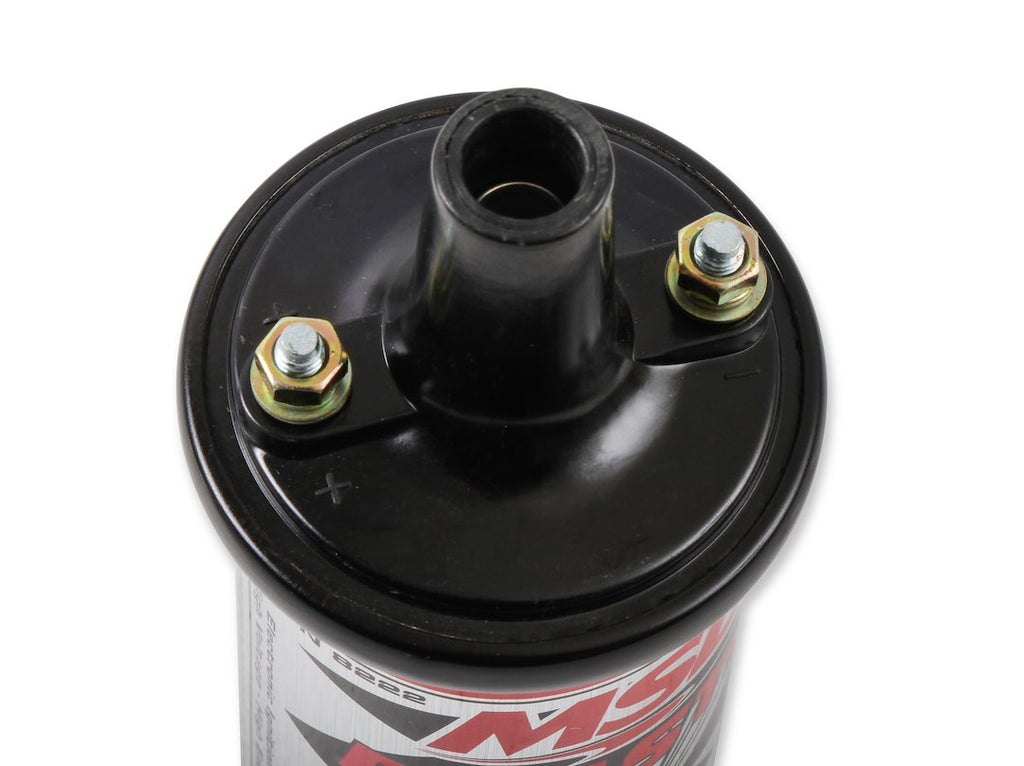

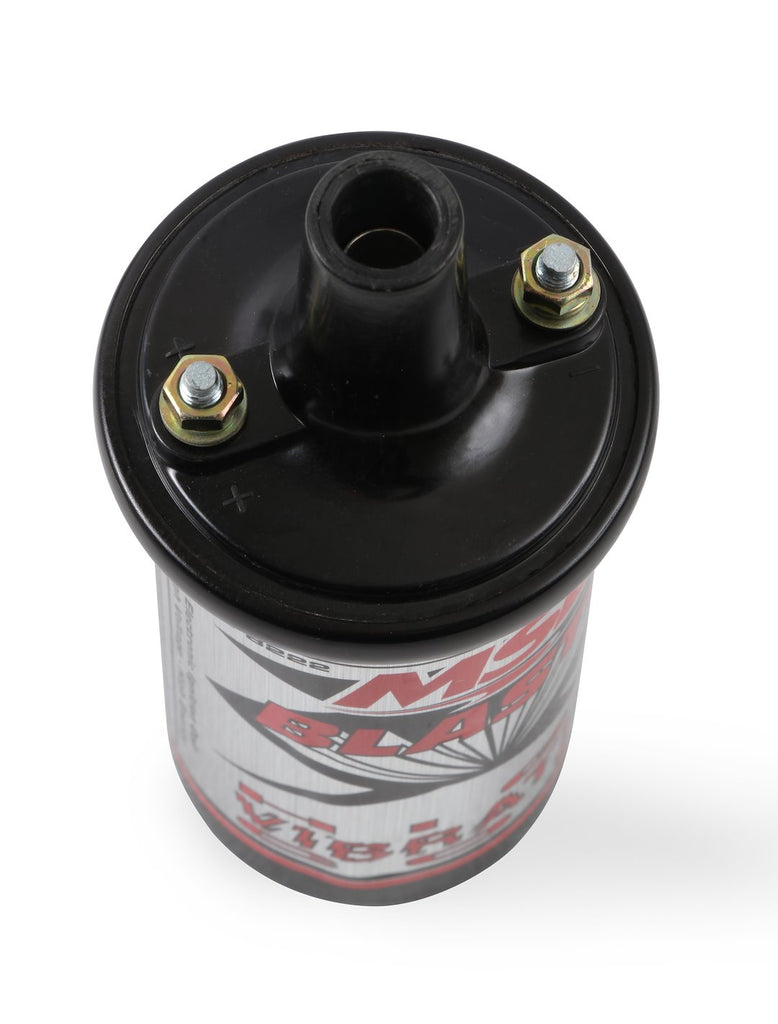

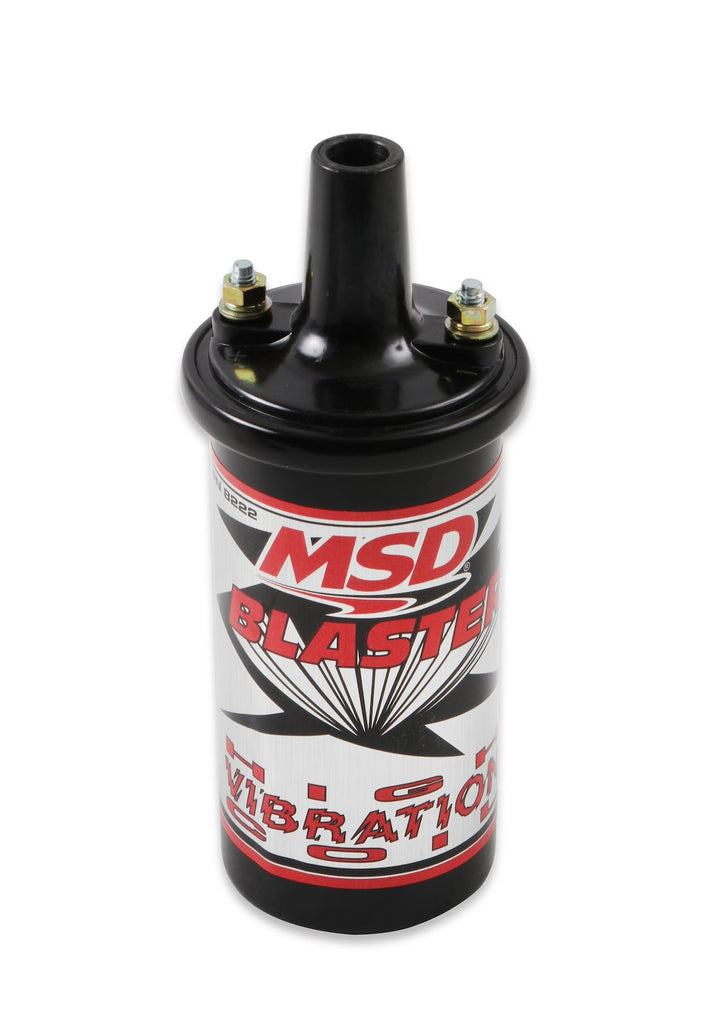

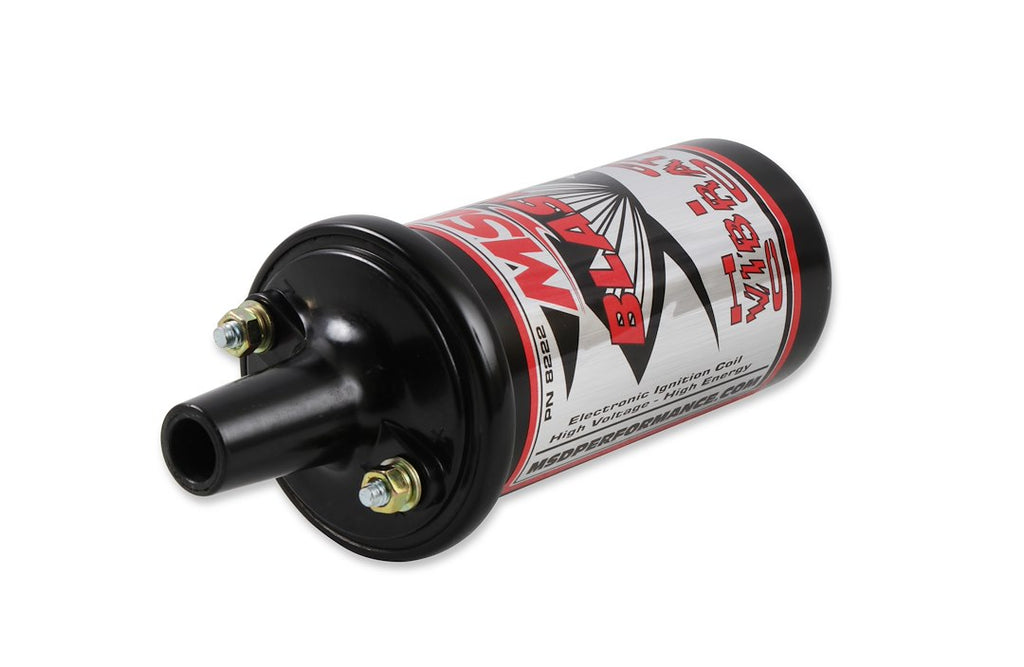

MSD Ignition High Vibration Coil (MPN: 8222)

Durable ignition coil designed for harsh environments and high performance.

The MSD Ignition High Vibration Coil is engineered for applications in off-road, marine, and other demanding conditions. Its robust metal canister is fully encased in premium-grade epoxy, providing superior protection against the high and low frequency vibrations typical in racing environments. This design ensures the integrity of the coil's primary and secondary windings, enhancing reliability and performance.

With a maximum output voltage of 45000 volts, this ignition coil features a 100:1 turns ratio and low primary resistance of 0.7 ohms, resulting in a high voltage output that is essential for effective ignition. The coil's secondary resistance of 4.5 kilo ohms and inductance of 8mH contribute to its efficient operation, making it suitable for electronic and MSD ignition systems.

The MSD Ignition High Vibration Coil is CARB EO approved, ensuring compliance with environmental regulations. Its black finish and compact dimensions make it a versatile choice for various installations, while the absence of a mounting bracket or coil wire allows for customization based on specific needs.

Features

• Metal Canister Is Encased With Epoxy To Protect The Windings From High Vibration Applications
• Improved Output Coil For Electronic Ignitions, And MSD Ignitions
• 100:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
• CARB EO Approved

Specifications

• Manufacturer: MSD Ignition
• Manufacturer Part Number: 8222
• Recommended Use: Off-Road/ Marine
• Coil Style: Canister
• Internal Construction: Epoxy Filled
• Maximum Voltage: 45000 Volt
• Coil Wire Attachment Type: Female/ Socket
• Color: Black
• Primary Resistance: 0.7 Ohm
• Secondary Resistance: 4.5 Kilo Ohm
• Diameter (IN): 2-1/8 Inch
• Height (IN): 6 Inch
• Includes Mounting Bracket: No
• Includes Coil Wire: No
• Includes Ballast Resistor: No
