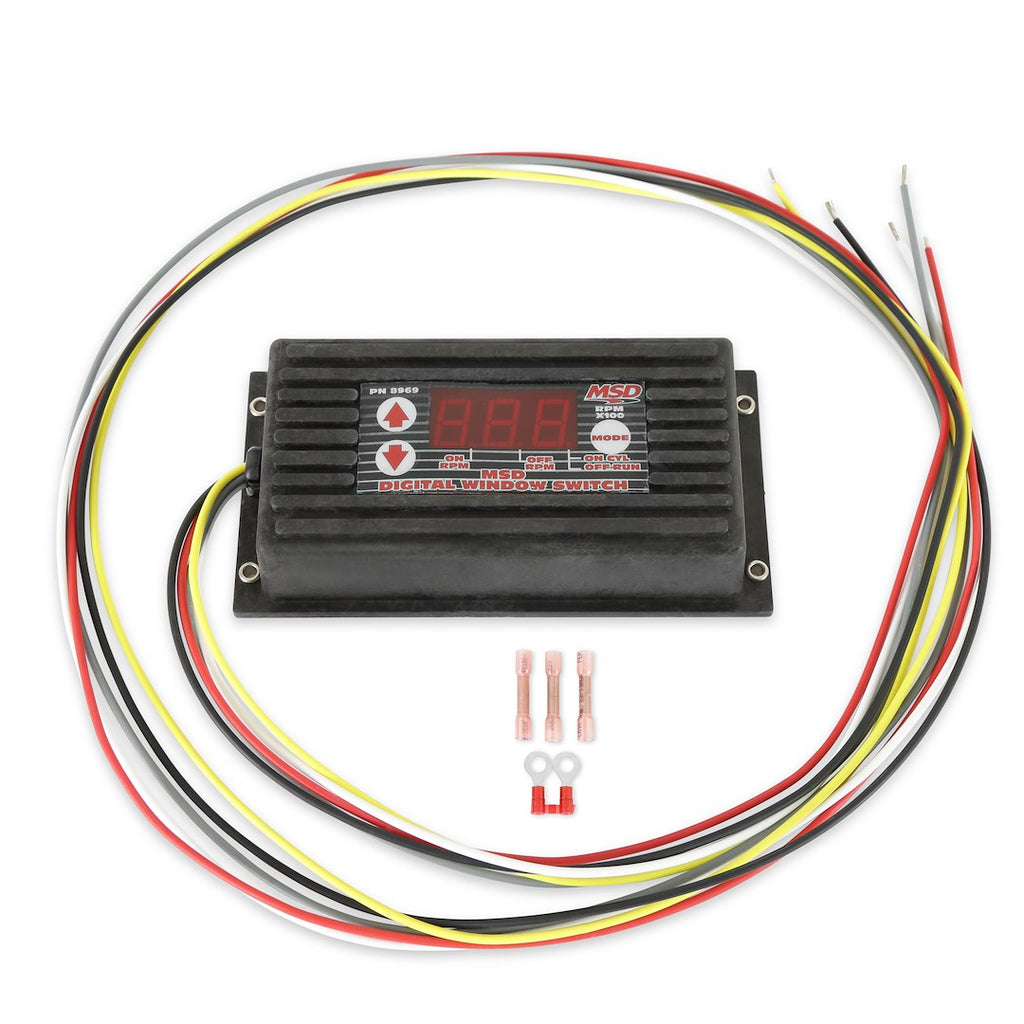

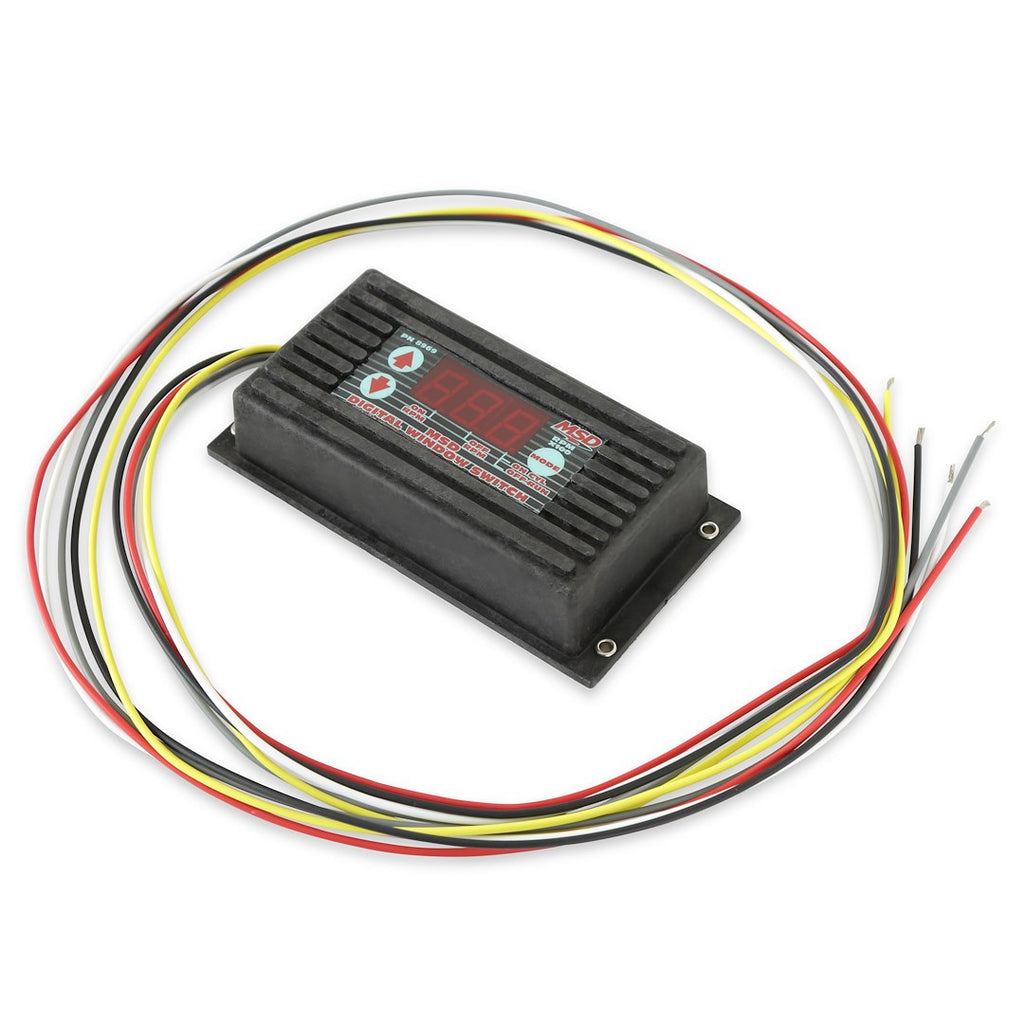

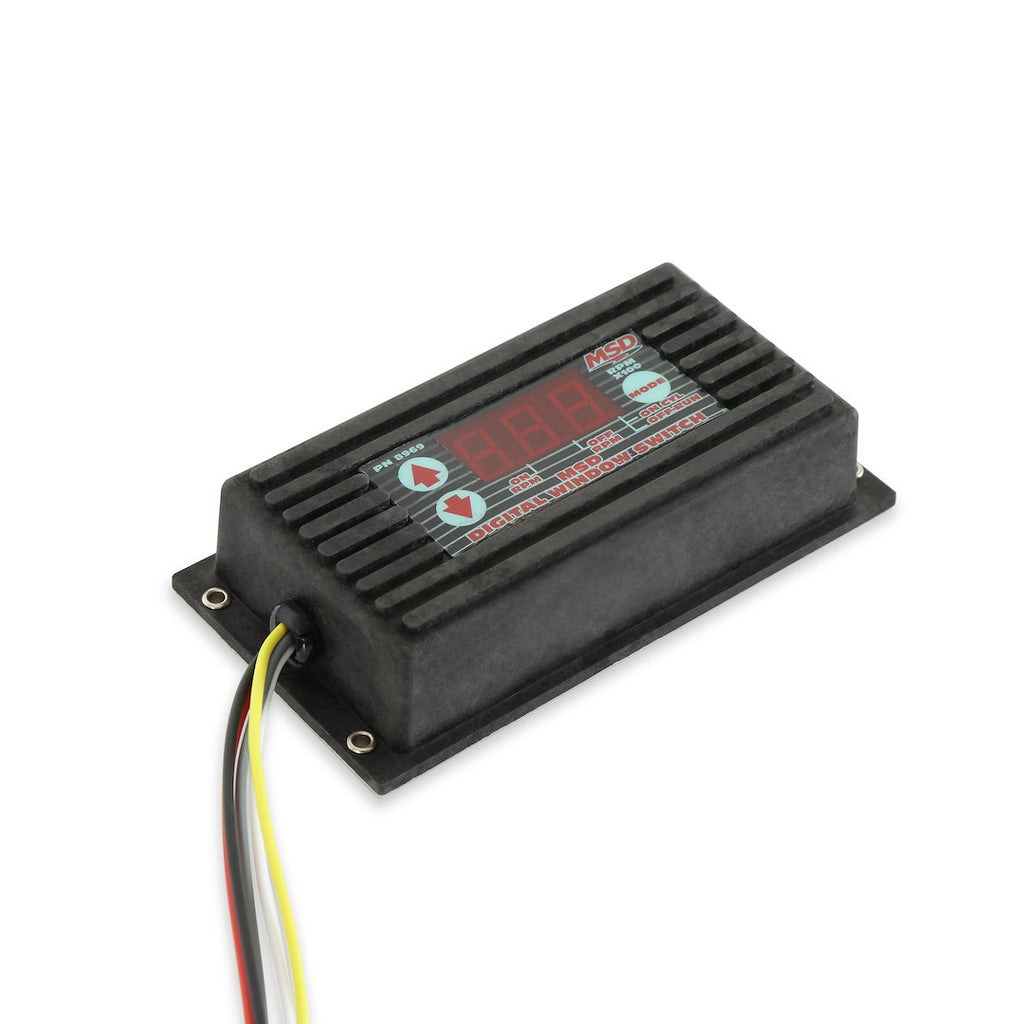

MSD Ignition Digital Window Switch (MPN: 8969)

Versatile RPM switch for precise control in various ignition systems.

The MSD Ignition Digital Window Switch is designed to provide precise RPM control for a variety of ignition systems. This switch accepts input from stock inductive ignitions, tach outputs from ignition controls, ECU tach outputs, and even 5 Volt tach signals, making it highly versatile for different applications including late model coil per cylinder systems and dual coil packs.

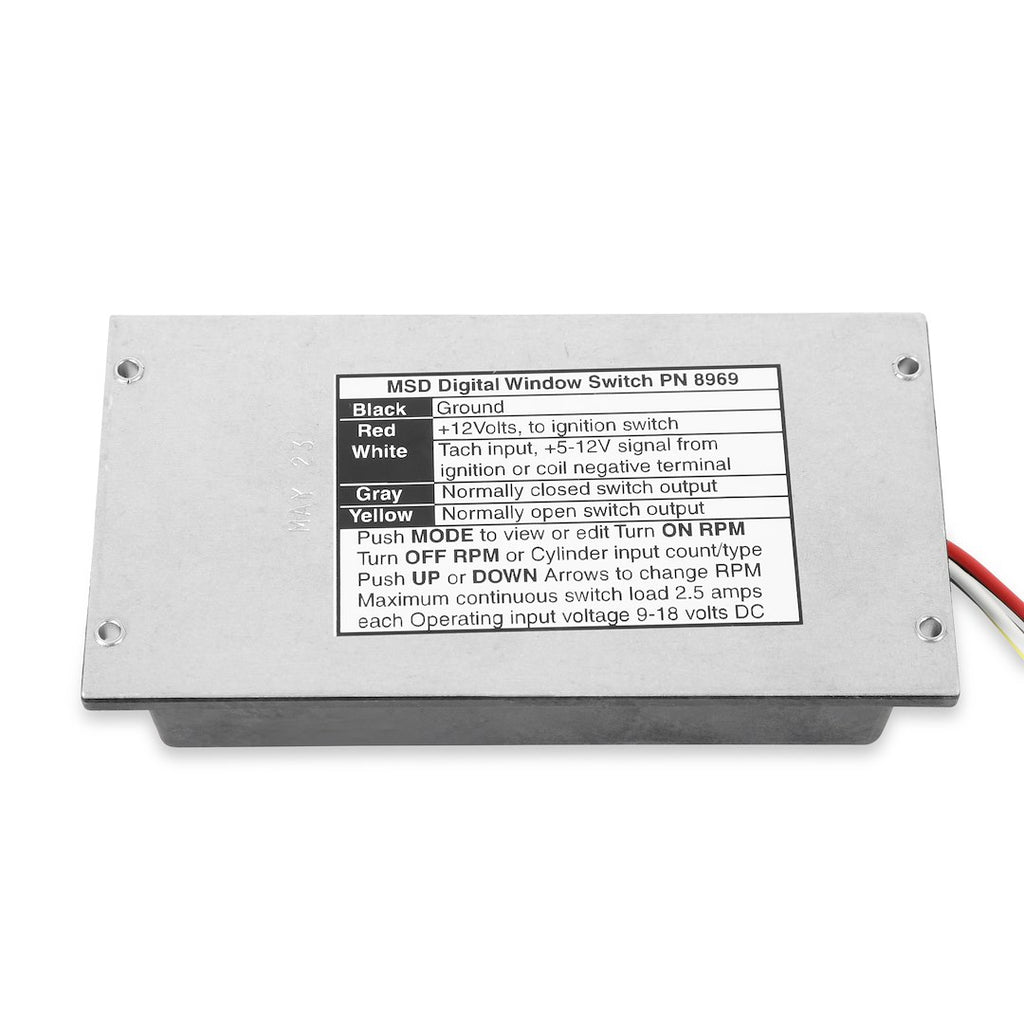

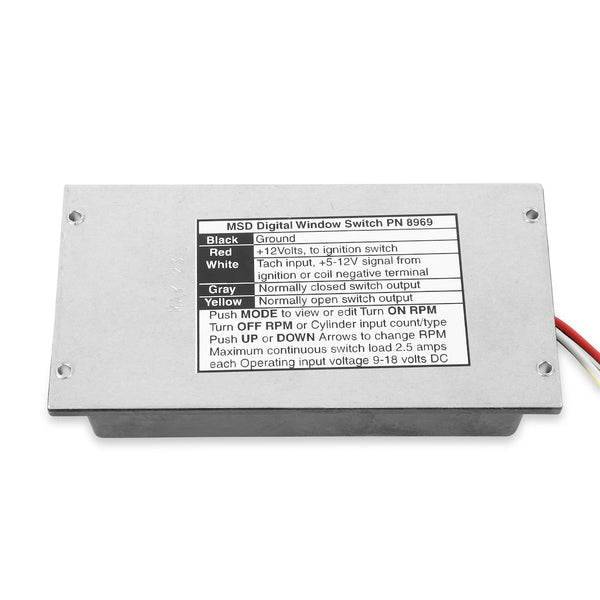

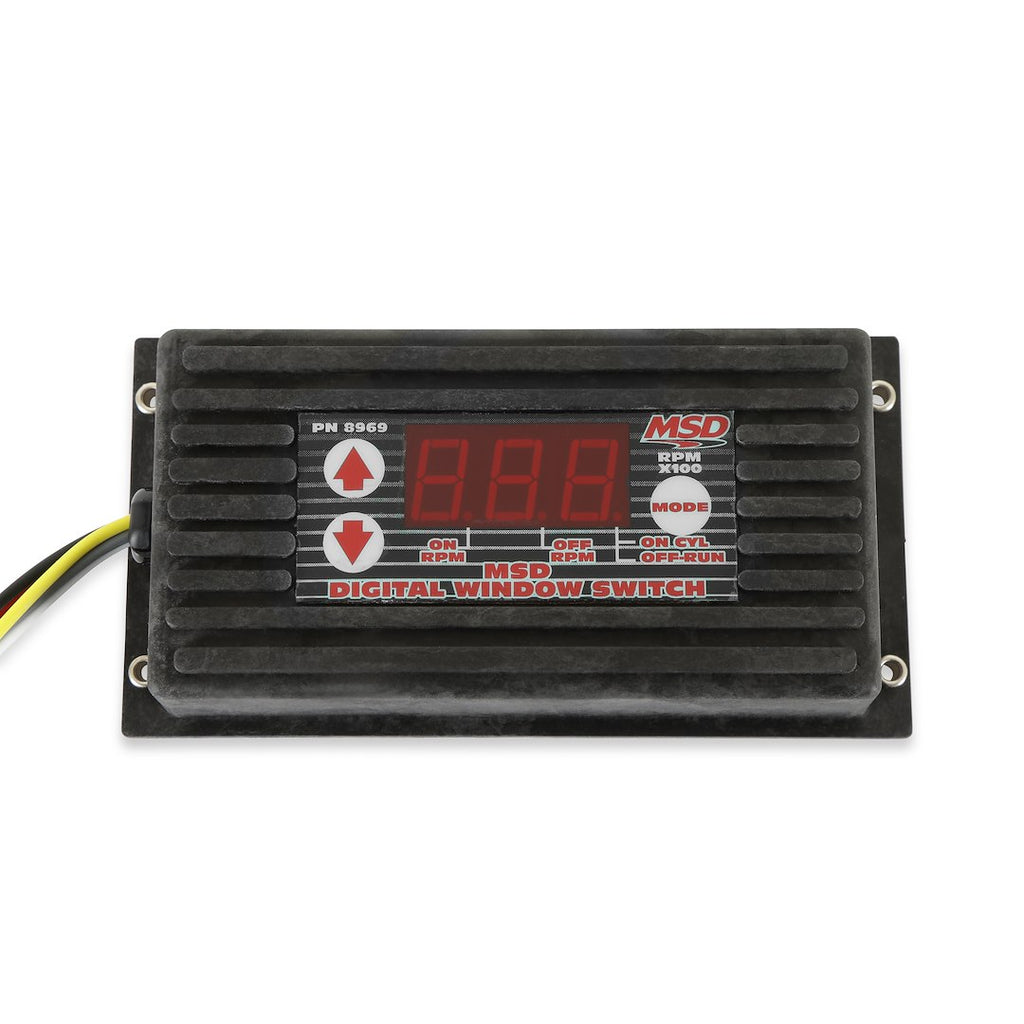

With a programmable RPM range from 200 RPM to 15000 RPM in 100 RPM increments, users can easily set activation points through a user-friendly LED display. This eliminates the need for additional RPM modules, streamlining the installation and setup process. The switch features two outputs, one normally open and the other normally closed, allowing for flexible circuit control.

Operating on an input voltage of 9 to 18 Volts, the MSD Ignition Digital Window Switch is suitable for a wide range of vehicles, including performance cars and motorcycles. Its robust design and technical capabilities make it an essential tool for those seeking enhanced control over their ignition systems.

Features

• Will Accept An Input RPM Signal From A Coil Negative Terminal (For Stock Ignitions), A Tach Output From An Ignition Control, An ECU Tach Output Or Even A 5 Volt Tach Signal
• Great Feature Is That No RPM Modules Are Needed, The RPM Activation Points Are Programmed By Simply Scrolling Through The LED Display To Your Desired RPM Amounts
• Can Be Programmed From 200 RPM To 15000 RPM In 100 RPM Increments
• Can Be Used With An Input Voltage Of 9 To 18 Volts

Specifications

• Manufacturer: MSD Ignition
• Manufacturer Part Number: 8969
• Type: Digital Window Switch
• Input: Stock Inductive Ignitions/ Tach Output From Ignition Controls/ Tach Output From ECU
• RPM Range: 200 To 15000 RPM
• RPM Increments: 100 RPM
• Adjustment Style: Push Button LED

Technical Documents

• 8969.pdf
• msd_brand_warranties.pdf
