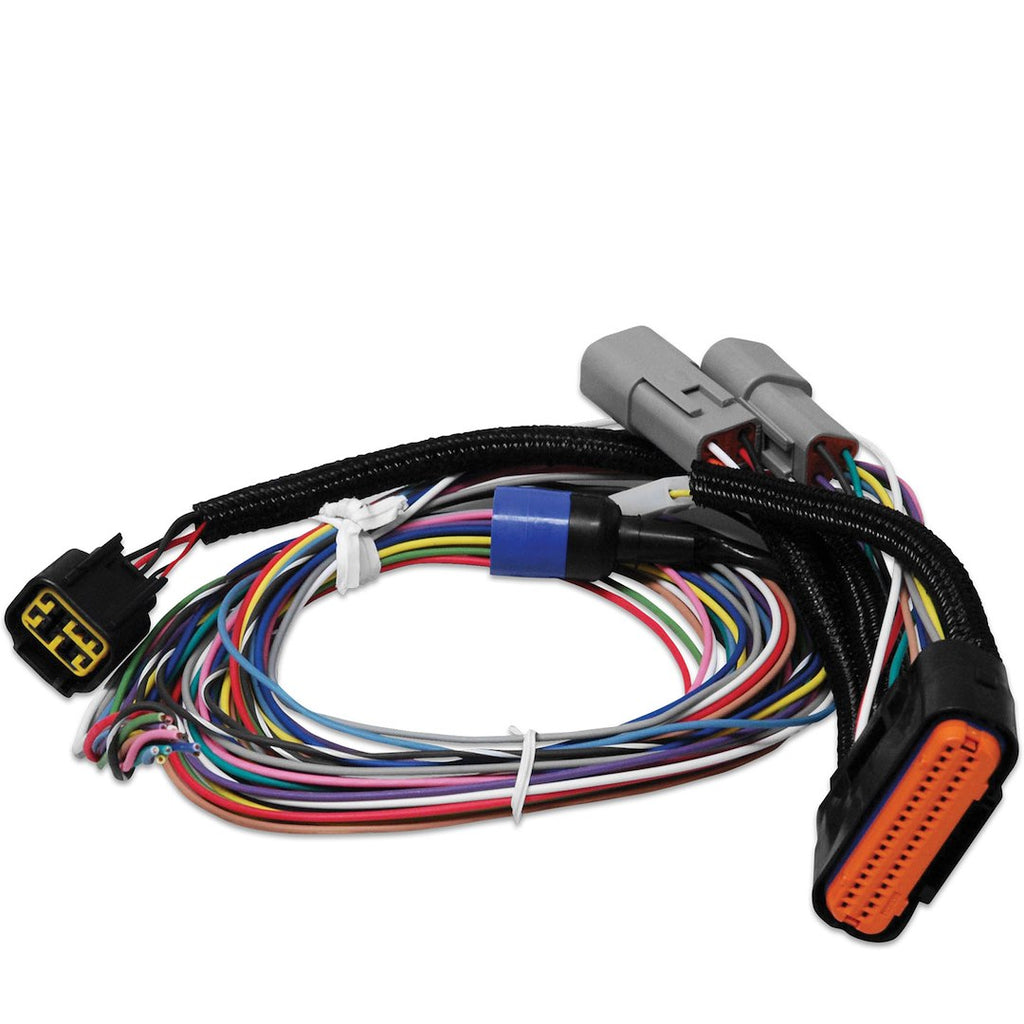

MSD Ignition Control Module Tuner Wiring Harness (MPN: 7780)

Enhance your MSD Power Grid System with this replacement harness.

The MSD Ignition Control Module Tuner Wiring Harness is designed specifically for use with the MSD Power Grid System Controller. This replacement harness facilitates seamless integration with the Power Grid, which includes a RACEPAK central controller and a high output CD ignition system. The harness allows for easy addition of accessories such as a Boost Retard Module or Manual Launch Shift Light Control through a simple plug-in to the CAN-Bus bridge connector.

This wiring harness features a USB connection for straightforward programming and offers advanced timing capabilities based on engine RPM and gear value. It supports individual cylinder timing adjustments and includes five retard stages for nitrous applications. Additionally, the harness provides four steps of RPM limits for various operational phases including burnout, spool, launch, and overrev.

The output switch can be set based on RPM, pressure, or time, allowing for comprehensive ignition data acquisition across multiple runs. Shift light settings can be customized for each gear, enhancing the functionality of your ignition system. The MSD Ignition Control Module Tuner Wiring Harness is an essential component for optimizing performance and data sharing with Racepak's data systems.

Features

• USB Connection For Ease Of Programming
• Timing Based On Engine RPM And Gear Value
• Advanced Individual Cylinder Timing Based On Gear Or Time
• Five Retard Stages For Nitrous
• Four Steps Of RPM Limits For Burnout, Spool, Launch And Overrev
• Output Switch Set On RPM, Pressure Or Time. Ignition Data Acquisition Accepts Multiple Runs
• Shift Light Settings For Each Gear

Specifications

• Manufacturer: MSD Ignition
• Manufacturer Part Number: 7780
• Compatibility: MSD Power Grid System Controller
• Type: Replacement Harness
